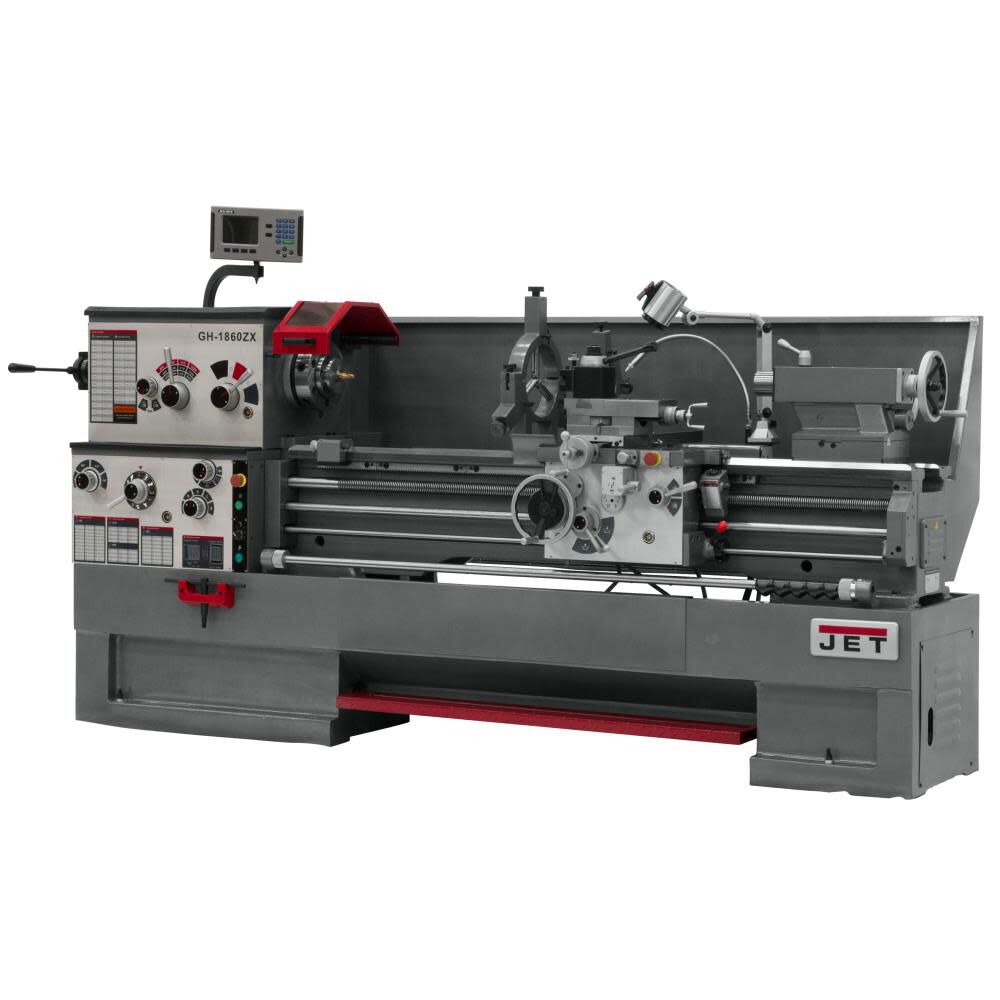

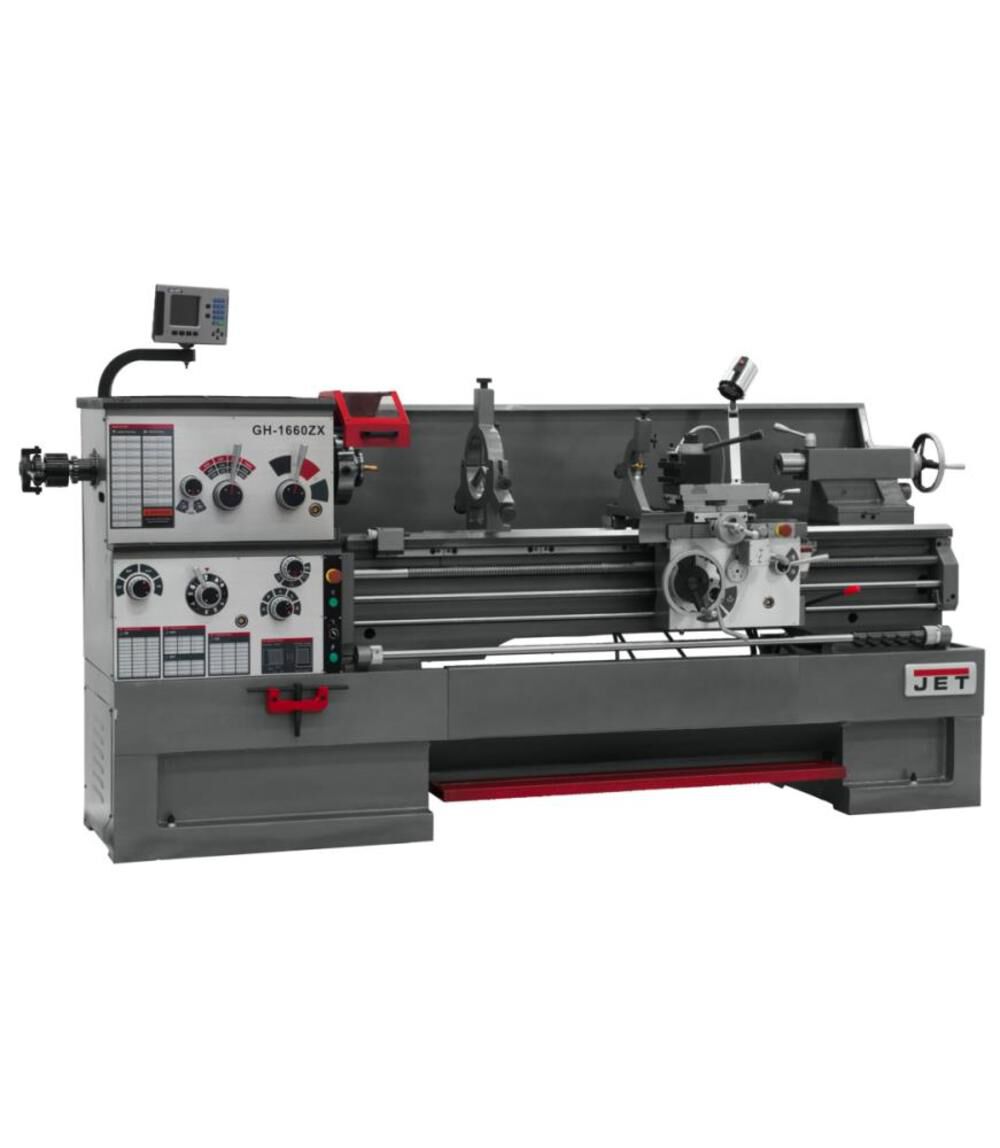

JET ZX Series Large Spindle Bore Lathe
The ZX-Series Large Spindle Bore Lathe provides power, precision, efficiency and reliability to your metal shop.
A one piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the Universal Gearbox eliminates the need to change gears.
Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty.
California Proposition 65 Warning. View Warning LabelFeatures
- 3-1/8” bore spindle is supported by two tapered and one ball bearings
- Universal gearbox allows inch, metric, diametrical and module pitch threads, no change gears required
- One piece cast iron base absorbs vibration allowing heavier cuts
- High quality ANSI class 50 wear resistant cast iron bed ways are hardened and ground
- Siemens Electrics
- Front Removable Chip Tray
- Safety Holder for Chuck Key. Chuck Key must be in Holder for lathe to operate
- GH-1660ZX with ACU_RITE 303 DRO with Taper Attachment and Collet Closer Metalworking Lathe
- Chrome molybdenum headstock gears are hardened, ground and shaved
- Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces
Specifications
Brand Name - JET
Assembled Weight (lbs) - 5825.0
California Proposition 65 Warning Required - Yes
Center To Center (in) - 60.0
Color - White
Country of Origin - China
CSA Certified - No
ETL Listed - No
Height (in) - 48.0
Horsepower (hp) - 7.5
MFG Part # (OEM) - 321391
Maximum Speed (rpm) - 1800.0
Net Tool Weight (lbs) - 5825.0
Package Contents - ZX Series Large Spindle Bore Lathe
Package Depth - 0
Package Height - 0
Package Weight - 5925
Package Weight (lbs) - 6025
Product Condition - New
Spindle Bore Diameter - 0.0
UL Listed - No
UPC - 731325173116
Variable Speed - Yes
Voltage - 230/460 Volts
Warranty Type - 2 Years Limited
