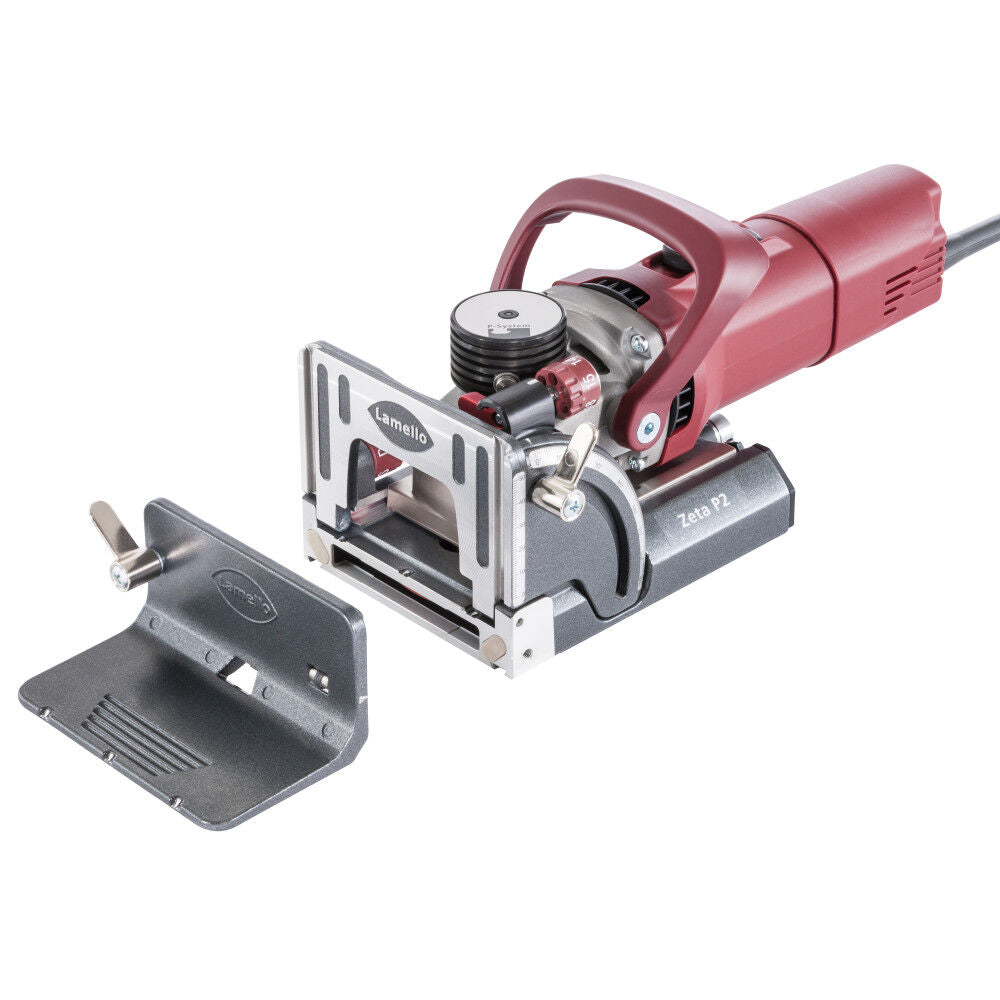

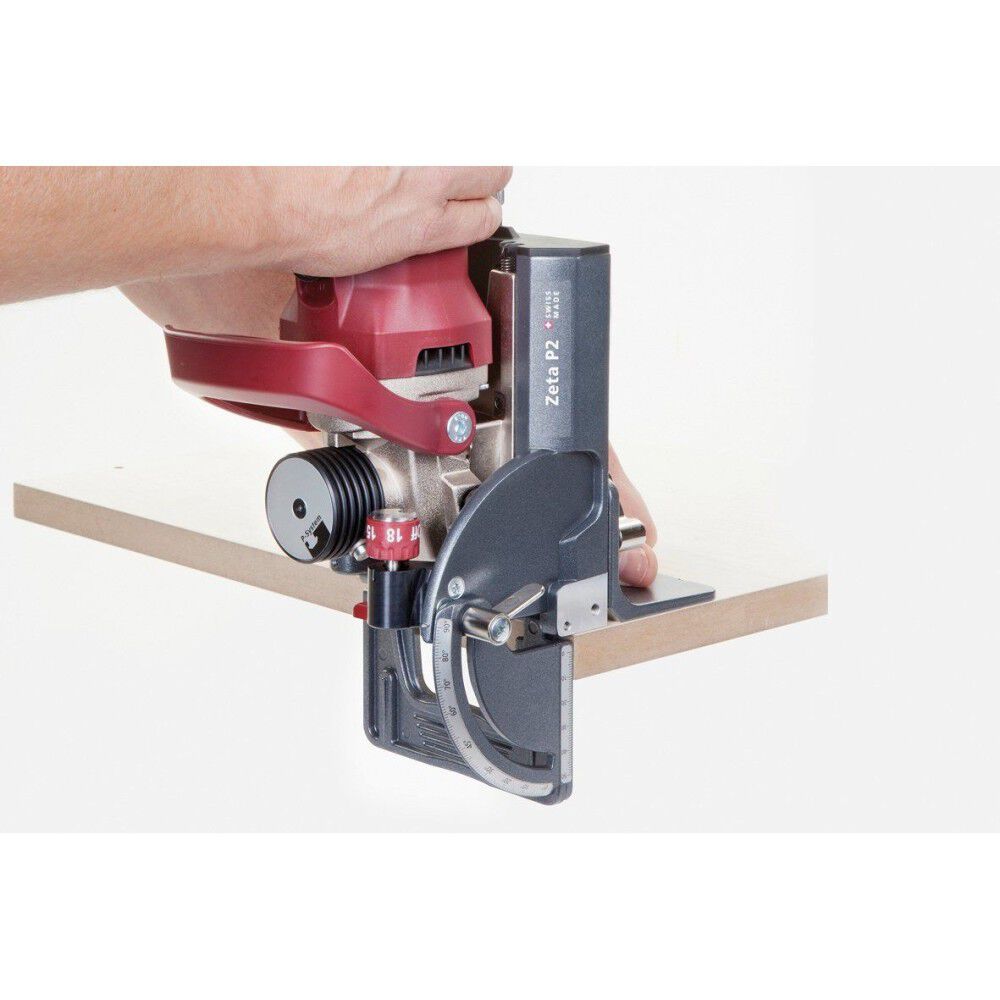

Lamello Zeta P2 Corded Biscuit Joiner with Diamond Tipped Cutter & Drill Jig

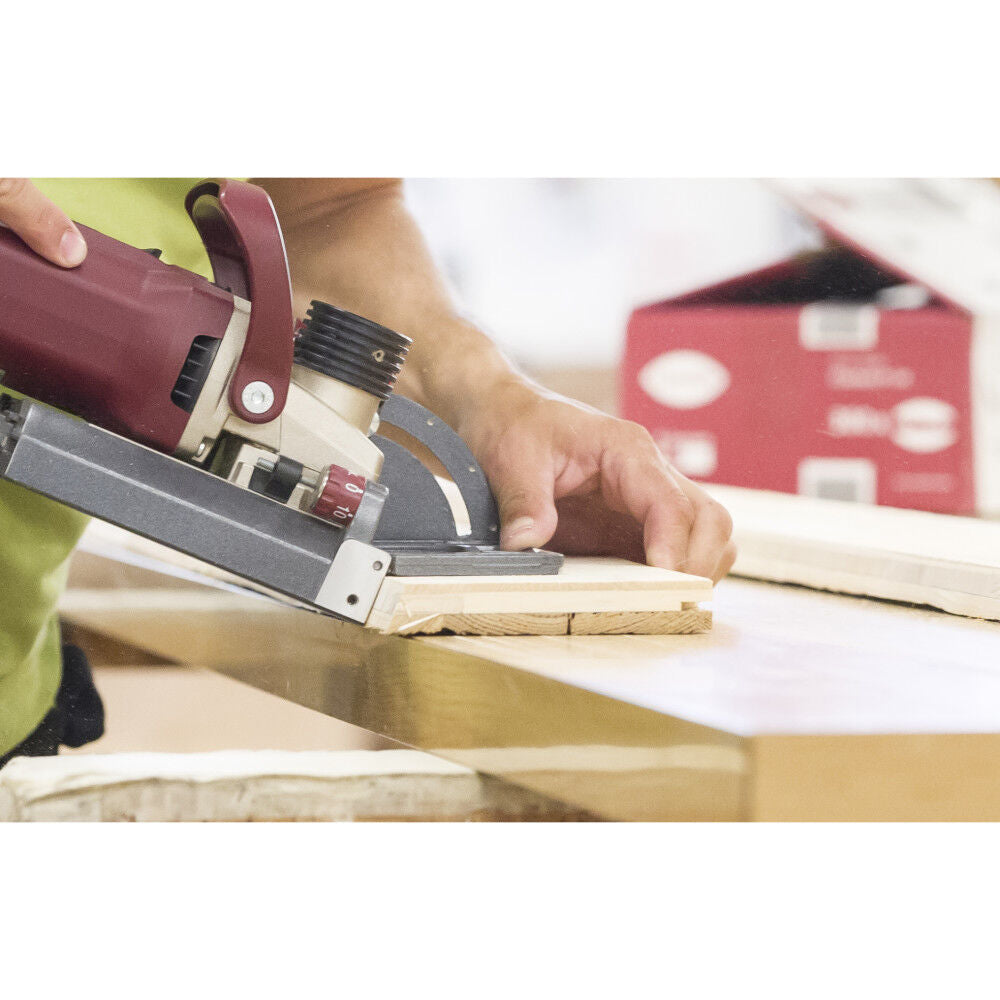

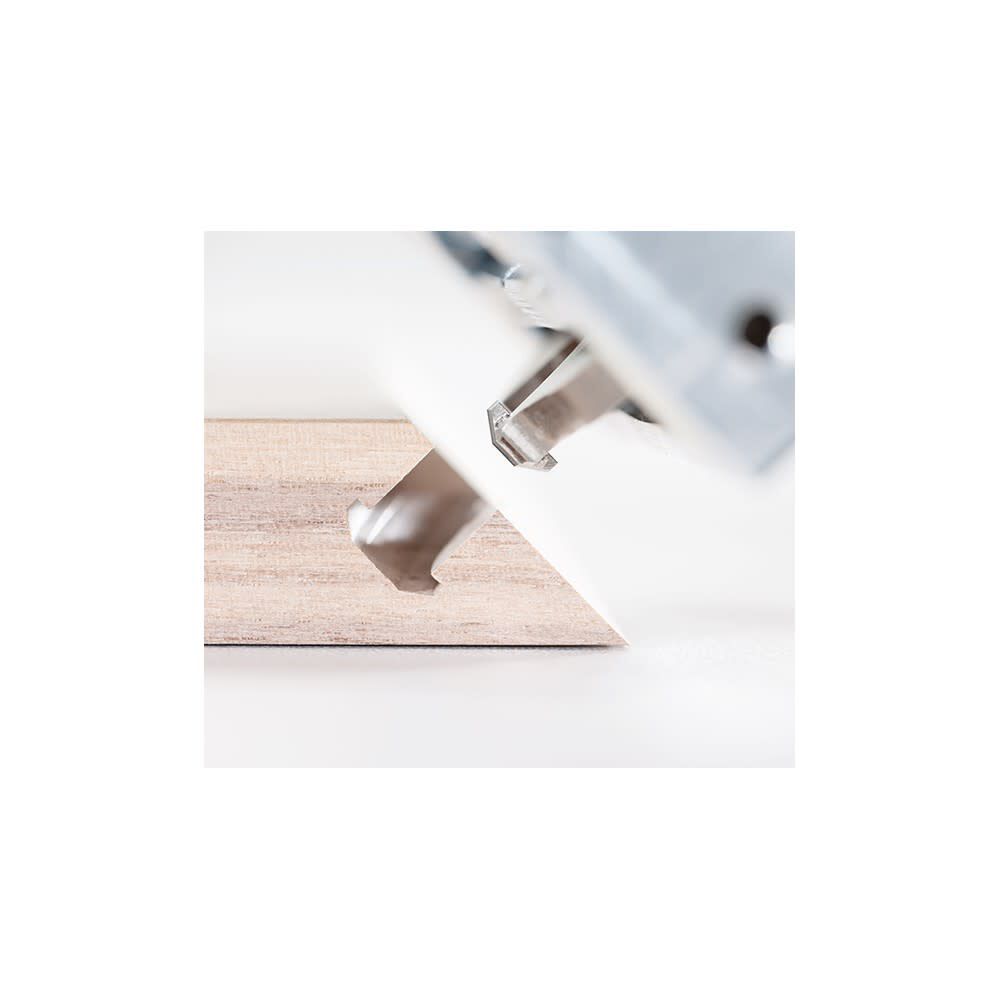

The Zeta P2 is the biscuit joiner for P-System connectors and is used to create the form locking P-System groove within seconds.
The integrated vertical mechanical drive is automatically triggered at the maximum cutting depth and performs a lateral cutter movement for the P-System groove.

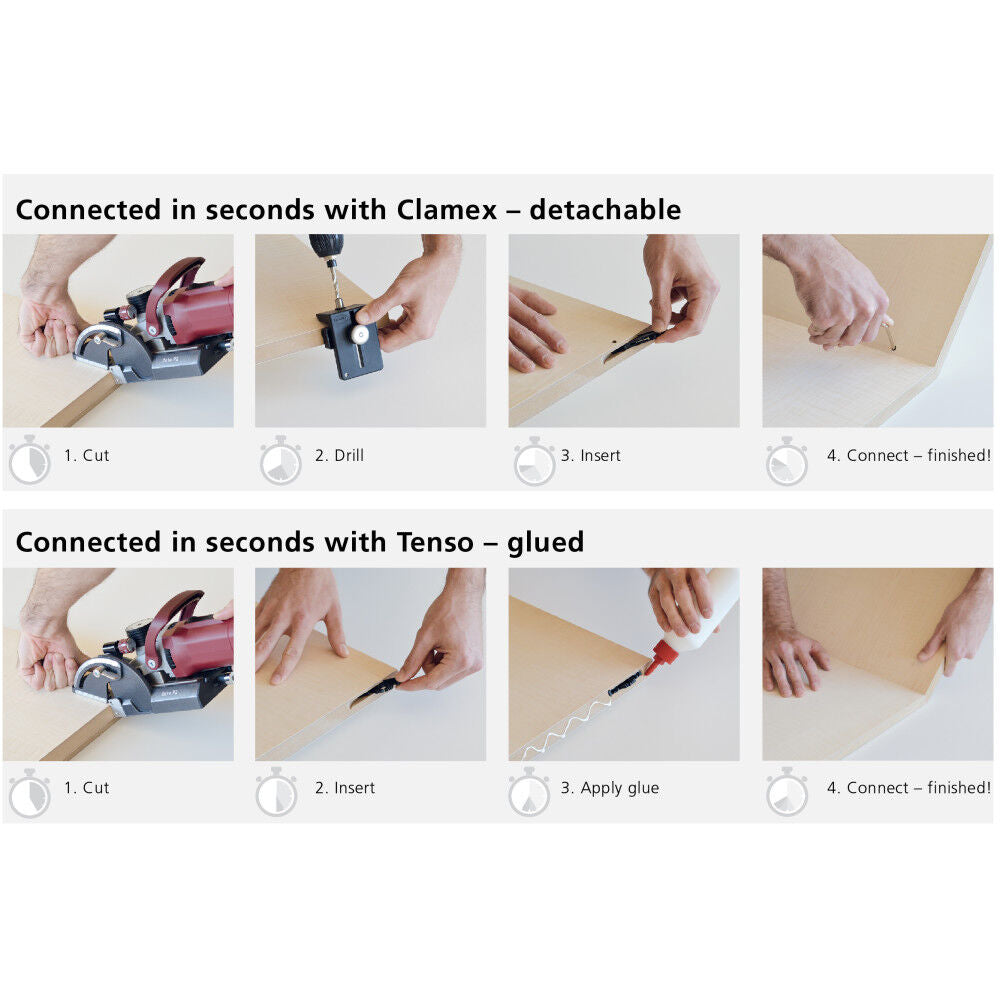

Connectors with various functions and different sizes can now be inserted into the form-locking P-System groove.
The insertion into the groove is quick and without tools.
California Proposition 65 Warning.Features
- For the fast, form-locking anchorage of all P-System connectors in all angles
- The automatic vertical movement creates a profile groove enabling insertion of the connectors by hand
- Fast, easy and precise working with the well-known Lamello system
- P-System vertical mechanical drive: The vertical mechanical drive consists of highly precise rotary parts supplied by Lamello. It creates an eddy current, driving the stroke movement

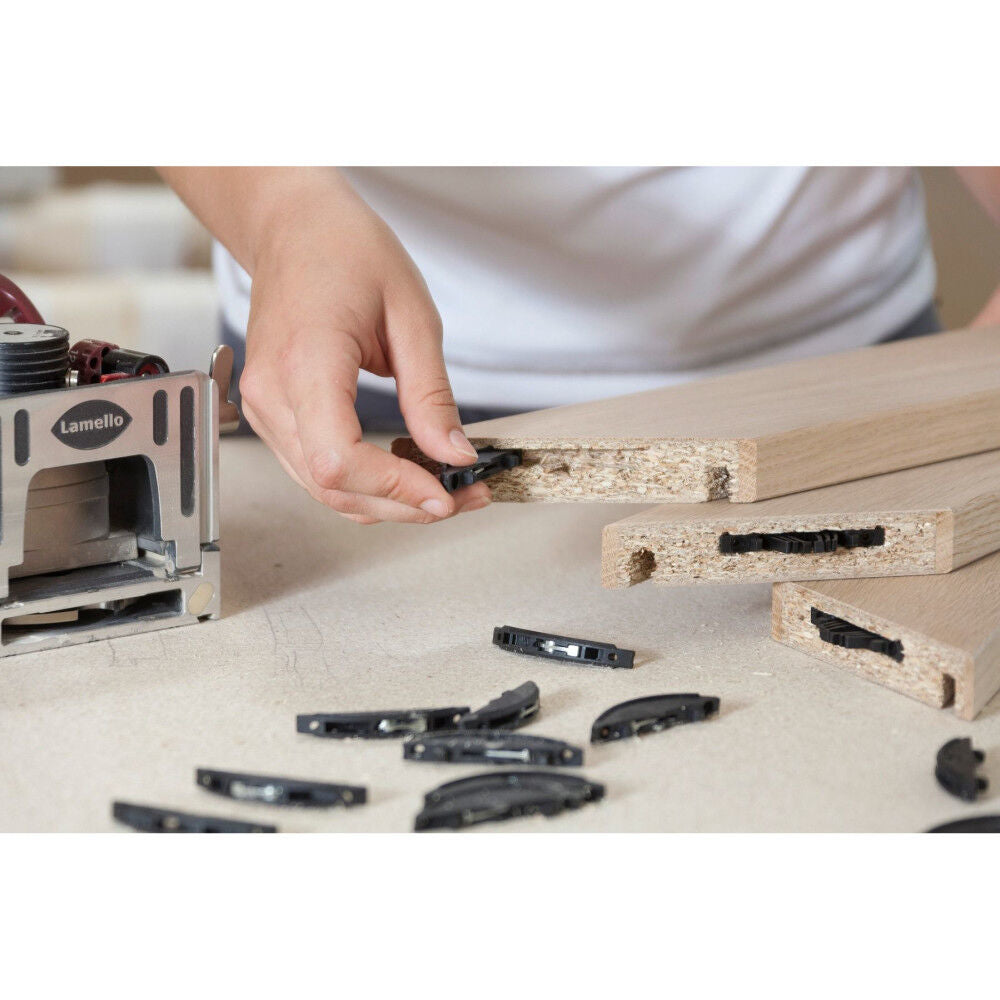

- P-System anchorage: Tool-free anchoring of connectors, without adhesive or screws
- P-System depth adjuster: Extremely fast rotation to set different depths for the P-System joining elements: 10, 12, 14, 15 or 18

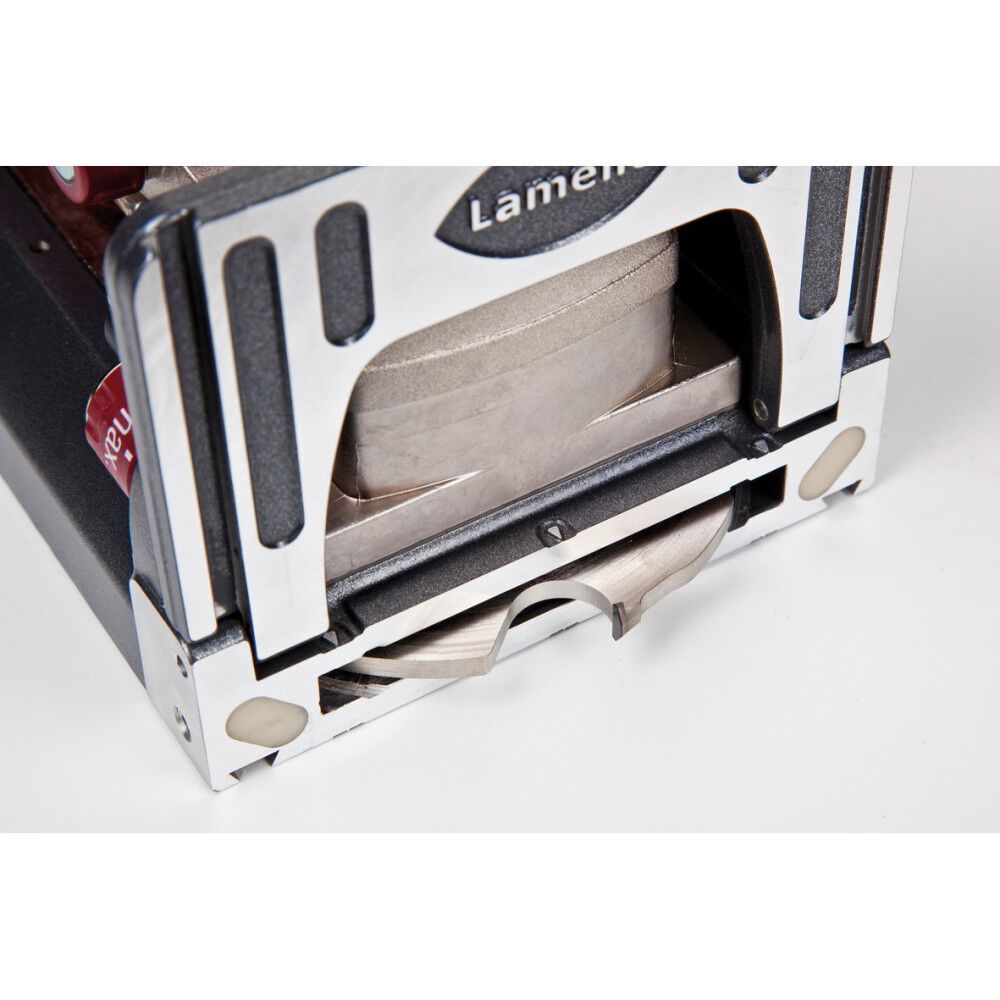

- Wood elements: Use Zeta P2 for standard wooden biscuits by rotating the P-System depth adjuster to OFF to switch off the vertical mechanical drive. The 7 mm P-System cutter is replaced with the 4 mm groove cutter

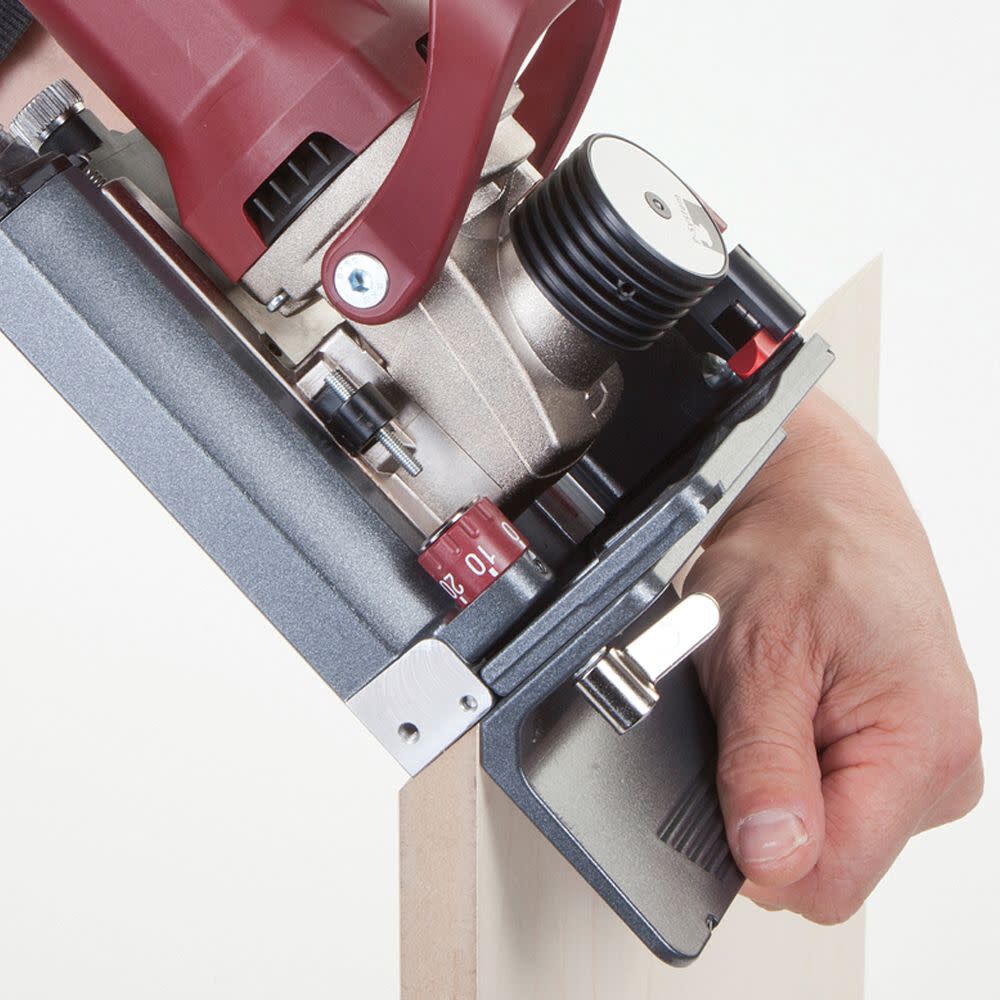

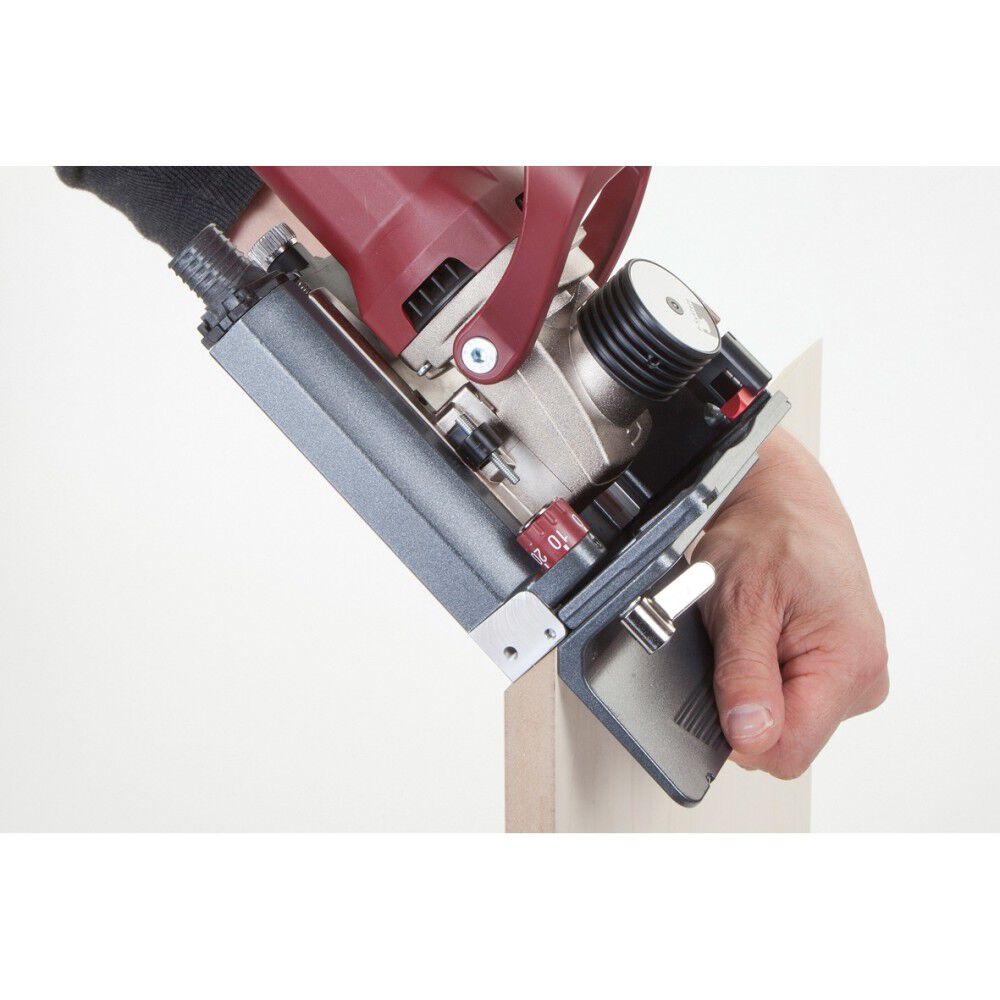

- Swiveling front stop with fixed pivot point: Join reliably with the cutter which is in the exact center between to two application surfaces
- Multifunctional stop square: In addition to vertical stability resulting from the larger contact area, the stop square enables variable adjustment of the groove position, 0-50 mm
Specifications
Brand Name - Lamello
Assembled Weight (lbs) - 8
Country of Origin - Switzerland
MFG Part # (OEM) - 101402DS
Package Contents - Zeta P2, Diamond Tipped P-System Cutter, Stop Square, Suction Stubs 23 + 36 mm, Angle Disc, 2 & 4 mm Spacer, Tool Set, P-System Drill Jig Including Drill
Package Depth - 24
Package Height - 24
Package Weight - 12
Product Condition - New
UPC - 400014000261
Voltage - 230
Warranty Type - No Manufacturer's Warranty
