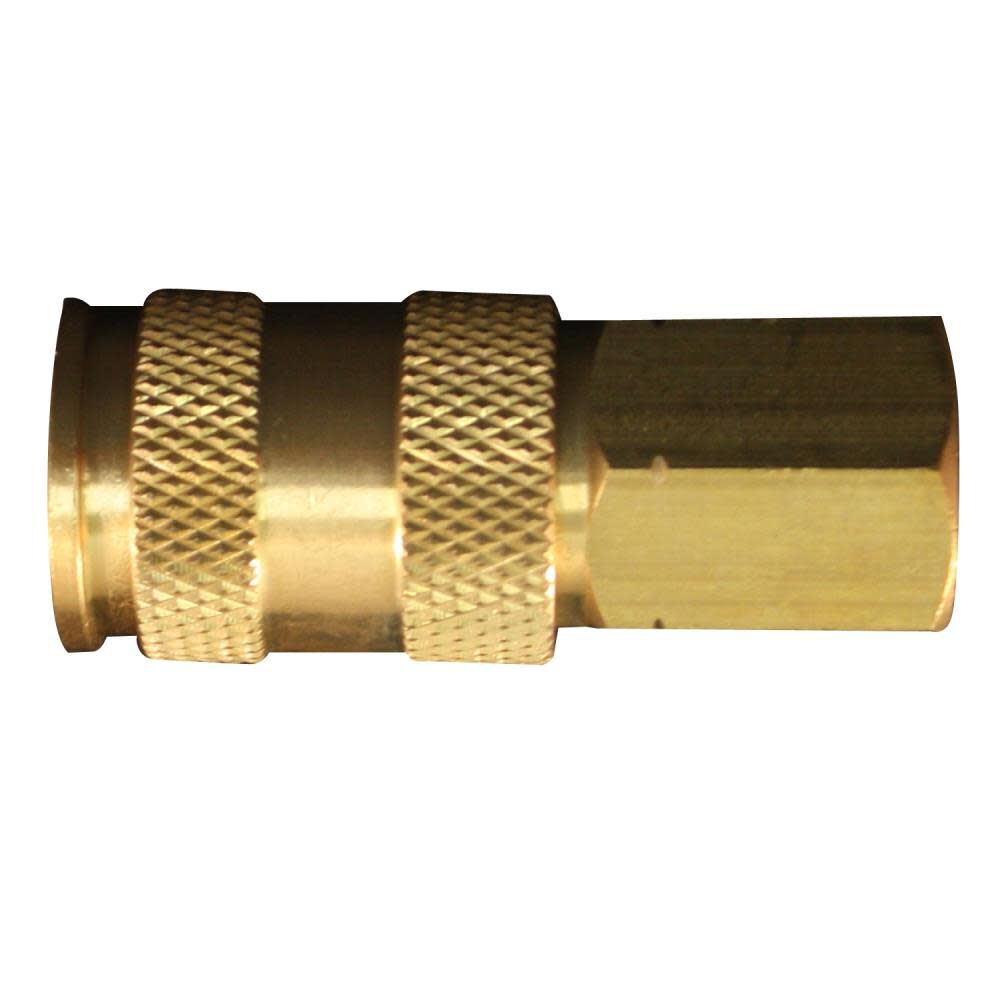

V Style High Flow Coupler 1/4 In. FNPT S-764
V Style High Flow Coupler 1/4 In. FNPT S-764 is backordered and will ship as soon as it is back in stock.
Milton V Style High Flow Coupler 1/4 In.
FNPT
Stop starving your tools of the air they need to perform.
More torque and greater speed are just a couple of the benefits possible with Milton IndustriesÄô V-Style HIGHFLOWPRO Coupler. 1/4" NPT HIGHFLOWPROÆ V-Style coupler are used in applications that require high volume, low pressure.
Will accept M-Style and A-Style plug, however, to retain maximum flow use with V-Style couplers. MORE POWER WHEN YOU NEED IT: HIGHFLOWPRO couplers deliver up to 70% more flow to deliver more power to your air tools.
Great for paint spray applications, sandblasting, high CFM blow guns, and more. COMPATIBILITY: ColorFit V-style plug are compatible with traditional Milton V-style plugs, and competitor V-style plug.
All threaded connections are 1/4" NPT. SPECIFICATIONS: Do not exceed 300 PSI.
For use with compressed air only. 1/4" basic flow size Air flow of up to 74 SCFM Warranty: 1 year
Features
- HIGHFLOWPRO‚Ñ¢ V-Style couplers and plugs deliver up to 75% more air flow
- HIGH FLOW: 1/4-in Female NPT. 1/4-in Basic Flow Size. 300 PSI Max Inlet Pressure. 74 SCFM. 250 Degree F Max Temp
- AVAILABLE: In either Brass or Steel
- IDEAL: For High Volume, Low Pressure pneumatic applications
- COMPATIBLE: Will also accept both M-Style and A-Style plugs. V-style is recommended to retain maximum flow
Specifications
Brand Name - Milton
ANSI/B93.51M-1980 Compliant - Yes
Assembled Weight (lbs) - 0.235
California Proposition 65 Warning Required - Yes
Color - Gold
Country of Origin - Taiwan
ISO 6150-B Compliant - Yes
MFG Part # (OEM) - S-764
Material - Brass
Maximum Pressure Rating (psi) - 300
Package Contents - V Style High Flow Coupler 1/4 In. FNPT
Package Depth - 4.75
Package Height - 0.875
Package Weight - 0.237
Package Weight (lbs) - 0.222
Product Condition - New
Size - 1/4 in
UPC - 030937007643
