CS Unitec 120V IHT Impact Dry Handheld Core Drill for Concrete
The new ESD 162 is a powerful innovation in core drilling, with a German-made 19.5 Amp, 120 V, IHT dry core drill motor.
Featuring a specially designed IHT soft impact system, it enables an optimized, high-frequency impact for fast drilling without the need for water.
The IHT system also benefits with faster cutting speed, excellent dust extraction, less effort, and easy cleanup with no slurry, staining, splatter, or water hazards that come with wet drilling. Designed for extremely fast drilling of up to in 6-3/8Äù dia.
In reinforced concrete, and 8Äù dia.
In brick/ block.

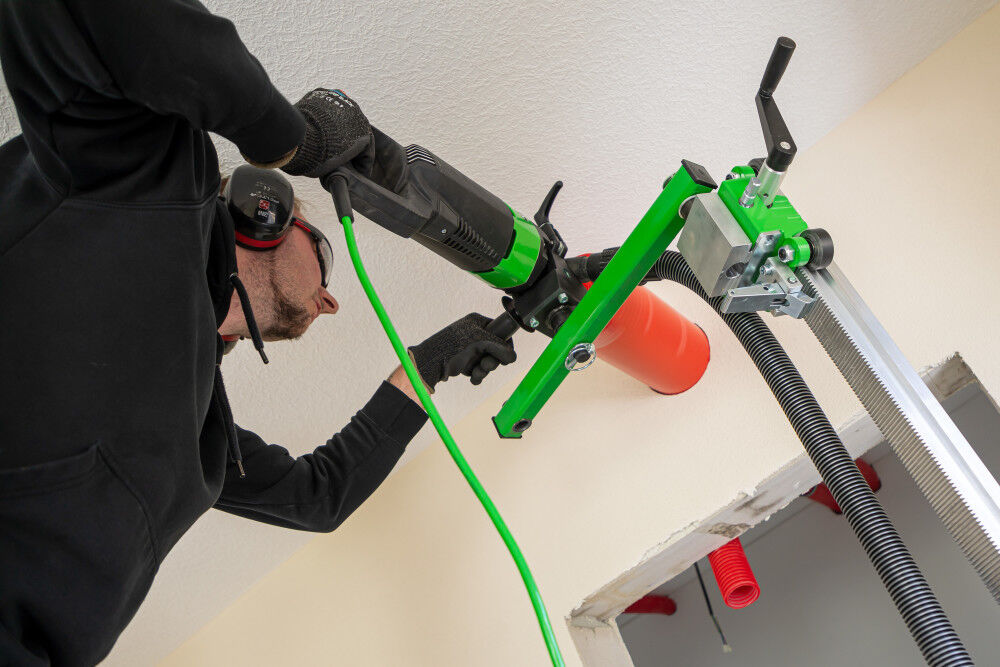

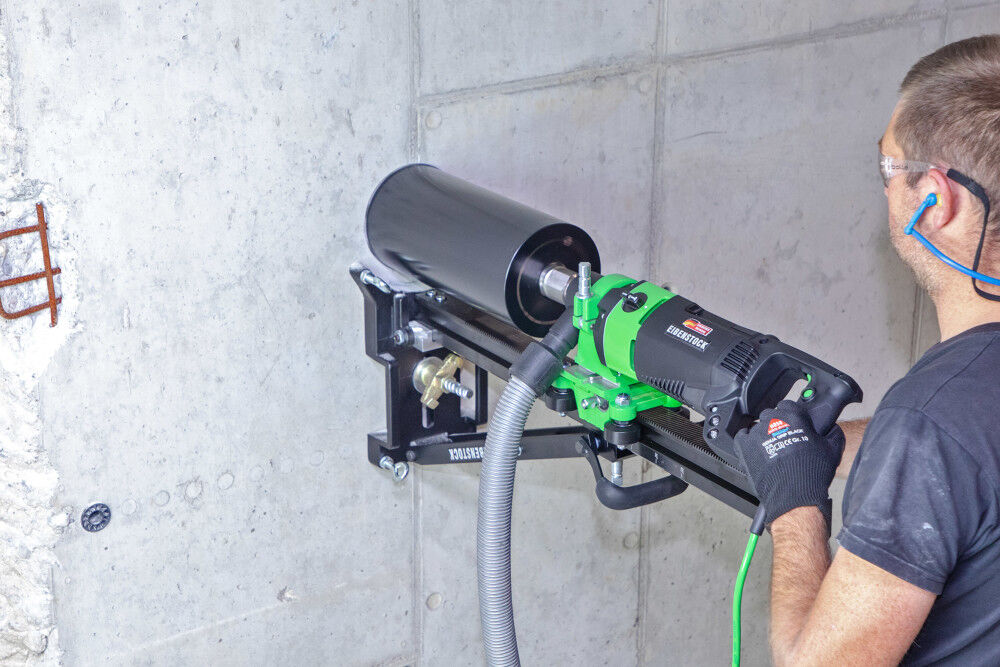

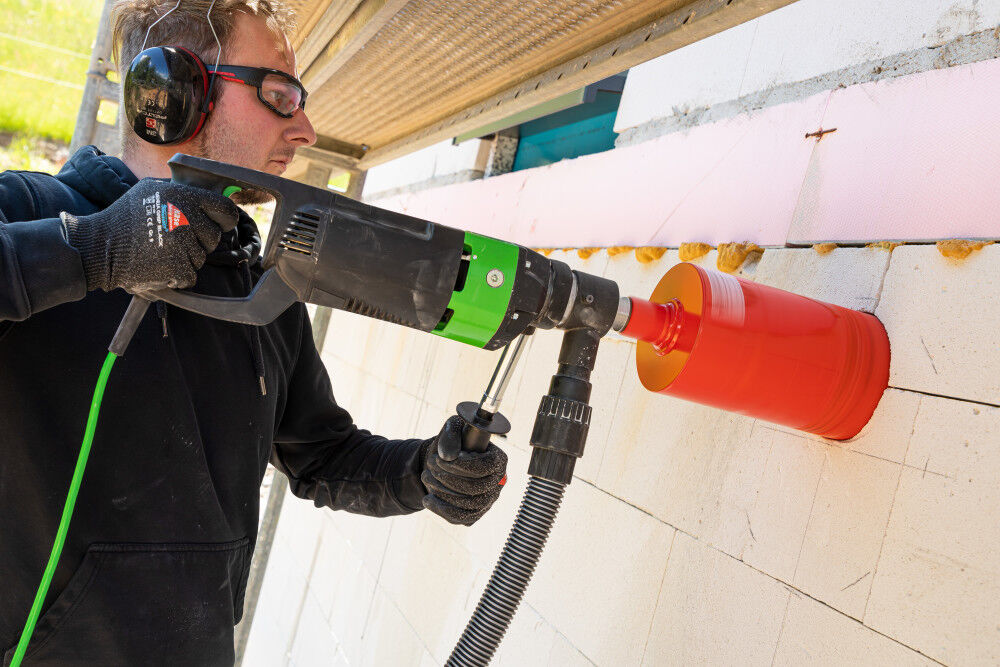

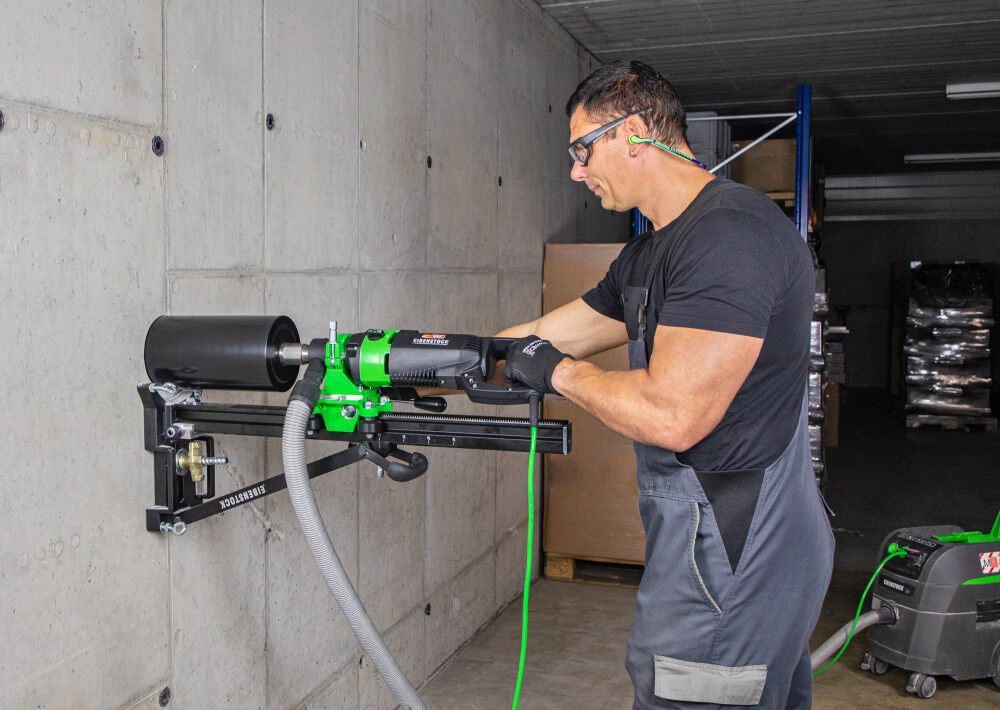

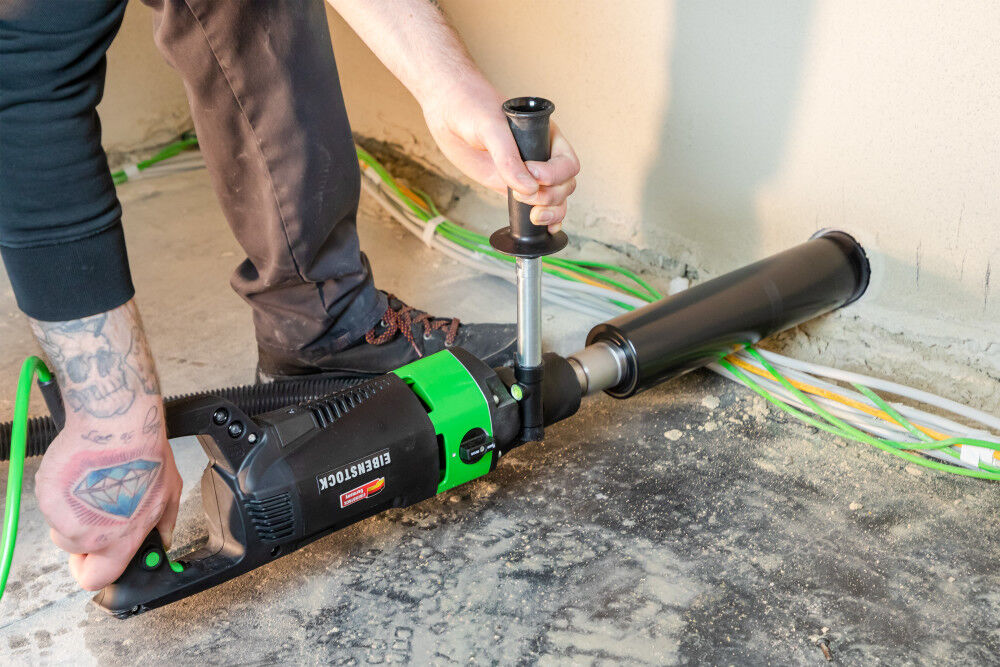

Not only is the ESD 162 engineered for maximum efficiency, but it is also built with an ergonomic design and anti-vibration handles, maximizing user comfort. The ESD 162 can be used handheld up to 3" diameter or mounted to from the available BST 162 H anchor stand for reduced user effort and increased productivity and accuracy.

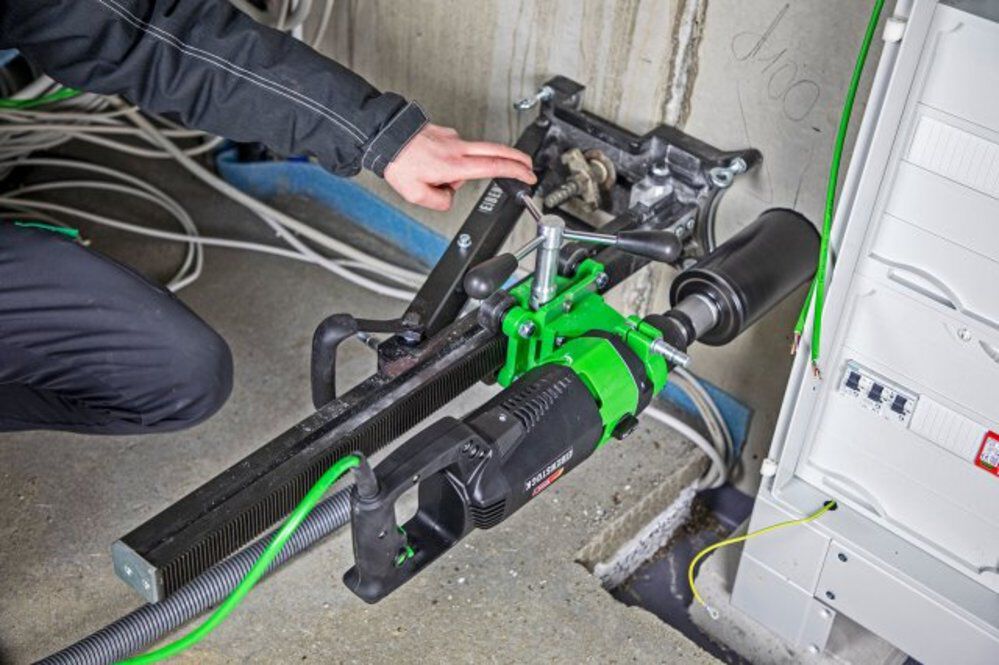

It can also be used for hand or rig-guided drilling of walls and ceiling openings in sanitary, heating, and ventilation construction, and comes with a dust extraction system to maximize user safety. *For safety drilling over 3" diameter, mounting in the BST 162 H stand is required.
California Proposition 65 Warning.Features
- A Game Changer in Core Drilling! NEW IHT Soft Impact Technology for Fast, Easy Dry Core Drilling without slurry or mess, NO Need for Water!
- Excellent multiport dust extraction keeps diamond teeth clear of dust for fast, cool driling and extended bit life without the need for water.
- For drilling in reinforced concrete up to 6-3/8" diameter/ 8" in brick, block and ,masonry. *For safety drilling over 3" diameter, mounting in the BST 162 H stand is required.
- Powerful 19.5 amp motor for demanding use when dry drilling in reinforced concrete, stone, asphalt, marble, ceramic, walls, floors and more
- Easily Switch between Soft Impact Hammer Mode & Standard Drill Mode. Hammer mode should be used with IHT bits only. Standard drill mode is for use with guide bit or stand dry core drill bits below 1-3/4" diameter. Wide Selection of IHT bits available.

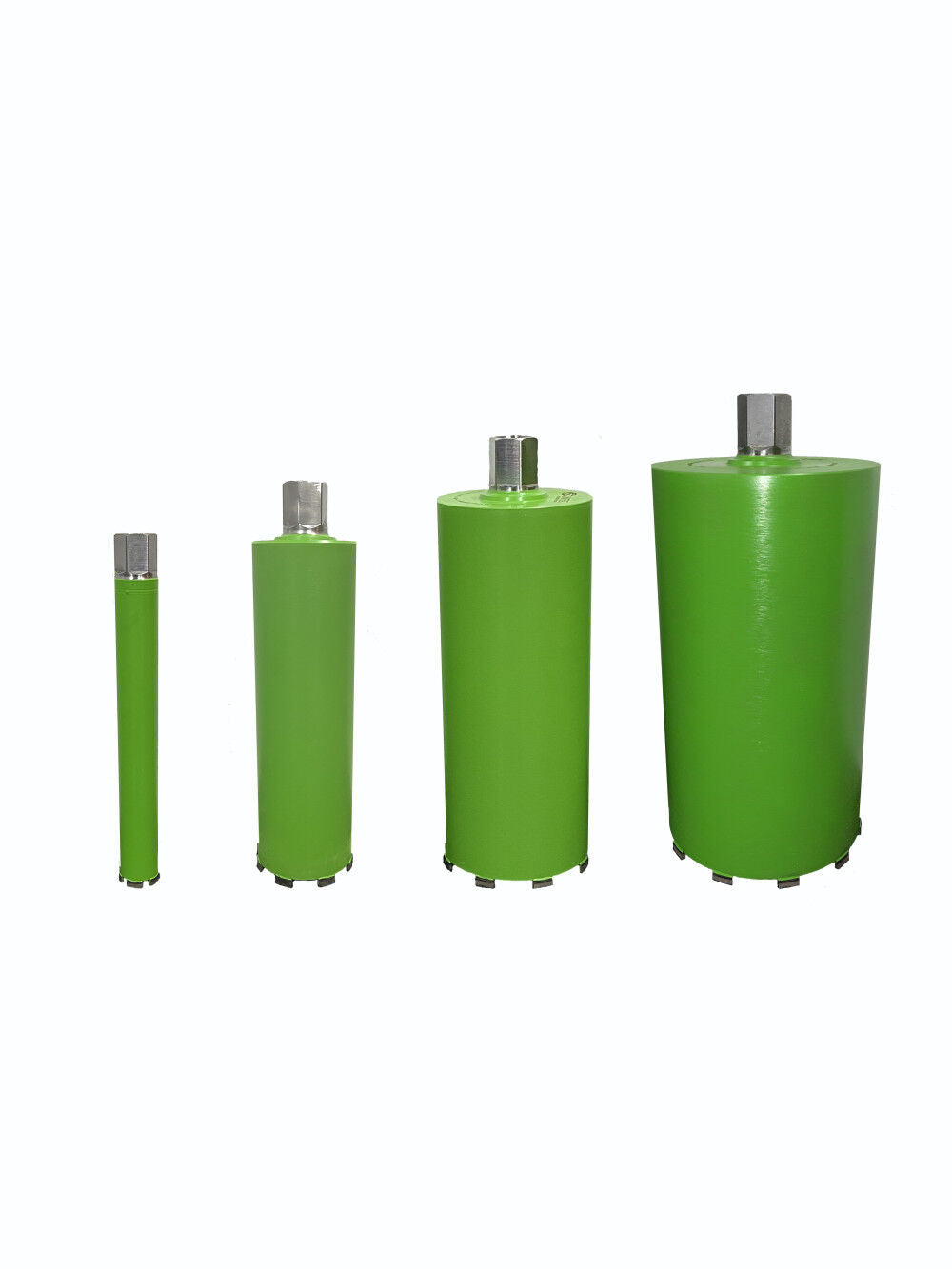

- IHT Soft Impact Bits available up to 8" diameter. Specially designed for use with the IHT soft impact hammermode. Economically priced! *Standard dry core drill bits should not be used with hammer mode.

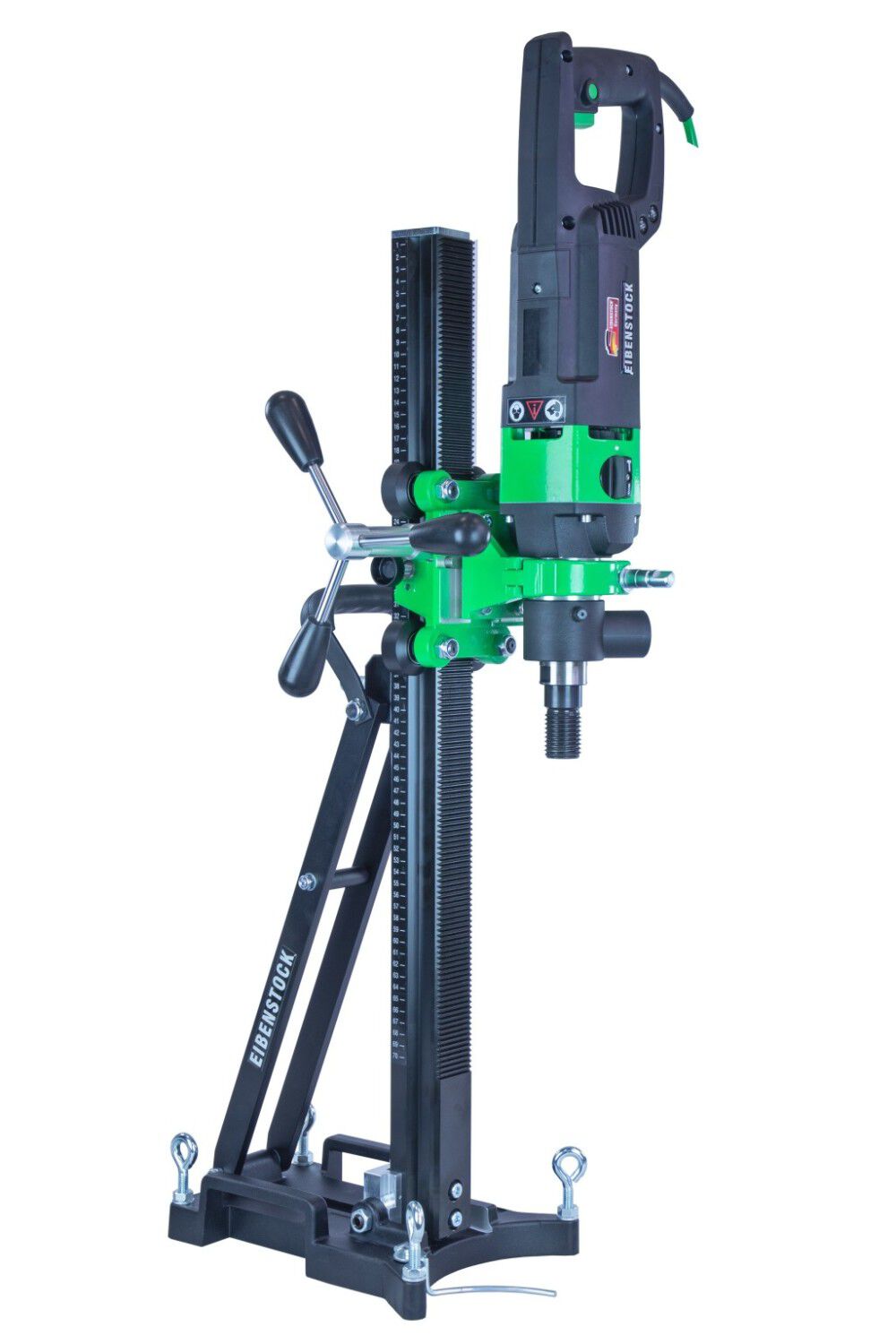

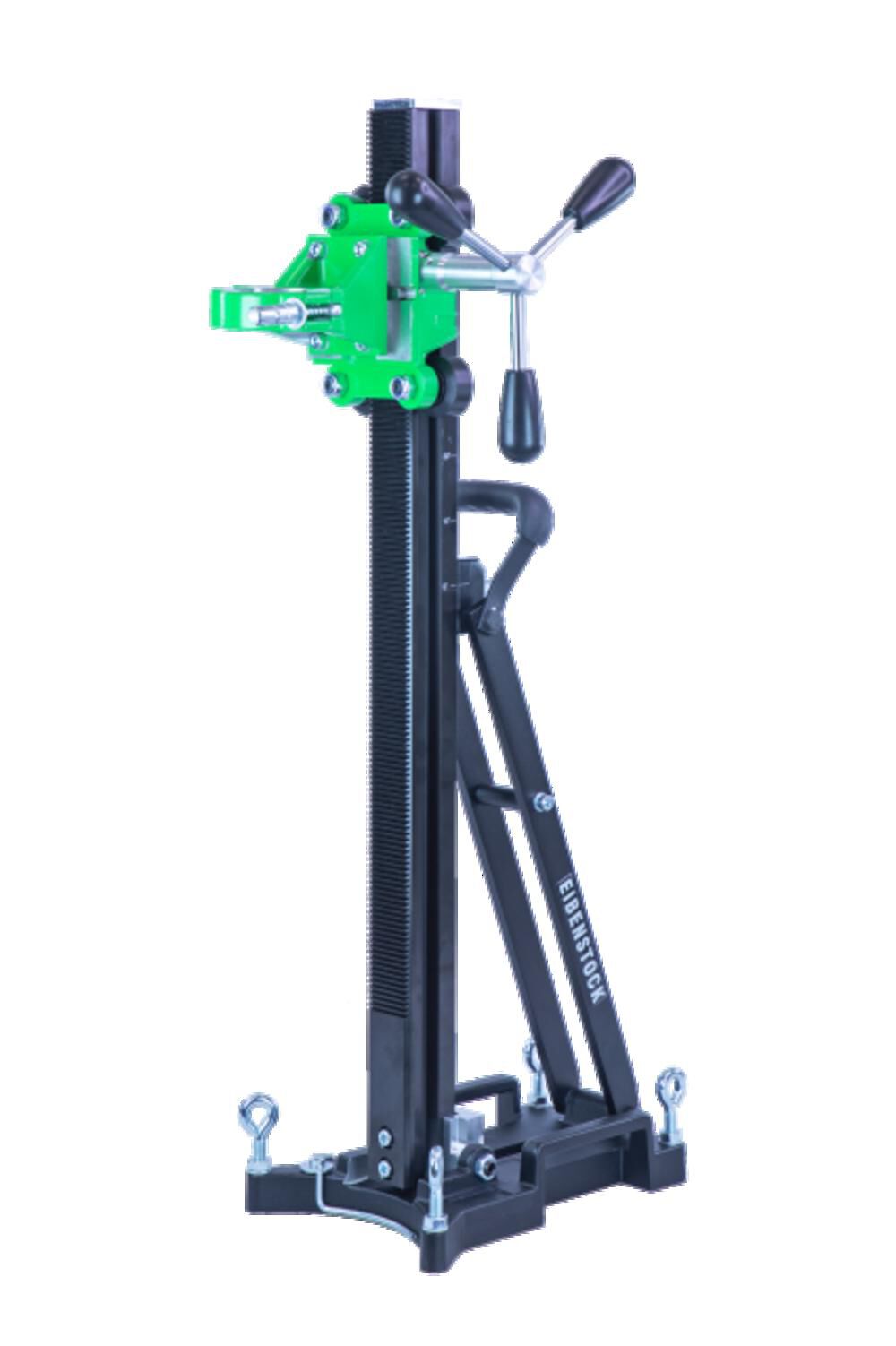

- BST 162 H Anchor stand available for easy rig mounting. Drill and Rig can be separately mounted with ease. Stand easily adjustable up to 45Àö
- Anti-Vibration Handle equipped
Specifications
Brand Name - CS Unitec
Assembled Weight (lbs) - 15
Country of Origin - Germany
MFG Part # (OEM) - ESD 162
Package Contents - (1) ESD 162 Core Drill (1) Molded Carrying Case (1) Integrated Dust extraction port (2) Wrenches (1) 1-1/4"x7 adapter (1) 5/8" x 11 UNC adapter
Package Depth - 12
Package Height - 28
Package Weight - 45
Product Condition - New
UPC - 405000004001
Warranty Type - 1 Year Limited
