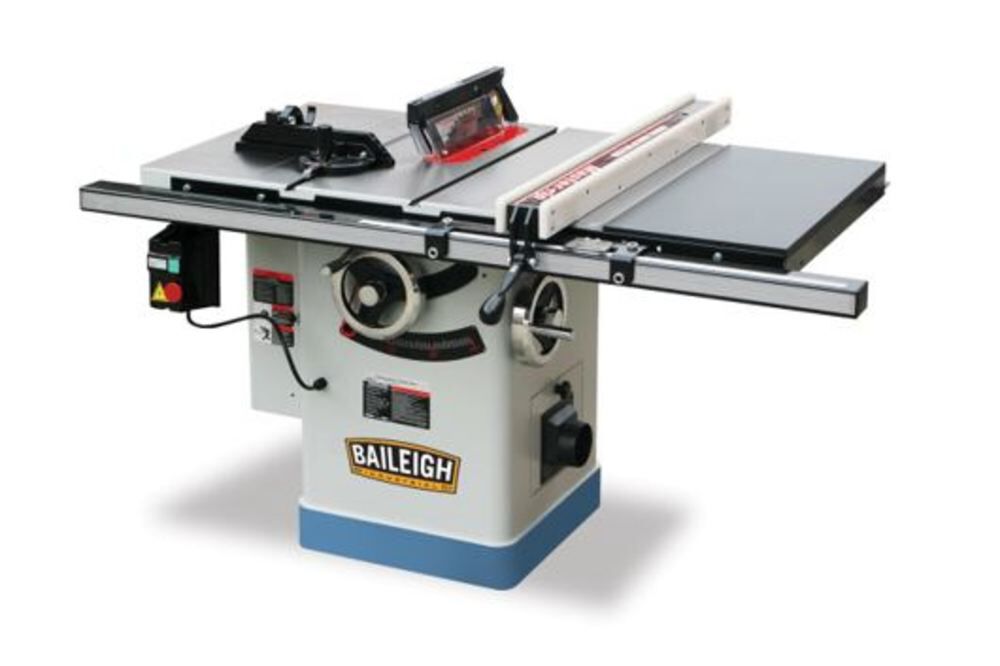

Baileigh TS-1040P-30 Professional Cabinet Table Saw 220V 10in
We designed this 550-pound cabinet saw for professional accuracy.
The steel base and cast-iron table reduce vibrations and keep correct alignment, so you can make perfect joints.
California Proposition 65 Warning.Features
- 30 In. right-side rip capacity, (also available in a 50 In. rip model.), 3HP motor turns at 4300 Rpm, Runs on 220V 1 Phase power, so it will work in almost any shop, uses standard 10 In. blades with 5/8 In. arbor

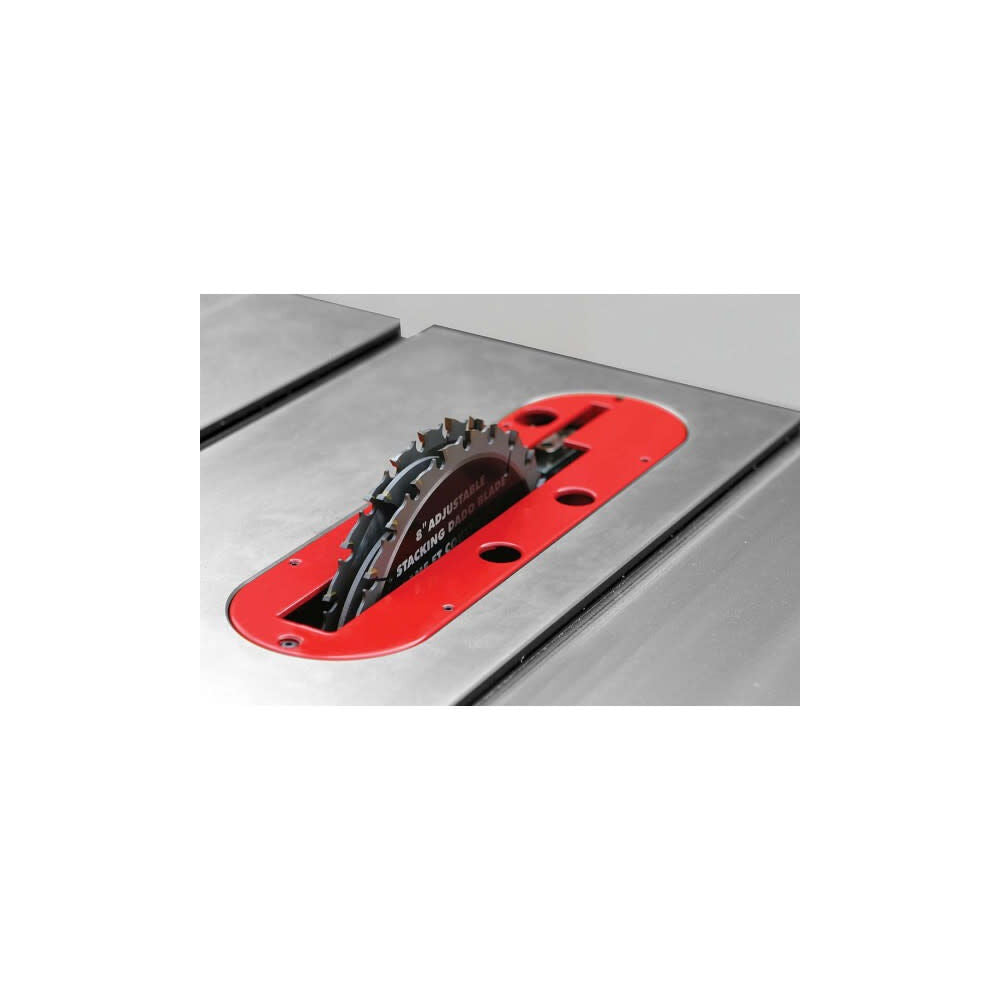

- Includes standard and dado inserts, 40 In. x 27 In. table, made of cast iron, with 30 In. extension boards, made of impregnated poly, help you handle large, awkward pieces, tabletop is webbed into the base to stay square and true, heat and moisture in your shop won’t warp it, wood glides across the ground and polished cast iron table surface, you can bring back the original smooth shine even after years of use

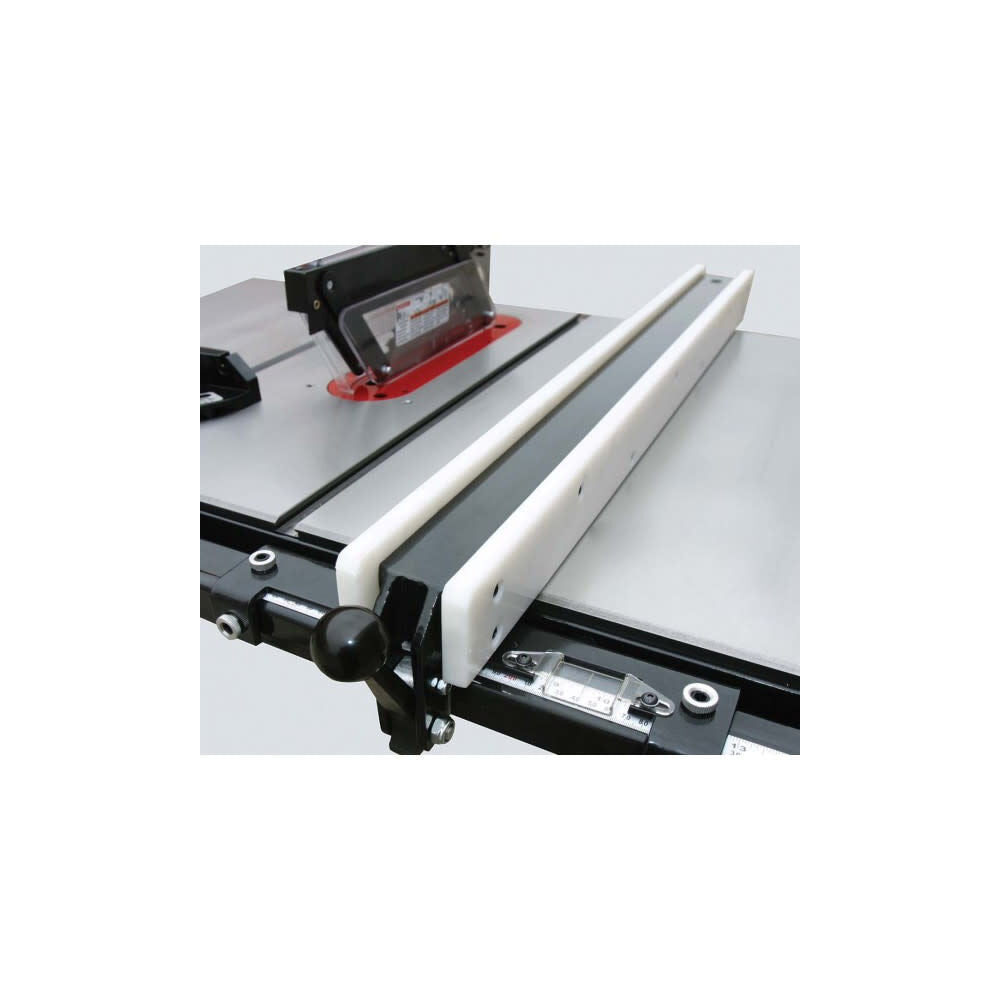

- Rip fence made of heavy UHMW plastic makes it easy for you to slide wood, you can inexpensively replace the rip fence plastic-convenient if you drill into it while using a unusually-shaped jig, steel handwheels with locks on the base let you adjust the blade height and miter angle

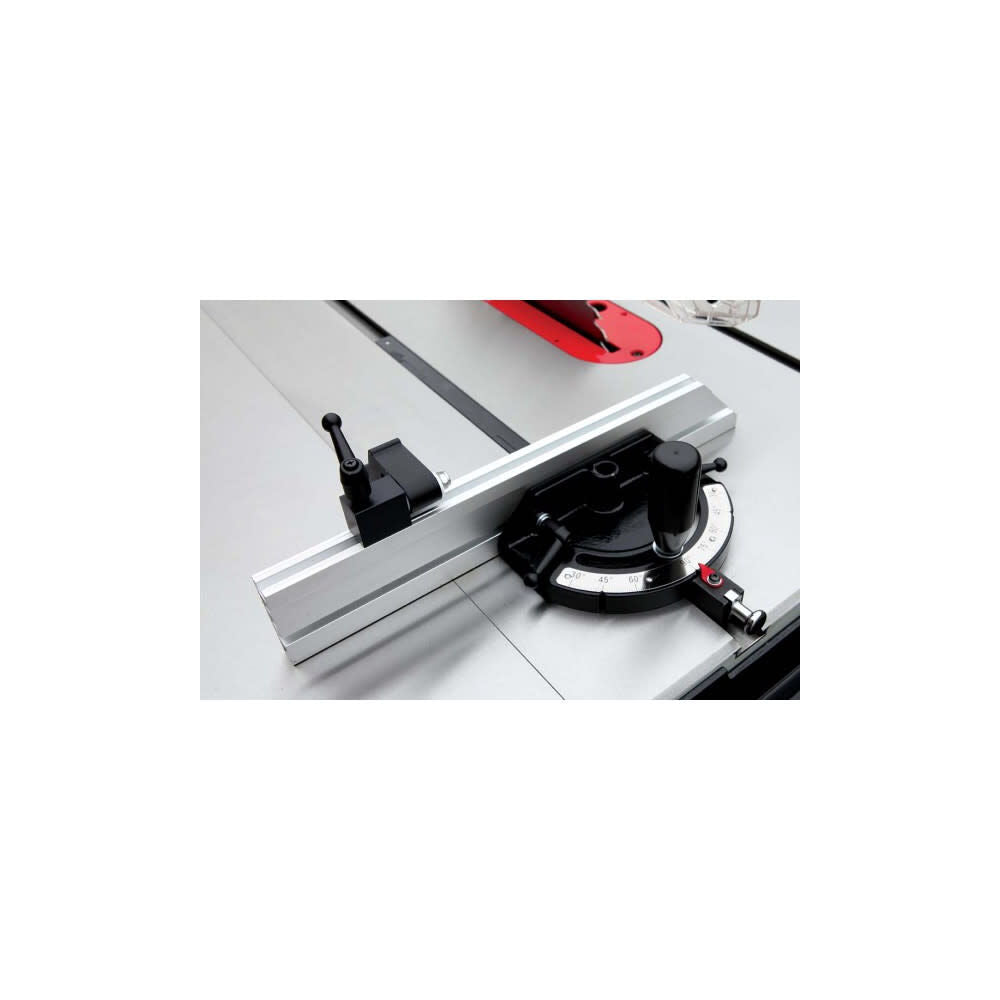

- Comes standard with a miter gauge for repeatability
- Trunnion attached to the base prevents the machine from wobbling and keeps noise within a safe decibel range
- Rigid all-steel base keeps the saw stable and aligned, so the blade will cut correctly (without unintended movement or mitering)
- 4 In. dust collection port to hook up an extraction system and suck out sawdust

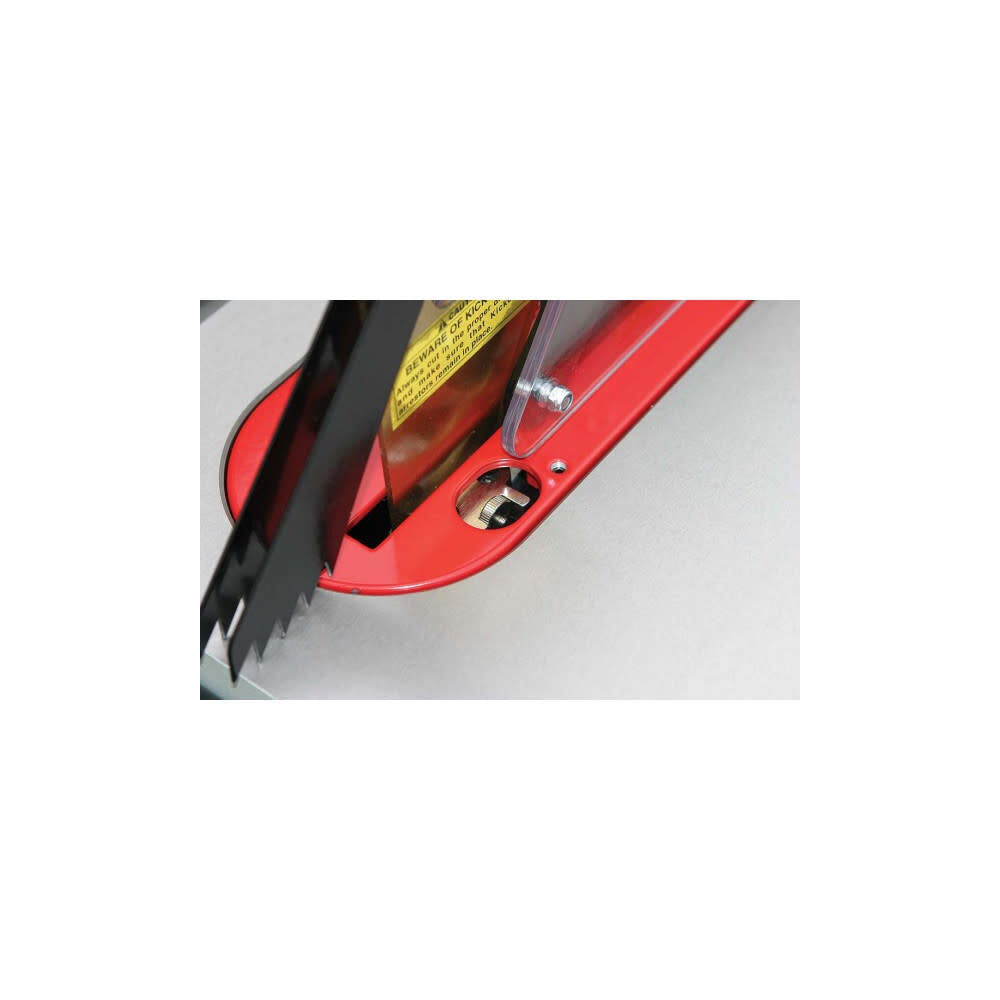

- CSA approved, with safety features like an anti-kickback blade guard and a quick-release riving knife
- Recommended for: Cabinetry, kitchen build-ins and shelving, furniture, live edge, or reclaimed lumber
- Covered by a 1-year parts warranty, as well as lifetime technical support by phone
Specifications
Brand Name - Baileigh
Amperage (A) - 0.0
Assembled Weight (lbs) - 550
Country of Origin - Taiwan
CSA Certified - Yes
Dust Port - Yes
Dust Port Outside Diameter (in) - 4
ETL Listed - No
Horsepower (hp) - 3
MFG Part # (OEM) - 1229614
Material - Cast Iron
Maximum Dado Diameter (In) - 8
Maximum Dado Width (in) - 0.8125
Package Contents - Table Saw, Standard and Dado Inserts,Miter Gauge
Package Depth - 36
Package Height - 98
Package Weight - 550
Phase - 1
Product Condition - New
Spindle Lock - No
Table Length (in) - 20
Table Width (in) - 27
UL Listed - No
UPC - 400229000667
Warranty Type - 1 Year
