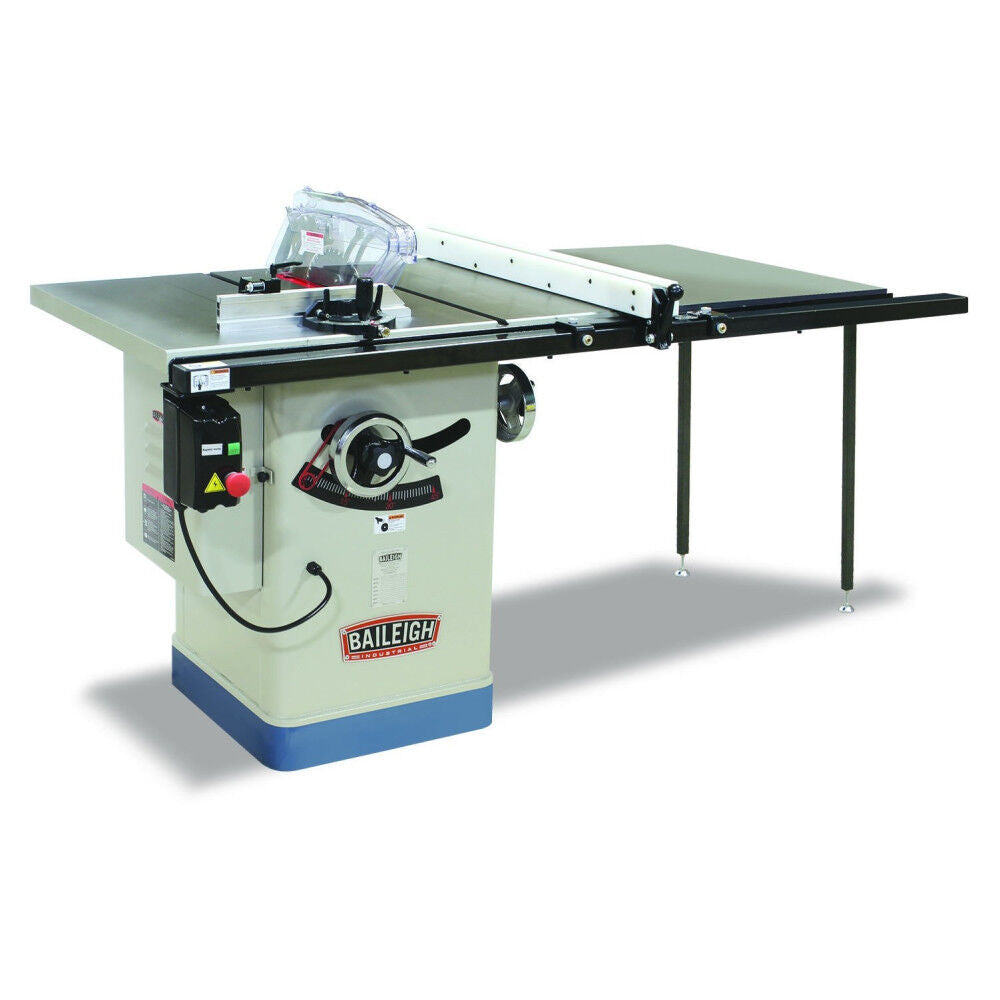

Baileigh TS-1040E-50 Entry Level Cabinet Table Saw 220V 10in
Cut with accuracy for an economical price with this entry level cabinet saw.
The cast iron table and the steel base, fastened to the trunnion, keep vibrations down to a minimum.
California Proposition 65 Warning.Features

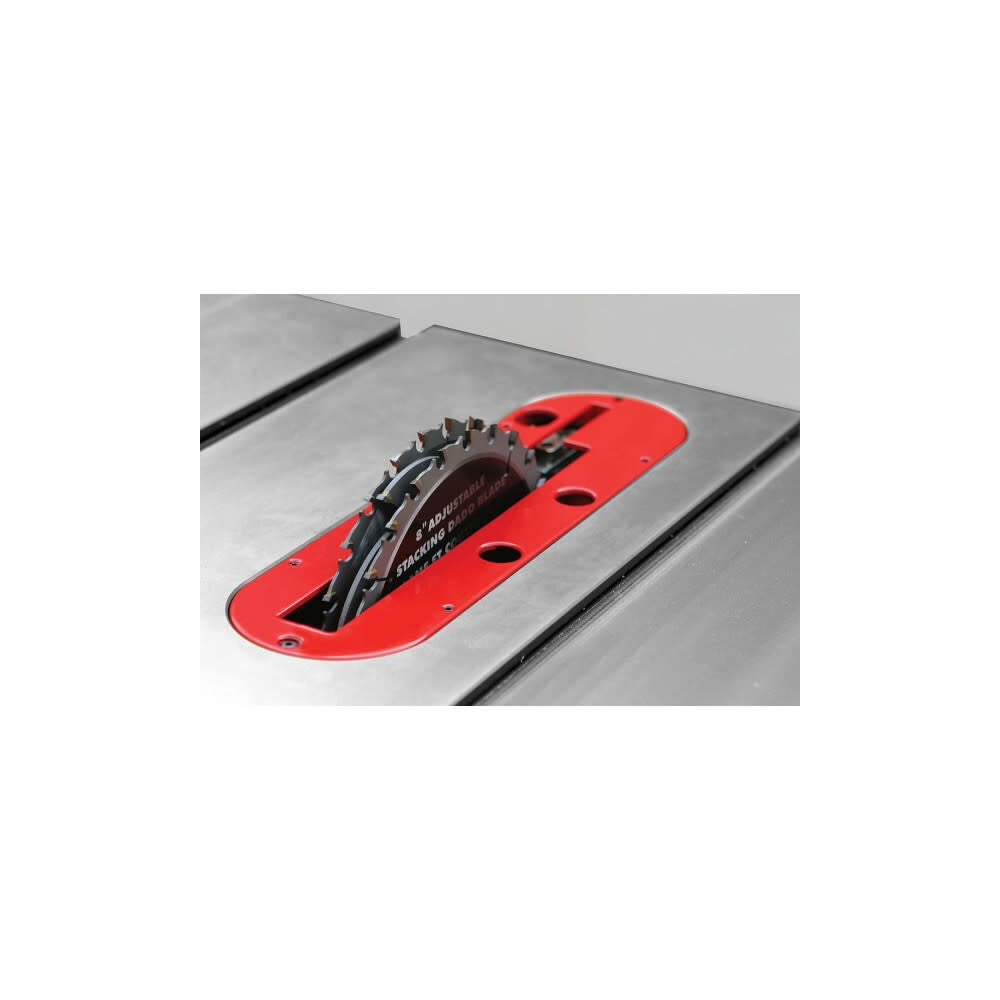

- 50 In. right-side rip capacity, entry level cabinet saw also available in a 30 In. rip capacity model, 2.5HP leeson motor turns the blade at 3850 Rpm, Runs on 220V 1 Phase power, uses standard 10 In. blades with 5/8 In. arbor, comes with both standard and dado inserts

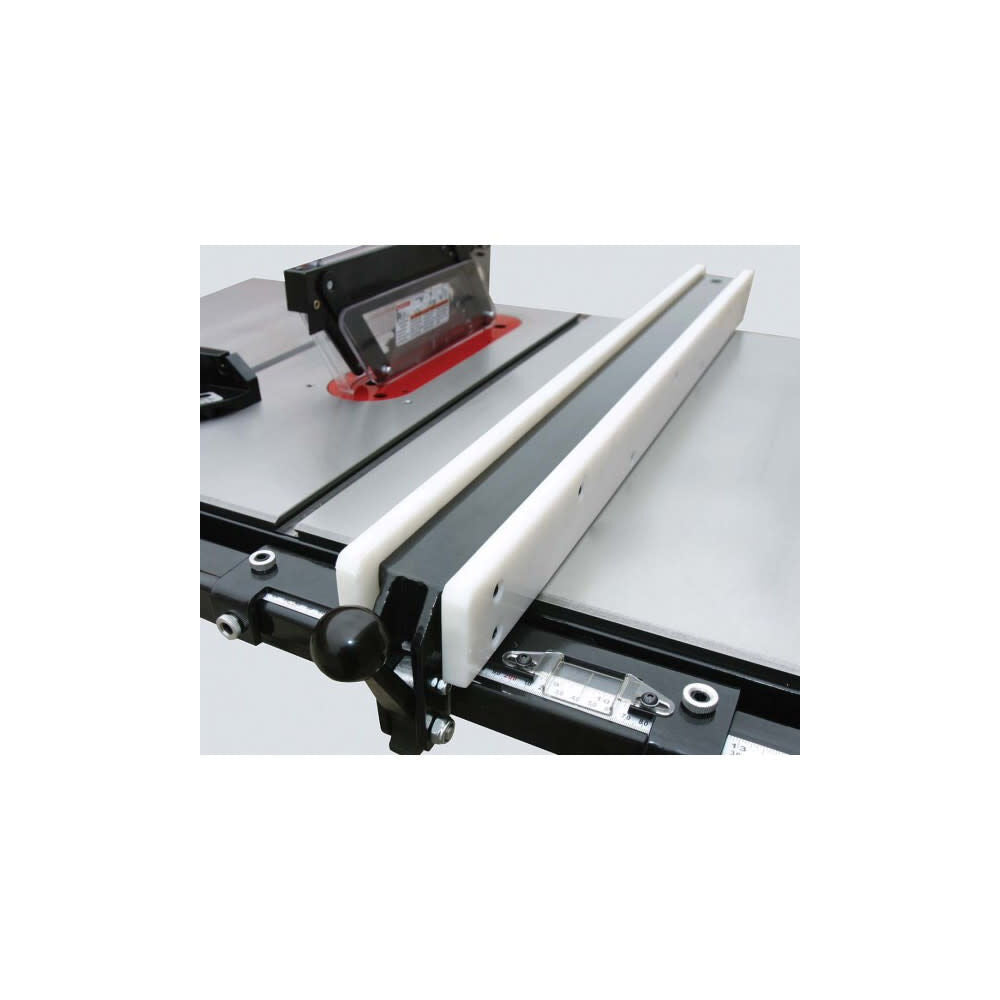

- 40 In. x 27 In. table and extensions made from precision-ground cast iron, table is webbed into the base with a crisscross pattern that prevents warping or shrinkage, the cast iron surface will remain true, extension boards help you cut materials that are big and tough to handle, heavy-duty hardened UHMW plastic rip fence makes it easy to slide material towards the blade
- You can cheaply replace the rip fence if you drill into it (convenient if you use unusually-shaped jigs), designed with the trunnion attached to the base, so the machine won’t wobble or exceed a safe decibel noise range, attached trunnion also dampens noise to a safe decibel range, robust welded steel framework minimizes vibrations, so you don’t have to worry about the blade shifting back and forth with the table

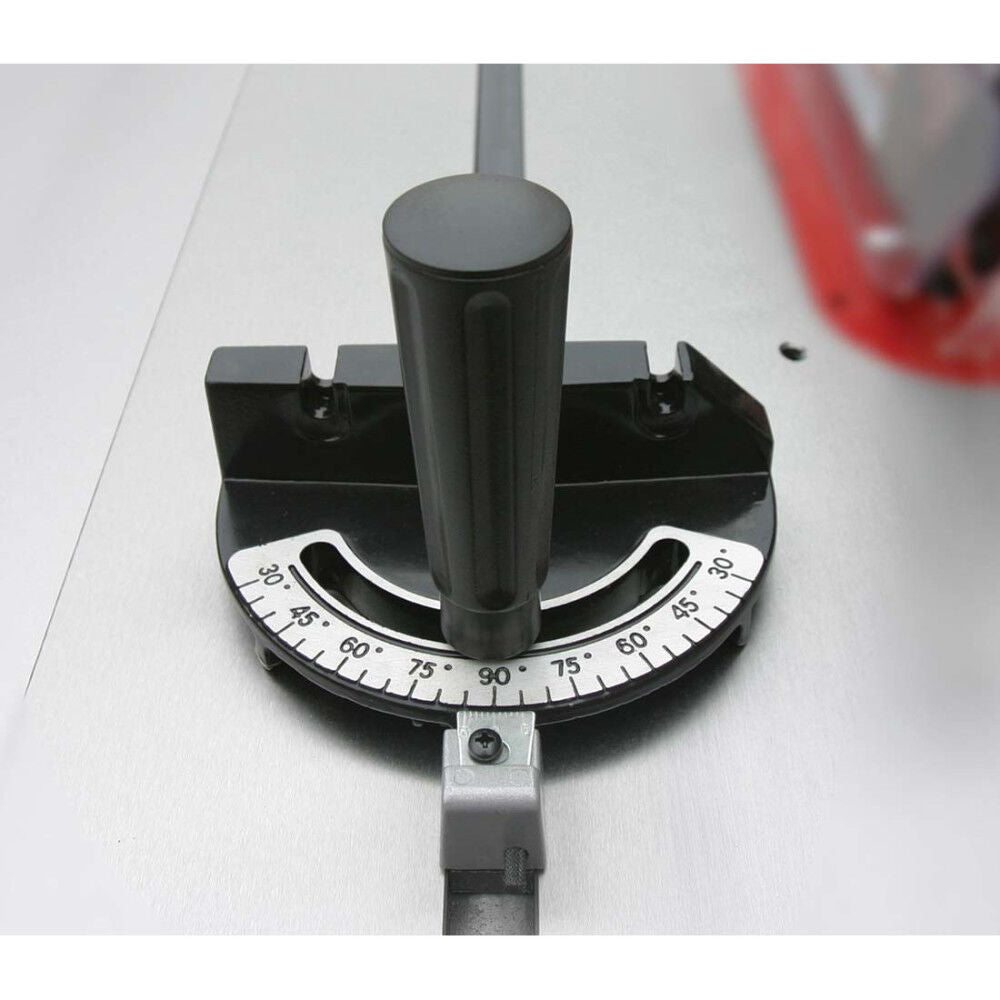

- 2 steel handwheels on the cabinet allow you to change the blade height and the miter angle, miter gauge located on base
- 4 In. dust collection port lets you hook up an extraction system
- Slanted surface inside cabinet directs sawdust towards the port to eliminate build-up, CSA approved

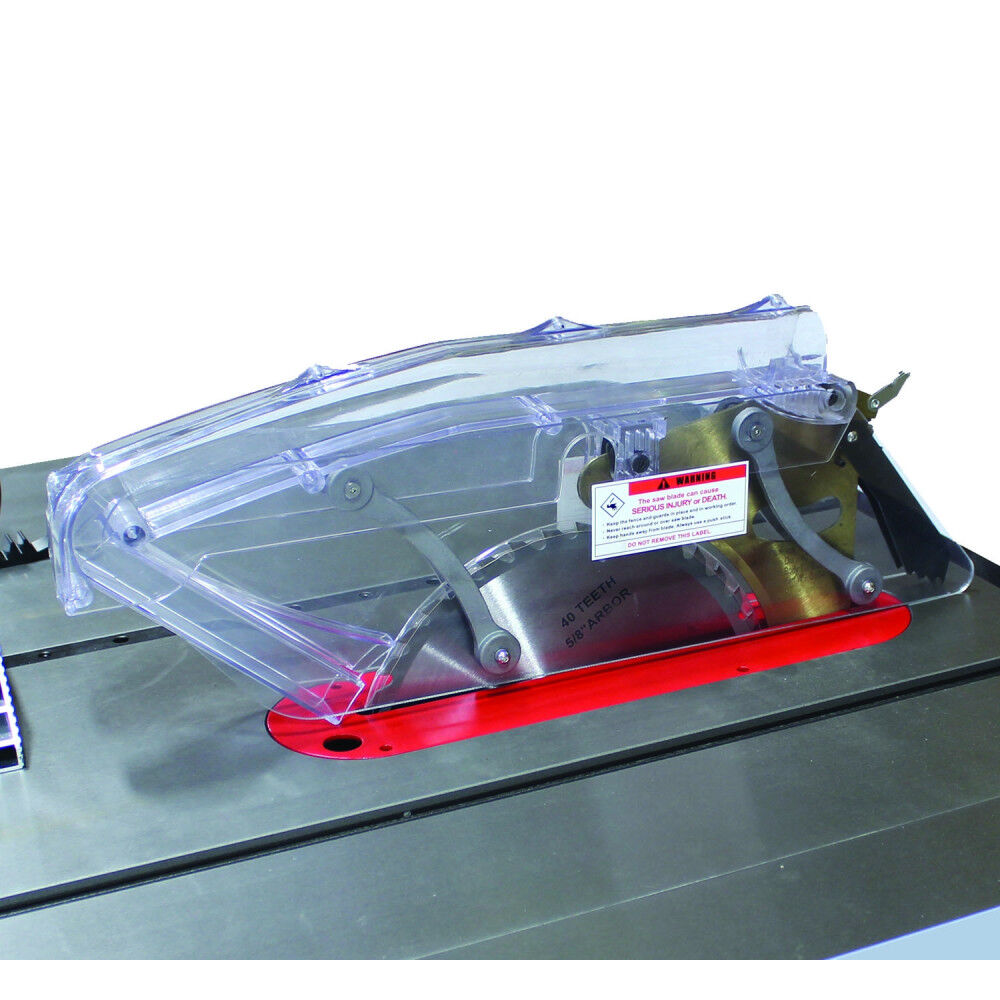

- Safety guard on the blade has reverse teeth to prevent kickback
- Riving knife spreads the wood as you’re cutting to avoid twisting or pinching
- Recommended for: Small woodworking businesses that need a high-quality saw to use for a few hours a day
- Entry level cabinet saw protected by a 1-year parts warranty, as well as lifetime technical support by phone
Specifications
Brand Name - Baileigh
Amperage (A) - 1-30
Assembled Weight (lbs) - 390
Country of Origin - Taiwan
CSA Certified - Yes
Dust Port - Yes
Dust Port Outside Diameter (in) - 4
ETL Listed - No
Horsepower (hp) - 2.5
MFG Part # (OEM) - 1229613
Material - Cast Iron
Maximum Dado Diameter (In) - 8
Maximum Dado Width (in) - 0.8125
Package Contents - Cabinet Saw, Standard and Dado Inserts,Miter Gauge
Package Depth - 36
Package Height - 98
Package Weight - 390
Phase - 1
Product Condition - New
Spindle Lock - No
Table Length (in) - 20
Table Width (in) - 27
UL Listed - No
UPC - 400229000643
Warranty Type - 1 Year
