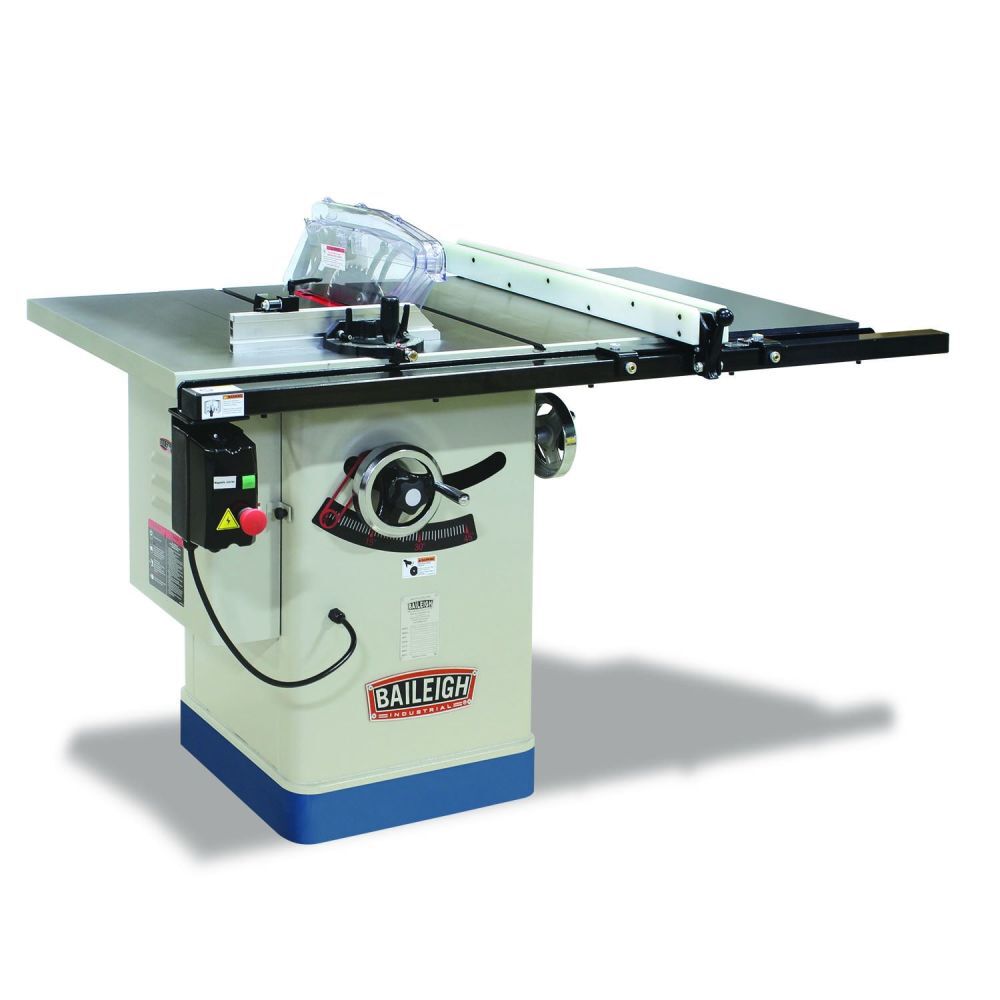

Baileigh TS-1040E-30 Entry Level Cabinet Table Saw 220V 10in
This excellent starter cabinet-style table saw includes features typically found only on more expensive tables, like a Leeson motor, UHMW rip fence, and massive trunnion.
California Proposition 65 Warning.Features
- 30 In. right-side rip capacity, also available in a 50 In. rip capacity version, 2.5HP Leeson motor turns the blade at 3850 Rpm, runs on 220V 1 Phase power, uses standard 10 In. blades with 5/8 In. arbor

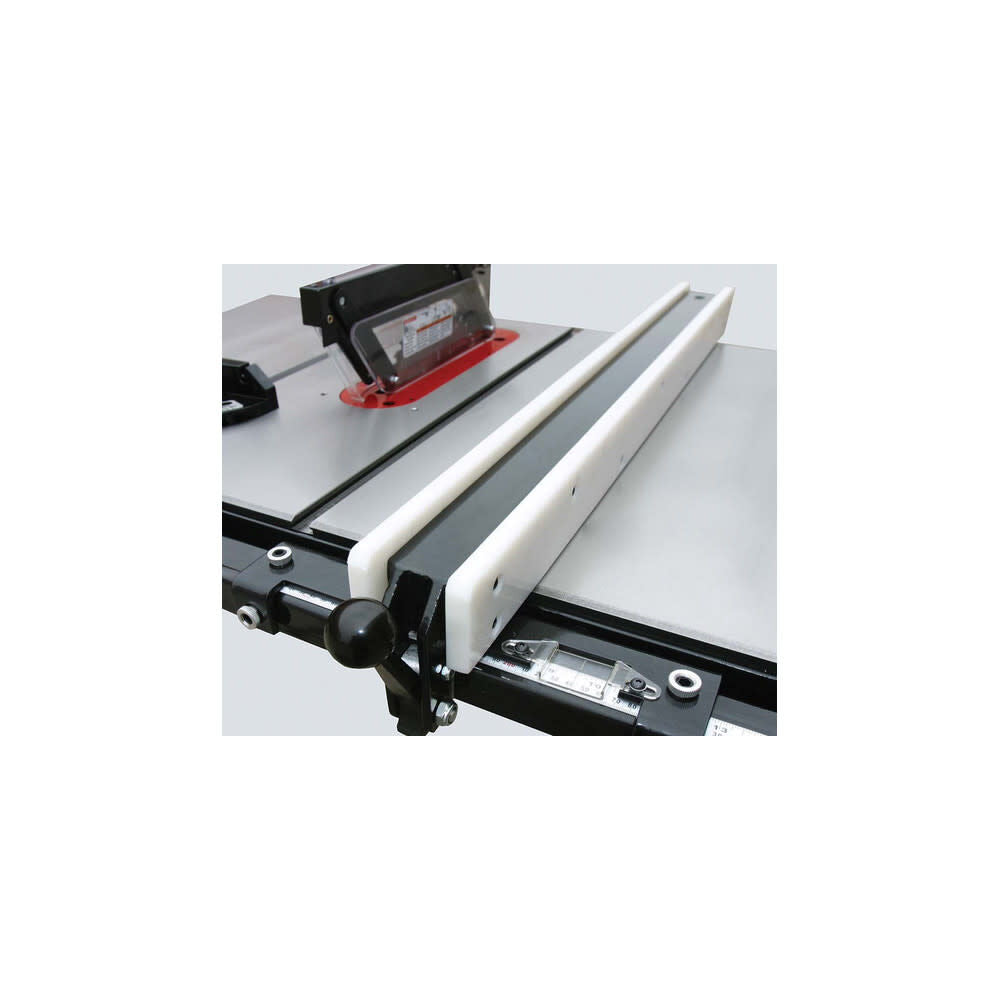

- Comes with both standard and dado inserts, 40 In. x 27 In. table and extensions made from precision-ground cast iron, table is webbed into the base with a crisscross pattern that prevents warping or shrinkage, the cast iron surface will remain true, extension boards help you cut materials that are big and tough to handle, heavy-duty hardened UHMW plastic rip fence makes it easy to slide material towards the blade

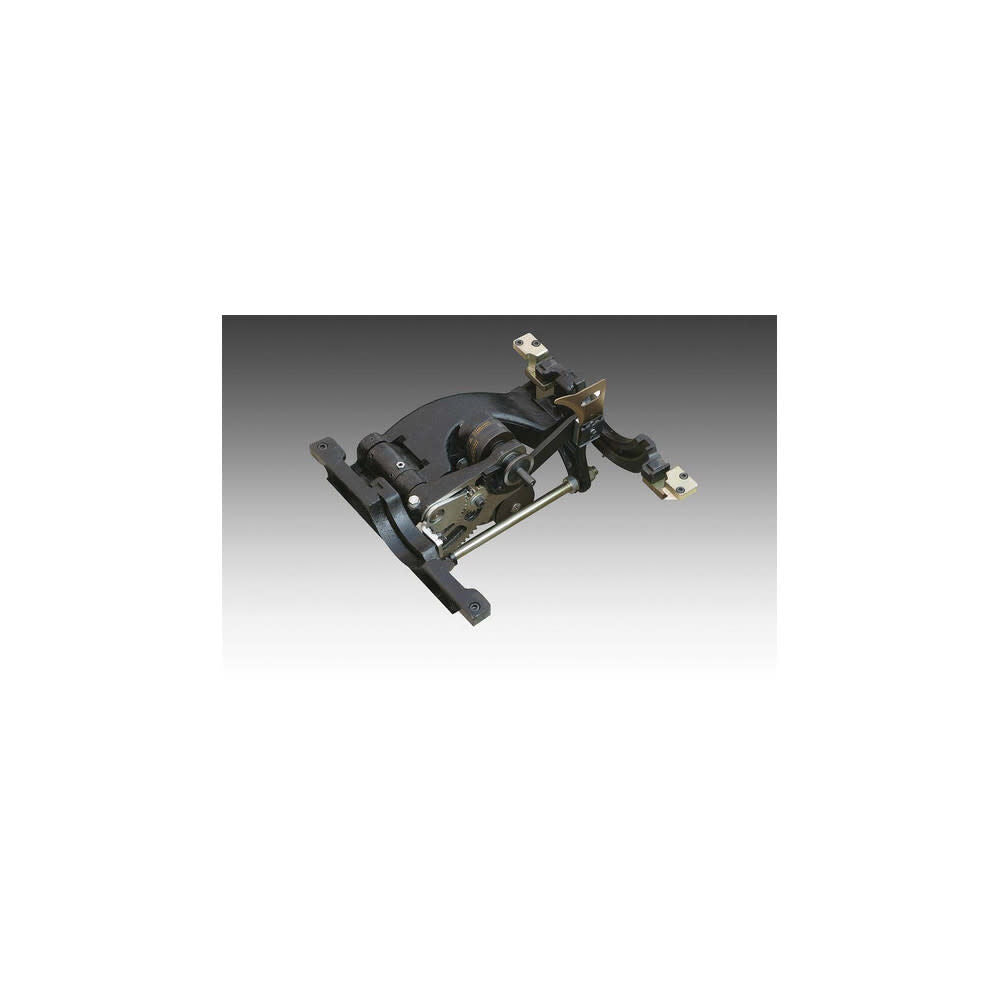

- You can cheaply replace the rip fence if you drill into it (convenient if you use unusually-shaped jigs), designed with a trunnion attached to the base to keep the machine wobble-free and accurate, attached trunnion also dampens noise to a safe decibel range
- Robust welded steel framework minimizes vibrations, so you don’t have to worry about the blade shifting back and forth with the table
- 2 steel handwheels on the cabinet allow you to change the blade height and the miter angle, miter gauge located on base
- 4 In. dust collection port lets you hook up an extraction system, slanted surface inside cabinet directs sawdust towards the port to eliminate build-up, CSA approved
- Safety guard on the blade has reverse teeth to prevent kickback

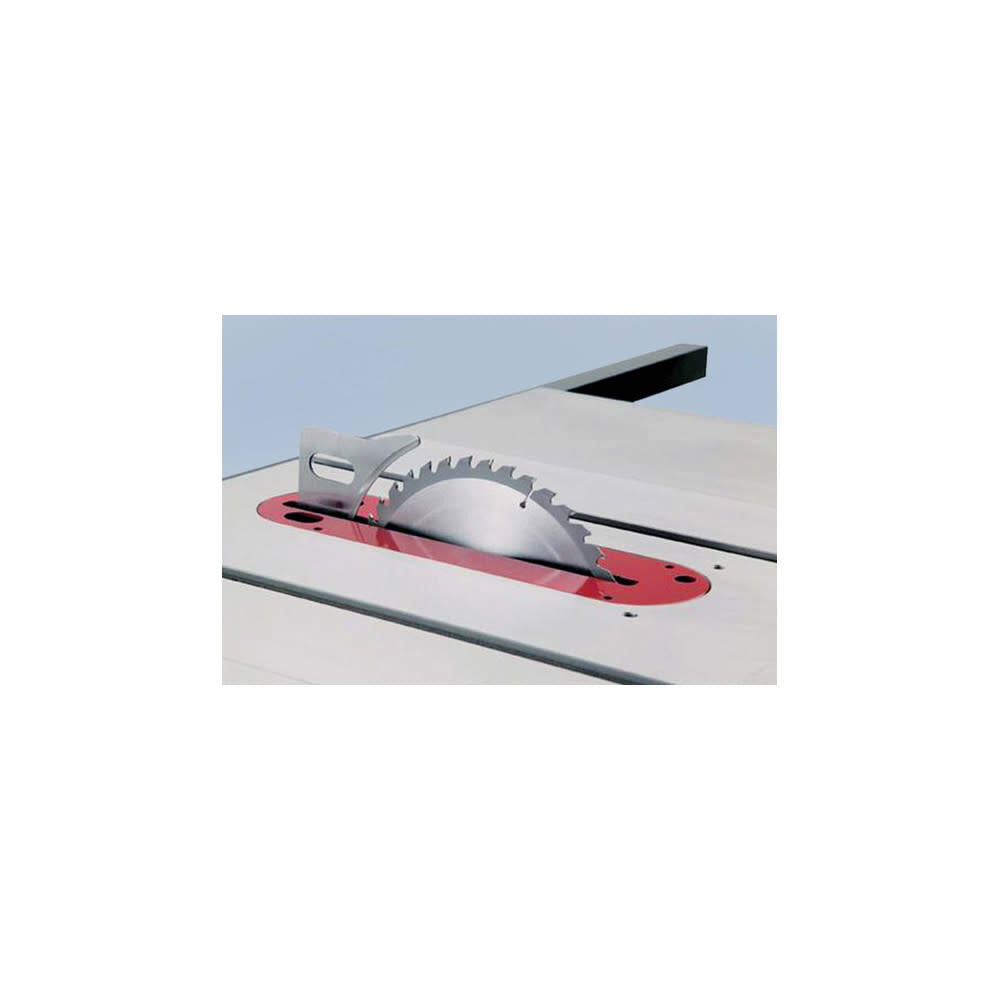

- Riving knife spreads the wood as you’re cutting to avoid twisting or pinching
- Recommended for: Small woodworking businesses that need a high-quality saw to use for a few hours a day
- Starter table saw is protected by a 1-year parts warranty, as well as lifetime technical support by phone
Specifications
Brand Name - Baileigh
Amperage (A) - 1-30
Assembled Weight (lbs) - 505
Country of Origin - Taiwan
CSA Certified - Yes
Dust Port - Yes
Dust Port Outside Diameter (in) - 4
ETL Listed - No
Horsepower (hp) - 2.5
MFG Part # (OEM) - 1229612
Material - Cast Iron
Maximum Dado Diameter (In) - 8
Maximum Dado Width (in) - 0.8125
Package Contents - Cabinet Saw, Standard and Dado Inserts,Miter Gauge
Package Depth - 36
Package Height - 98
Package Weight - 505
Phase - 1
Product Condition - New
Spindle Lock - No
Table Length (in) - 20
Table Width (in) - 27
UL Listed - No
UPC - 400229000636
Warranty Type - 1 Year
