DK2 Trojan Utility Winch with Synthetic Rope

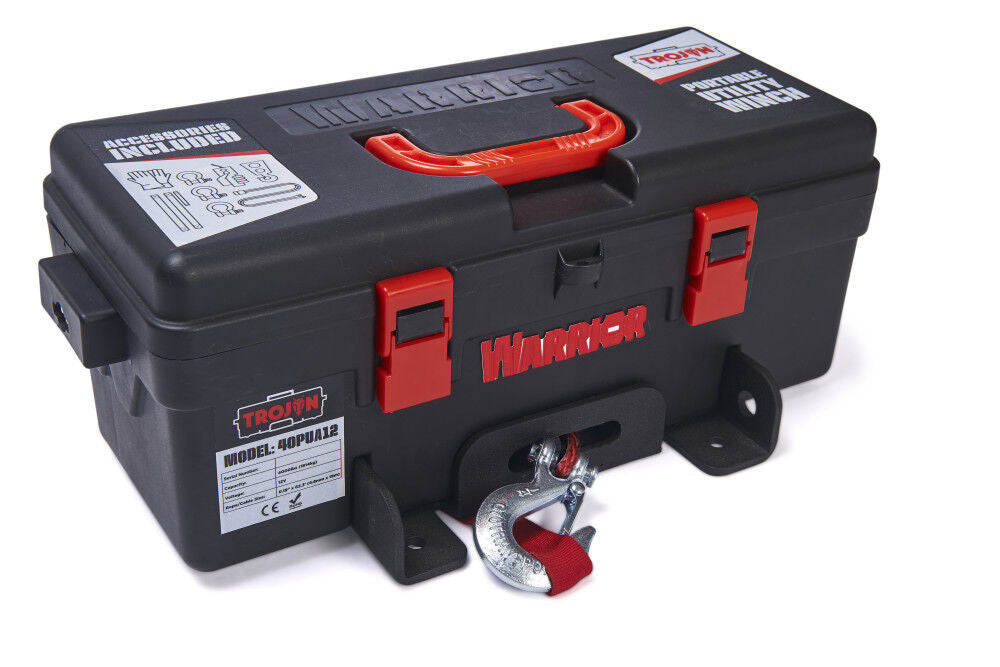

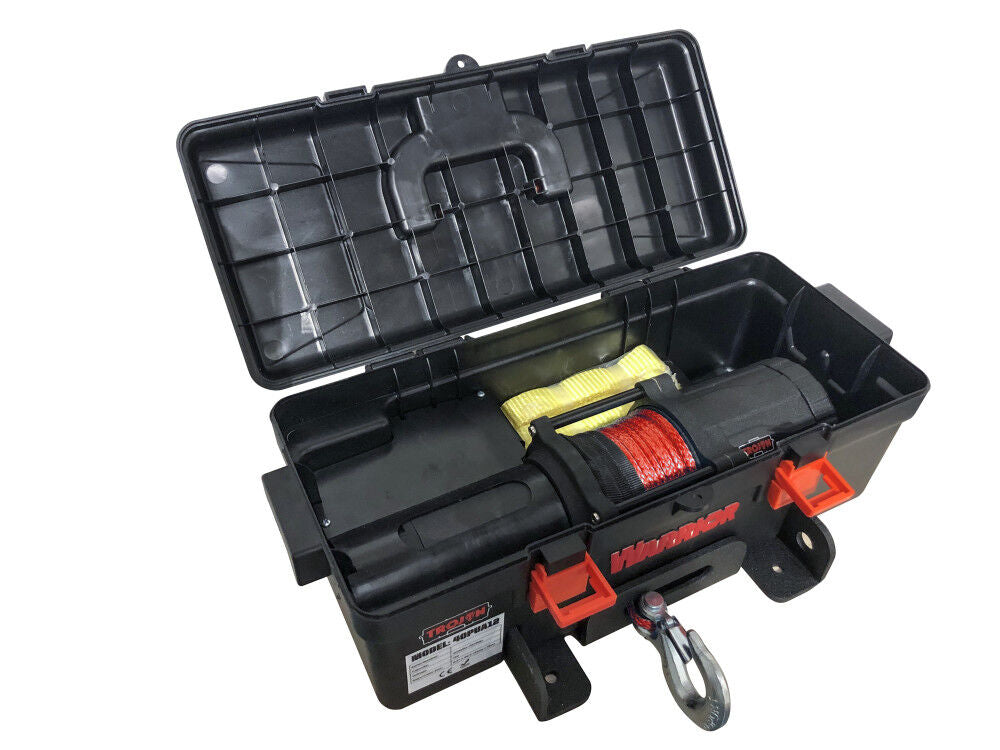

The Trojan Portable Utility Winch is a complete winching solution in a convenient kit that features a 4,000 lb rated line pull winch on a unique powder coated winch platform, all in a compact, easy to carry composite tool box.
The kit is easy to store, use, and repack. Completely portable, the Trojan requires no installation and does not require a winch mount; however, it can be permanently mounted on a trailer and be used as a utility winch if desired.
California Proposition 65 Warning.Features
- 4000 lb Pulling Power
- Built in 1/4 inch hardened steel plate
- Can be permanently mounted, mounting plate includes cable guide

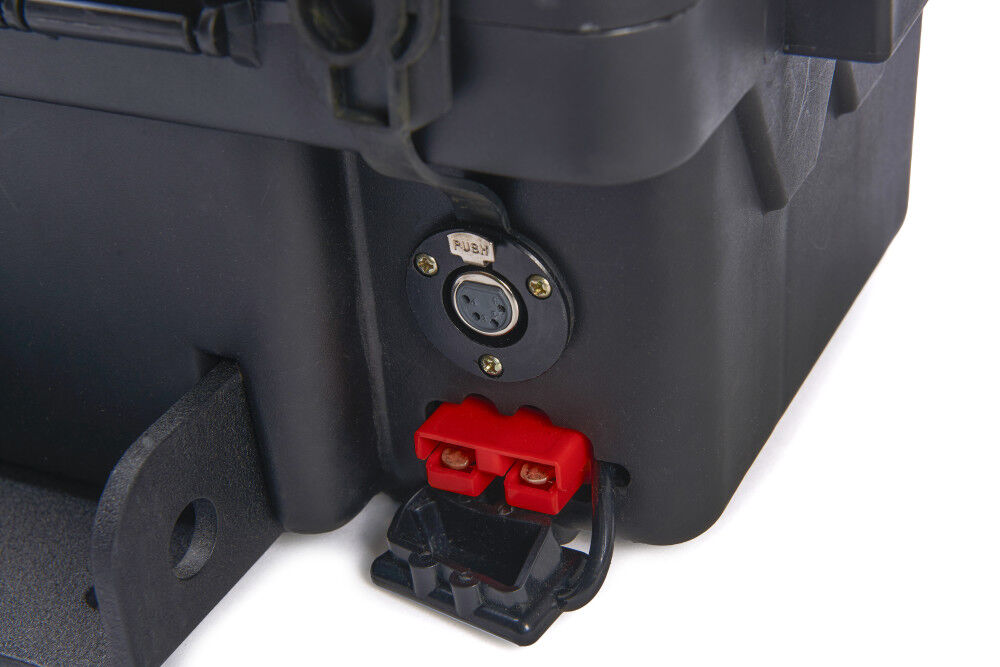

- Quick plug and play functionality, with Manual clutch and automatic break in the drum

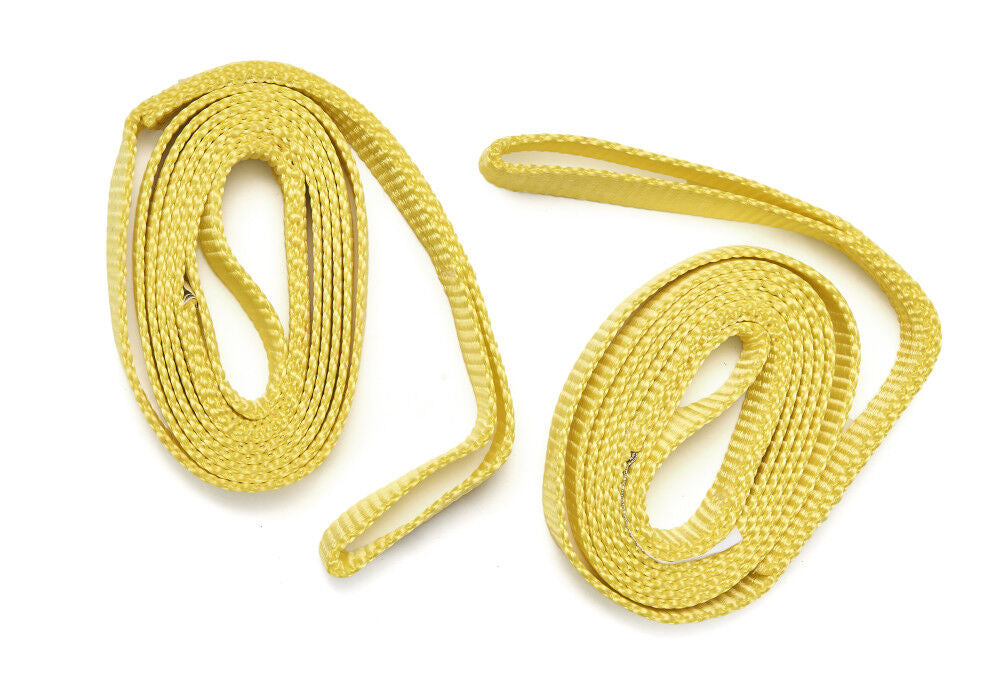

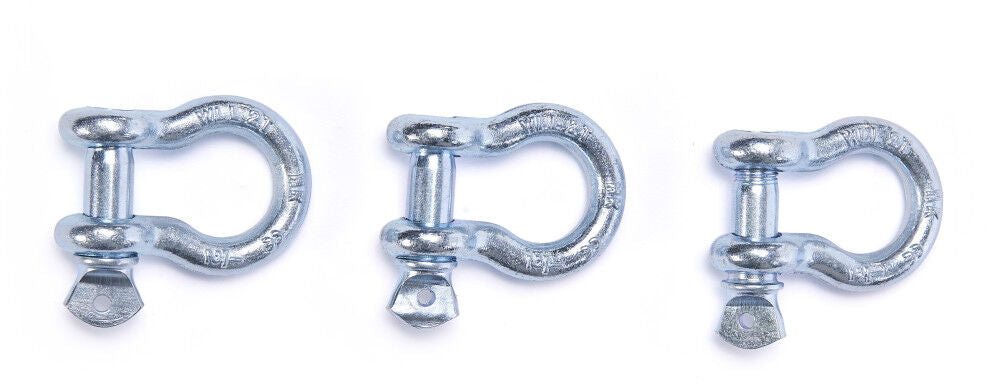

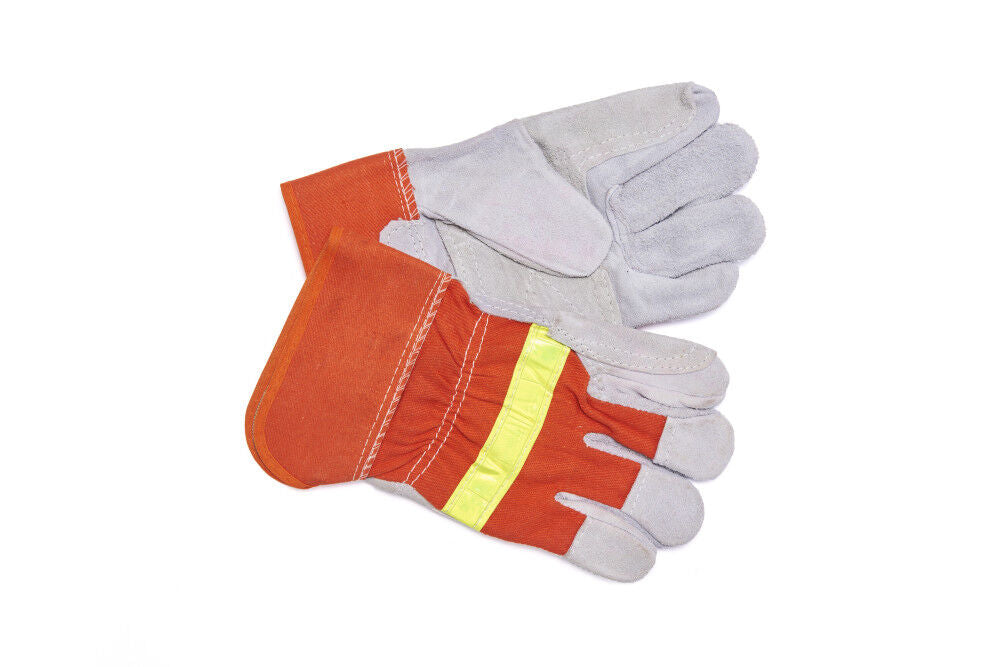

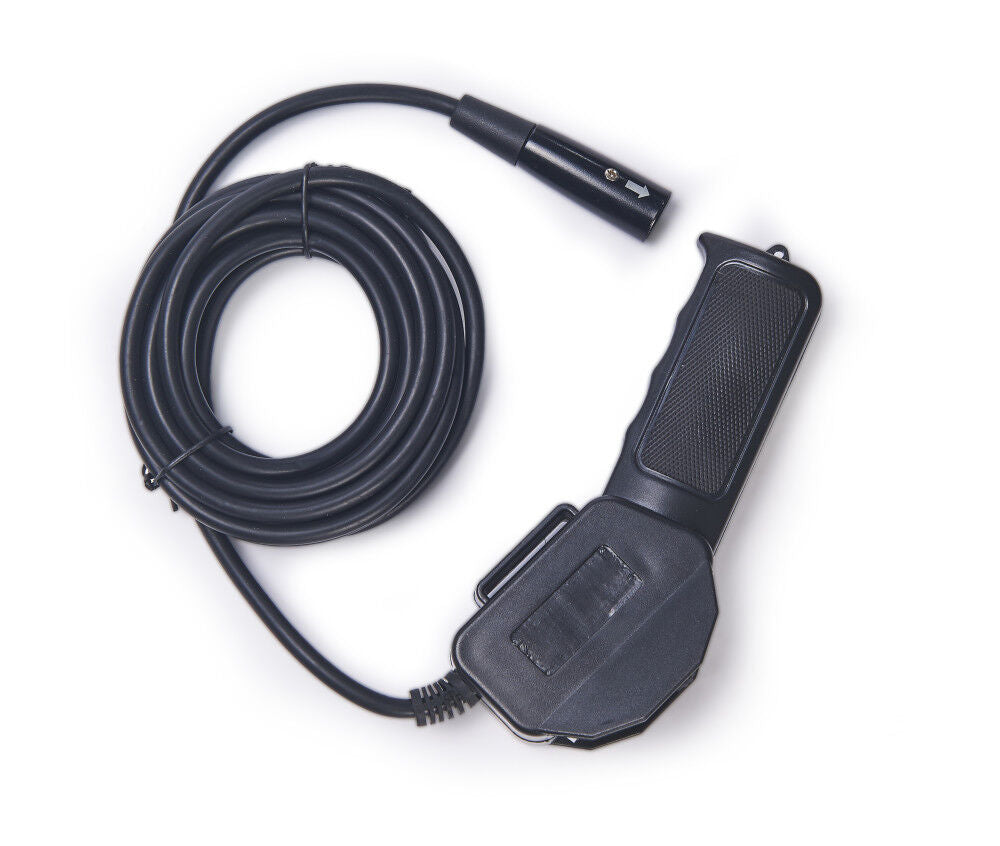

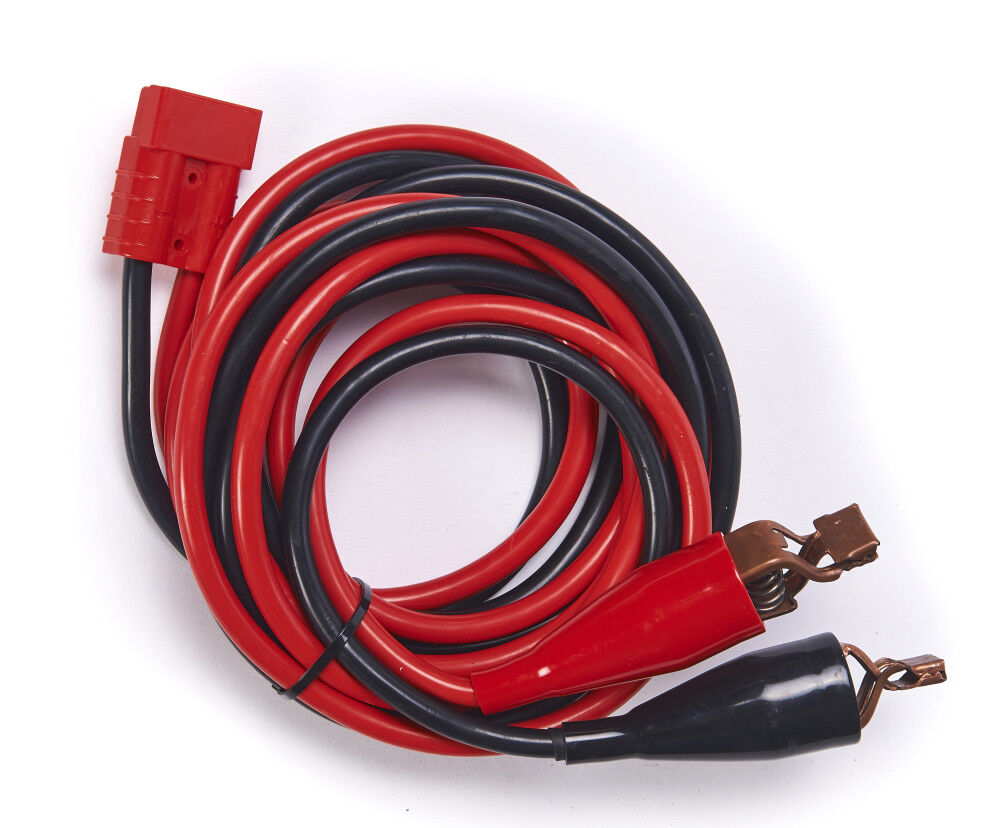

- Included with the Trojan Quick Connect Cord With Alligator Clips Heavy Duty Leather Palmed Winch Gloves 6 000lb Pulley Block 3.6m (12ft) Hand Remote Three 20 000lb D-shackles Two 8ft Heavy Duty Straps Rated 8 000lbs
- Rated Line Pull 4000 lbs (1814 kgs) Motor 12v: 2.4kW / 3.2hp Gearing 166:1 Drum Size - Dia x L 50.4 x 82mm (1.98 x 3.2 in) Cable - Dia x L 5.4mm x 12.8m (0.2in x 42ft) Dimensions 506 x 304.5 x 192.2mm (19.9 x 12 x 7.6in) Mounting Pattern 210 x 234mm (8.3 x 9.2 in) Weight kg 20.5kg (45.2 lbs)
- Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m) 1 4000 (1814) 8.5 (2.6) 2 3351 (1520) 18.7 (5.7) 3 2883 (1307) 29.8 (9.1) 4 2530 (1147) 42.0 (12.8)
- Line Pull lbs (kgs) Line Speed 12v ft/min (m/min) Amp Draw 12v 0 14.4 (4.4) 28 1000 (454) 9.8 (3.0) 80 2500 (1135) 7.2 (2.2) 150 4000 (1814) 4.9 (1.5) 190
Specifications
Brand Name - DK2
Assembled Depth (in) - 19.9
Assembled Weight (lbs) - 41.9
Assembled Width (in) - 12
Assembly Required - Yes
Color - Black
Country of Origin - China
Height (in) - 7.6
MFG Part # (OEM) - 40PUA12
Material - Composite
Package Contents - Trojan Utility Winch with Synthetic Rope
Package Depth - 8.66
Package Height - 20.67
Package Weight - 46
Product Condition - New
Sound Decibels (dB) - 70 dBA
UPC - 827518007396
Warranty Type - 1 Year
