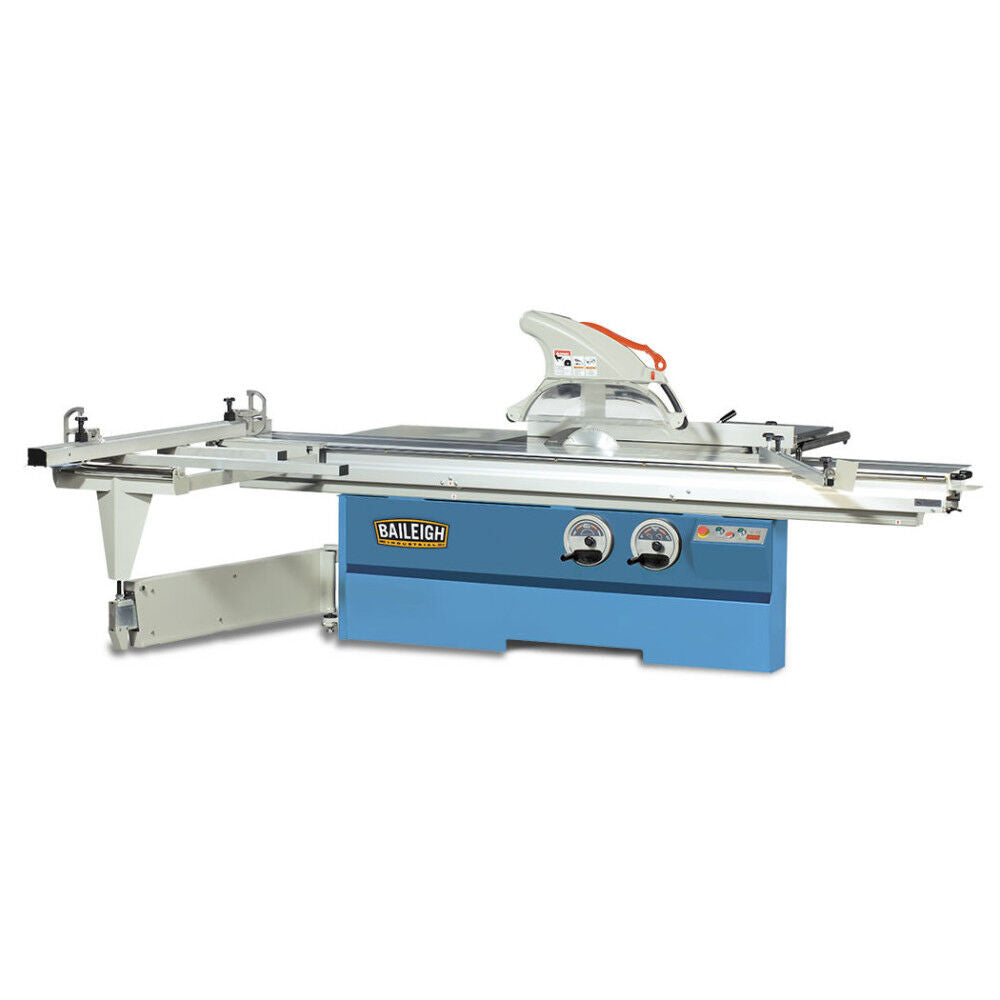

Baileigh STS-14120 Sliding Table Saw 220V 3 Phase 7.5HP 14in
Need to cut thousands of feet of board over 3 daily shifts? This 7.5HP industrial table saw will deliver accurate results every time.
One operator can easily handle 10 Ft.
Wood panels.
California Proposition 65 Warning.Features
- Simplest and most economical of our STS-14120 models, choose from 3 blade speeds (3000, 4000, and 5000 Rpm) depending on the hardness and thickness of your material, 7.5HP motor runs on 220V 3 Phase power
- Standard 12 In. blade turns on 1 In. arbor, Also accepts a huge 14 In. blade without modification, Includes fences for rip cuts, crosscuts, and angle or miter cuts

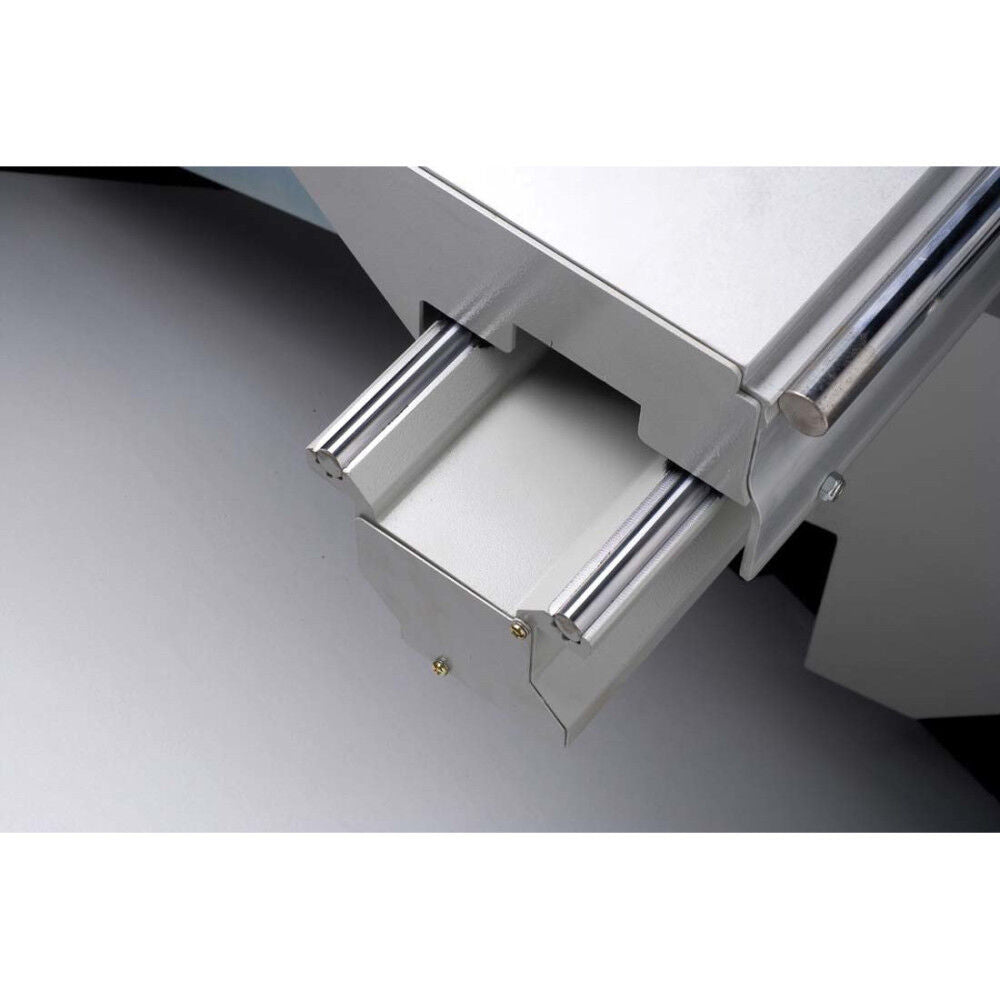

- 1HP scoring blade spins at 8000 Rpm to ensure a crisp, clean cut without frayed or ripped edges, scoring blade saves you time, no extra work sanding edges after a cut, huge 15 In. x 125 In. sliding table slides on 4 precision shafts for jitter-free motion

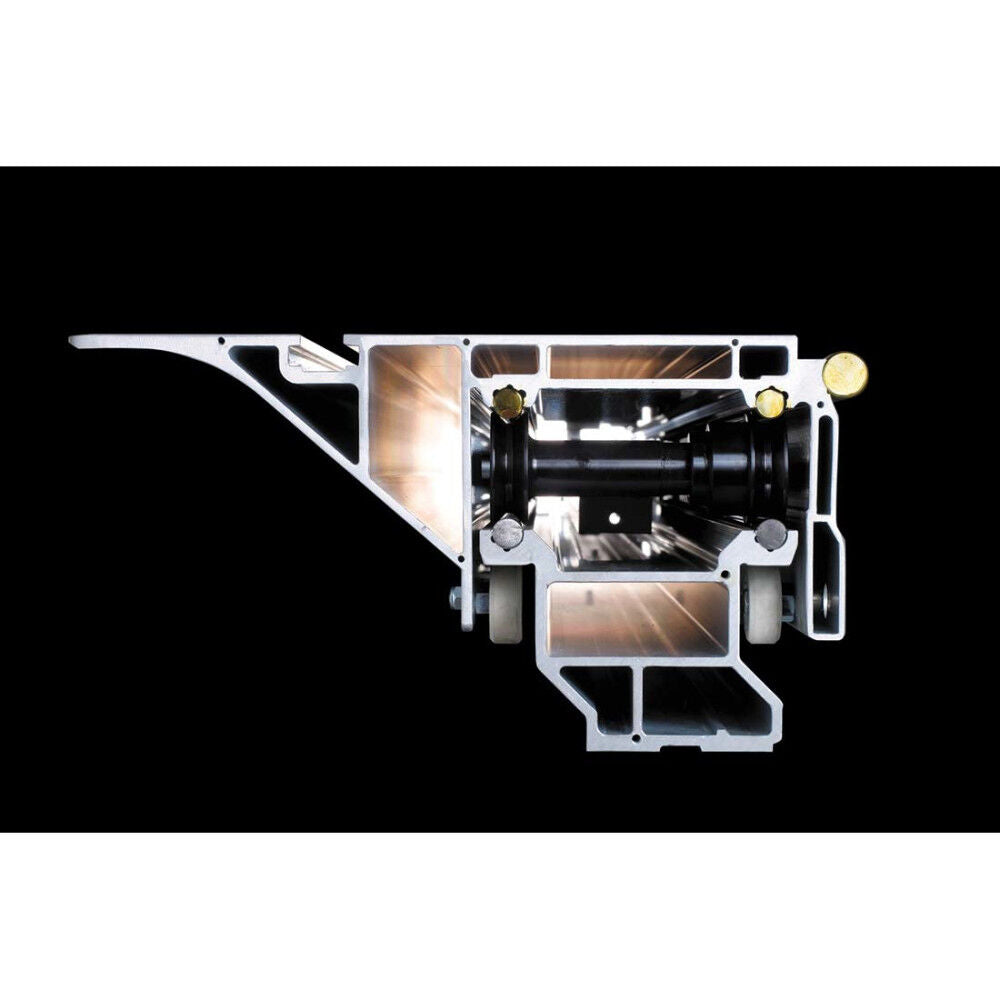

- Table is made of fully-extruded, anodized aluminum that will stay square and true over many years of use, the table moves so smoothly that you can slide a whole sheet of 4 x 8 material without ever thinking there’s weight on it
- Steel handwheel allows you to tilt the blade and incorporates a digital readout (DRO) for telling you the angle
- Rugged all-steel base stabilizes the machine and reduces vibrations for flawless accuracy and alignment, durable cast steel trunnion has heavy boxed (not dovetailed) ways
- CSA certified
- Includes a safety blade guard with a tension system for lifting and lowering the guard without moving it from side to side, 4 In. dust port lets you hook up an extraction system to keep you shop clean
- Recommended for: Industrial production, especially cabinetry manufacturers, lumber liquidators, and railroad yards, crews of experienced shift-workers who are comfortable measuring for repeatability and don’t need to rely on DROs or programming
- Covered by a 1-year parts warranty, as well as lifetime technical support by phone
Specifications
Brand Name - Baileigh
Amperage (A) - 0.0
Assembled Weight (lbs) - 2250
Country of Origin - Taiwan
CSA Certified - Yes
Dust Port - Yes
Dust Port Outside Diameter (in) - 4
ETL Listed - No
Horsepower (hp) - 7.5
MFG Part # (OEM) - 1007692
Material - Aluminum
Maximum Dado Diameter (In) - NA
Package Contents - Table Saw, Fences for Rip Cuts, Crosscuts and Angle or Miter Cuts, Safety Blade Guard,Fence
Package Depth - 39
Package Height - 90
Package Weight - 2250
Phase - 3
Product Condition - New
Spindle Lock - No
Table Length (in) - 126
Table Width (in) - 15
UL Listed - No
UPC - 400007001244
Warranty Type - 1 Year
