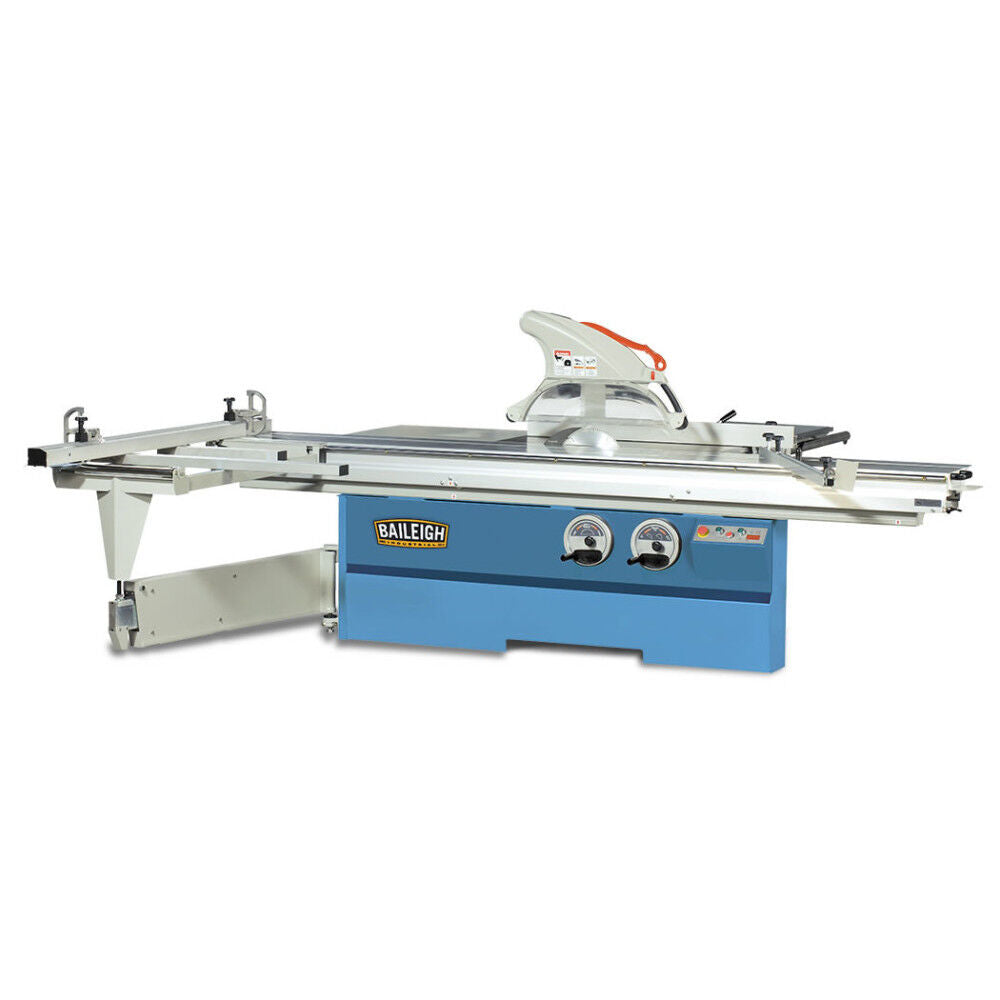

Baileigh STS-14120-DRO Sliding Table Saw with Digital Read Out 220V 14in
This industrial table saw has the robust structure and power to cut thousands of feet of board per day.
Digital readouts on the fences help you save time and make repeatable cuts.
California Proposition 65 Warning.Features
- Sliding design lets just 1 operator can handle 10 Ft. panels, switch from a 2-person saw and make your shop more efficient, choose from 3 blade speeds (3000, 4000, and 5000 Rpm) depending on the hardness and thickness of your material
- 7.5HP motor runs on 220V 3 Phase power, comes with a standard 12 In. blade that turns on 1 In. arbor, also accepts a huge 14 In. blade without modification, includes fences for rip cuts, crosscuts, and angle or miter cuts

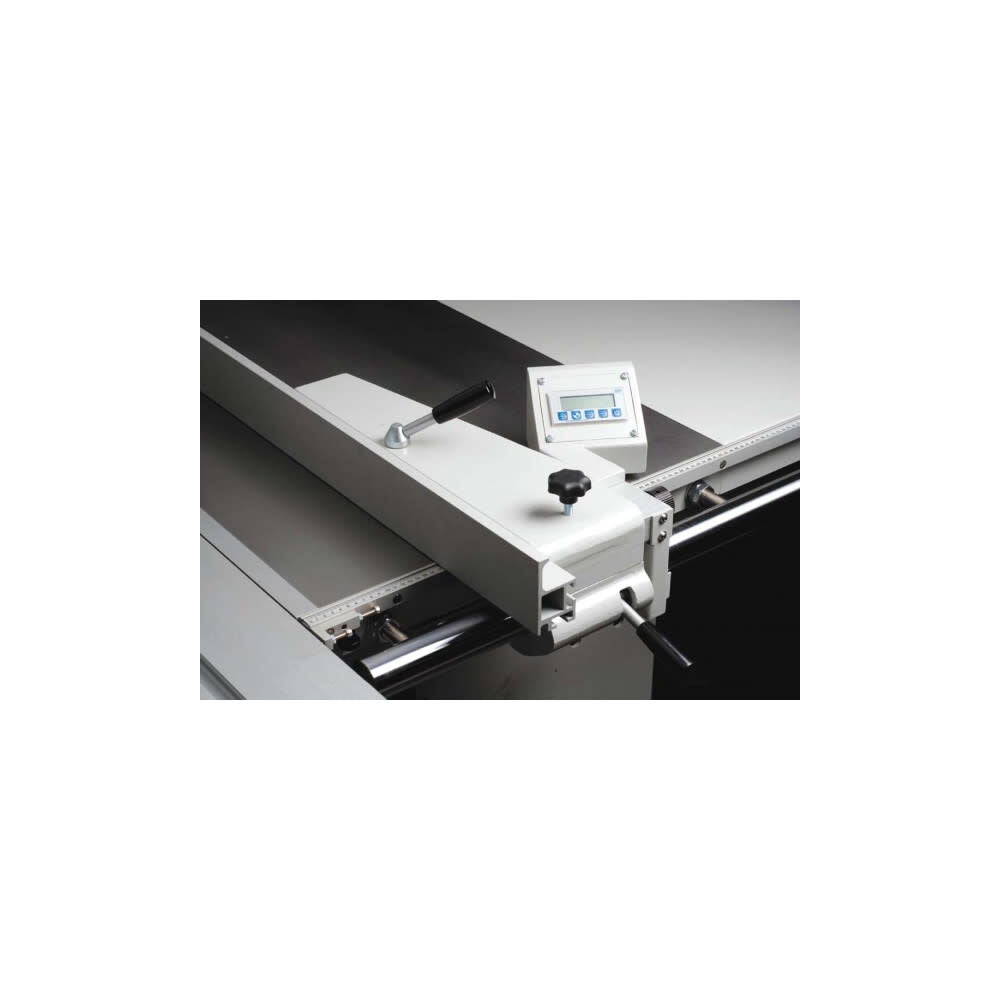

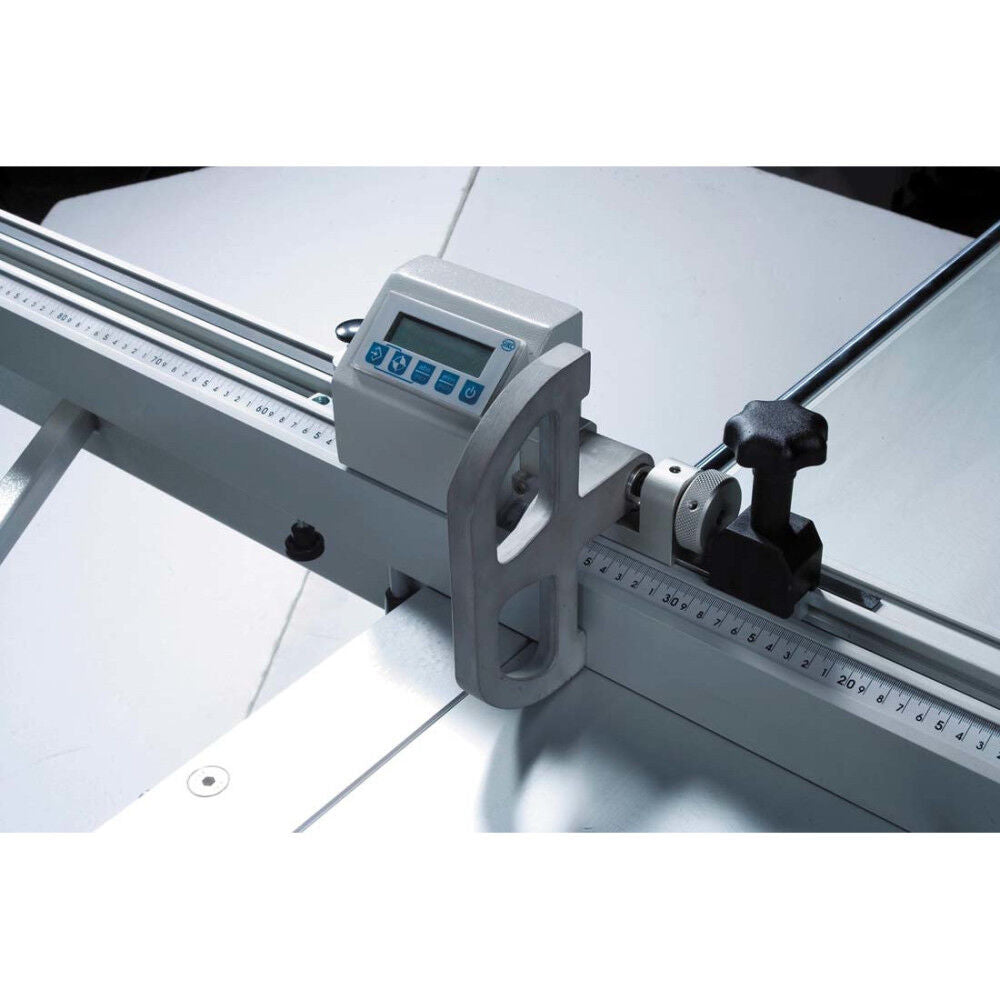

- Digital readout on the rip fence lets you make repeatable cuts without having to lose time measuring lengths, crosscut fence offers 2 DROs (one for the main gantry fence and one for the extension), 1HP scoring blade spins at 8000 Rpm to ensure a crisp, clean cut without frayed or ripped edges

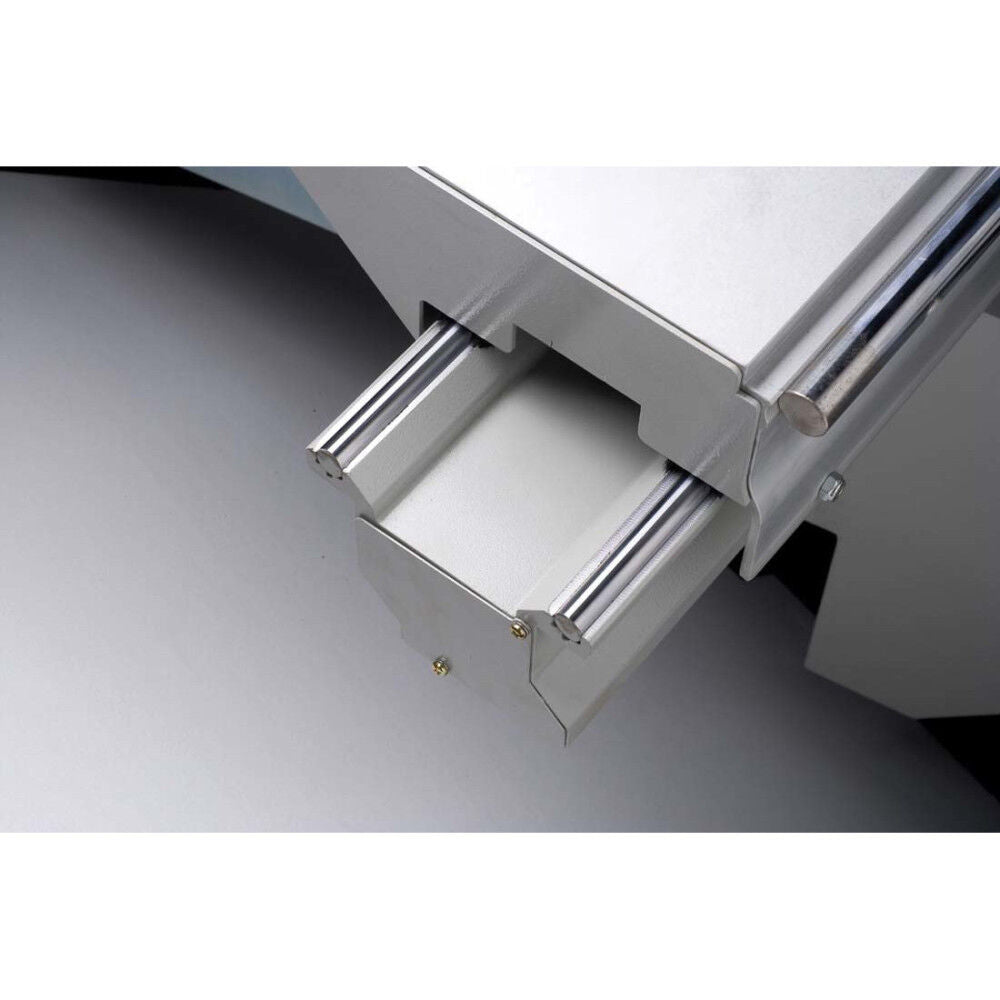

- Scoring blade saves you time, no extra work sanding edges after a cut, huge 15 In. x 125 In. sliding table slides on 4 precision shafts for jitter-free motion, table is made of fully-extruded, anodized aluminum that will stay square and true over many years of use
- Sliding table moves so smoothly that you can slide a whole sheet of 4 x 8 material without thinking there’s weight on it, Steel handwheel allows you to tilt the blade and incorporates a digital readout (DRO) to tell you the angle
- Rugged all-steel base stabilizes the machine and reduces vibrations for flawless accuracy and alignment
- Durable cast steel trunnion has heavy boxed (not dovetailed) ways, CSA certified
- Includes a safety blade guard with a tension system for lifting and lowering the guard without moving it from side to side, 4 In. dust port lets you hook up an extraction system to keep your shop clean
- Recommended for: Industrial production, especially cabinetry manufacturers, lumber liquidators, and railroad yards
- Covered by a 1-year parts warranty, as well as lifetime technical support by phone
Specifications
Brand Name - Baileigh
Amperage (A) - 0.0
Assembled Weight (lbs) - 2250
Country of Origin - Taiwan
CSA Certified - Yes
Dust Port - Yes
Dust Port Outside Diameter (in) - 4
ETL Listed - No
Horsepower (hp) - 7.5
MFG Part # (OEM) - 1007694
Material - Aluminum
Maximum Dado Diameter (In) - NA
Package Contents - Panel Saw, Fences for Rip Cuts, Crosscuts and Angle or Miter Cuts, Safety Blade Guard,Fence
Package Depth - 39
Package Height - 90
Package Weight - 2250
Phase - 3
Product Condition - New
Spindle Lock - No
Table Length (in) - 126
Table Width (in) - 15
UL Listed - No
UPC - 400007001251
Warranty Type - 1 Year
