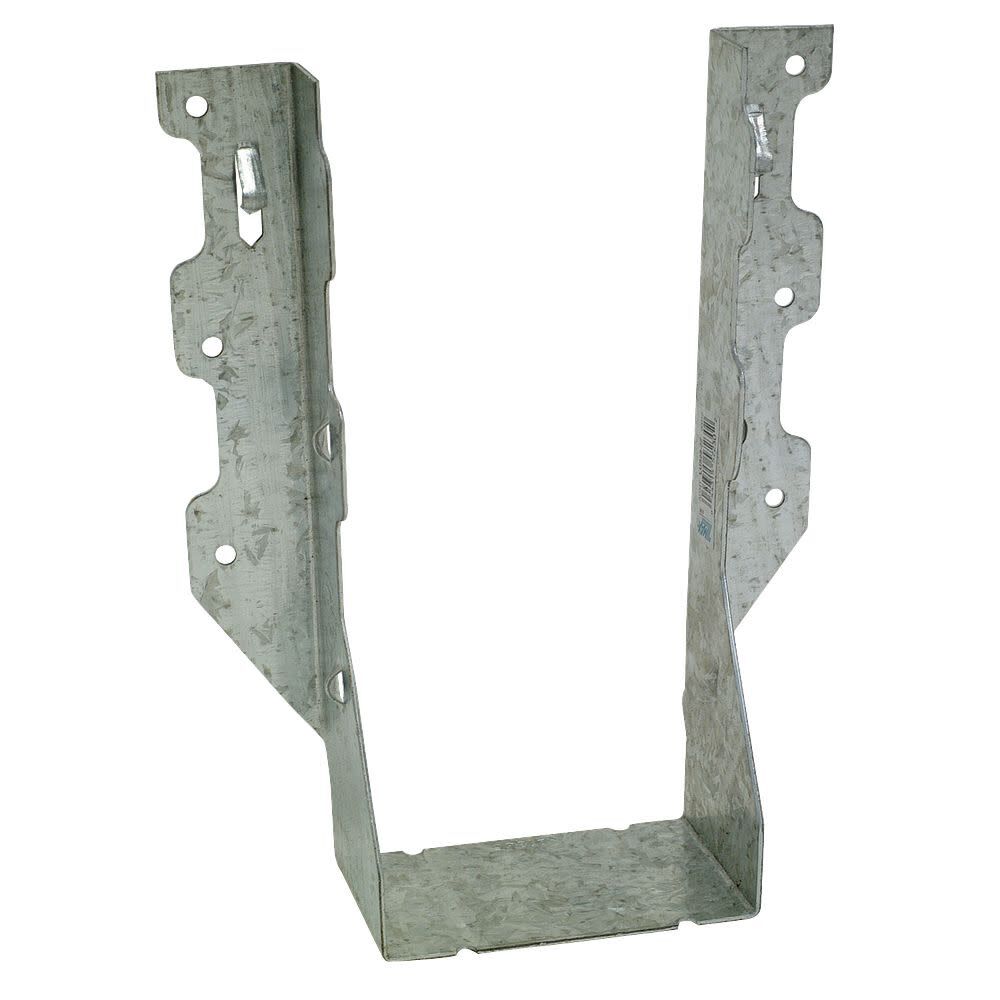

Simpson Strong-Tie 18 Gauge 2 x 8 ZMAX Light-Capacity U-Shaped Hanger
The LUS is an easy-to-install, economical hanger designed for common lumber sizes.
This widely used hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength.
This allows for fewer nails, faster installation and the use of all common nails for the same connection.
California Proposition 65 Warning.Features
- Cannot be modified
- Works for a wide range of applications
- Features speed prongs used to temporarily position and secure the connector for easier and faster installation
- LUS-series hangers are tested, load rated and code compliant
- Joist nails must be driven at an angle through the joist or truss into the header to achieve the table loads
- Joist nails must be driven at an angle through the joist or truss into the header to achieve the table loads.
- With 3x carrying members: when 0.162 In. x 3-1/2 In. nails are specified, use 0.162 In. x 2-1/2 In. nails into the header and 0.162 In. x 3-1/2 In. nails into the joist with no load reduction. When 0.148 In. x 3 In. nails are specified, use 0.148 In. x 2-1/2 In. nails into the header and 0.148 In. x 3 In. nails into the joist with no load reduction
- With 2x carrying members: when 0.162 In. x 3-1/2 In. nails are specified, use 0.148 In. x 1-1/2 In. nails into the header and 0.148 In. x 3 In. nails into the joist and reduce the load to 0.64 of the table values. When 0.148 In. x 3 In. nails are specified, use 0.148 In. x 1-1/2 In. nails into the header and 0.148 In. x 3 In. nails into the joist and reduce the load to 0.77 of the table values
Specifications
Brand Name - Simpson Strong-Tie
Assembled Weight (lbs) - 0.5
Country of Origin - China
MFG Part # (OEM) - LUS28-2Z
Package Contents - U-Shaped Hanger with Double-Shear Nailing
Package Depth - 7
Package Height - 2
Package Weight - 0.5
Product Condition - New
UPC - 044315572302
Warranty Type - No Manufacturer's Warranty
