Simpson Strong-Tie 14 Gauge ZMAX Coating DTT Deck Tension Tie Kit
DTT tension ties are safe, cost-effective connectors designed to meet or exceed code requirements for deck construction.
These versatile DTT connectors are also load rated as a holdown for light-duty shearwalls and braced-wall panel applications.
For new construction or to make an existing deck code-compliant, the DTT1Z can be used as a tension tie to satisfy the 2015, 2018 and 2021 IRC provision for a 750 lb.
Lateral load connection to the house at four locations per deck.

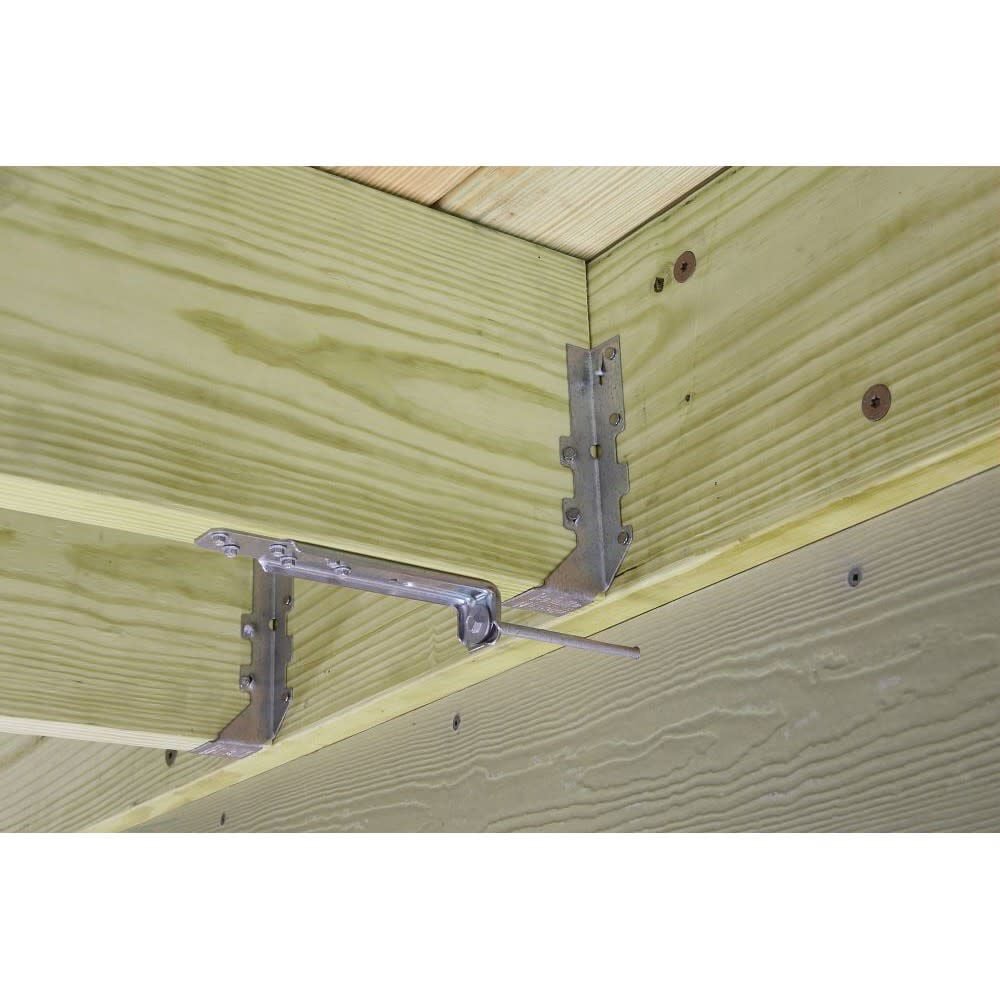

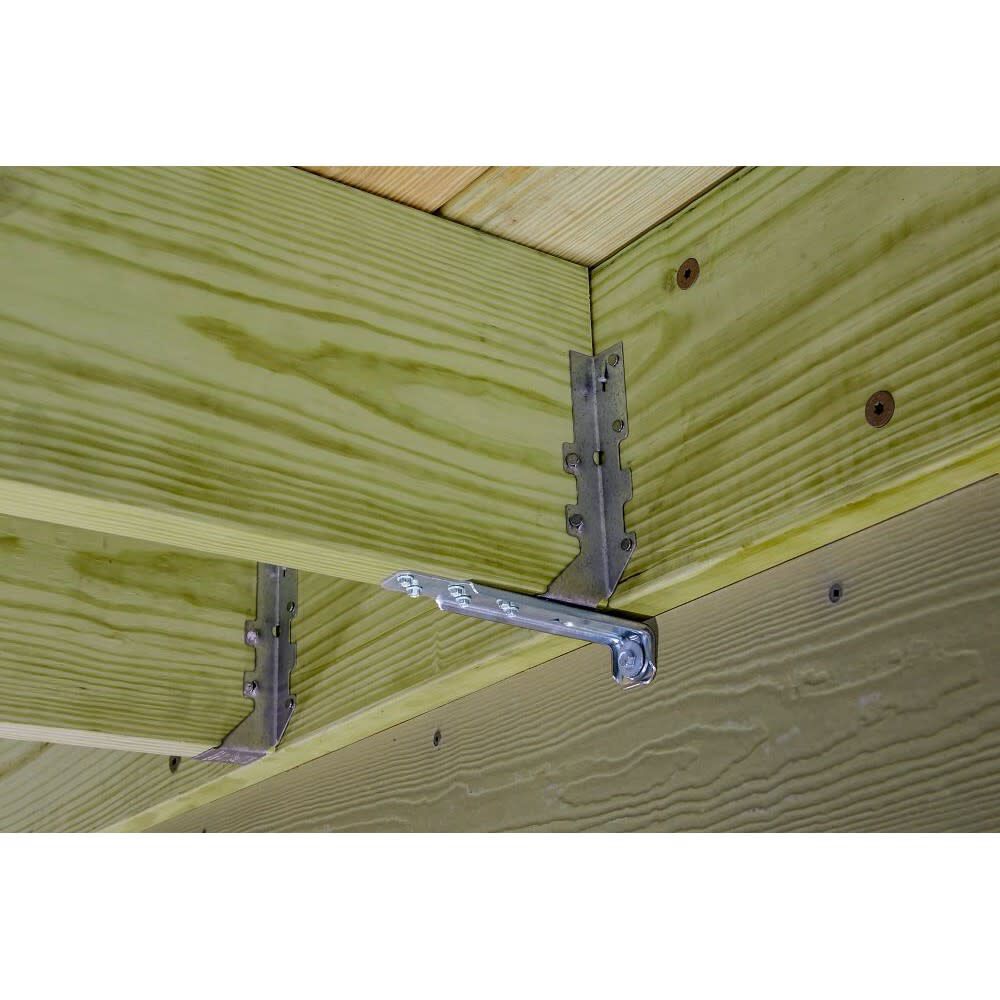

This code detail permits the lateral connection from the deck joists to be made to top plates, studs or headers within the supporting structure, which eliminates the need to access to the floor joists inside the home.

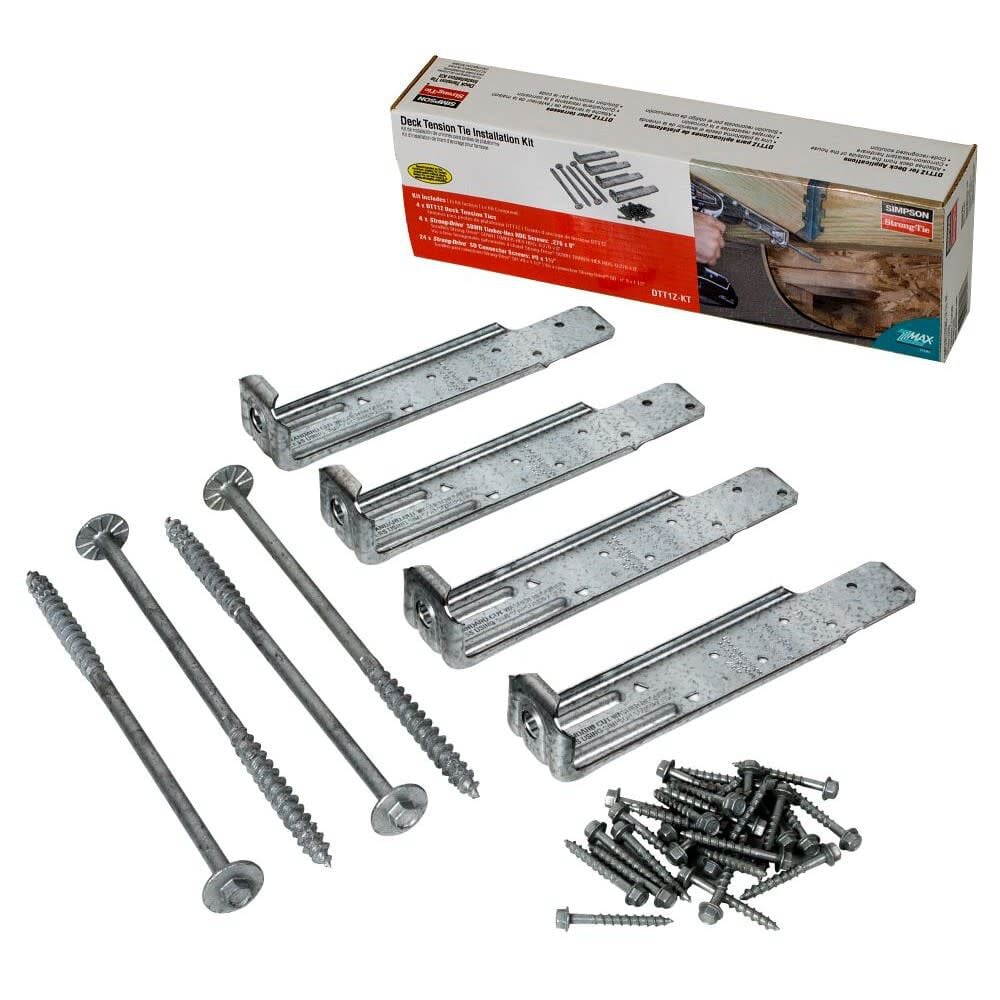

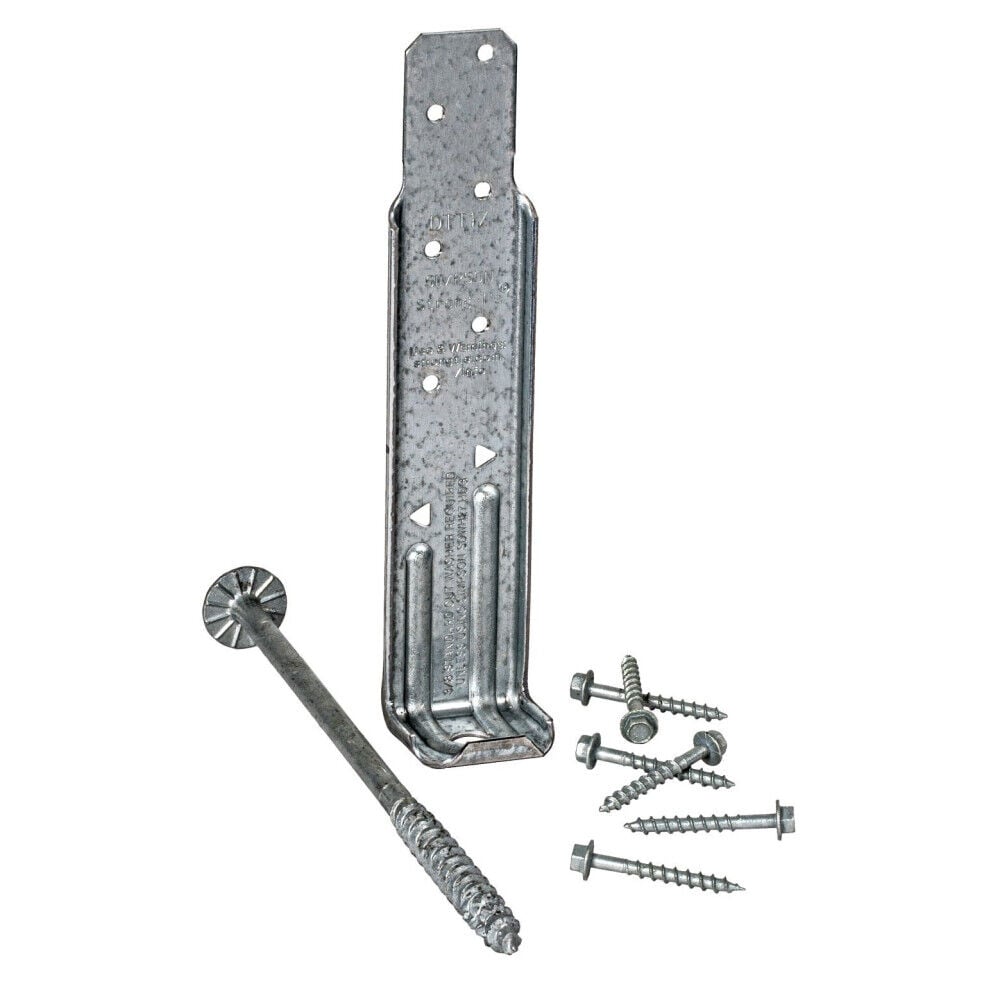

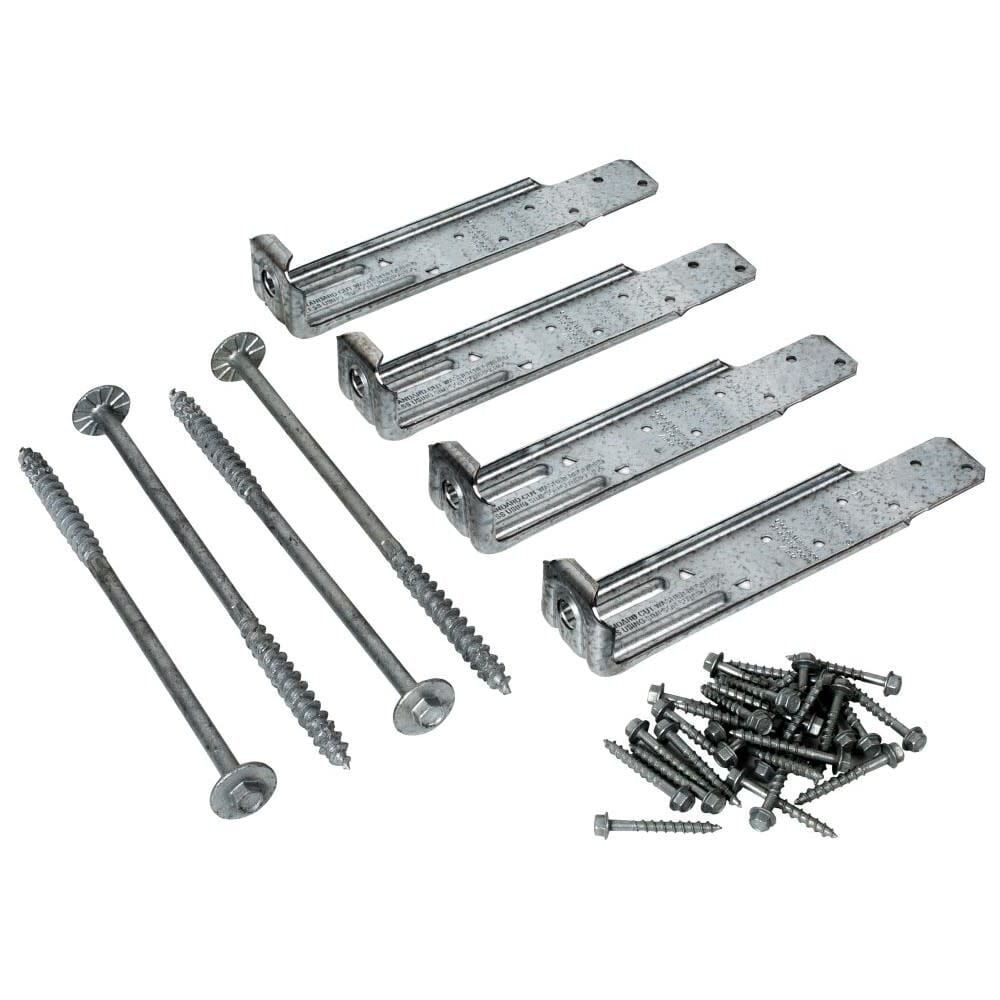

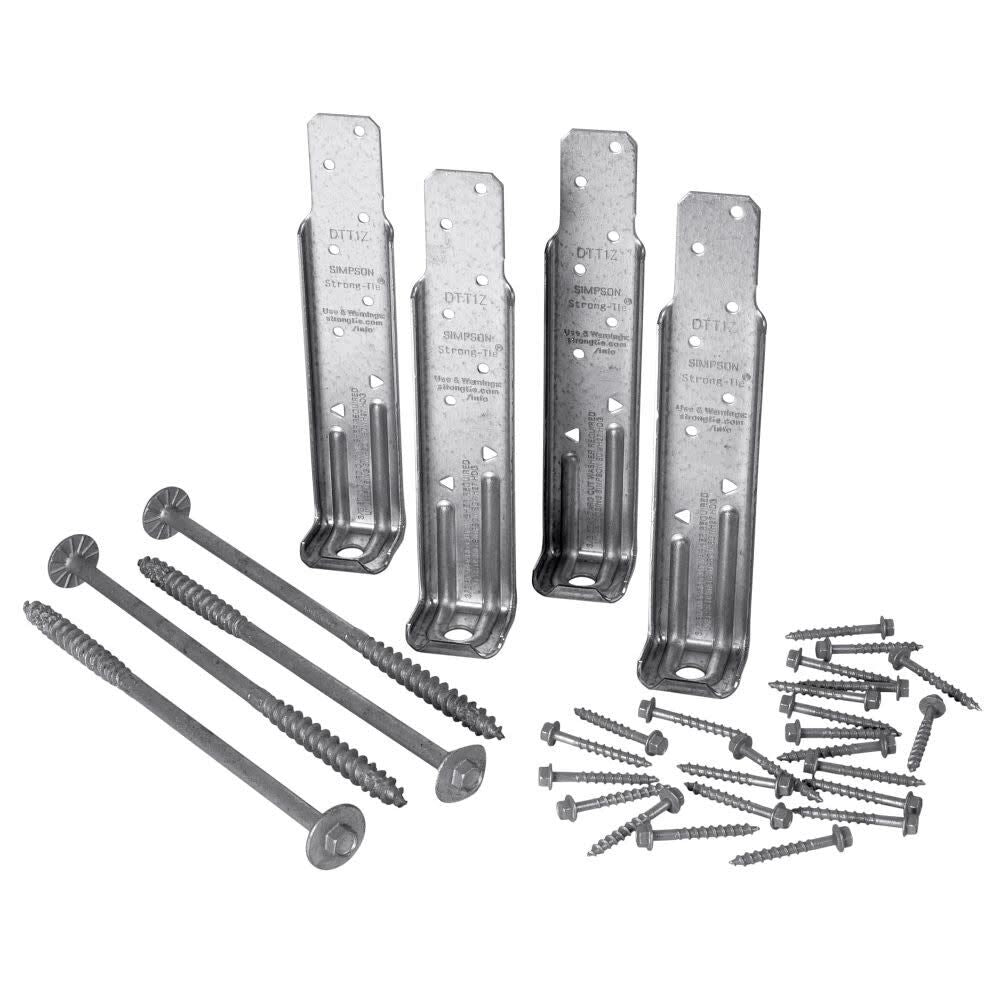

The DTT1Z is available in a kit (DTT1Z-KT) that includes (4) DTT1Z connectors, (4) Strong-DriveÆ SDWH Timber-Hex HDG screws (SDWH27800G) and (26) #9 x 1 1/2 In.
Strong-Drive SD Connector screws.
California Proposition 65 Warning.Features

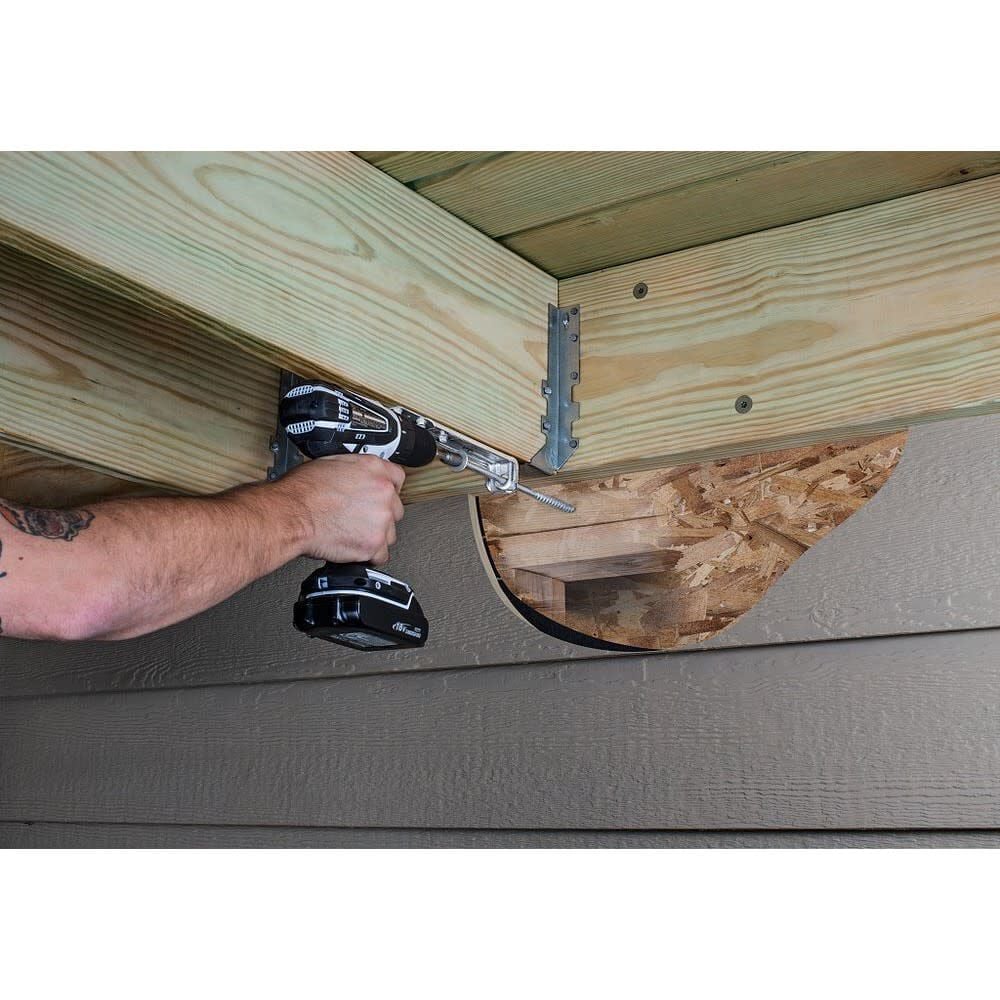

- Eliminates the need to access the floor joists inside the house
- Ties the guardrail post into deck framing
- Stronger and safer than nails, lag screws or bolts
- Ties the deck into the house for a stronger, safer ledger connection
- Helps prevent a common type of deck failure
- Retail pack includes Strong-Drive SD Connector Screws and SDWH Timber-Hex HDG Screws

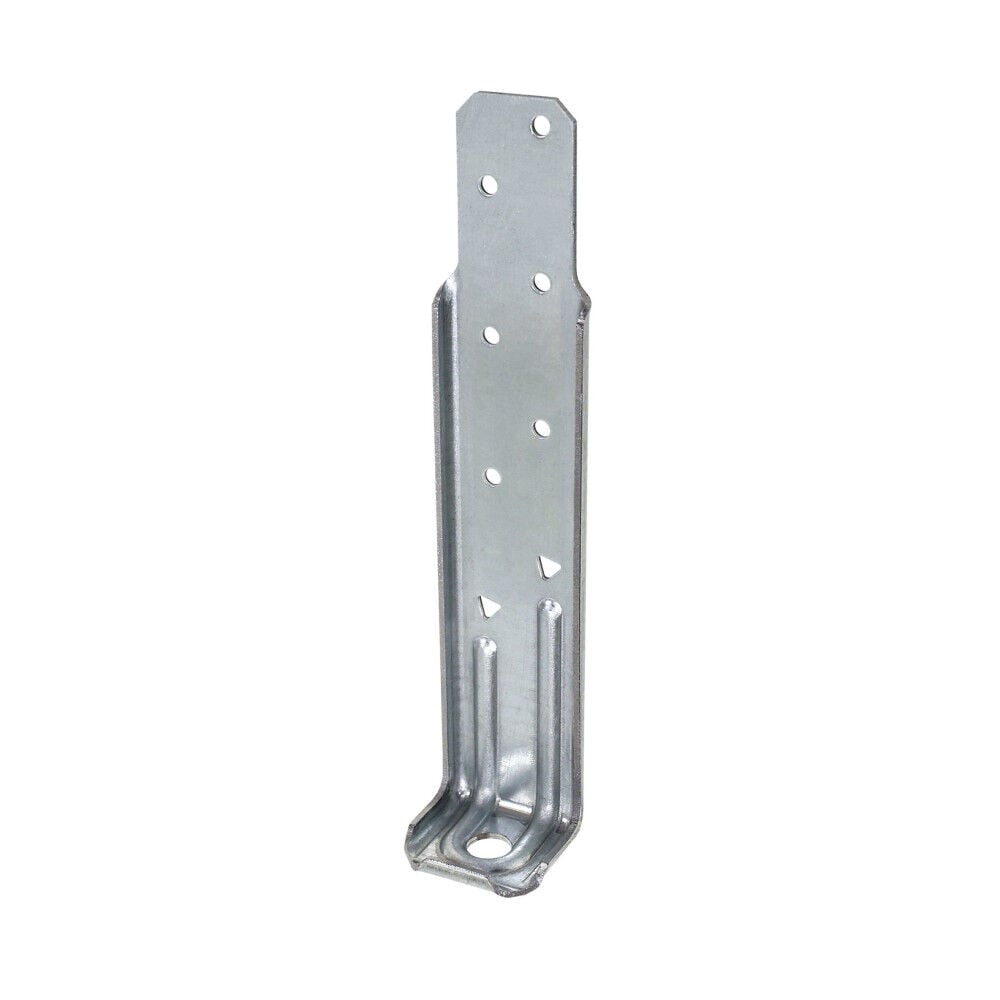

- Made from 14-Gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
Specifications
Brand Name - Simpson Strong-Tie
Assembled Weight (lbs) - 2.15
Country of Origin - China
MFG Part # (OEM) - DTT1Z-KT
Package Contents - (4) DTT1Z connectors, (4 )Strong-Drive® SDWH Timber-Hex HDG screws and (26) SD #9 x 1-1/2 In. screws
Package Depth - 10.5
Package Height - 2.5
Package Weight - 2.15
Product Condition - New
UPC - 707392694137
Warranty Type - No Manufacturer's Warranty
