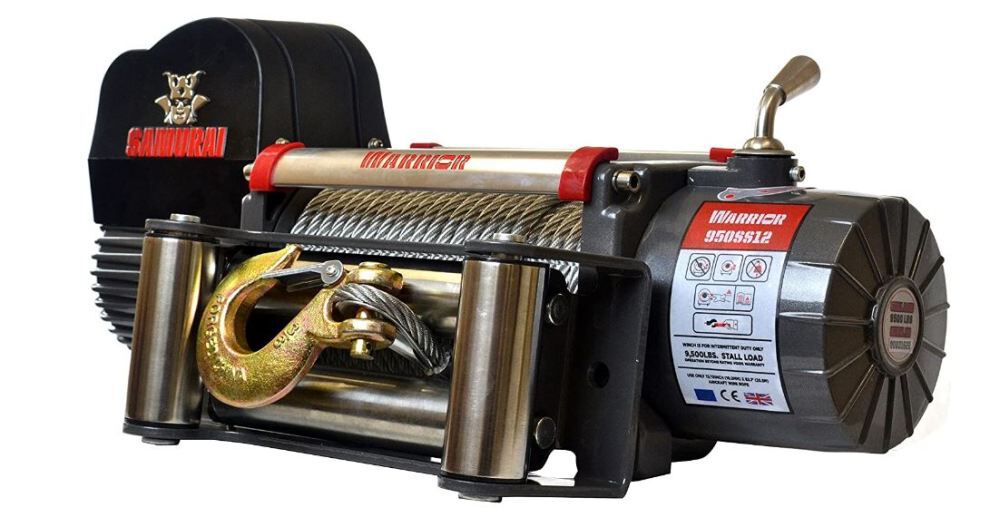

DK2 Samurai Winch Planetary Gear 9500lb with Steel Cable
The DK2 Warrior Samurai 9500lb is a Superb, high specification winch.
Ideal for recovery and 4x4 applications.
Outstanding features include high quality series wound double sealed motor with brass fittings, heavy duty waterproof contactors, double sealed drum on maintenance free bearings, quiet, efficient full steel planetary gearing.
Comes with stainless steel roller fairlead and fittings as standard.
The 12V version comes complete with Heavy Duty integrated wireless remote.
Limited Lifetime warranty.
Makes a great gift!
California Proposition 65 Warning.Features

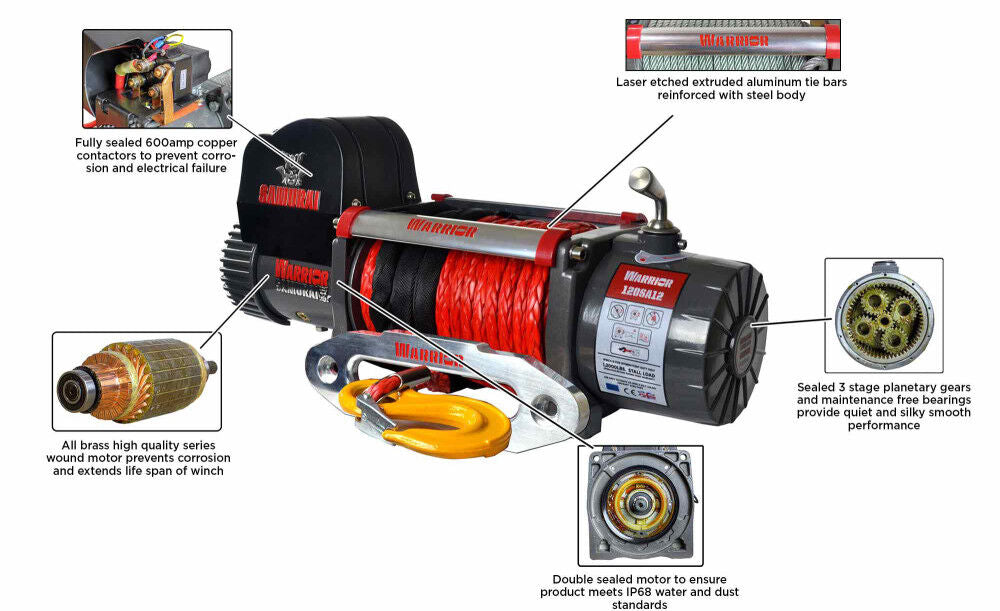

- Laser etched extruded Aluminum tie bars, reinforced with Steel body, Double sealed motor to ensure product meets IP68 water and dust standards
- 3 sealed Planetary gears and maintenance free bearings provide quiet and silky smooth performance
- All brass high quality series wound motor prevents corrosion and extends life span of winch
- Stainless Steel 4 Way Fairleads, Fully sealed 600 amp copper contactors for protection and to prevent corrosion and electrical failure
- Integrated Wireless Remote (12V only)
- Line Pull lbs Line Speed ft/min Amp Draw 12v Amp Draw 24v 0 19.6 80 70 3000 2.5 170 140 6000 9.8 260 210 9500 6 .4 380 270
- Layer of Wire Line Pull lbs Rope ft 1 9500 2 7706 3 6482 4 5593
- Rated Line Pull 9500 lbs Motor 12V: 4.6 HP Hydraulic Dis oz/r Gearing 230:1 Drum Size Dia x L 2.48 x 8.78 inch Cable Dia x L 0.36 x 1.2 inch Dimensions 21.25 x 6.3 x 8.6 inch Weight lbs Mounting Pattern 10 x 4.5 inch Breaking Action Auto in the drum
Specifications
Brand Name - DK2
Assembled Depth (in) - 21.3
Assembled Weight (lbs) - 90
Assembled Width (in) - 6.3
Assembly Required - Yes
Color - Black Red or Gray
Country of Origin - China
Height (in) - 8.6
MFG Part # (OEM) - S9500
Material - Steel
Package Contents - Samurai Winch Planetary Gear 9500lb with Steel Cable
Package Depth - 13
Package Height - 13
Package Weight - 92
Product Condition - New
Sound Decibels (dB) - 70 dBA
UPC - 826518003254
Warranty Type - 1 Year
