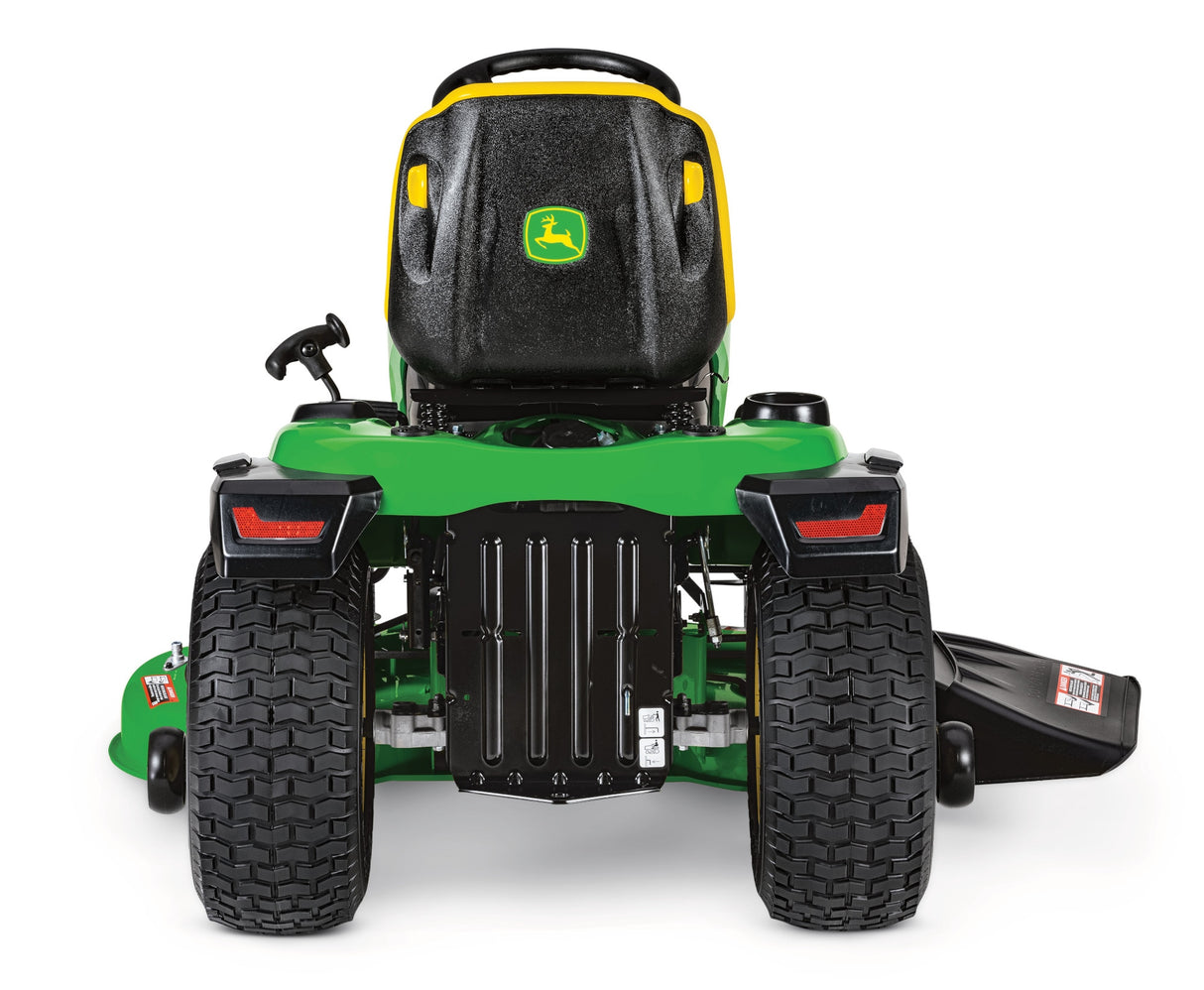

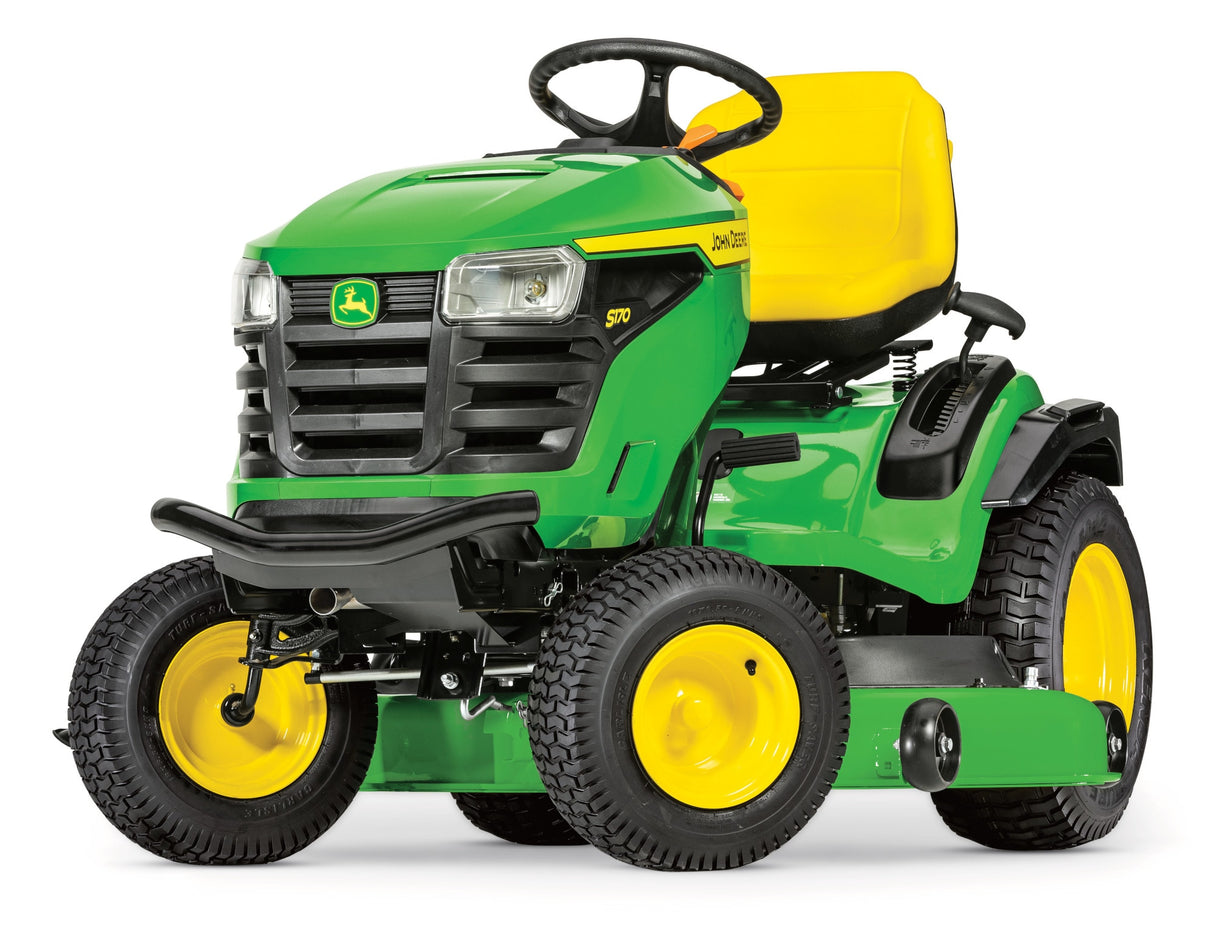

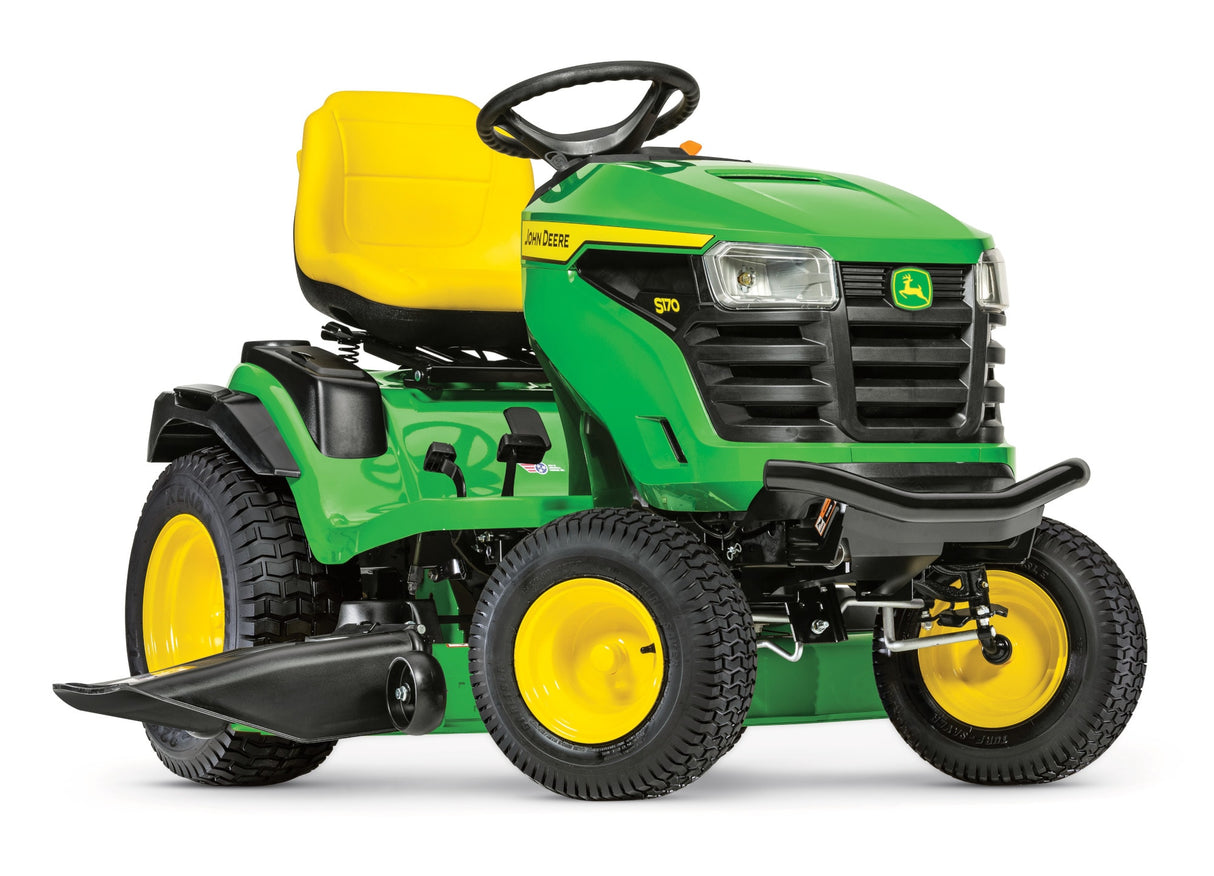

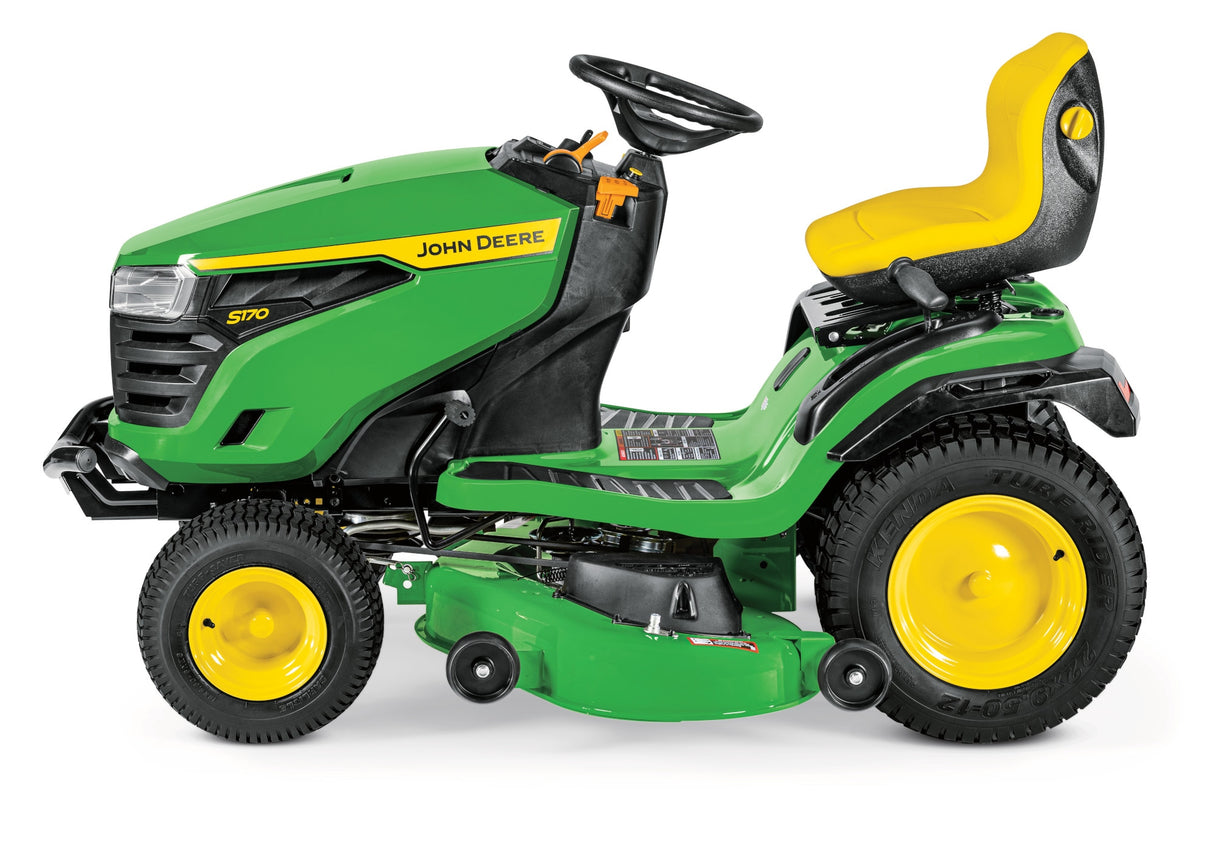

The John Deere S170 lawn tractor is the premium 48-inch deck model of the 100 Series line up.

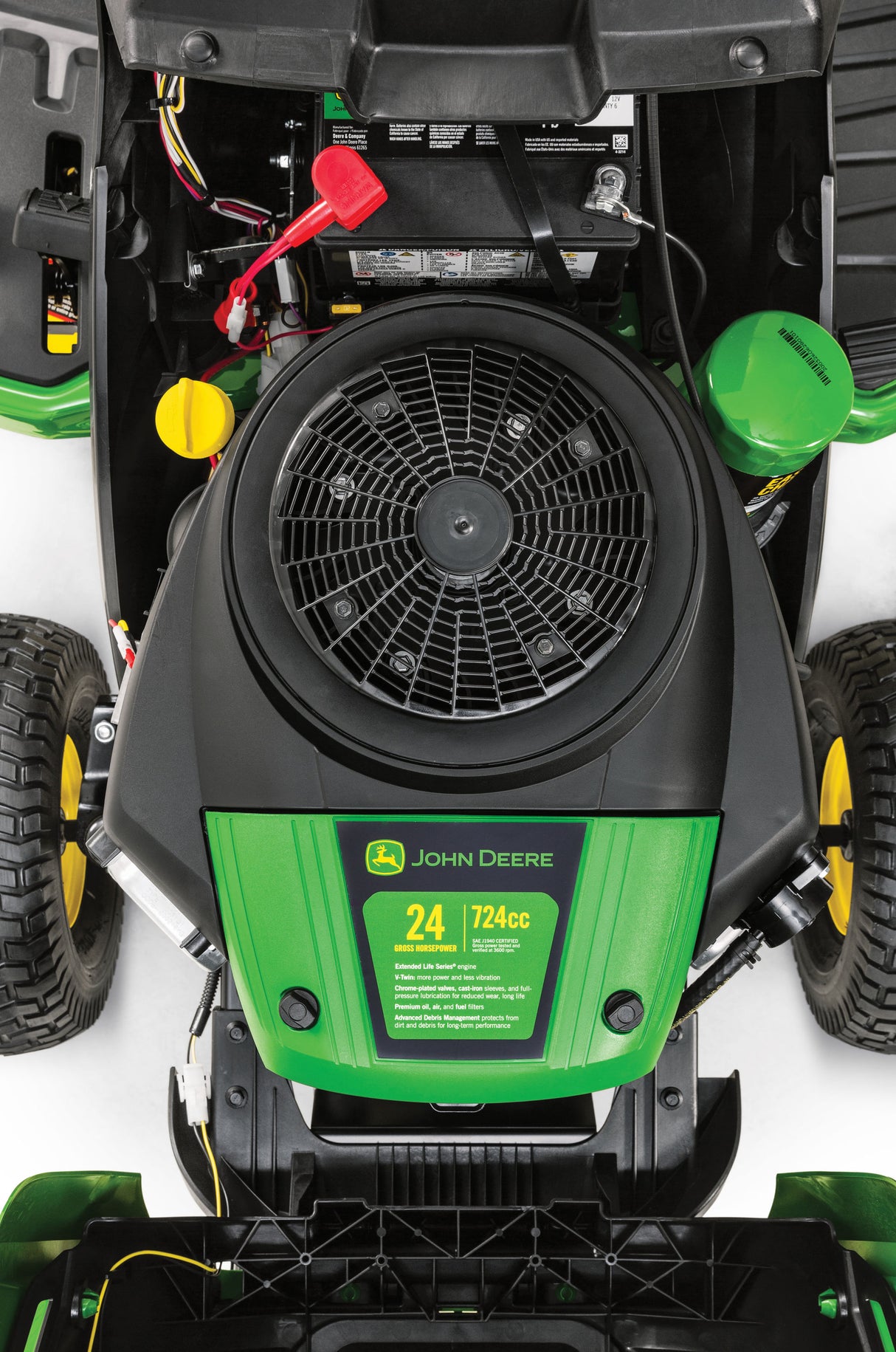

The 24-HP V-Twin John Deere Extended Life Series (ELS) engine has plenty of power to handle tough mulching, mowing and bagging conditions (coverage up to 2 acres).
The ride is comfortable.

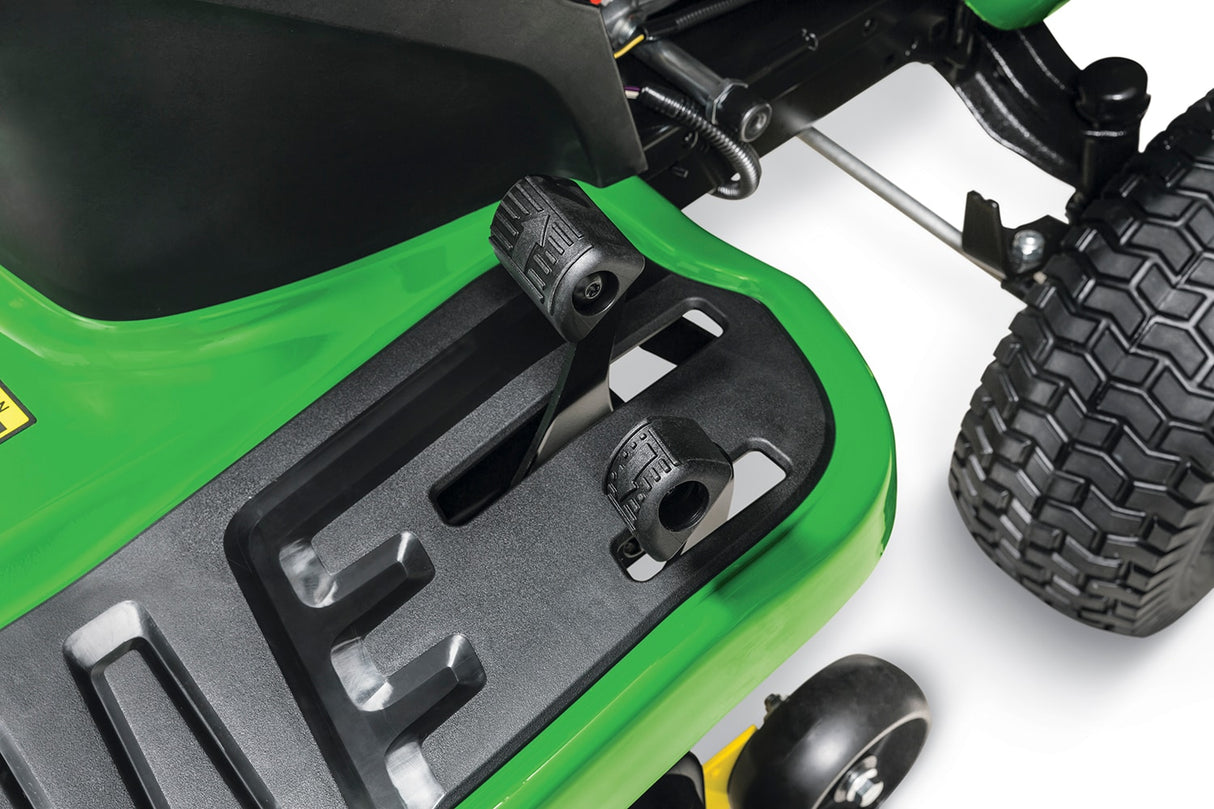

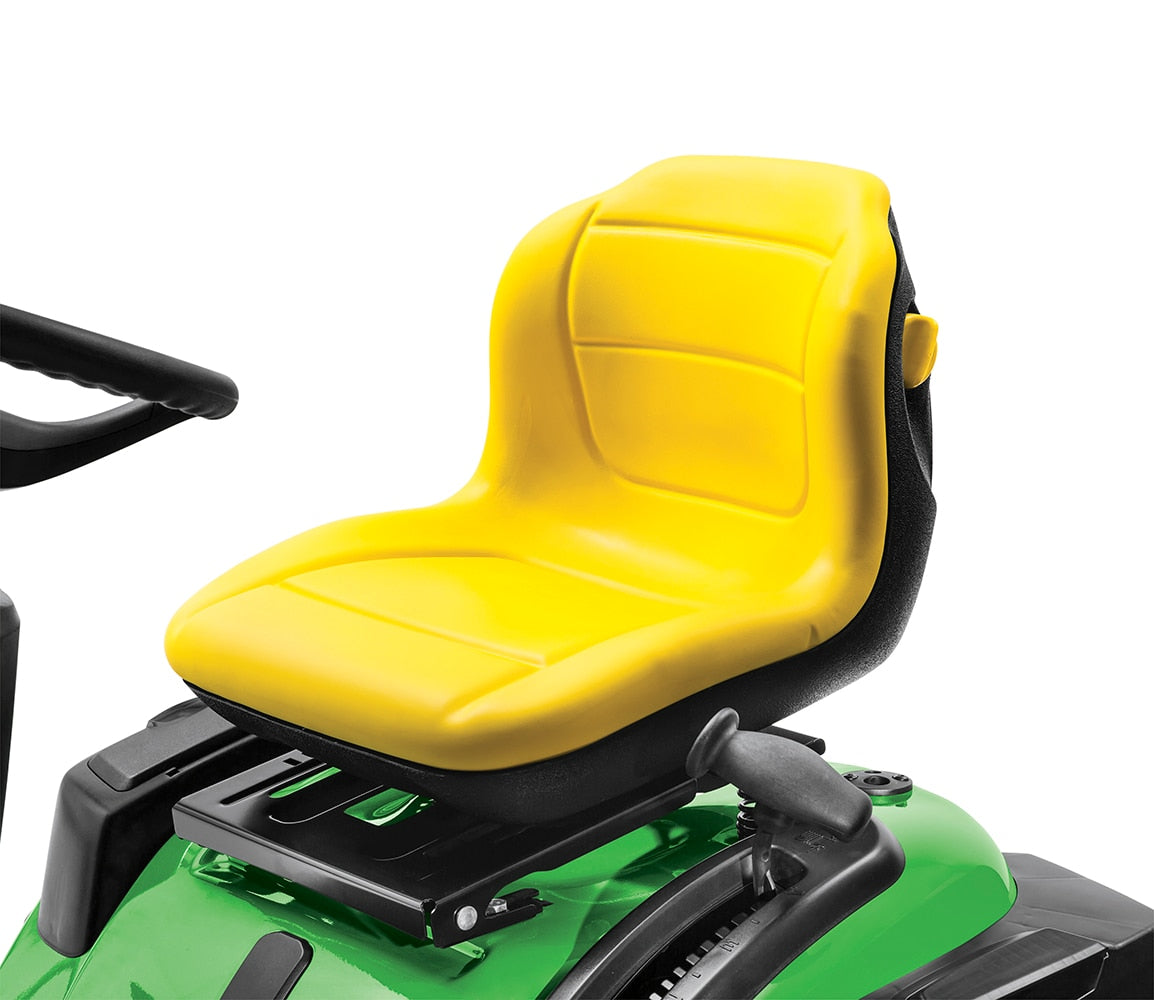

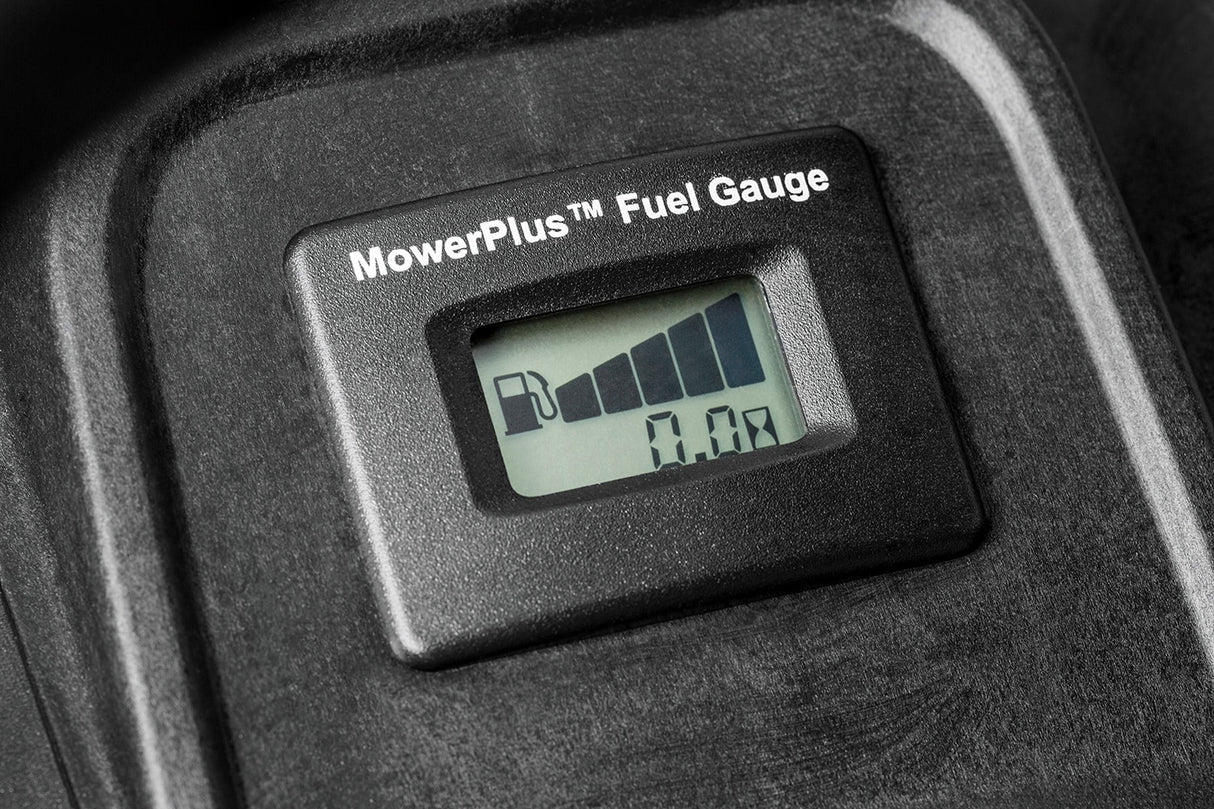

The S170 features a heavy-duty hydrostatic transmission, side-by-side foot pedals, enhanced styling, adjustable controls, 15-in seat with lumbar adjustment knob, cruise control, easy read fuel gauge, front bumper, larger front/rear wheels and tires, premium steering wheel and fender flares.
The 48-inch Edge™ Cutting System is also time-tested and proven to offer superior cut quality and can be easily equipped to bag or mulch.

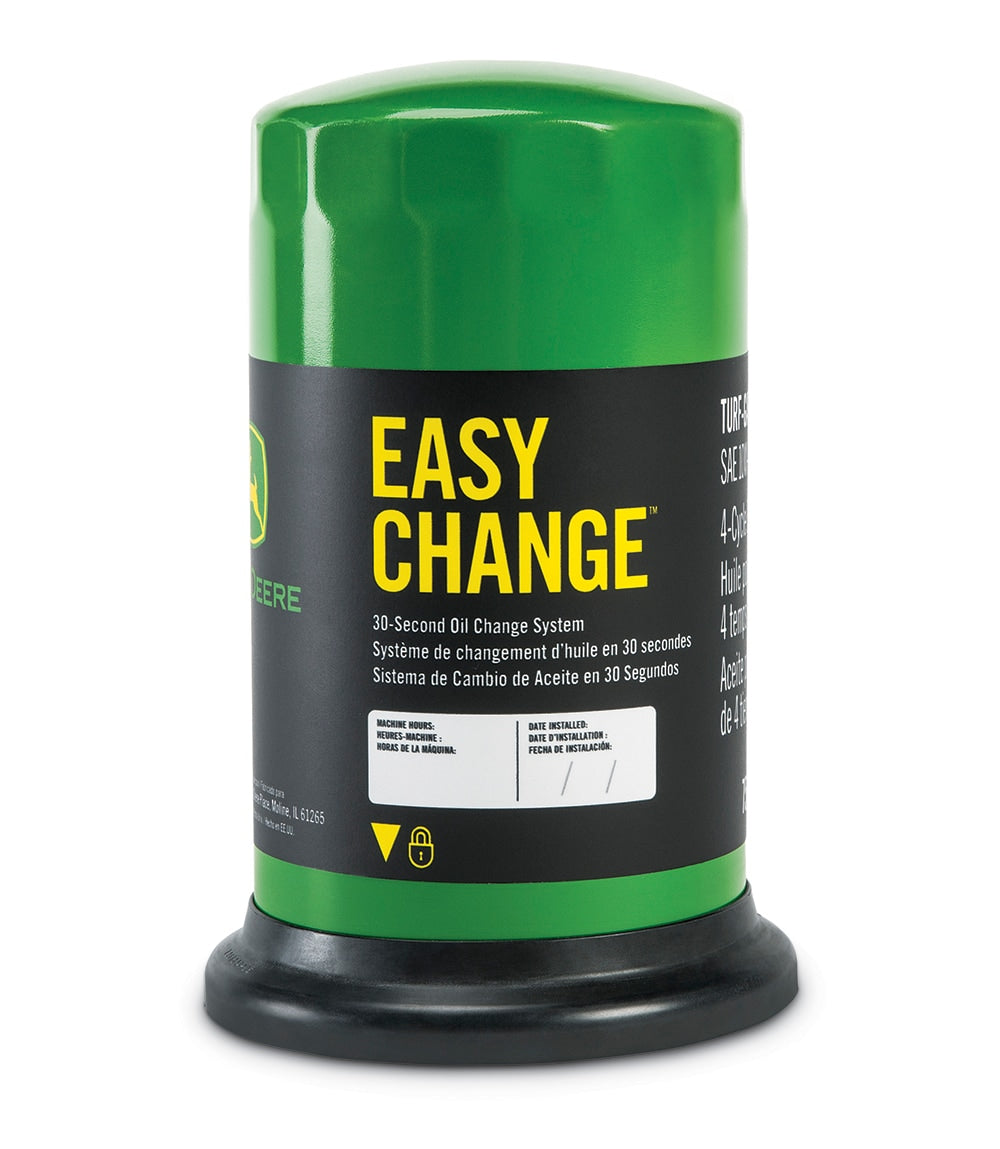

The S170 also includes the John Deere Easy Change™ 30-Second Oil Change System, the original All-In-One oil and oil filter canister that allows anyone to easily change their tractor oil with no hassles and no mess.
Built by John Deere in Greeneville, TN, USA – Experience the Comfort of a John Deere
Heavy-duty hydrostatic transmission, side-by-side foot pedals, enhanced styling, adjustable controls, 15-in seat with lumbar adjustment knob, cruise control, easy read fuel gauge, front bumper, larger tires, premium steering wheel, fender flares
The S170 includes the John Deere Easy Change™ 30-Second Oil Change System, the original All-In-One oil and oil filter canister that allows anyone to easily change their tractor oil with no hassles and no mess
The 24-HP V-Twin John Deere Extended Life Series (ELS) engine has plenty of power to handle tough mulching, mowing and bagging conditions (coverage up to 2 acres)

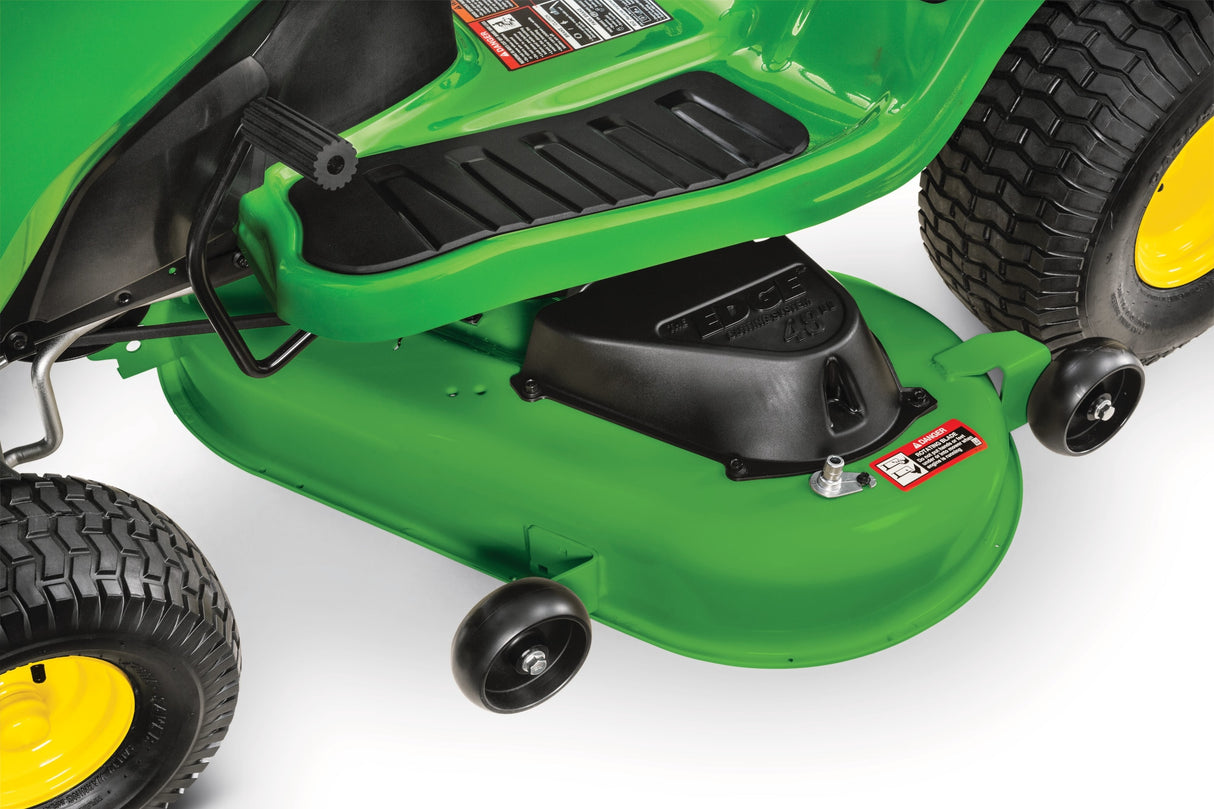

The 48-in three blade Edge™ Cutting System has a deep deck design, 12-gauge steel and electric PTO blade engagement to provide superior performance and even cuts with 1-in to 4-in cut height selections in 1/4-in increments
Frame made of full-length welded, 12-gauge steel for reliability

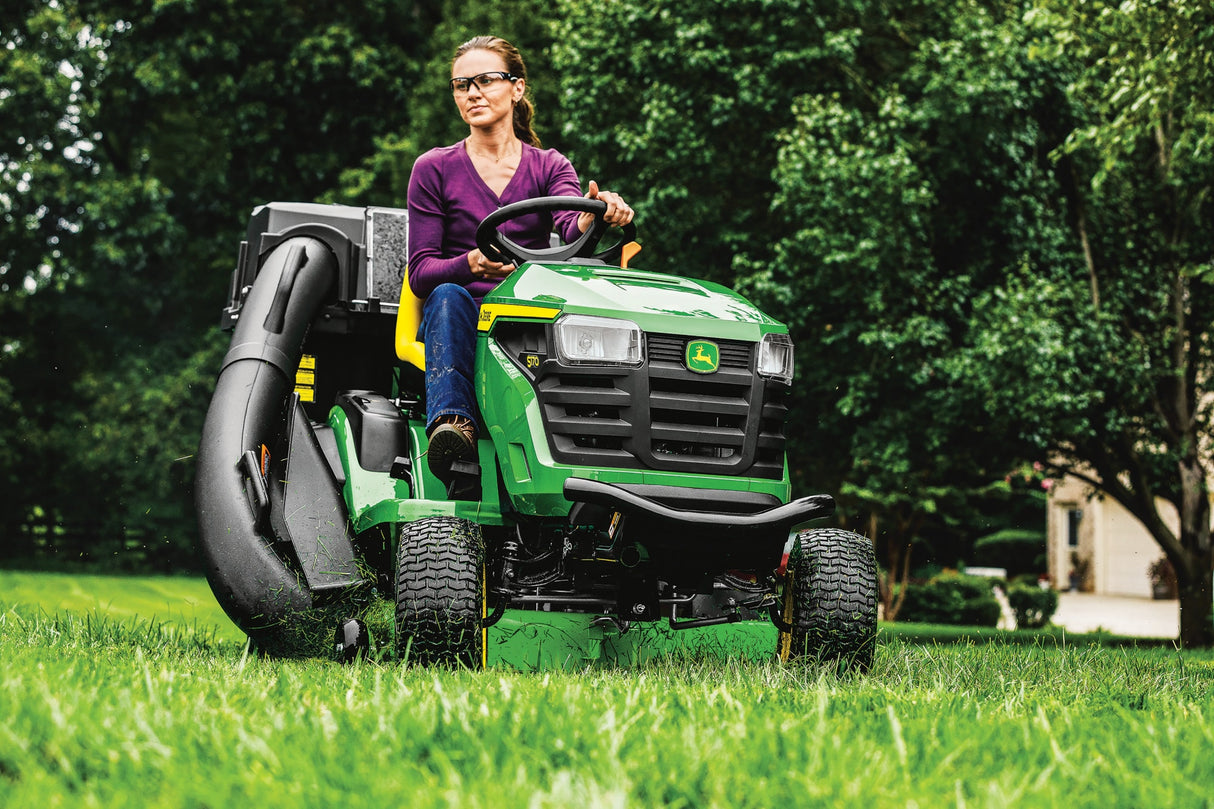

Compatible parts and attachments: 48-in bagger (2593140), 48-in mulch cover (317781), tow-behind cart (317783), lawn sweeper (538134), 46-in front blade (232032), 44-in snow blower (876847)
MowerPlus™ Deluxe Smart Connector (2636782) lawn aerator (27064), canopy (623851), cover (227861), Easy Change™ 30-Second Oil System (924091), air filter (291810), 48-in mower blades (228461), 48-in mower belts (228875)
Hassle-Free Ownership: John Deere 2-year/120-hour bumper to bumper warranty, local John Deere dealer support and a 10-Point Pre-Delivery Inspection prior to sale
Specifications
Series Name: S170
Sub-Type: Lawn tractor
Type: Riding lawn mower
Dimensions
Assembled Weight (lbs.): 503
Cut Width (Inches): 48
Cutting Range/Yard Size (Acres): 2-3 acres
Engine Oil Capacity (oz.): 89.6
Front Wheel Size: 16-in
Fuel Capacity (Gallons): 2.4
Maximum Cutting Height (Inches): 4
Minimum Cutting Height (Inches): 1
Mower Deck Width (Inches): 48
Overall Length (Inches): 75.3
Overall Width with Deck (Inches): 60.8
Rear Wheel Size: 22-in
Features
Ammeter: No
Bagger Capable: Yes
Blade Engagement Type (PTO): Electric
Commercial/Residential: Residential
Cruise Control: Yes
Cup Holder: Yes
Deck Gauge: 12
Deck Type: Stamped
Differential: N/A
Discharge Location: Side
Drive Type: Rear wheel drive
Engine Brand: John Deere Branded ELS
Engine Displacement (Cu. Centimeters): 724
Engine Horsepower: 24
Engine Oil Included: Yes
Engine Series: John Deere Branded ELS
Engine Type: V-twin
Front Axle: Cast iron
Grease Fittings: Yes
Headlight(s): Yes
Hour Meter Type: Meter only
Leaf Bag Included: No
Lowe's Exclusive: Yes
Maximum Forward Speed (MPH): 5.5
Maximum Reverse Speed (MPH): 3.2
Mulching Capable: Yes (kit sold separately)
Number of Blades: 3
Number of Deck Positions: 16
Number of Deck/Anti-Scalp Wheels: 4
Oil Filter Type: Easy change
Operator-Controlled Mow-in-Reverse: Yes
Power Source: Gas
Recommended for Terrain Type: Flat with obstacles
Seat Type: High-back with lumbar support
Start Type: Turn key start
Steering Type: Standard wheel
Transmission Type: Hydrostatic
Turning Radius (Inches): 18
Compatibility
Attachment Compatible: Front and rear
Matching Bagger (Item #): 2593140
Matching Mulch Kit (Item #): 317781
Warranty
Warranty: 2-year limited or 120 hours
Certifications
CA Residents: Prop 65 Warning(s): No
California Air Resources Board Compliant: No
Safety Listing: Not safety listed
Miscellaneous
UNSPSC: 21101700
