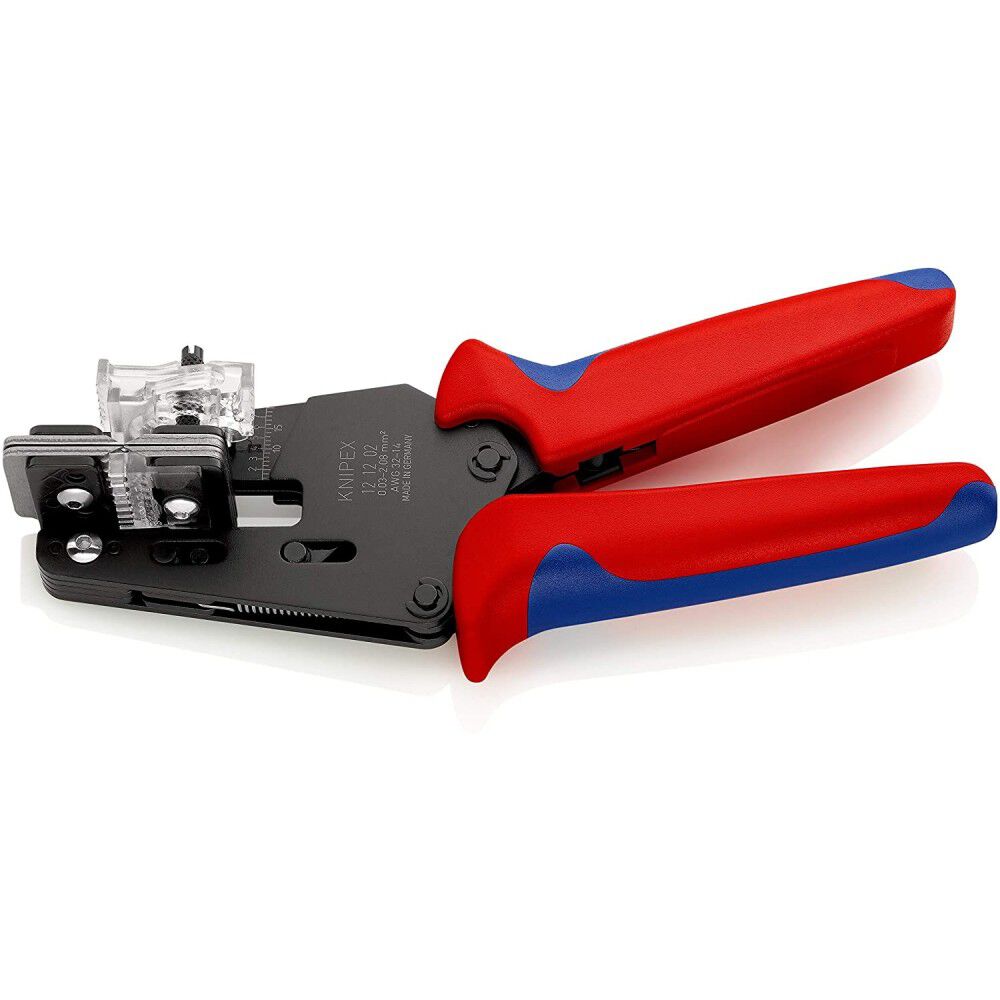

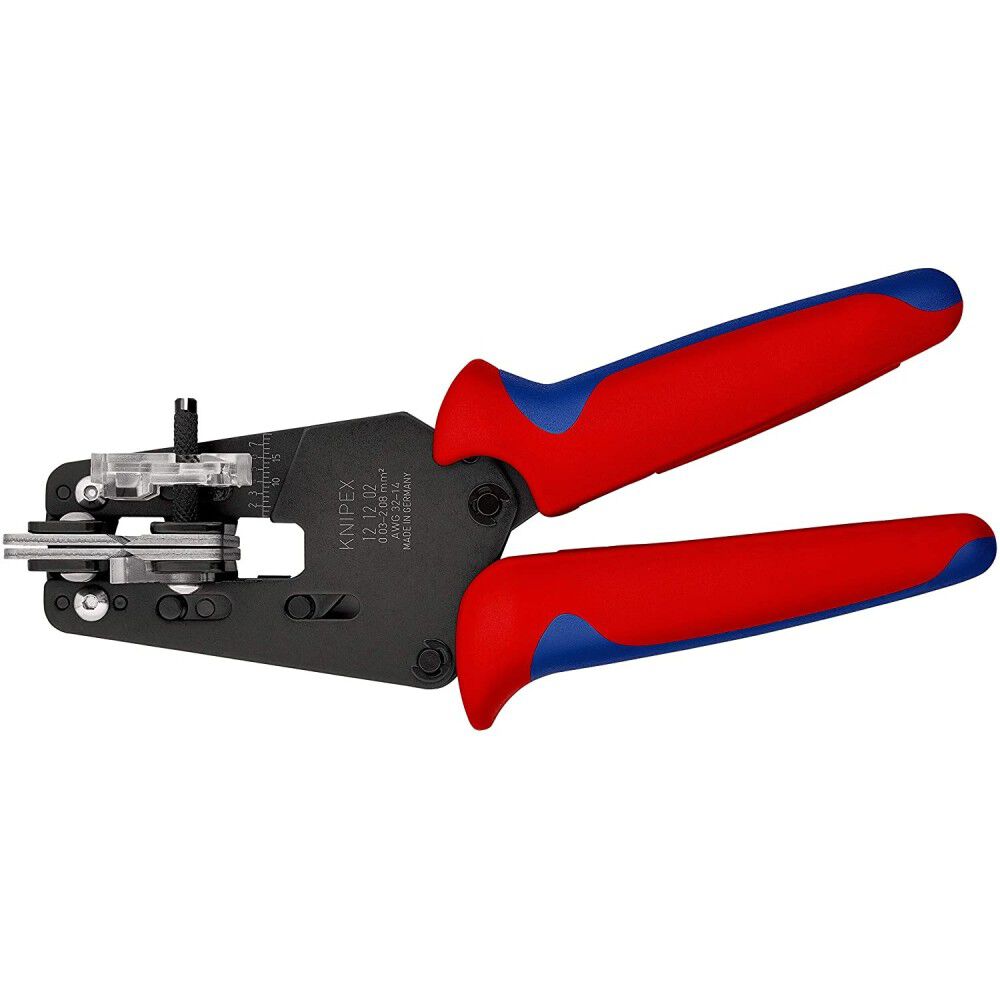

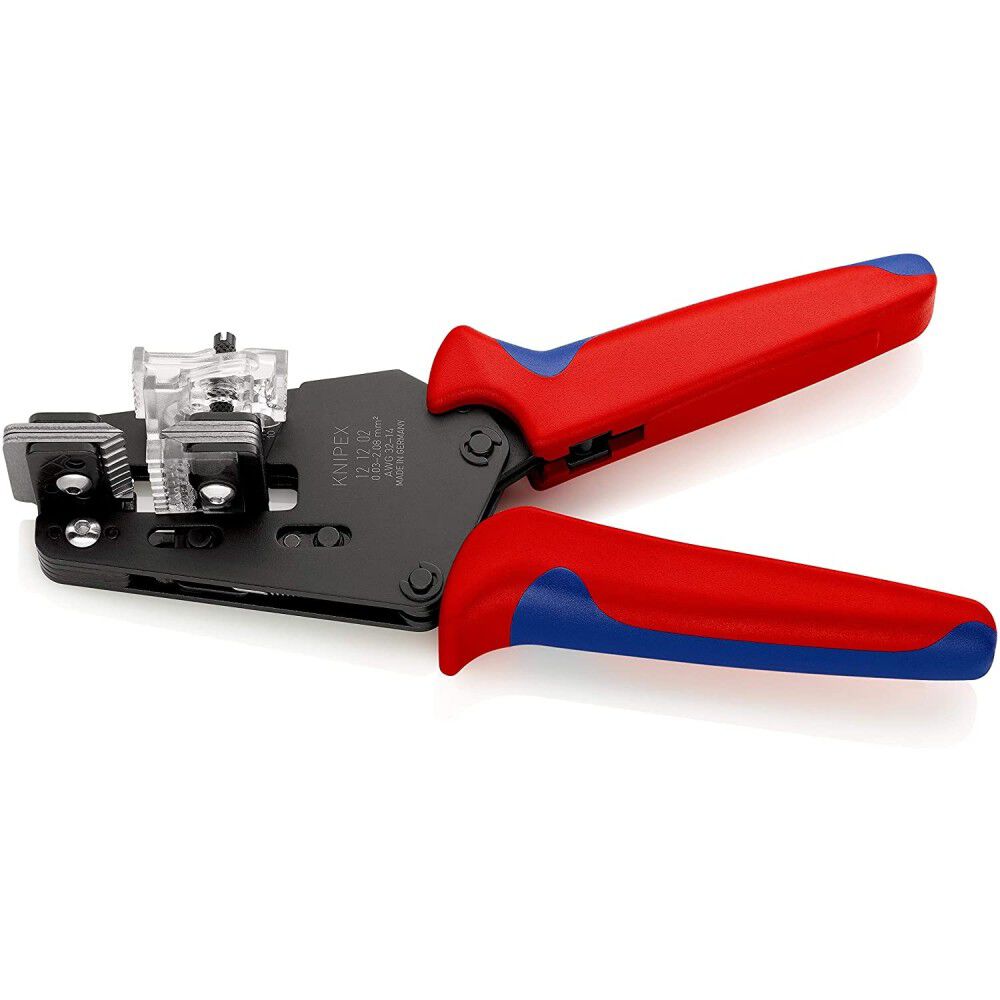

Knipex Precision Insulation Wire Stripper 195mm 14-32 AWG
The Knipex 12 12 02 wire strippers have been specially developed for very tough and hard insulation materials which need to almost be cut through entirely so that they can be pulled off.
Two pairs of blades cut into the entire circumference of the cable insulation.
The blades have been shaped and ground so that the cut gets very close to the conductor.
After scoring, one of the pairs of blades remains still and secures the insulation that has been cut into.
The other pair of blades strips the insulation from the cable.
With adjustable length stop for consistent wire stripping lengths in series production work. "The insulation involved here must withstand a great deal, such as being heat-resistant and tough.
Cutting insulation like this from the single conductors during stripping is equally challenging.
With conventional wire stripping tools it is difficult and often quite impossible to achieve a clean wire stripping result.
With these special wire strippers, by contrast, even hard to remove insulation is removed accurately and reliably, and in a single work step.

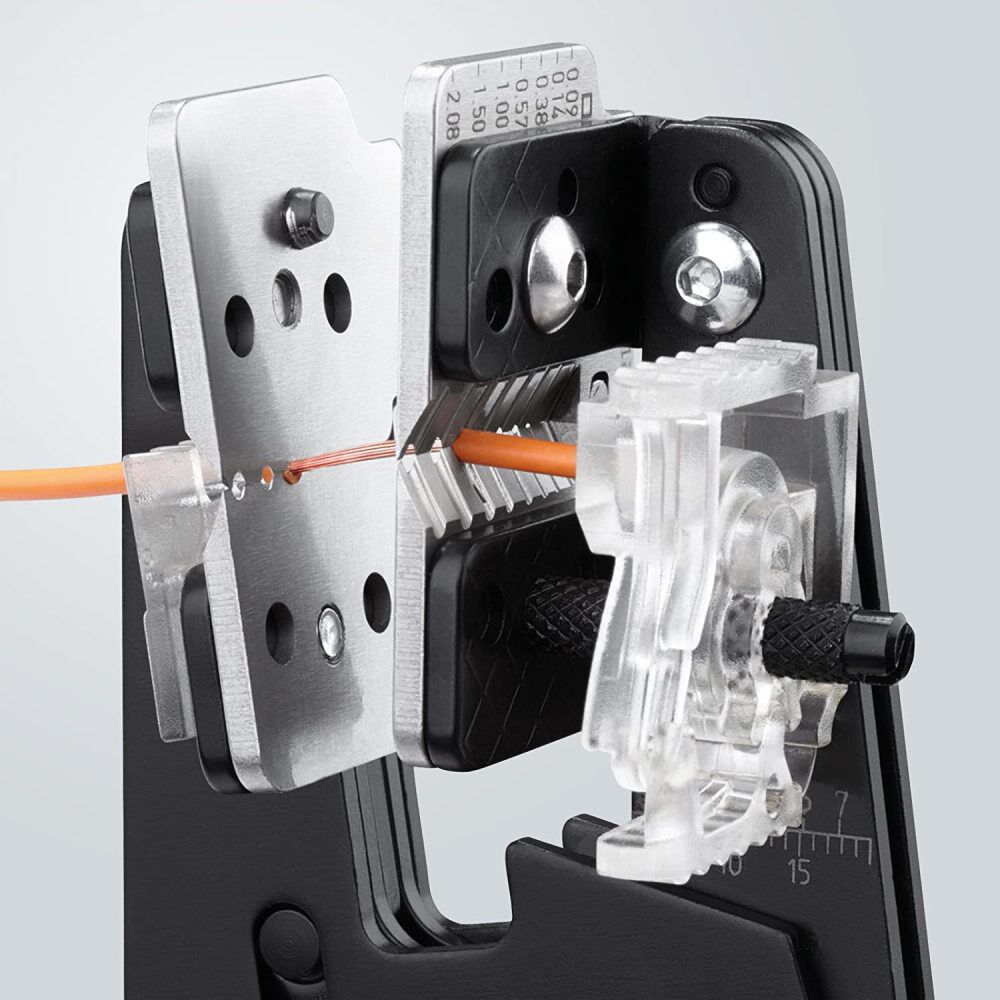

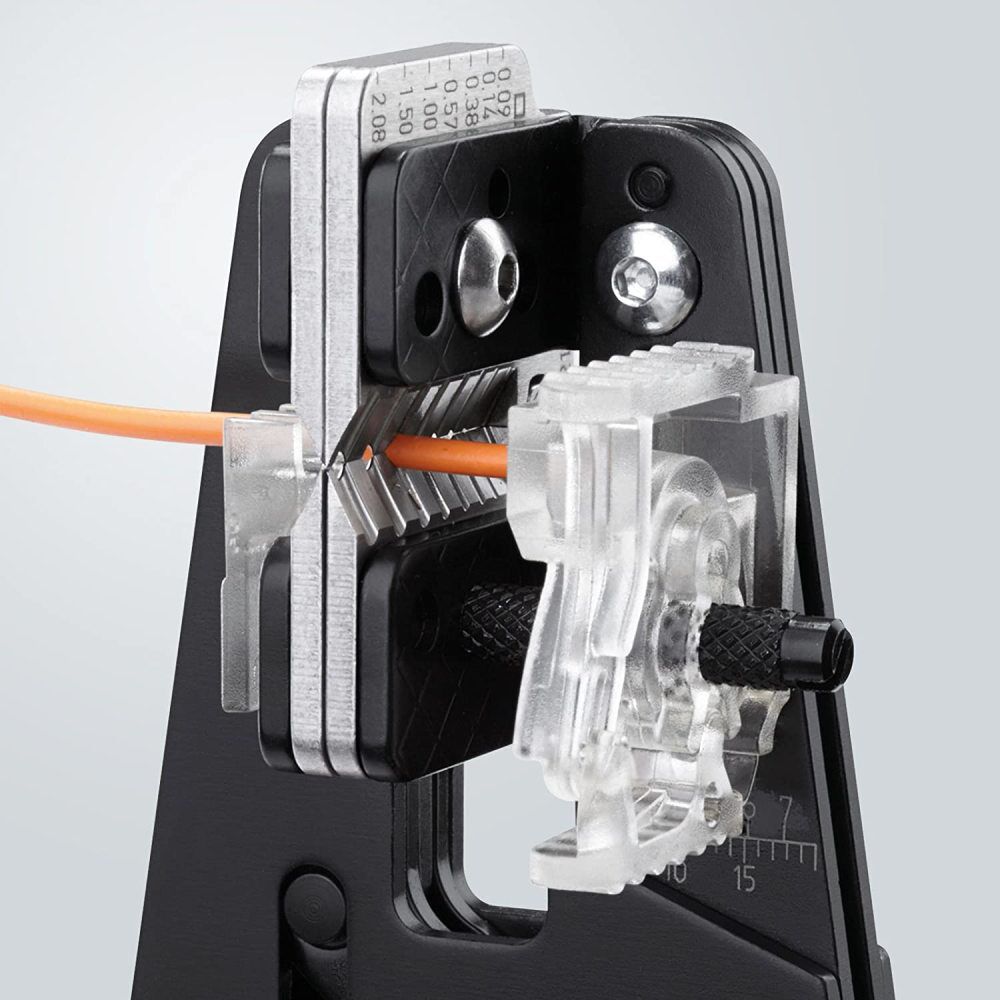

The model 12 12 02 shown here has an additional insertion aid for precisely positioning the cable on the wire stripping points of the blade.
Other Knipex precision wire strippers from this series can be found in the table below.
The work saved by these wire strippers is immense.
After inserting the cable, the entire wire stripping process takes place as if by itself with one press of the hand.
Even insulation materials that are difficult to process are reliably removed with precise and, thanks to the length stop, accurate repeat measurements: an advantage for fitters, e.g.
In the areas of energy technology, plant and automotive engineering.
California Proposition 65 Warning.Features
- With additional cable guide for exact positioning of the cable in the stripping area of the blade
- Form-fit stripping also of difficult-to-remove insulating materials made of PTFE, silicone, Radox®, Kapton® and rubber, multi-layer too
- A second pair of blades holds the remaining insulation reliably in place
- Replaceable shaped blade adapted precisely to the respective conductor cross-section
- With length stop for constant stripping length during repetitive work
- Two pairs of blades cut parallel into the insulation, and remove it with a separating movement
- Handles with multi-component grips
- Length stop that can be easily adjusted by pressing and sliding for accurately repeated wire stripping
- Pliers body: steel
Specifications
Brand Name - Knipex
Assembled Weight (lbs) - 0.98
Blade Material - Steel
Blade Type - Adapted
Color - Multiple
Country of Origin - Germany
Cutting Capacity - NA
Electrical Accessory Type - Tool
Handle Material - plastic
Knife / Blade/ Scraper Type - Adapted Blade
Material - Steel
Net Tool Weight (lbs) - 0.98
Package Contents - Wire Stripper with Adapted Blades,2 Blades Included
Package Depth - 7.67
Package Height - 0.78
Package Weight - 0.98
Product Condition - New
Size - 7.7 in
Warranty Type - Lifetime against Manufacturer's Defects
