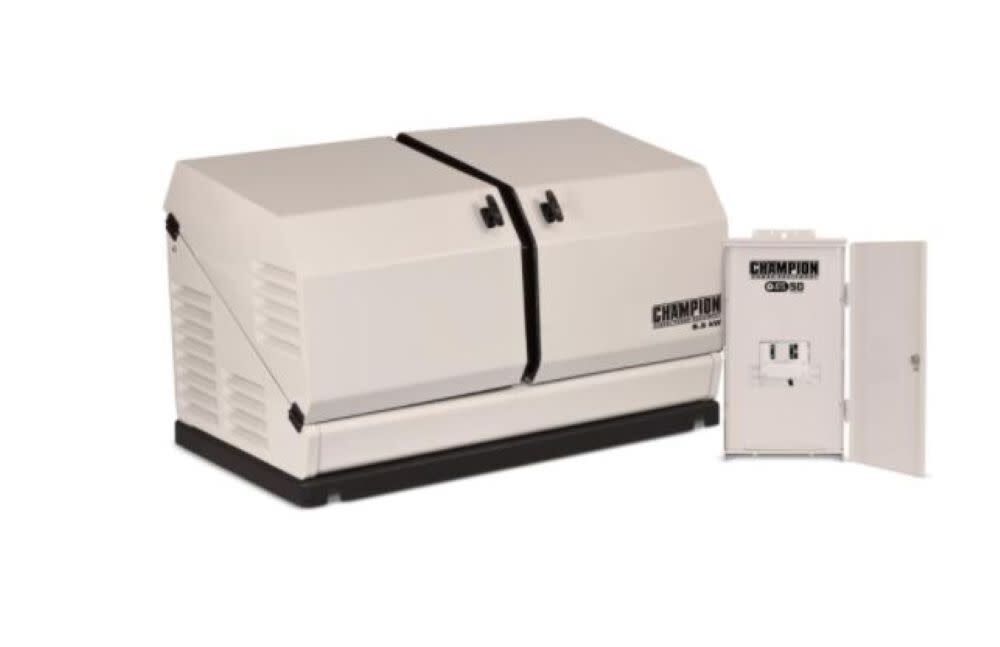

Champion Power Equipment 8.5kW Home Standby Generator with ATS50 Outdoor Rated Automatic Transfer Switch
The Champion Power Equipment 100177 8.5-kW Home Standby Generator with an ATS50 Outdoor-Rated Automatic Transfer Switch is The Simple Solution to a power outage.
Enjoy peace of mind while ensuring security and convenience for your family during an emergency.
The generator starts automatically when the power goes out and returns to standby when power is restored.
The 24-volt starting system operates in temperatures ranging from -22∞ F to 104∞ F with no warming kit necessary.
YouÄôll have the starting power you need during an emergency since the onboard battery charger maintains the charge at all times, plus, since the generator is connected to your propane or natural gas system, it never needs refueling.
This unit also performs weekly self-diagnostic tests.
An all-weather, composite mounting pad is included for easy installation, plus the steel enclosure protects your generator from the elements.
The ATS50 automatic transfer switch operates a 50 amp, 12 circuit load (8 space sub panel allows up to 4 tandem breakers).
It is ideal for homeowners who want to power emergency essentials during a power outage as opposed to the whole house.
It is housed in a NEMA 3R rated enclosure for outdoor use.
Our innovative gull-wing design provides easy access to the engine and control panel and allows a full view of the onboard control system.
The Champion 439cc OHV engine provides 8.5-kilowatts of continuous power on propane and 7.5-kilowatts on natural gas.
This 8.5-kW-rated unit produces 35.4 amps at 240 volts on propane and 31.3 amps at 240 volts on natural gas.
The sound-dampening lining and low-tone muffler reduce noise through a unique baffle system and make this unit the quietest in its class.
The residential-friendly 59.5 dBA has about the same noise level as normal conversation.
The alternator produces less than 5% total harmonic distortion (THD) to ensure safe use with even the most sensitive electronics.
California Proposition 65 Warning.Features

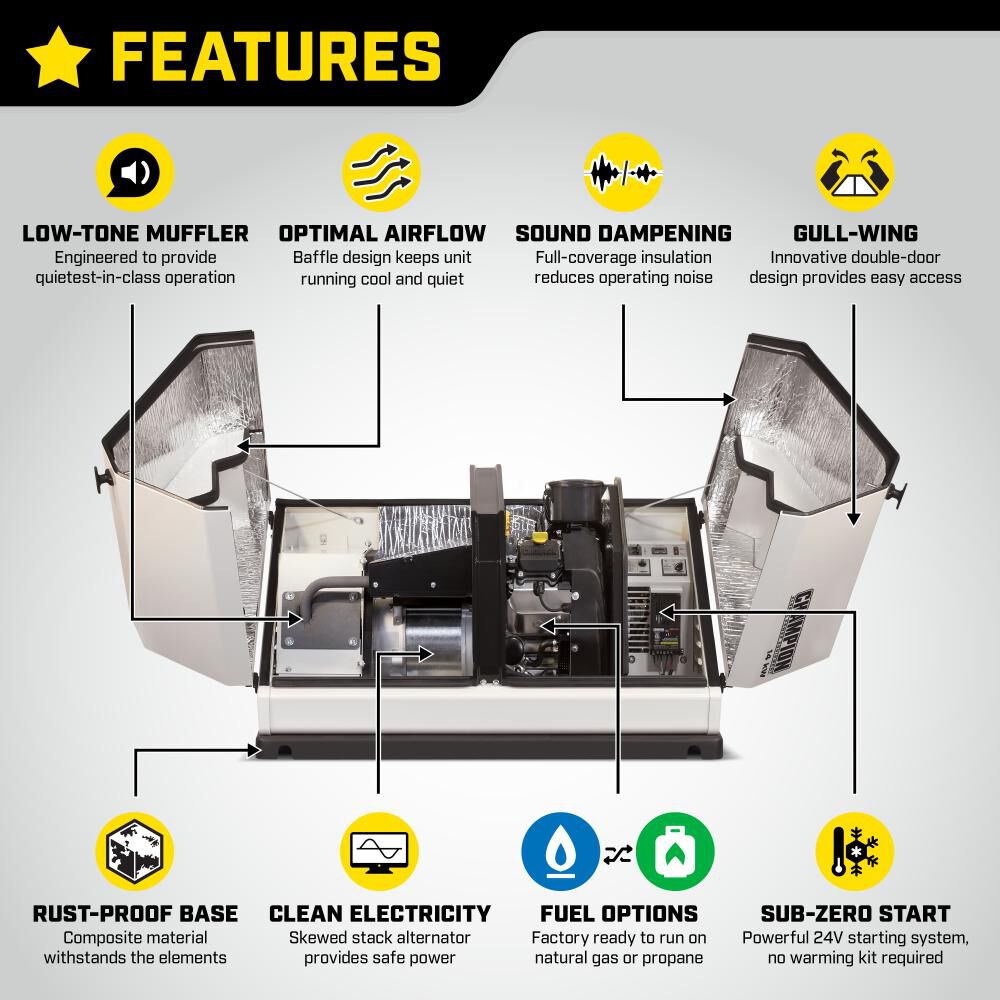

- 24/7 Power - totally automatic power for home with ATS50 automatic transfer (50 amp, outdoor)
- Quietest-in-class - low tone muffler and sound dampening liner for residential operation at only 59.5 dBA
- A decade of support - all Champion home standby generators come standard with our industry leading 10 year warranty
- Sub zero/high heat start - 24 V starting system designed to operate between -22º and 104º F
- Easy Access - Innovative gullwing enclosure for easy installation and service
- Champion 8.5kW Home Standby Generator with ATS50 Outdoor Rated Automatic Transfer Switch
Specifications
Brand Name - Champion Power Equipment
Assembled Weight (lbs) - 394.1
Automatic Idle Control - Yes
California Proposition 65 Warning Required - Yes
Color - Gray
Country of Origin - China
Engine - Champion 439cc OHV
Engine Displacement (cc) - 439
ETL Listed - Yes
Fuel Type - Liquid Propane Or Natural Gas
Height (in) - 40.2
Hour Meter - Yes
Low Oil Shut Down - Yes
MFG Part # (OEM) - 100177
Overload Protection - Yes
Package Contents - Generator, transfer switch, LP hose, oil drain pan, fuel jets,LP hose, oil drain pan, fuel jets
Package Depth - 0
Package Height - 0
Package Weight - 494
Package Weight (lbs) - 494
Product Condition - New
Recommended Oil & Capacity - 10W-30, 1.2 qt.
Sound Decibels (dB) - 59.5
Surged Wattage - 8500
UL Listed - No
UPC - 850878006730
Voltage - 120/240
Warranty Type - 10 Years Limited
Wattage (W) - 8500
Weight (lbs) - 394.1
