14kW aXis Home Standby Generator System with 150 Amp aXis Automatic Transfer Switch 100836

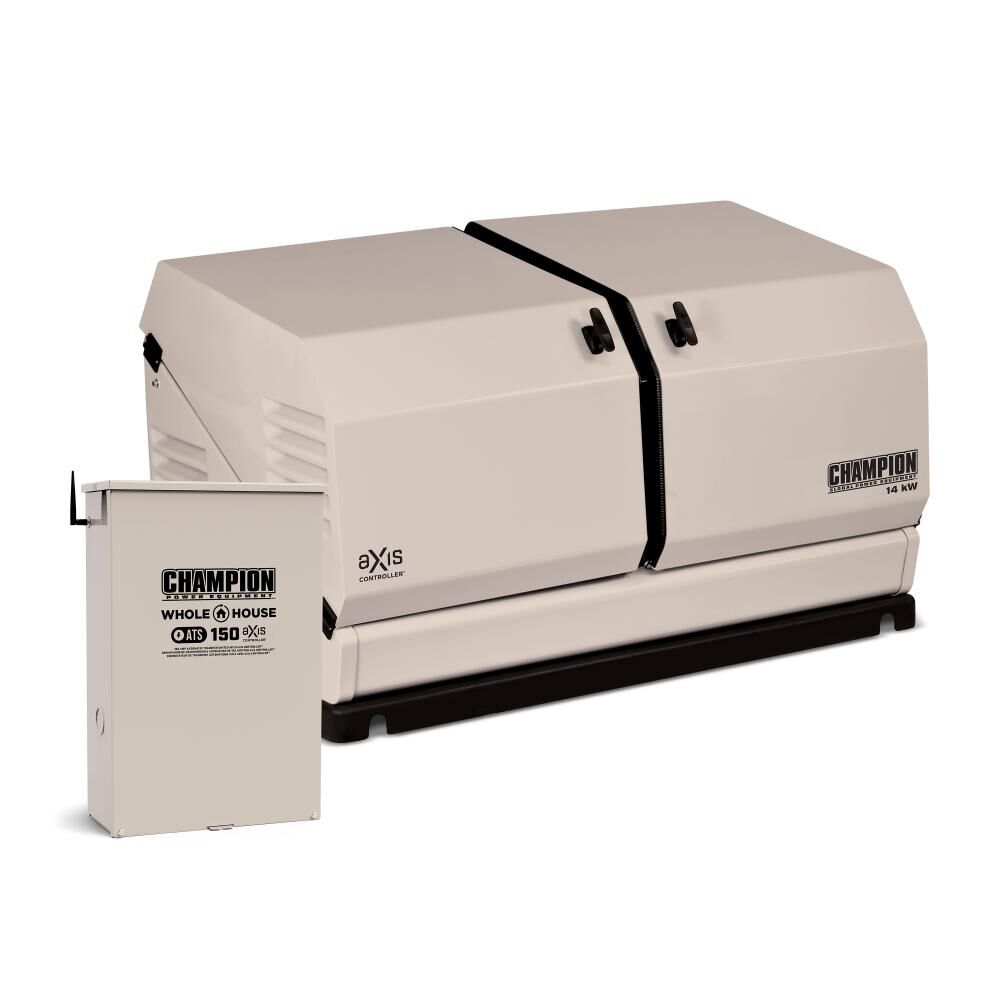

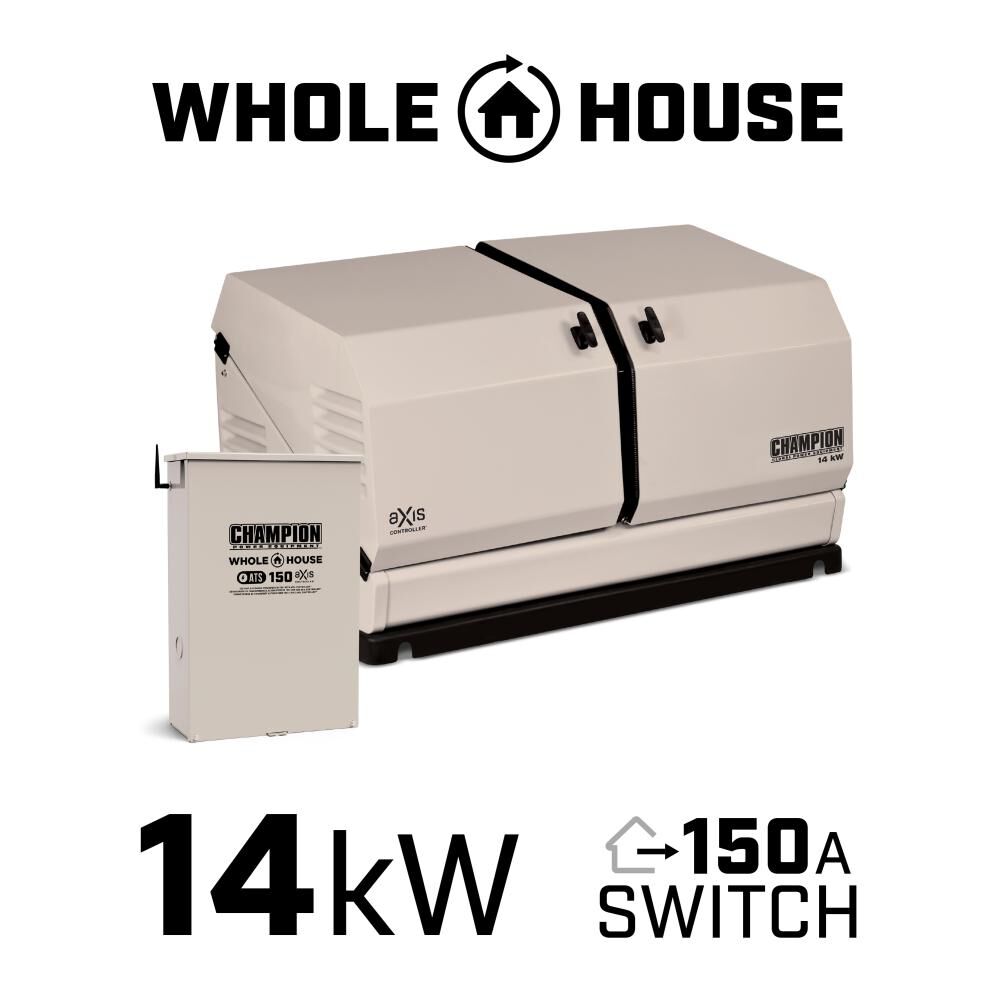

Champion Power Equipment 14kW aXis Home Standby Generator System with 150 Amp aXis Automatic Transfer Switch

The Champion Power Equipment 100836 Home Standby Generator System includes 14kW aXis Home Standby Generator and 150A aXis ATS Whole House Automatic Transfer Switch. This generator never needs refueling operating on your homeÄôs NG or LP fuel supply, starts automatically when utility power goes out, and turns off automatically when utility power is restored. The Champion aXis platform is a programmable, upgradable home standby system.

The digital aXis Controller is equipped to provide continuous protection for the HSB.

Power Line Carrier technology allows the system to communicate using your homeÄôs existing wiring so your generator can talk to the automatic transfer switch and other components without needing to run separate wires, saving you money and time.

With aXis Wi-Fi Direct your installer can use a tablet or phone to program your generator meaning faster setup and lower cost.This automatic Whole House transfer switch backs up your homeÄôs 150-amp distribution panel and has the ability to manage your high-demand appliances by using our aXis Load Management Modules model 100868 (sold separately).

Choose from four priority levels for each appliance from Äúmust havesÄù to Äúnice to haves.Äù Multiple devices can share the same priority allowing for an unlimited number of loads that can be managed.

If your generator nears capacity, high-demand appliances are automatically turned off according to their priority level to avoid overload.

Load Management Modules also use Power Line Carrier technology simplifying installation.

Featuring a NEMA 3R Service Entry rated enclosure, this switch may be installed indoors or outdoors and is ETL listed to comply with UL standards for the US. Buy with confidence - Champion Support and our nationwide network of service centers will back your purchase up with FREE lifetime technical support, a 10-year limited warranty on the generator and a 2-year limited warranty on the ATS.

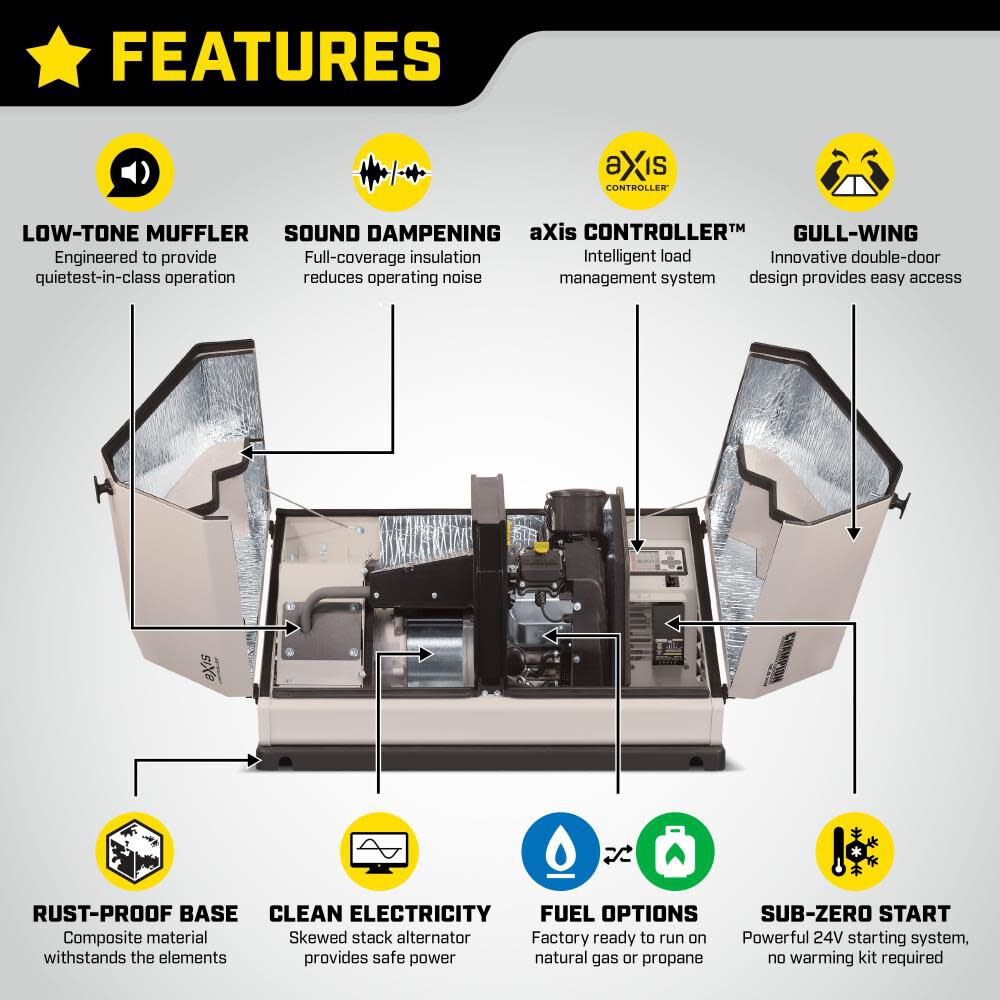

Features

• The aXis ATS150 Whole House Automatic Transfer Switch provides managed power for your home with Wi-Fi setup and the ability to manage unlimited high demand loads using 4 priority levels
• Thanks to advanced sound dampening and a specially designed low-tone muffler, this generator operates at a residential-friendly 62 dBA noise level
• 24-volt starting system operates in sub-zero or extreme heat (between -22¬∞ F and 104¬∞ F) with no cold weather kit necessary, plus the generator performs customizable self-diagnostic tests
• The 14-kilowatt generator provides 14,000 watts of continuous power on propane and 12,500 watts on natural gas, with no refueling, no manual operation and no extension cords needed
• Includes a 10-year limited warranty, the longest standard warranty available on home standby generators in the market, with FREE lifetime technical support from dedicated experts

Specifications

Brand Name - Champion Power Equipment

Assembled Weight (lbs) - 482

Automatic Idle Control - Yes

California Proposition 65 Warning Required - No

Country of Origin - China

CSA Certified - Exempt

Engine - Champion

Engine Displacement (cc) - 754

ETL Listed - Yes

Fuel Type - Liquid Propane Or Natural Gas

Height (in) - 50.10

Horsepower (hp) - 0

Hour Meter - No

Low Oil Shut Down - No

MFG Part # (OEM) - 100836

Overload Protection - Yes

Package Contents - HSB Enclosure Keys, LPG Jets, Jet Change Tool, Oil Drain Pan, Battery Cables & Hardware, Flexible Fuel Line

Package Depth - 52

Package Height - 50.10

Package Weight - 563

Product Condition - New

Recommended Oil & Capacity - Mobil 1 5W-30 Full Synthetic, 1.70 qt.

Sound Decibels (dB) - 62

Surged Wattage - 0

UL Listed - Yes

UPC - 817198024998

Warranty Type - 10 Years Limited

Weight (lbs) - 482
