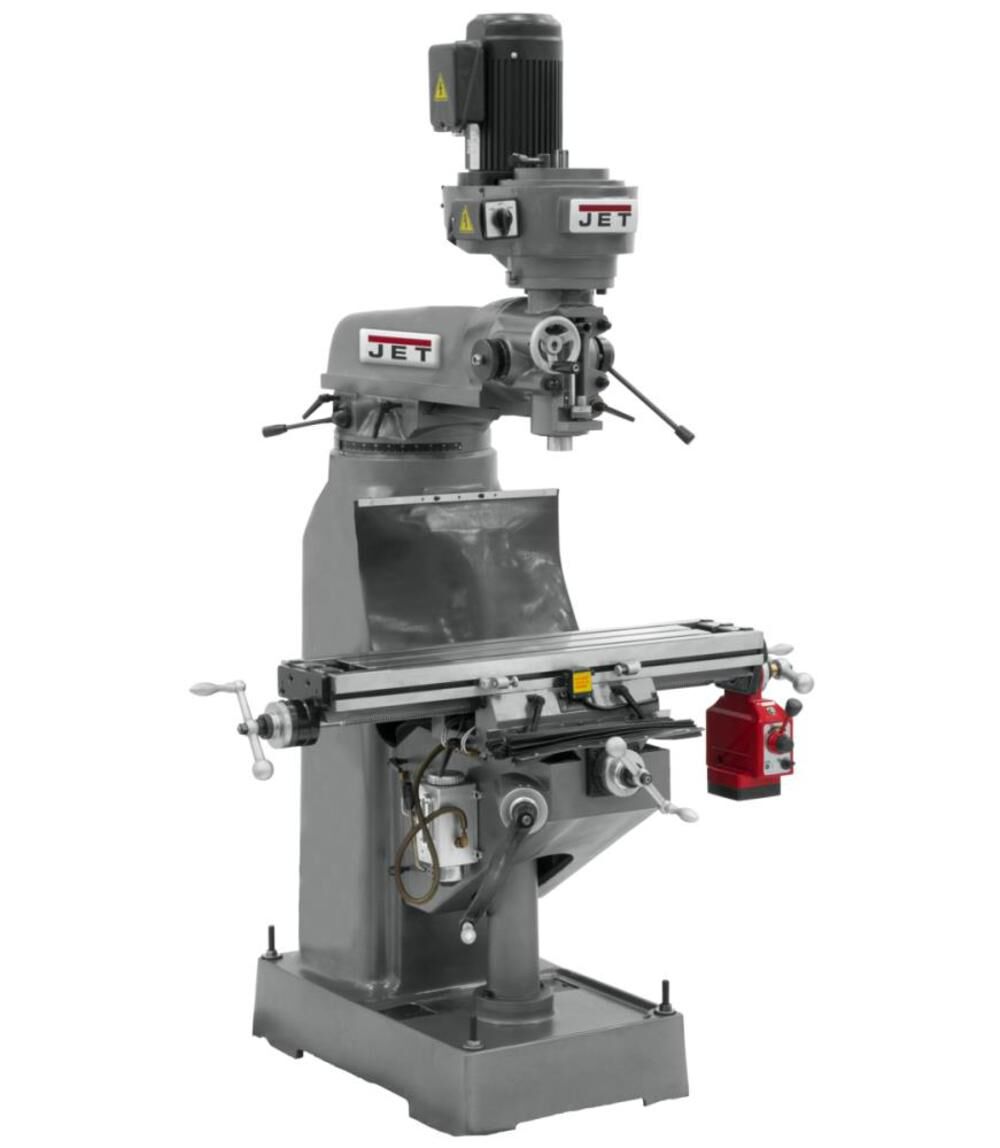

JTM-1 Turret Mill 9 In. x 42 In. Table 16 Spindle Speeds 2 HP 3Ph 230 V Only 690082
JTM-1 Turret Mill 9 In. x 42 In. Table 16 Spindle Speeds 2 HP 3Ph 230 V Only 690082 is backordered and will ship as soon as it is back in stock.
JET JTM-1 Turret Mill 9 In.
X 42 In.
Table 16 Spindle Speeds 2 HP 3Ph 230 V Only
One Piece Quill Pinion and Shaft
Features
- Vertical milling machines - JTM-1/2
- Meehanite casting
- Precision bored and honed milling head
- Large diameter quill is chromed
- High precision class 7 spindle bearings
- Spindle head is internally cooled
- Satin chrome finished dials
- JTM-1 Turret Mill 9 In. x 42 In. Table, 16 Spindle Speeds, 2 HP, 3Ph, 230 V Only
Specifications
Brand Name - JET
Amperage (A) - 6.8
Assembled Weight (lbs) - 2200
California Proposition 65 Warning Required - Yes
Capacity - 550 Lbs
Chuck Design - Keyless
Color - Gray
Country of Origin - Taiwan
CSA Certified - No
ETL Listed - No
Head Tilt (Left Or Right) - 90
Height (in) - 72
Horsepower (hp) - 2
MFG Part # (OEM) - 690082
Material - Cast Iron
Package Contents - JTM-1 Turret Mill 9 In. x 42 In. Table 16 Spindle Speeds 2 HP 3Ph 230 V Only
Package Depth - 0
Package Height - 0
Package Weight - 2200
Package Weight (lbs) - 2200
Product Condition - New
Quill Diameter - 3.38
RPM - 80 – 5440
Stand Included - No
Switch Type - Push Button
UL Listed - No
Unit of Measurement - Metric
UPC - 662755105883
Variable Speed - Yes
Voltage - 115/230 Volts
Warranty Type - 2 Years Limited
Weight (lbs) - 2056
X Axis, Longitudinal (in) - 0
Y Axis, Cross (in) - 0
Z Axis, Knee (in) - 0
