JET JPW-15BHH 15In Stationary Helical Head Planer 230V/1Ph
The new Jet 15 In.
Helical head planer quickly and quietly transforms rough lumber into smooth boards.
This machine means business with a powerful 3 HP motor combined with a helical cutter head housing 48 staggered carbide quick change knives.
The innovative Precision Air Strut System (PASS) provides consistent upward pressure on the cutter head, reducing the chance of board snipe.
The conveniently located two-speed gear box allows for quick and easy feed rate adjustments while removing up to 1/8 In.
Material with each pass for a smooth finish.
A large precision cast-iron table and Infeed/outfeed tables make this planer a beautiful addition to the shop.
California Proposition 65 Warning. View Warning LabelFeatures
- Innovative Jet - Precision Air Strut System (PASS‚Ñ¢) provides consistent upward pressure on the cutter head, reducing the chance of board snipe
- Helical cutter head houses 48 staggered carbide knives that are engineered to align themselves without any adjustment for a superior finish and quieter cut
- Heavy-duty precision ground cast iron table and four post design provides maximum control and support when passing boards through planer
- Powerful 3-HP motor with v-belt transmission reduces vibration and running noise

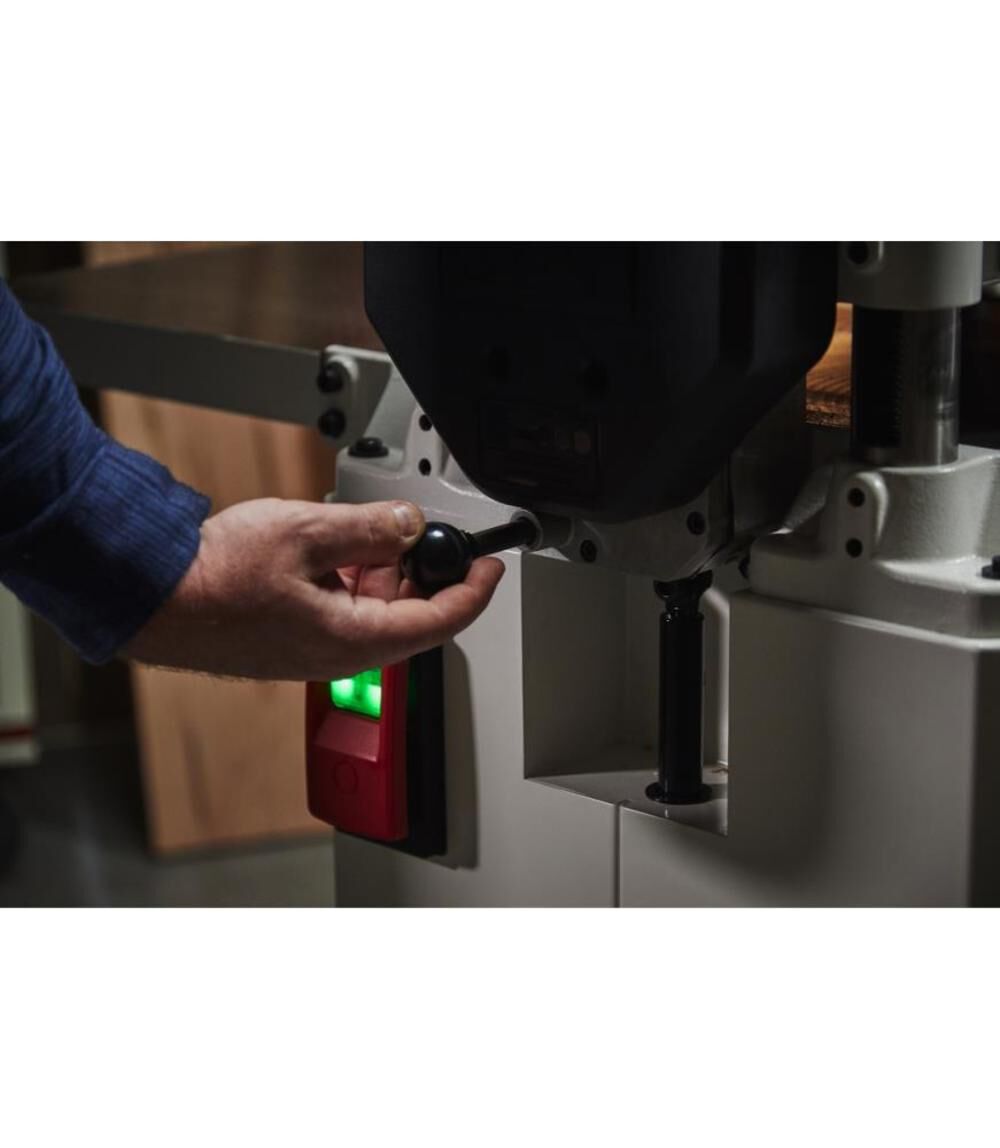

- Dual Infeed speed control for 16FPM or 20FPM, maximizes cut efficiency
- Maximum depth of cut 1/8, 6 cutting height and 15-in width capacity
- Large cast iron precision ground Infeed/outfeed tables provide support for large work pieces

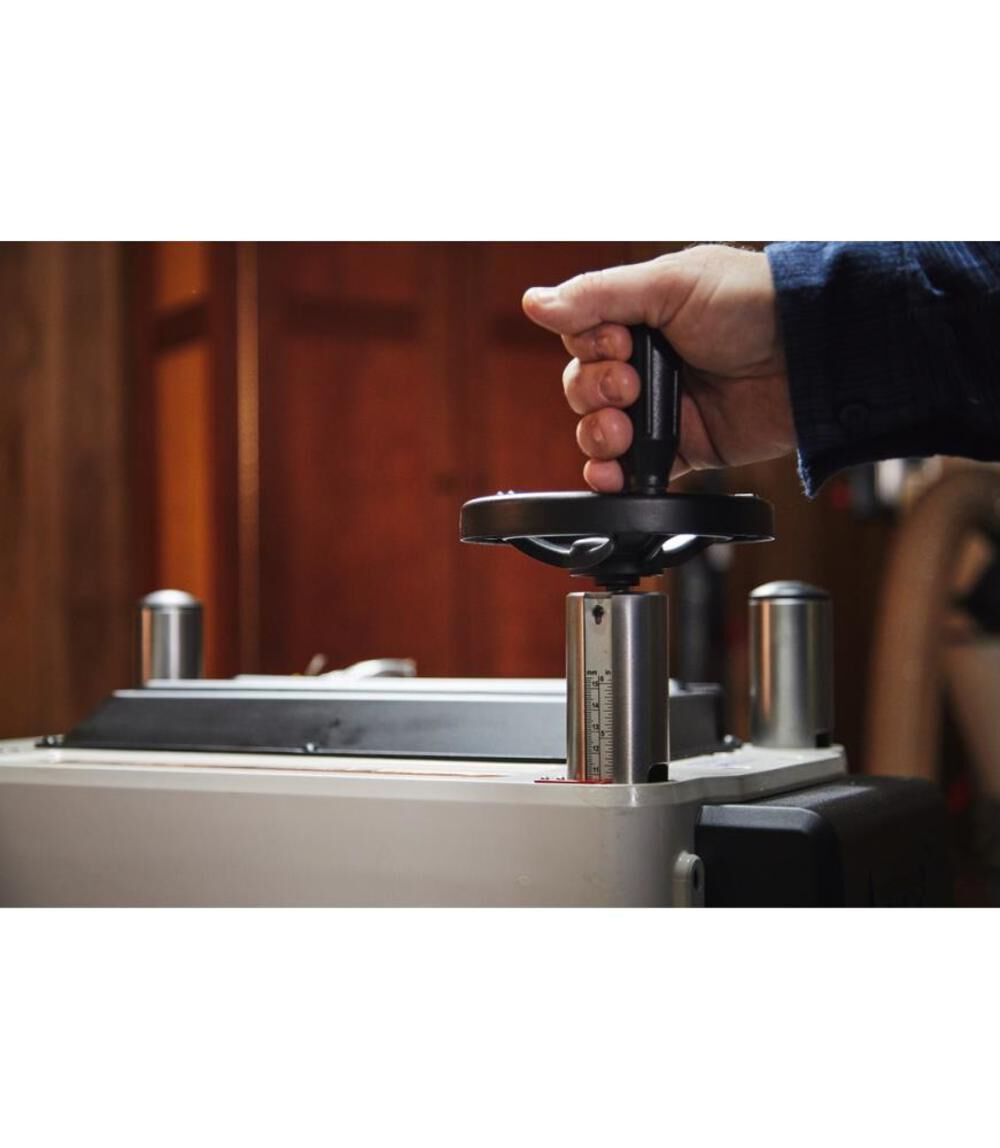

- Large hand wheel with positive gear drive easily moves the head to the desired board thickness

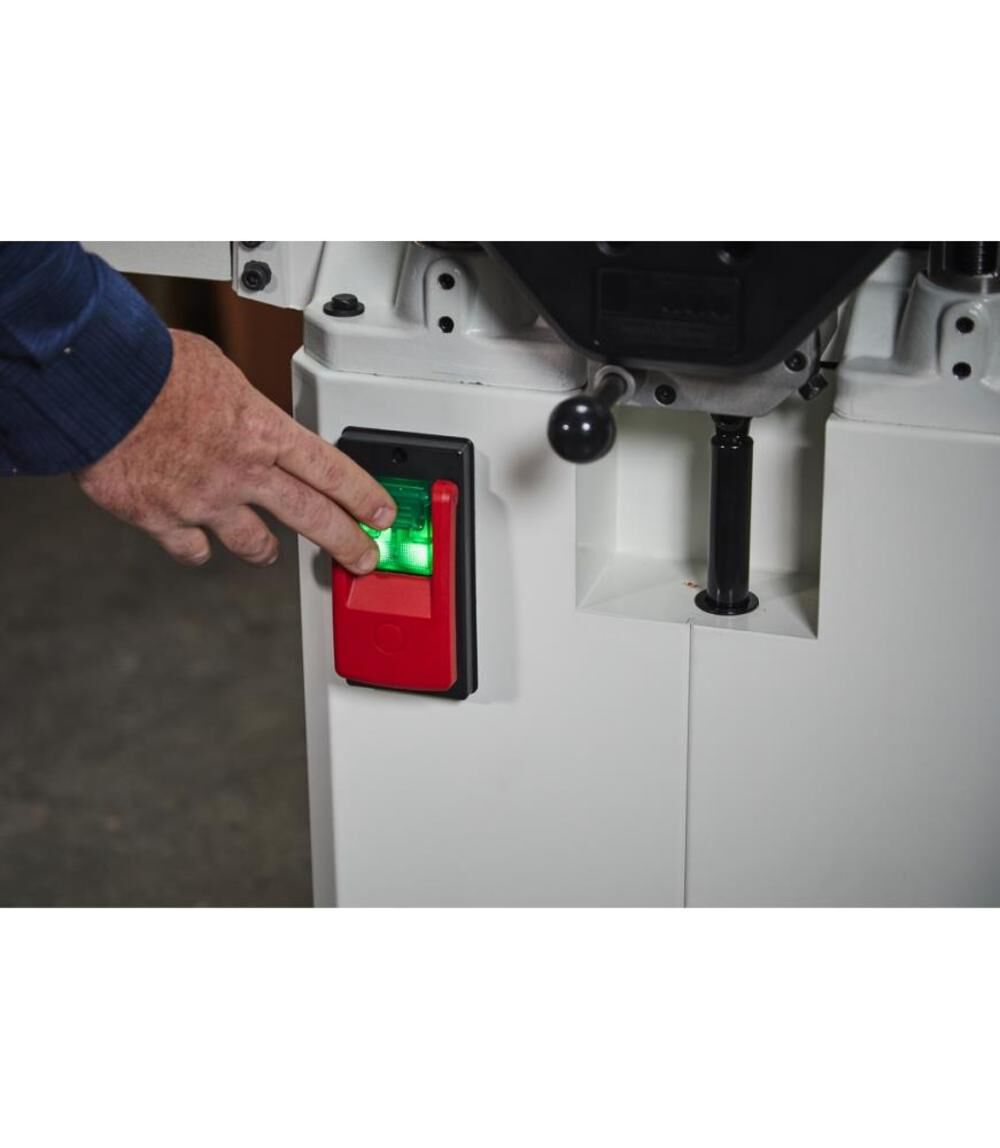

- Magnetic switch with green safety light illuminates when powered
- 4 In. dust port hooks up to dust management system and helps keep shop clean
Specifications
Brand Name - JET
Amperage (A) - 11
Assembled Weight (lbs) - 129.8
Bench or Stationary - Stationary
Blade Count - 48
Blade Type - 4 sided knife inserts
California Proposition 65 Warning Required - Yes
Color - White
Country of Origin - Taiwan
CSA Certified - Yes
ETL Listed - No
Height (in) - 48
Horsepower (hp) - 3
MFG Part # (OEM) - 722155
Maximum Cutting Depth (in) - 0.188
Maximum RPM - 5200
Maximum Width Cutting Capacity (in) - 15
Overall Weight (lbs) - 129.8
Package Contents - 1 Planer, 1 Handwheel assembly, 1 Dust port, 1 Torx point screwdriver T30 (with magnets), 1 Operating Instructions and Parts Manual, 1 Product registration card, 2 Cast iron extension tables, 2 Star point screwdrivers, 5 Knife inserts 10 Knife insert screws, 1 Hardware package
Package Depth - 29.92
Package Height - 44.88
Package Weight - 330.5
Package Weight (lbs) - 330.5
Product Condition - New
Switch Type - Magnetic with LED illumination, 14 A overload protector
UL Listed - Yes
UPC - 731325762365
Variable Speed - No
Voltage - 230 Volts
Warranty Type - 5 Years
