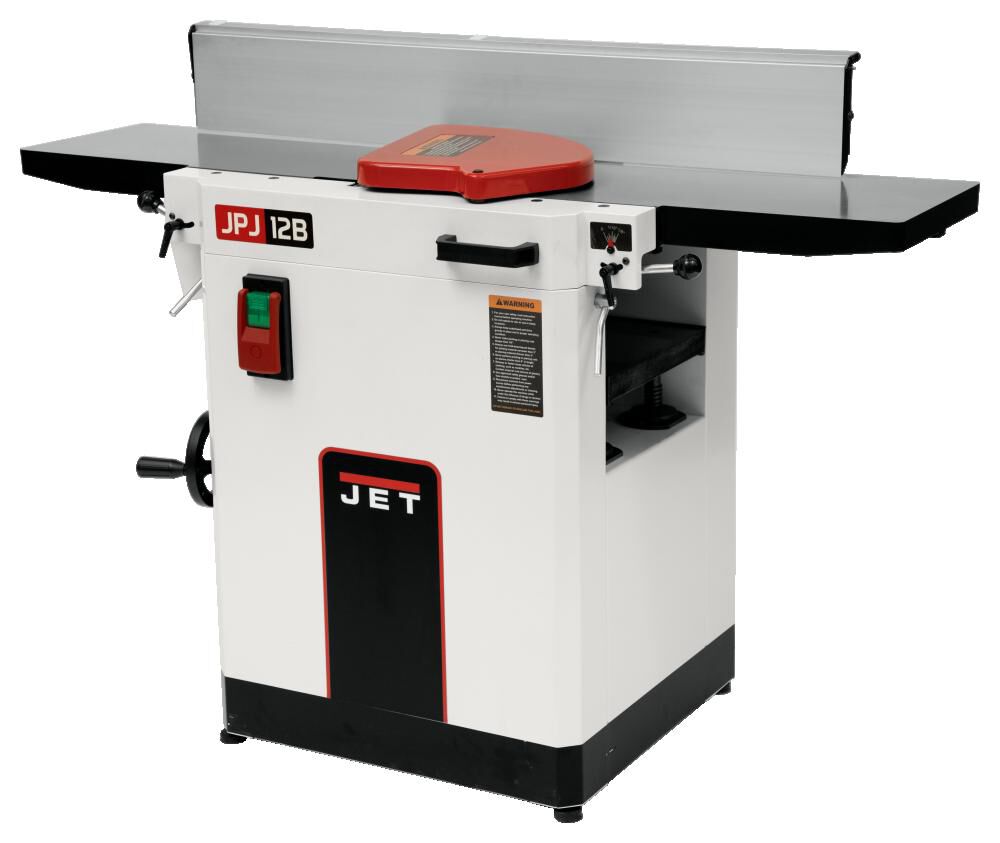

JET JPJ-12BHH Planer Jointer Combo 12in Helical Head 3HP
You donÄôt have to choose between buying a jointer or a planer with the Helical Head JPJ-12BHH, you can have both.
Leave it to JET to design a machine that allows quick changeover between jointing and planing functions.

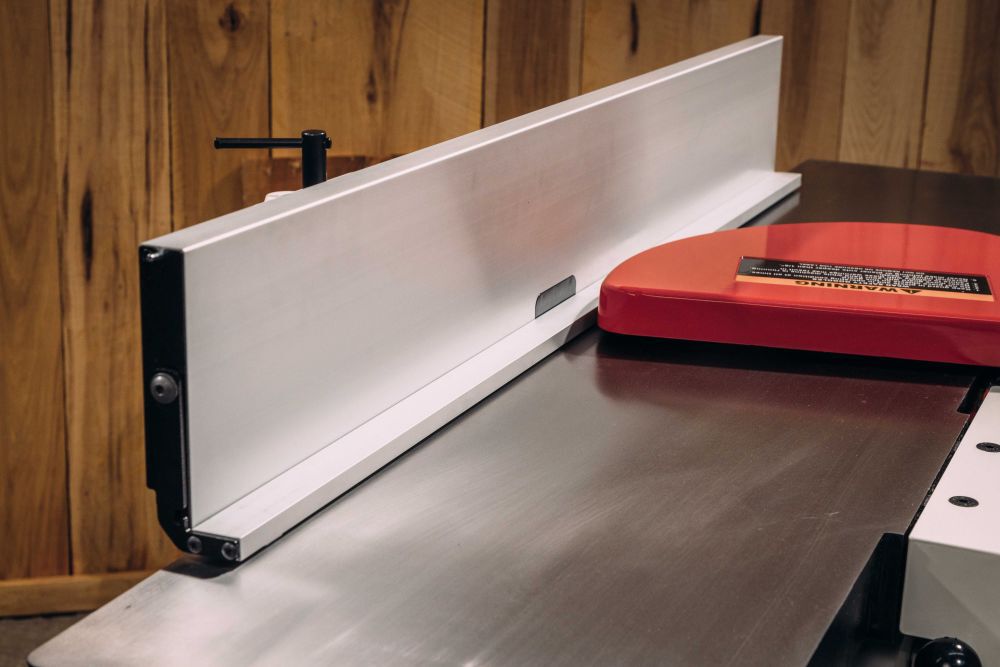

This versatile machine features an extra-large aluminum extruded fence with centered controls for quick adjustments, a built-in dust chute capable of handling both planing and jointing operations, and a powerful 3-horsepower motor that can handle the toughest lumber.
A heavy-duty, fully welded steel base cabinet houses the motor and the planer table mechanism, while providing solid mounting for the associated controls and support for the jointer table and fence assemblies.
Best of all, the fence can stay put when changing over functions.
California Proposition 65 Warning.Features

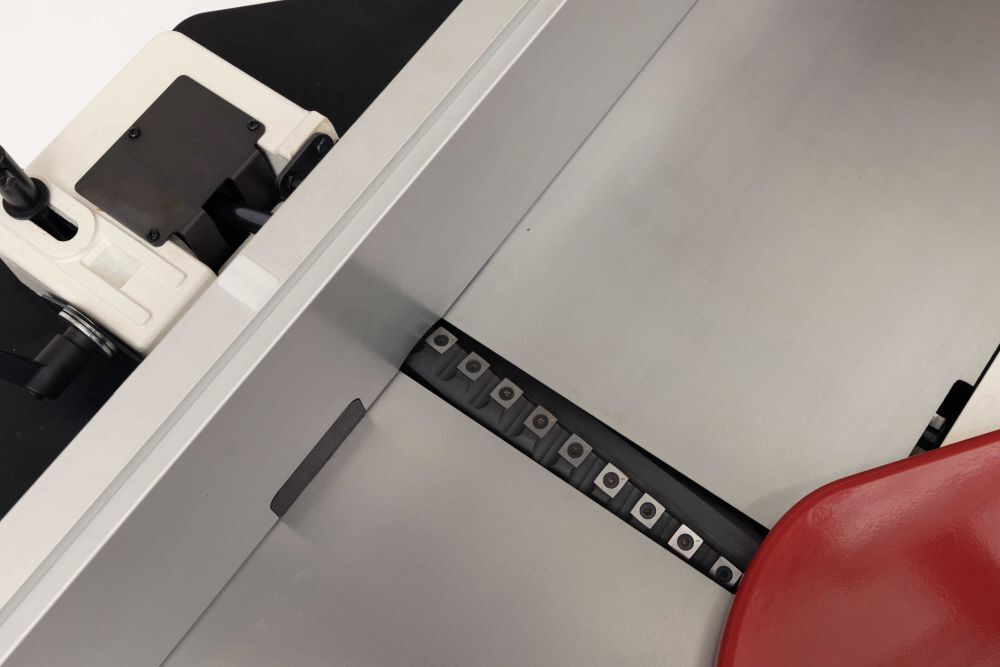

- Forty Two 4-sided Carbide Insert cutterhead provides rapid cutting and a superior finish
- Extremely quick changeover between jointing and planing functions. Fence does not need to be removed
- Heavy-duty cast iron tables with a ground finish to ensure accuracy and flatness
- Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability

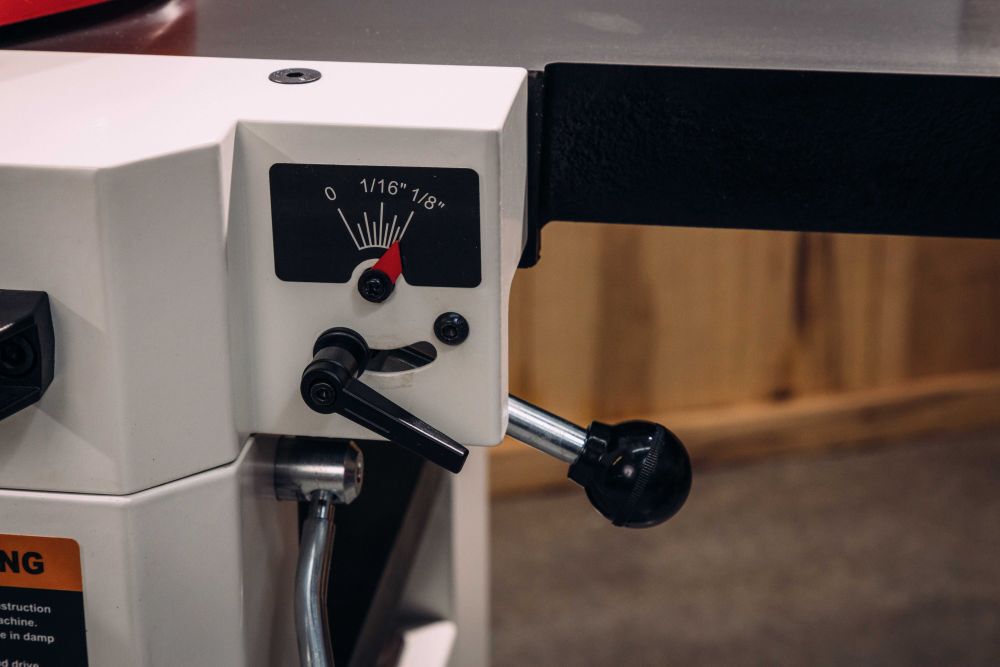

- Large handwheel for quick and precise adjustments of planer table
- Parallelogram design keeps the table close to the cutterhead for improved finish and allows for precise depth of cut adjustments
Specifications
Brand Name - JET
Amperage (A) - 15
Assembled Depth (in) - 55-7/16
Assembled Weight (lbs) - 453
Assembled Width (in) - 28-15/16
Bench or Stationary - Stationary
Blade Count - 42
Blade Cutting Material - Carbide
Blade Material - Carbide
Blade Type - 4 Sided Carbide Inserts
Blade Width (in) - 12
California Proposition 65 Warning Required - Yes
Country of Origin - Taiwan
Drive Motor System - Electric
Dust Port - Yes
Dust Port Outside Diameter (in) - 4
Height (in) - 40
Horsepower (hp) - 3
MFG Part # (OEM) - 715155
Material Cut - Wood
Maximum RPM - 5300
Maximum Speed (rpm) - 5300
Maximum Width Cutting Capacity (in) - 12
Package Contents - Planer Jointer Combo, 42 4 sided carbide insert cutters
Package Depth - 60
Package Height - 46
Package Weight - 493
Phase - 1
Product Condition - New
Reversible - Yes
Sharpenable - Yes

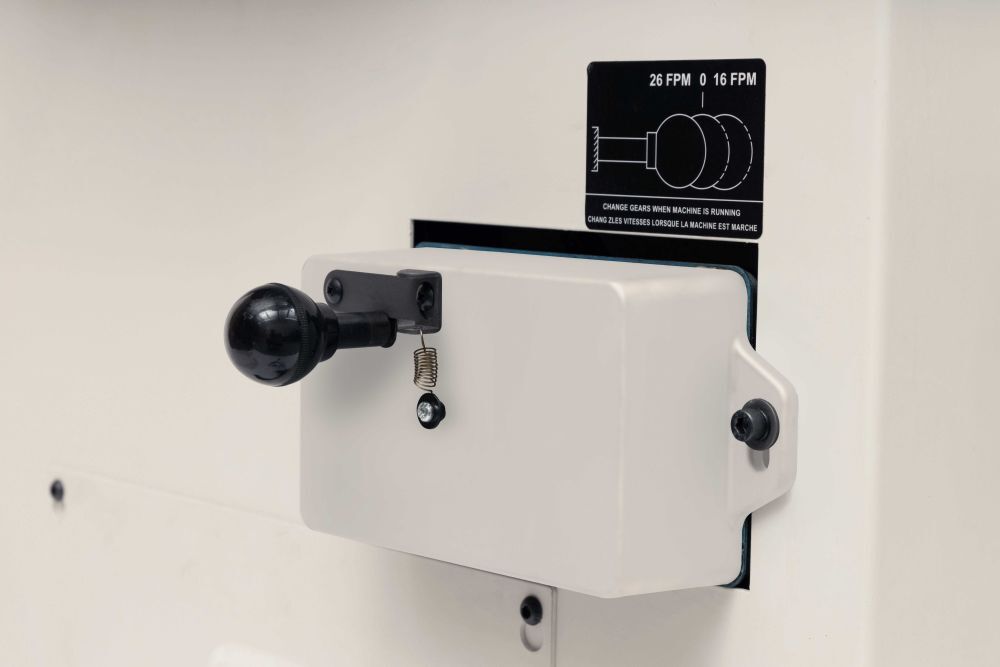

Speeds - 16 & 26 FPM
Stand Included - Yes
Table Length (in) - 55
Table Width (in) - 12
UL Listed - Pending
UPC - 731325772814
Variable Speed - No
Voltage - 230
Warranty Type - 5 Years
Weight (lbs) - 453
