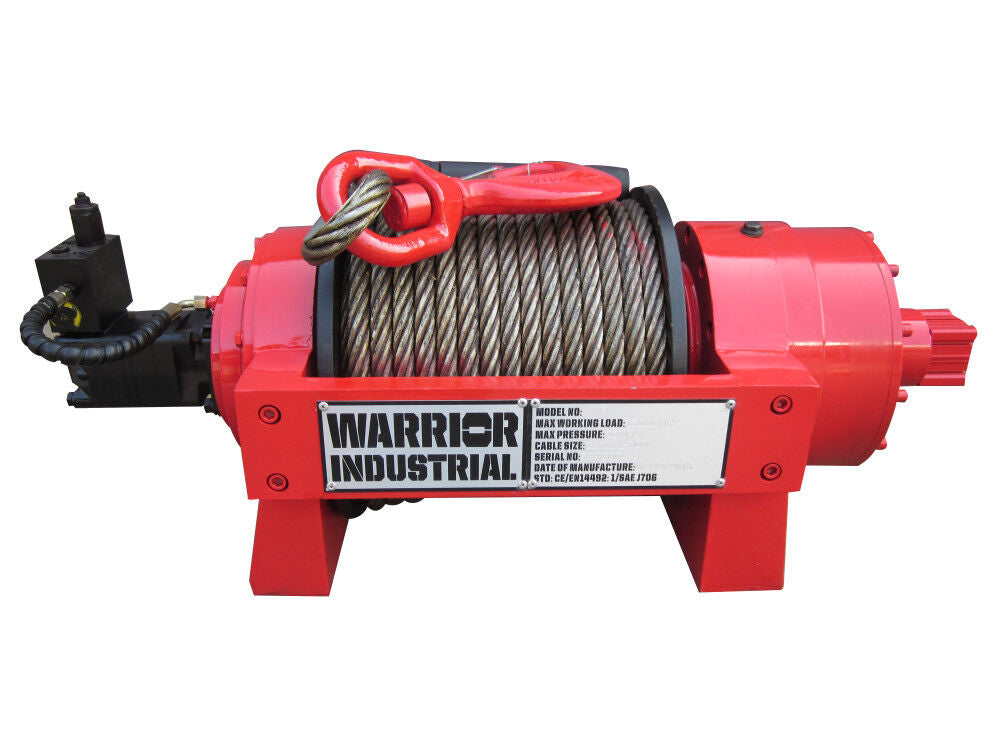

DK2 JP Hydraulic Winch 33069lb
Tough and compact, the JP series are heavy duty hydraulic winches designed and tested for the toughest applications.
Minimum rope to drum ratio of 10:1, multi disc frictional brake, balance valve and rope tensioner as standard.
Available from 10 tonne to 40 tonne.
Manufacturered to meet GLB82-86 National Military Standard.
California Proposition 65 Warning.Features
- Full float heavy duty planetary gearing
- Heavy duty rope tensioner as standard
- Heavy Duty Steel Cast Frame, Rugged High Torque Motor
- Rope and Tensioner as Standard, 2 Stage Planetary Gearing
- Complete with Balance Valve
- Air Operated Free spool
- Rated Line Pull 15000 kg Working Speed (bottom layer) 6m/min Response Pressure of Arrester <2.5 td> Max Flow 110 Max Pressure Mpa 17 Drum Size Dia x L 400 x 340mm Cable Dia x L 22mm x 70m Weight 285 kg
Specifications
Brand Name - DK2
Assembled Depth (in) - 42.4
Assembled Weight (lbs) - 628
Assembled Width (in) - 18
Assembly Required - Yes
Color - Red
Country of Origin - China
Height (in) - 16.54
MFG Part # (OEM) - 15TJP
Material - Steel
Package Contents - JP Hydraulic Winch 33069lb
Package Depth - 25
Package Height - 48.5
Package Weight - 628
Product Condition - New
Sound Decibels (dB) - 70 dBA
UPC - 826518004947
Warranty Type - 1 Year
