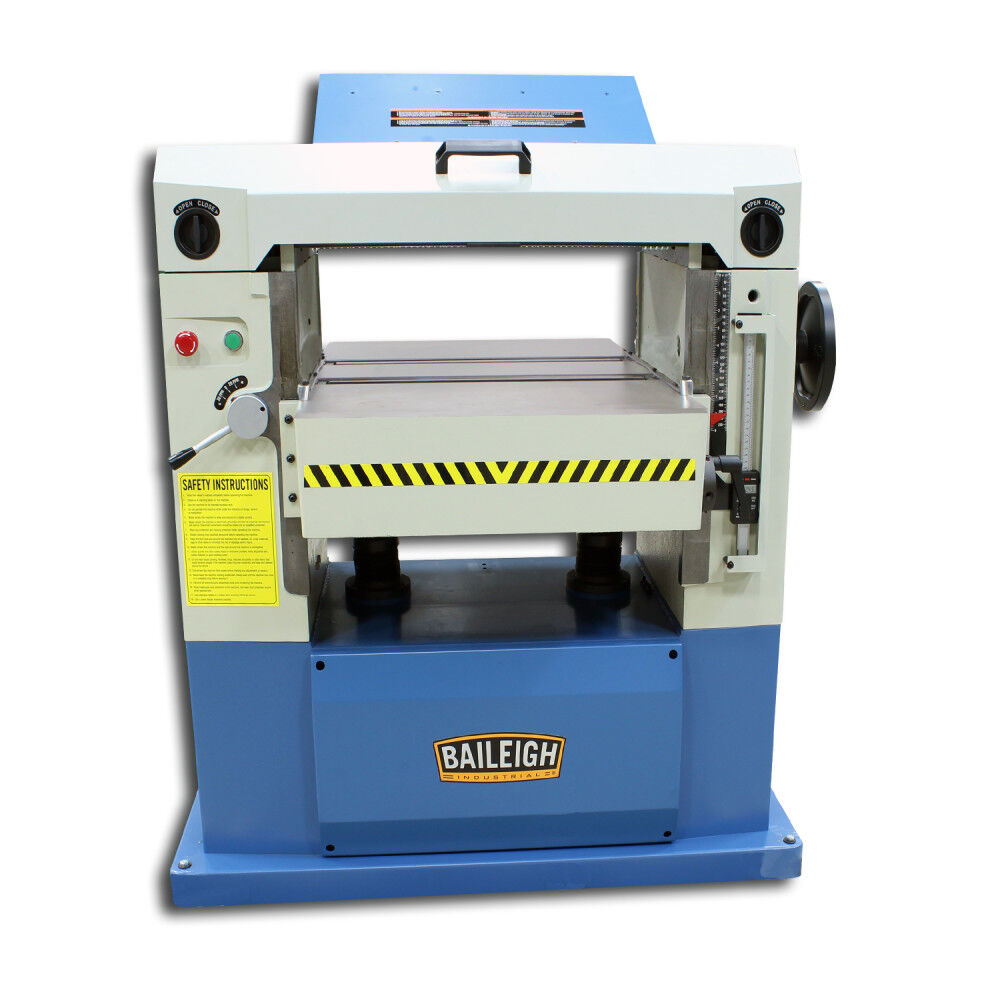

Baileigh IP-2209-HD Thickness Planer 220V 3 Phase 10HP 22in
With a 22 In.

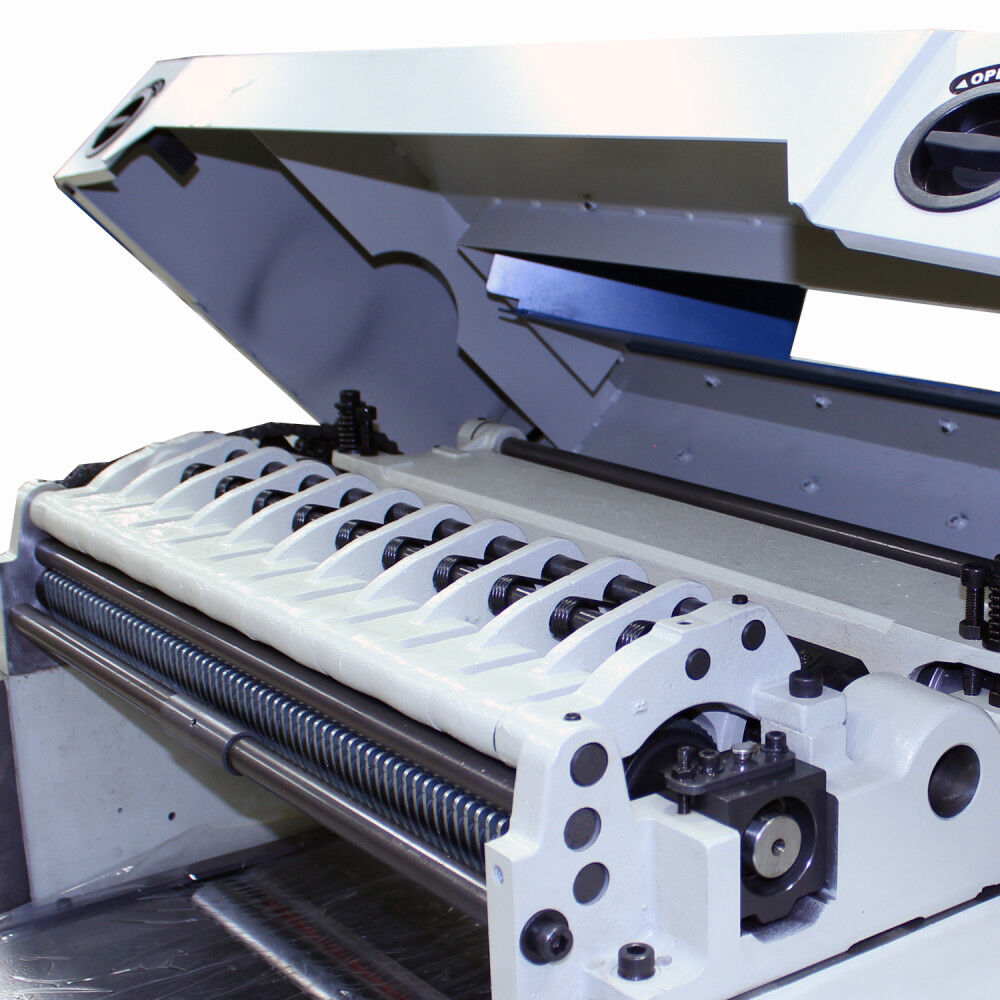

Width and a segmented infeed roll, this industrial wood planer lets you smooth multiple boards with different heights at once.
A cast iron table and columns help a wood thickness planer last for years.
California Proposition 65 Warning.Features

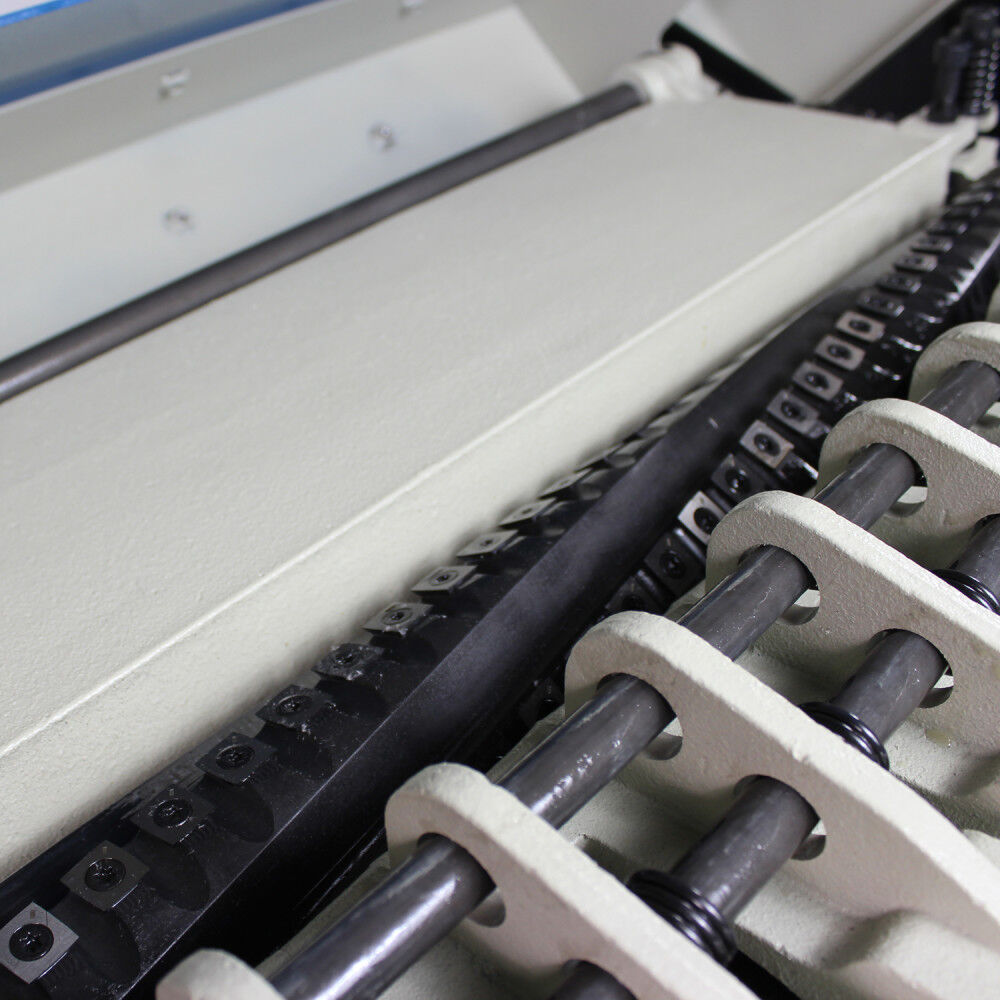

- Massive 10HP motor spins the cutter at 5000 Rpm, comes standard with a 5-row spiral cutter head with rotatable carbide blades that last much longer than a straight-knife blade
- 0.25 In. maximum depth of cut, Runs on 220V 3 Phase power, spring-loaded segmented steel infeed roll automatically adjusts to different board heights side by side

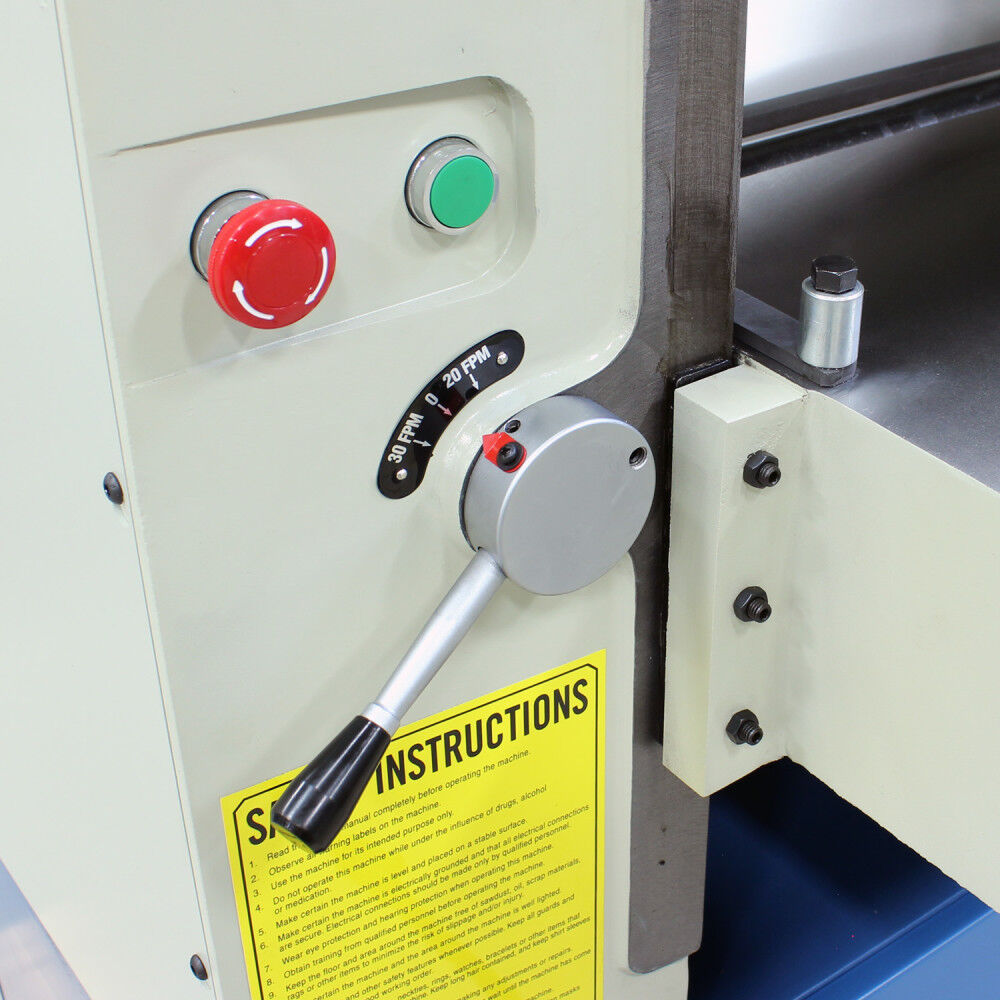

- Switch between 2 feeding speeds for better results on different types of wood: 30 fpm for softer materials (or jobs where a refined surface is less important), 20 fpm for hardwoods or materials prone to chipping, this speed gives you a smoother finish
- 32 In. x 22 In. cast iron table supports the material, reduces vibrations, and ensures accuracy, 2 heavy columns raise or lower the table and stabilize the machine

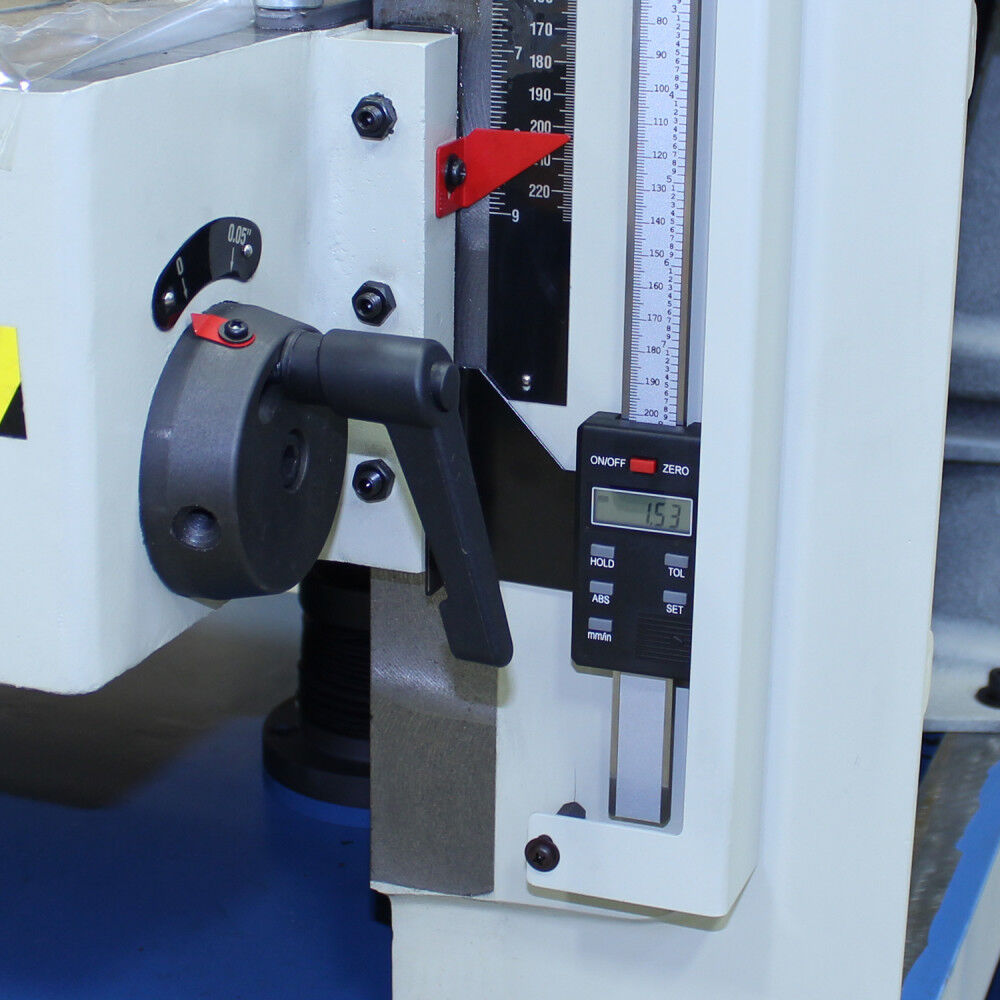

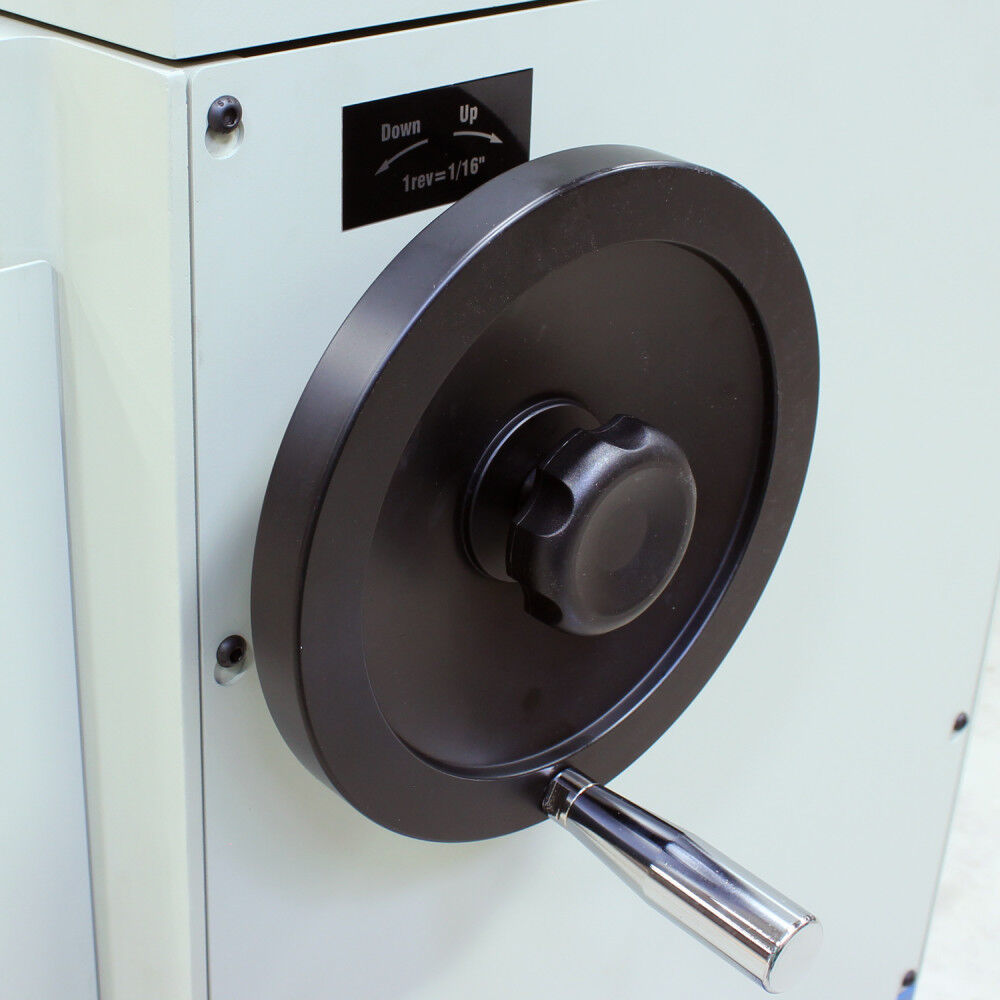

- Handwheel lets you adjust the table elevation, digital readout shows the changes for easy repeatability, segmented chip breaker stops debris from clogging the industrial wood planer (or your dust collector)
- Chip breaker also prevents wood from chipping by holding the material down right in front of the cutter head, solid iron pressure bar maintains even force across the planed stock
- Steel outfeed roll moves the material consistently and reliably for fast production, quick-adjust bed rolls reduce friction
- You can set the bed rolls high to keep rough-sawn stock from getting stuck, or set them lower to produce the straightest, smoothest boards possible
- Anti-kickback fingers safely grip the material so that it’s less likely to shoot backwards if the cutter jams
- Covered by a 1-year parts warranty, as well as lifetime technical support by phone
Specifications
Brand Name - Baileigh
Amperage (A) - 0.0
Assembled Weight (lbs) - 1760
Bench or Stationary - Stationary
Blade Count - 5
Blade Cutting Material - Carbide
Country of Origin - Taiwan
Horsepower (hp) - 10
MFG Part # (OEM) - 1014767
Maximum Cutting Depth (in) - 0.25
Maximum RPM - 5000
Maximum Width Cutting Capacity (in) - 22 in
Package Contents - Heavy Duty Thickness Planer
Package Depth - 66
Package Height - 60
Package Weight - 1760
Product Condition - New
Reversible - No
UPC - 731325451047
Variable Speed - Yes
Warranty Type - 1 Year
