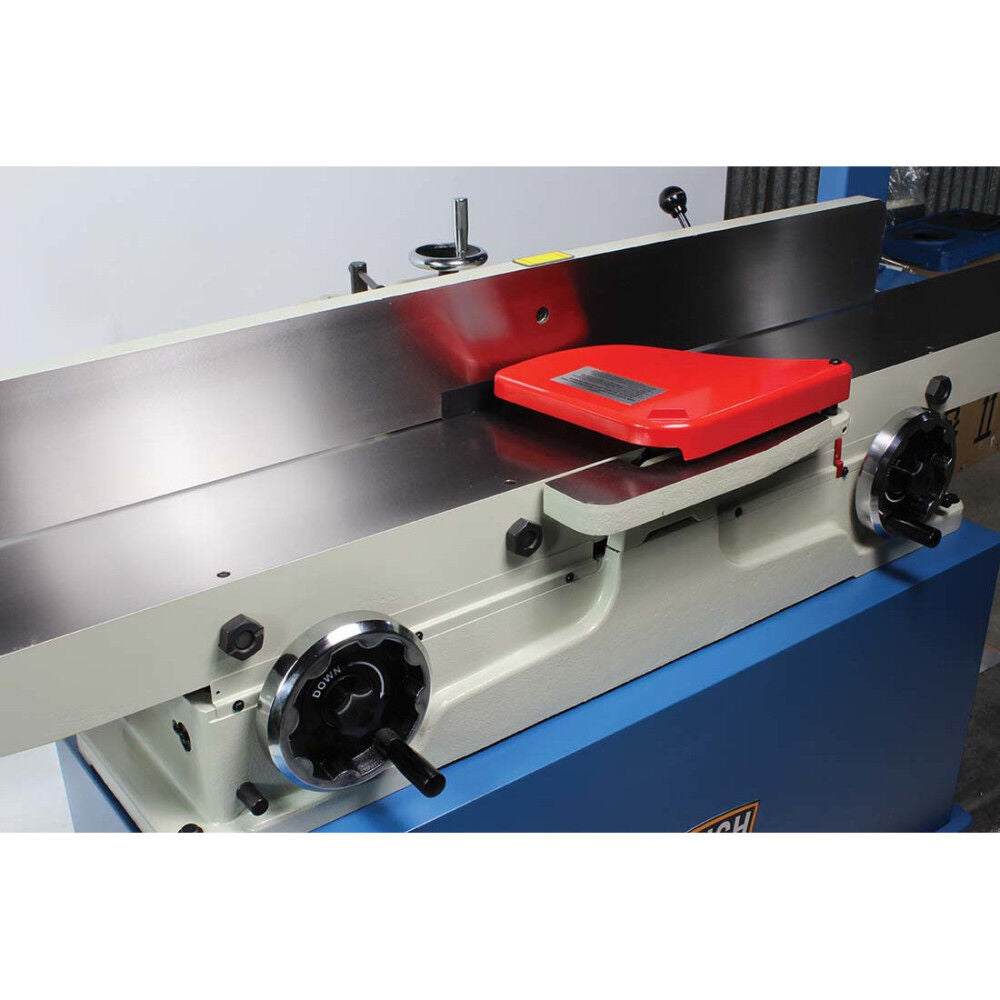

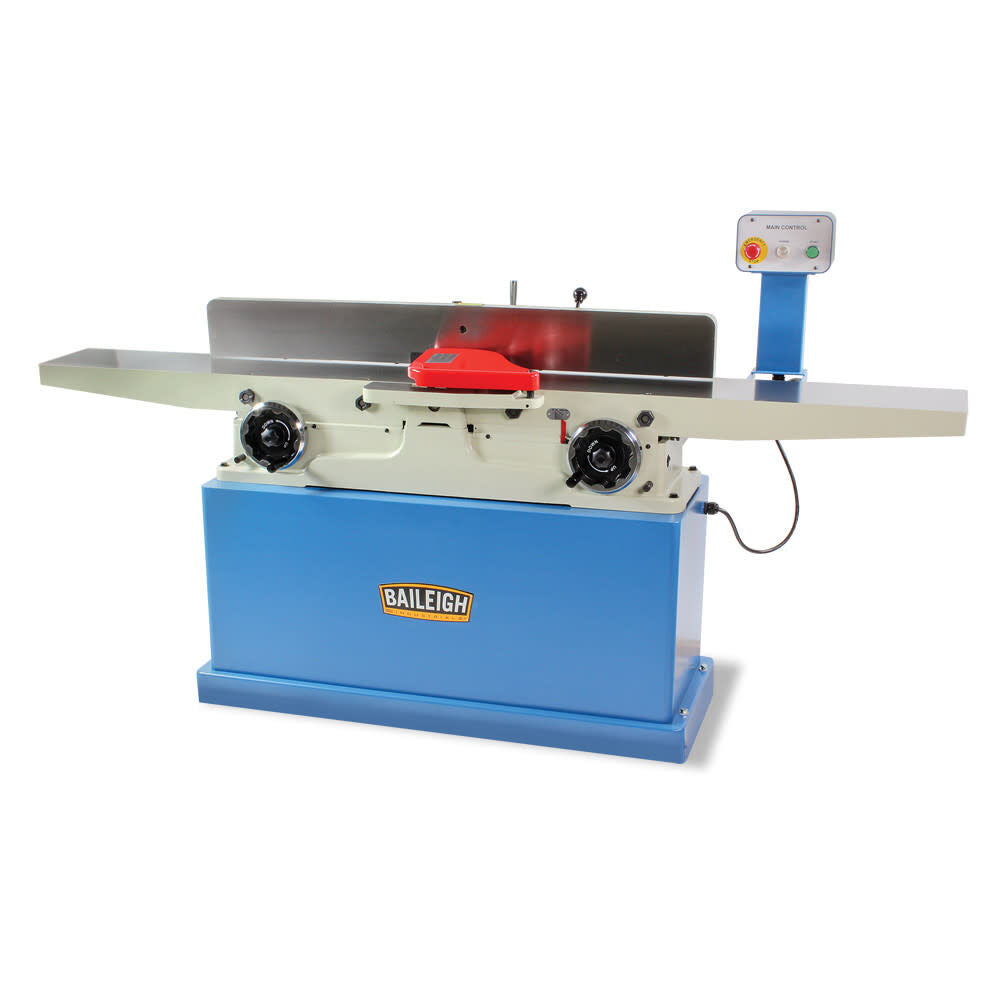

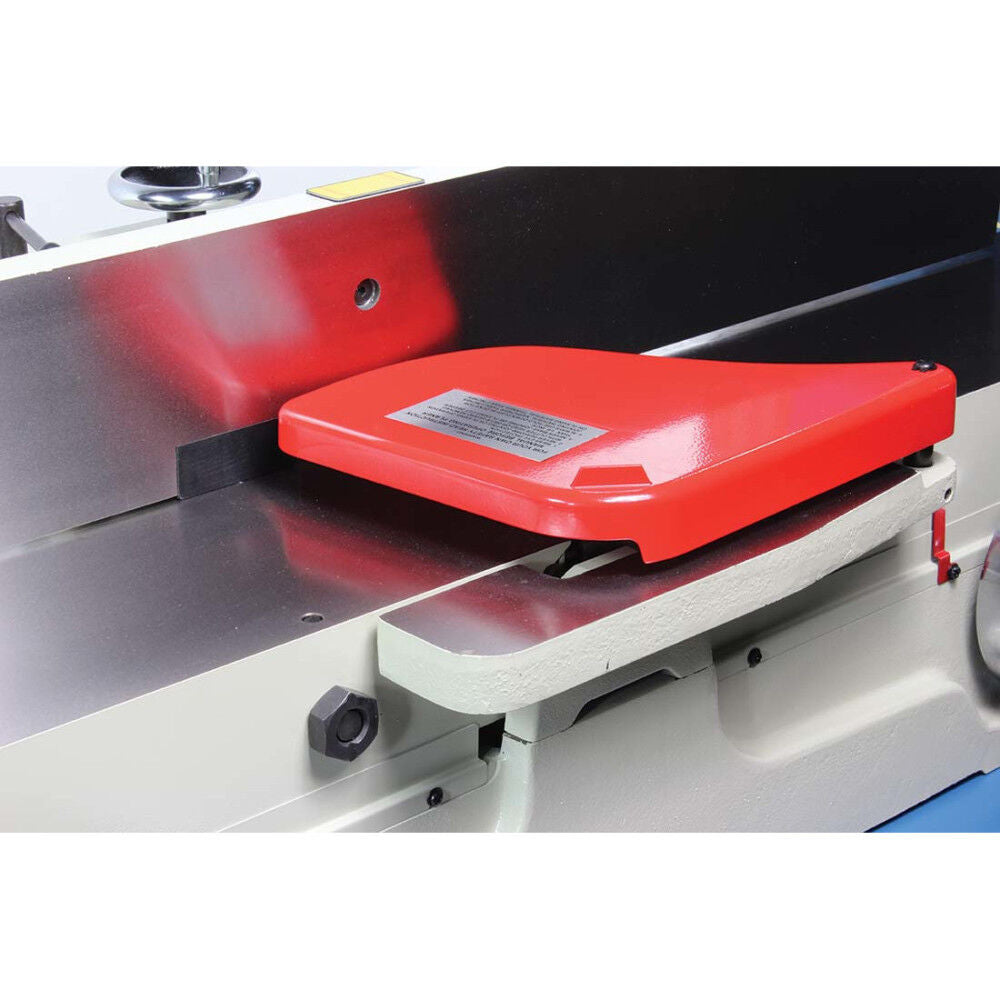

Baileigh IJ-883P-HH Parallelogram Jointer with Spiral Cutter Head
We built this parallelogram jointer to meet the highest standards of safety and accuracy.
An 83 In.
Bed and 8 In.
Width let you easily cut flat surfaces and prepare edges for joining.
California Proposition 65 Warning.Features

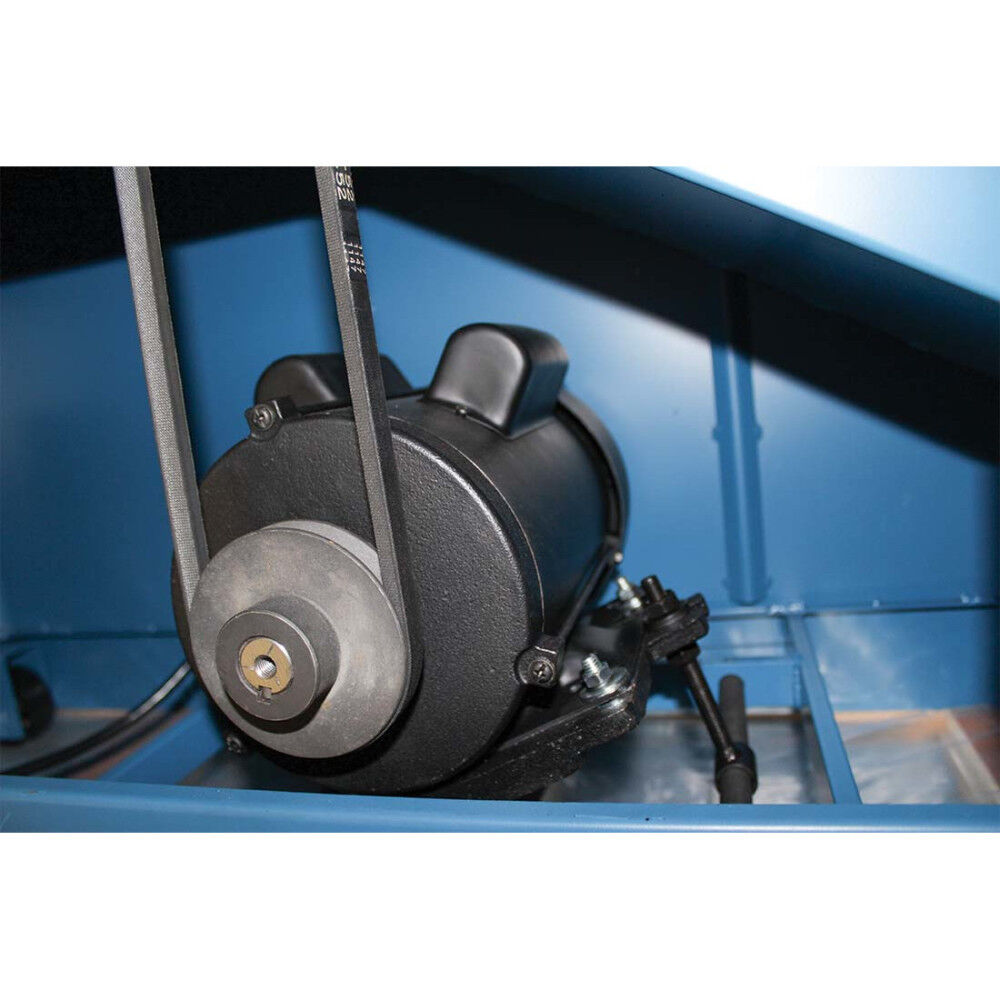

- 3HP motor can handle even the toughest woods, runs on 220V 1 Phase power, so you can use it just about anywhere

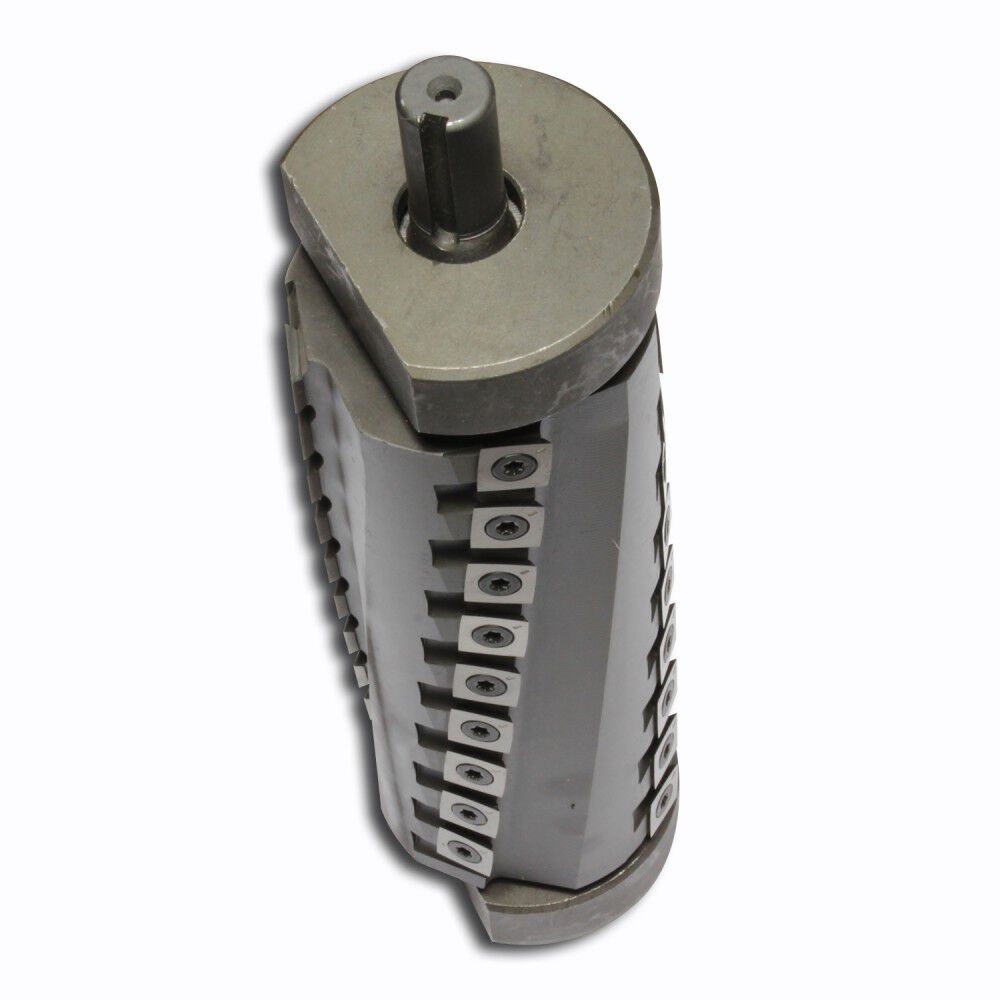

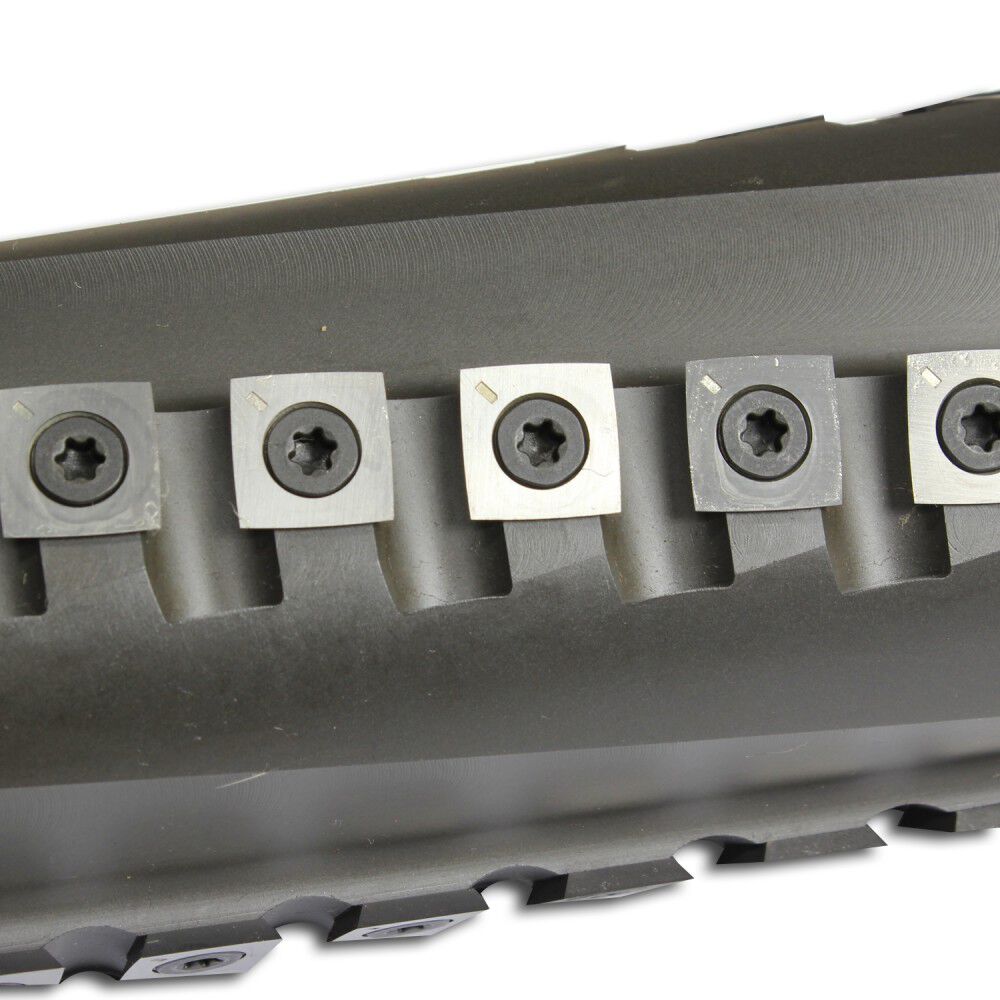

- 4 row helical cutter head spins at 5000 Rpm, extra-long 83 In. bed gives you support when handling large pieces of material
- Built-in rabbeting ledge helps you easily make grooves down the sides of boards for edge joining

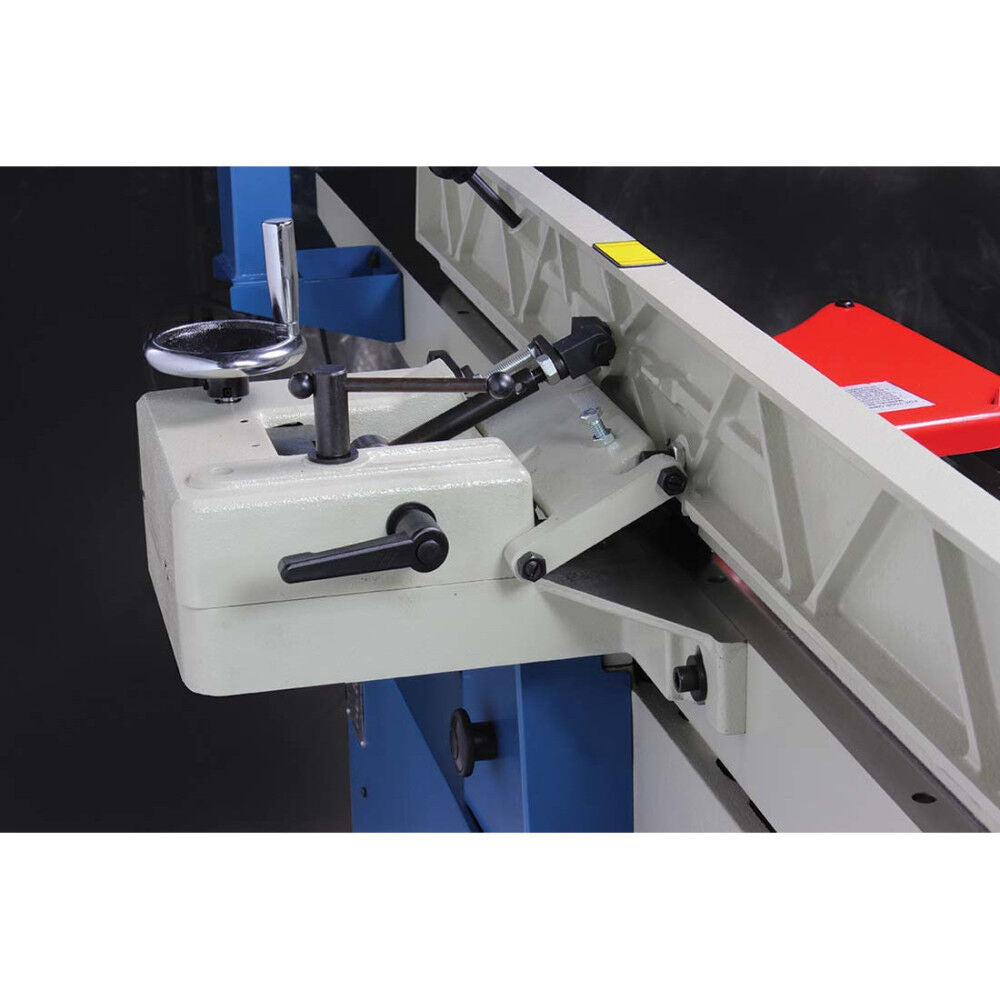

- 5.5 In. x 48 In. fence has positive stops at 45 Deg and 90 Deg, non-mar insert allows the fence to avoid scratching the table surface during adjustments

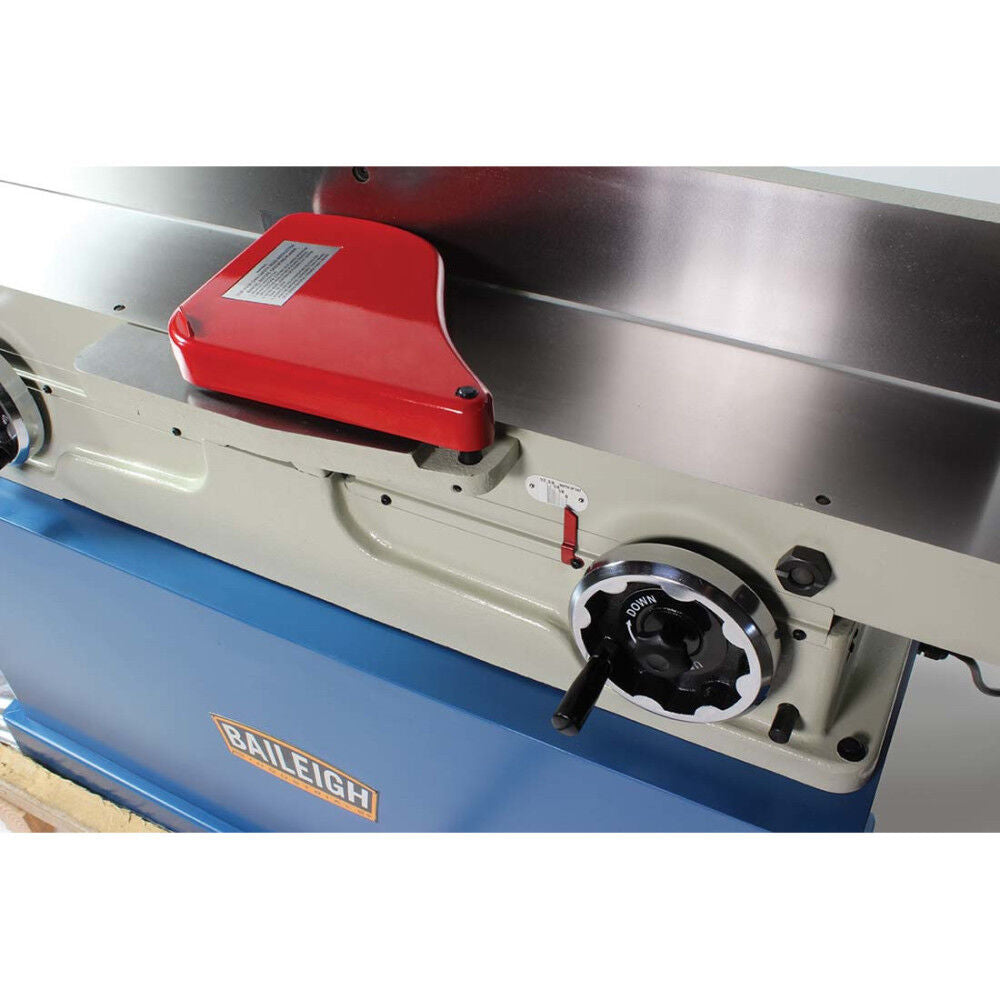

- You can quickly adjust the cut depth up to 1/8 In. by turning a convenient handwheel
- Parallelogram design moves the table edge in an arc around the cutter head, keeping the gap consistent, no matter the cut depth
- This style of jointer helps prevent accidents, like tipping a board into the gap between the cutter and the table or getting your hand caught in there
- Design ensures that the table remains perfectly parallel, even after years of use
- 4 In. dust port conveniently hooks up to your dust collection system, so your shop stays neat and clean, base includes linear wheels, enabling you to easily move the machine
- Covered by a 1-year parts warranty, as well as lifetime technical support by phone
Specifications
Brand Name - Baileigh
Amperage (A) - 0-30
Assembled Weight (lbs) - 710
Bench or Stationary - Stationary
Blade Count - 4
Country of Origin - Taiwan
Dust Port - Yes
Dust Port Outside Diameter (in) - 4
Horsepower (hp) - 3
MFG Part # (OEM) - 1021091
Maximum Cutting Depth (in) - 0.125
Maximum RPM - 5000
Maximum Speed (rpm) - 5000
Package Contents - Long Bed Parallelogram Jointer with Spiral Cutter Head
Package Depth - 44
Package Height - 88
Package Weight - 710
Phase - 1
Product Condition - New
Switch Type - Magnetic
Table Length (in) - 83
Table Width (in) - 8
UPC - 400021000544
Variable Speed - No
Warranty Type - 1 Year
Weight (lbs) - 710
