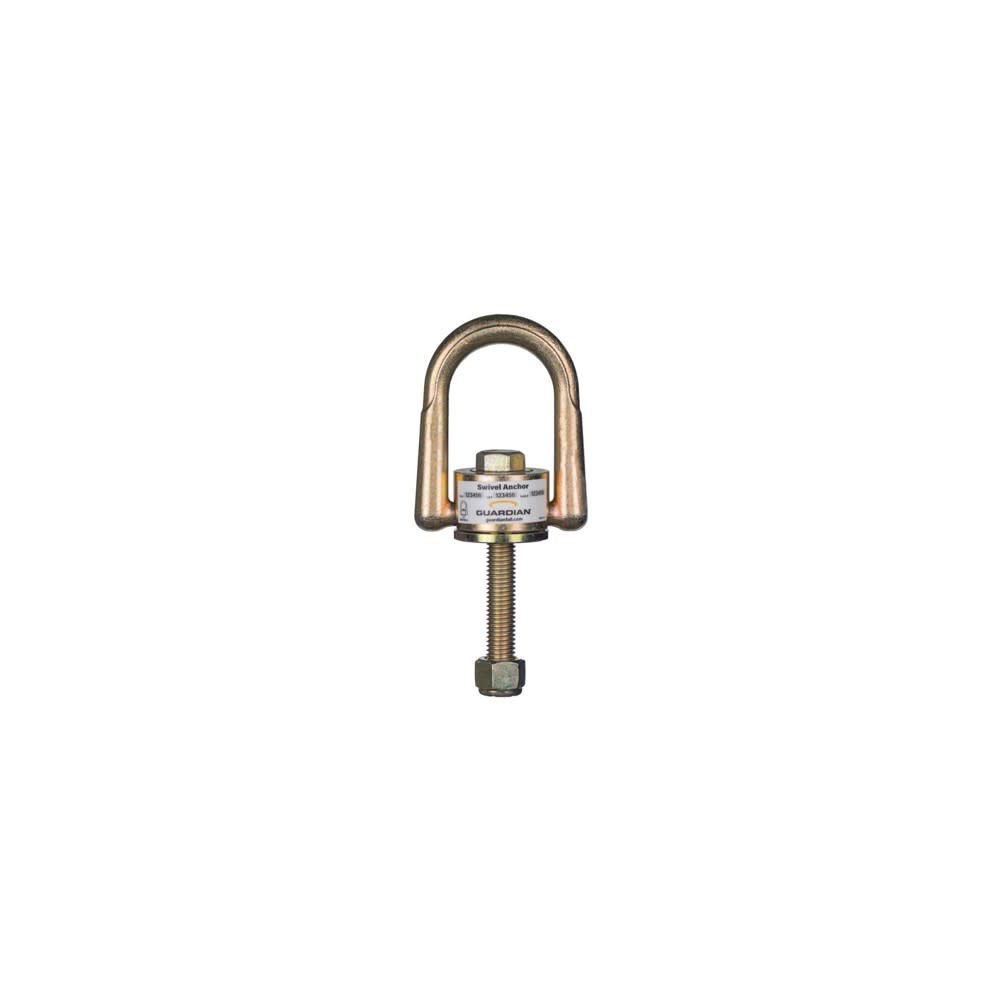

10000 Lbs Swivel Anchor with Grade 8 Bolt Washer & Nut 10011
10000 Lbs Swivel Anchor with Grade 8 Bolt Washer & Nut 10011 is backordered and will ship as soon as it is back in stock.
Guardian Fall Protection 10000 Lbs Swivel Anchor with Grade 8 Bolt Washer & Nut
The Swivel anchor is a popular anchorage connector for both concrete and metal substrates.
Its design includes a full size D-ring for easy connections and a dual swivel for 360-degree mobility.
Available with a concrete expansion anchor, adjustable bolt assembly, or weld-on puck to provide a 10K anchor point in a variety of applications.
California Proposition 65 Warning.Features
- For temporary and permanent applications
- Single anchor for installations 10k and below
- 360 Degrees of movement
- Easy and quick installation
- For single anchoring point applications and temporary horizontal lifeline systems
- Working Load Limit: 2000 Lbs (8,9 kN) for rigging and suspension
- Meets or Exceeds ANSI Z359.18-2017 OSHA 1910.140 OSHA 1926.502
Specifications
Brand Name - Guardian Fall Protection
ANSI Approved - Yes
Application - For Single Anchoring Point Applications and Temporary Horizontal Lifeline Systems
Assembled Weight (lbs) - 2.2
Country of Origin - United States
MFG Part # (OEM) - 10011
Material - Swivel- Forged and Machined Steel, Zinc-Plated, Bolt- Zinc-Plated, Expansion Anchor- Carbon Steel, Zinc-Plated
Maximum Load (lbs) - 2000
Meets ANSI or OSHA Standards - Yes
Package Contents - Swivel Anchor with Expansion Anchor
Package Depth - 12
Package Height - 14
Package Weight - 2.2
Package Weight (lbs) - 2.2
Product Condition - New
Size - 5/8 In. - 11 x 4 In. Grade Bolt
Temperature Range - -40 deg C to 54 deg C
Tensile Strength - 10000
UPC - 400001012338
Warranty Type - No Manufacturer's Warranty
Weight Capacity (lbs) - 130-310 ANSI/100-420 OSHA
