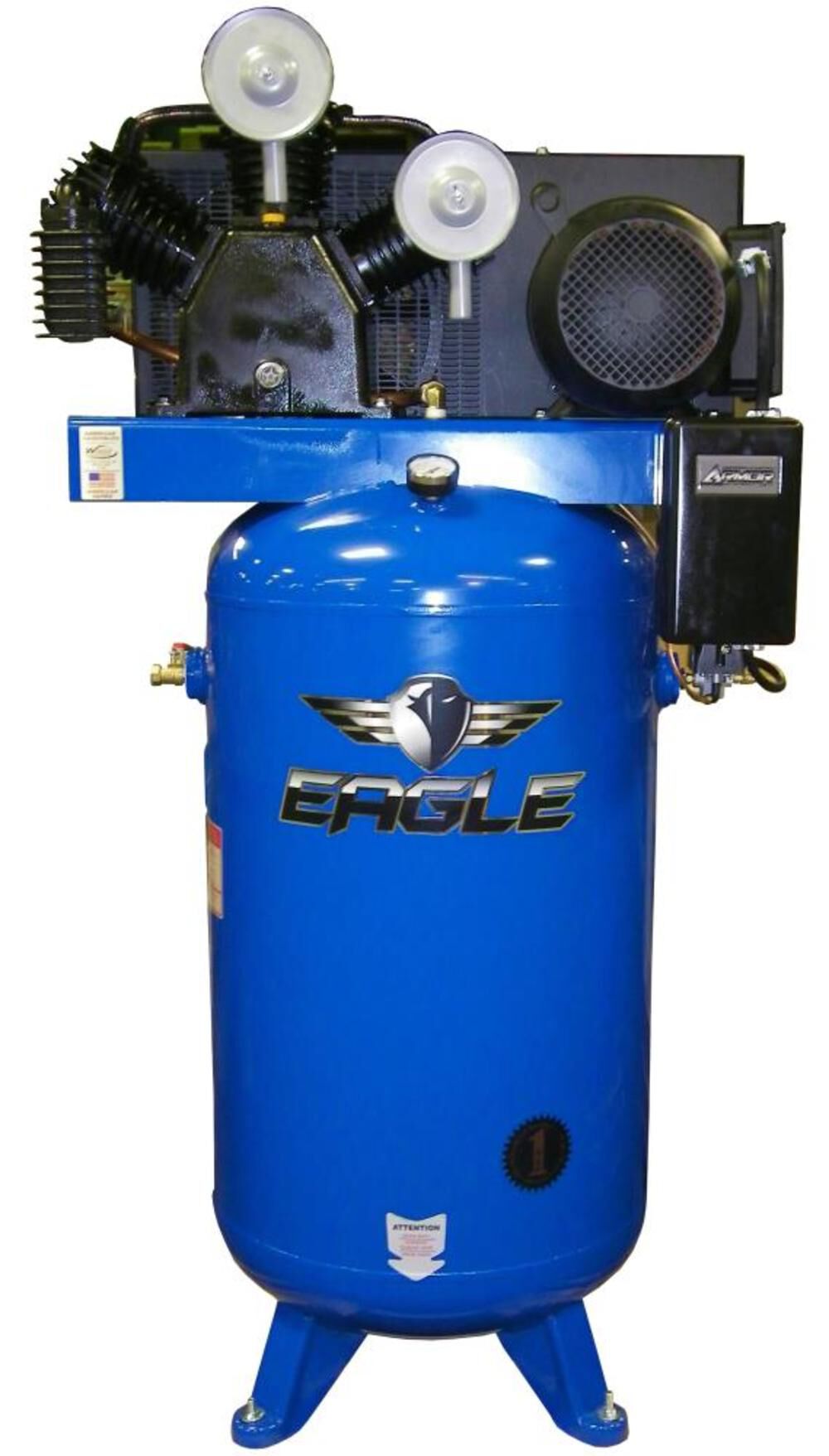

Eagle Compressor 7.5 HP 80 Gallon Vertical Stationary Electric Air Compressor
Eagle 7180V2-MS 80 Gallon ASME vertical stationary capacity tank.
Thermally protected 7.5 HP single phase, 208/230 volt electric motor.
Cast iron cylinders with V design.
Oil lube compressor delivers 24 CFM at 100 PSI. 175 Maximum PSI.
Easy view oil sight gauge.
Metal air filers with Äúauto dropÄù feature.
Efficient heat removal from the fly wheel for cooler running and longer life.
Sturdy metal belt guard. 3/4" outlet ball valve included.
California Proposition 65 Warning. View Warning LabelFeatures
- Thermally protected 7.5HP single phase 208/230 volt electric motor
- 80 Gallon ASME registered tank, 175 PSI rating
- Cast iron cylinders with "V" design minimizes vibration
- 175 Maximum rated PSI
- Heavy duty pressure switch has on/off control
- Convenient oil drain on front of unit
- Easy view oil sign gauge
- High efficiency reed valves for maximum performance. Single Phase.
Specifications
Brand Name - Eagle Compressor
Air Compressor Pump Design - Oil Lubricated
Amperage (A) - 0
Assembled Weight (lbs) - 559
California Proposition 65 Warning Required - Yes
Color - Blue
Compressor Design - Vertical
Country of Origin - United States
CSA Certified - No
ETL Listed - No
Height (in) - 66
Horsepower (hp) - 7.5
MFG Part # (OEM) - 7180V2-MS
Maximum Pressure Rating (psi) - 175
Operating Position - Vertical
Package Contents - 7.5 HP 80 Gallon Vertical Stationary Electric Air Compressor
Package Depth - 48
Package Height - 78
Package Weight - 559
Phase - 1
Product Condition - New
Tank Capacity (gal) - 80
Tank Configuration - Single
Tank Material - Metal
Tank Pressure Gauge - Yes
UL Listed - No
UPC - 777589002502
Voltage - 208/230
Warranty Type - 1 Year
Weight (lbs) - 452
Wheeled - No
