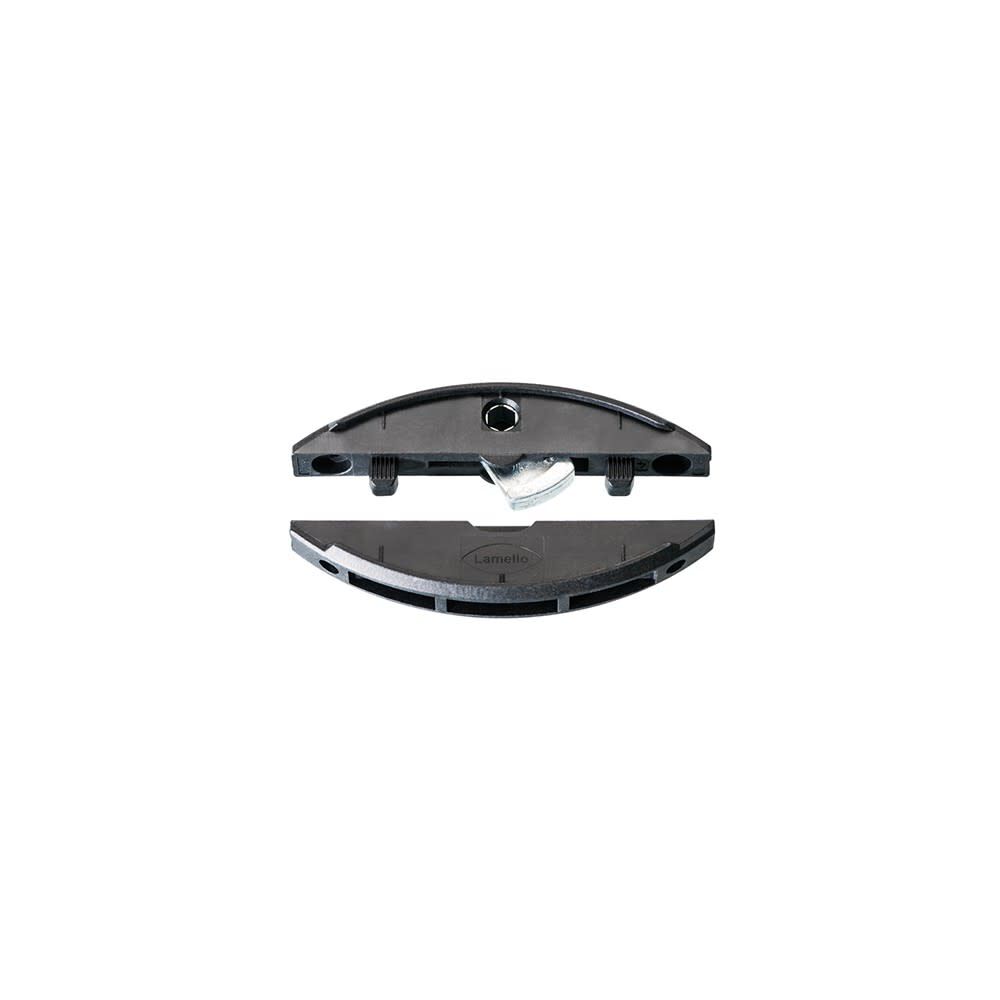

Lamello Clamex P-14 Detachable Connector
Clamex P-14 is a detachable connector and is anchored in the form-locking P-System groove within seconds.
Through the minimalist 6 mm access hole, Clamex P-14 is firmly connected and disconnected using a lever.
Clamex P-14 eliminates the need for glue, allows aesthetic joints at all angles and is ideal for permanently joined or detachable mitres.
Clamex P-14 is used on mitre joints from 18 mm material thickness and in butt joints from 15 mm.
California Proposition 65 Warning.Features
- Detachable connector with very small opening

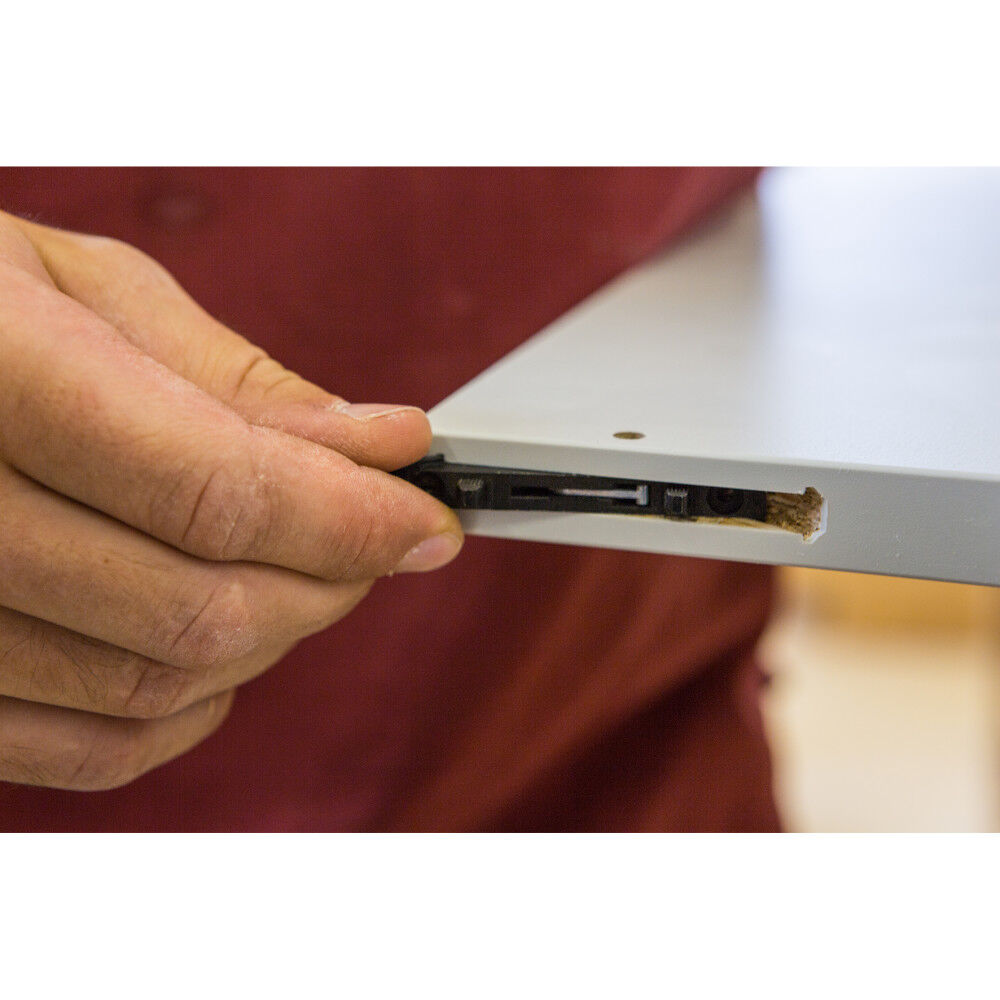

- Extremely fast insertion of the connectors without tools
- Versatility for all angles and joining situations
- A detachable all-rounder: Workpieces connected with the Clamex P can be detached at any time using the rotating lever
- Easy working: The large longitudinal tolerance forgives imprecision when cutting

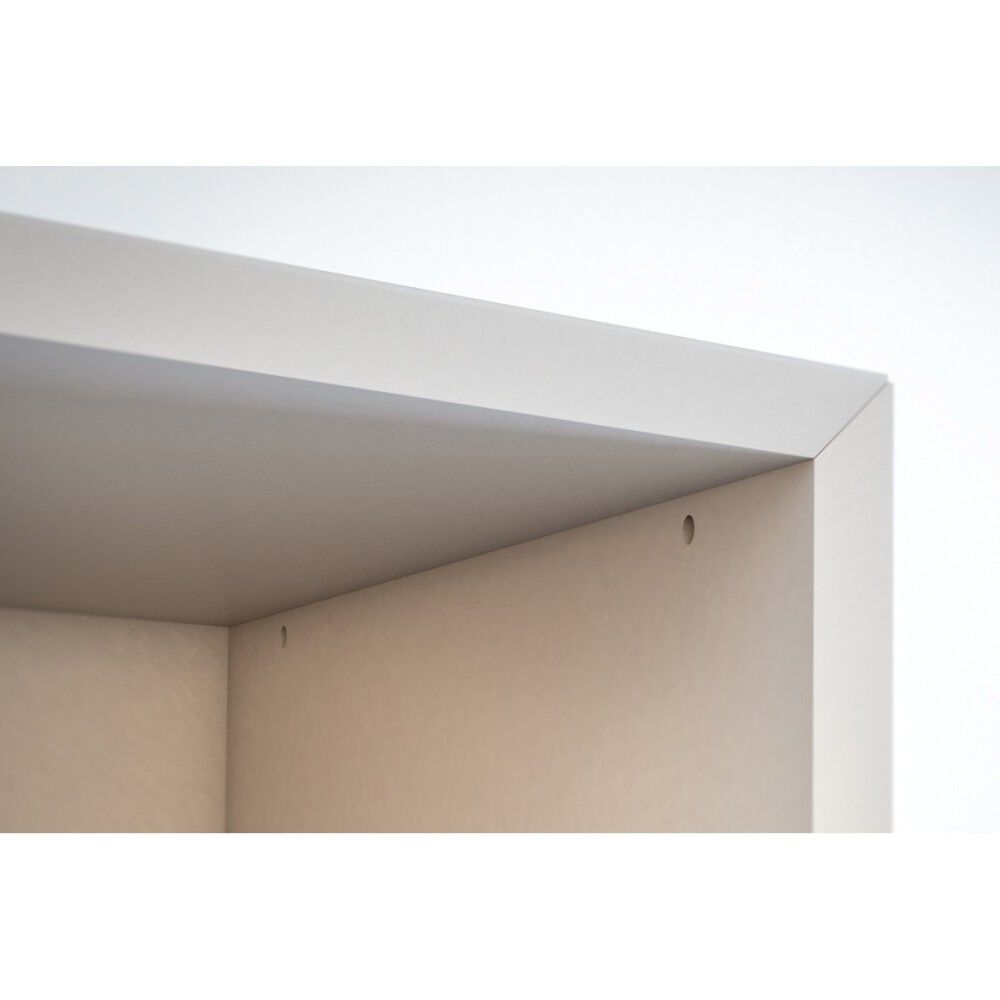

- Very aesthetic: Only a small, barely visible tool opening of 6mm is used to open and close the connector
- P-System anchorage: Tool-free anchoring of connectors, without adhesive or screws
- Fastest connection: Connected in seconds with Clamex or Tenso. Connection is complete within seconds, without waiting time, clamps, or post-processing work
- Tensile strength (N) MDF: ~ 900 N ≈ 90 kg, Tensile strength (N) Particle board: ~ 800 N ≈ 80 kg, Tensile strength (N) Beech: ~ 1000 N ≈ 100 kg
- Installation tolerance: Longitudinal ± 1 mm
Specifications
Brand Name - Lamello
Assembled Weight (lbs) - 8
Country of Origin - Switzerland
MFG Part # (OEM) - 145334
Material - Zinc Die Cast Lever, Fiberglass Reinforced Plastic Connector
Package Contents - Clamex P-14 - 80 Pairs
Package Depth - 24
Package Height - 24
Package Weight - 5
Product Condition - New
Size - 64 x 27 x 9.7 mm
UPC - 400453000754
Warranty Type - No Manufacturer's Warranty
