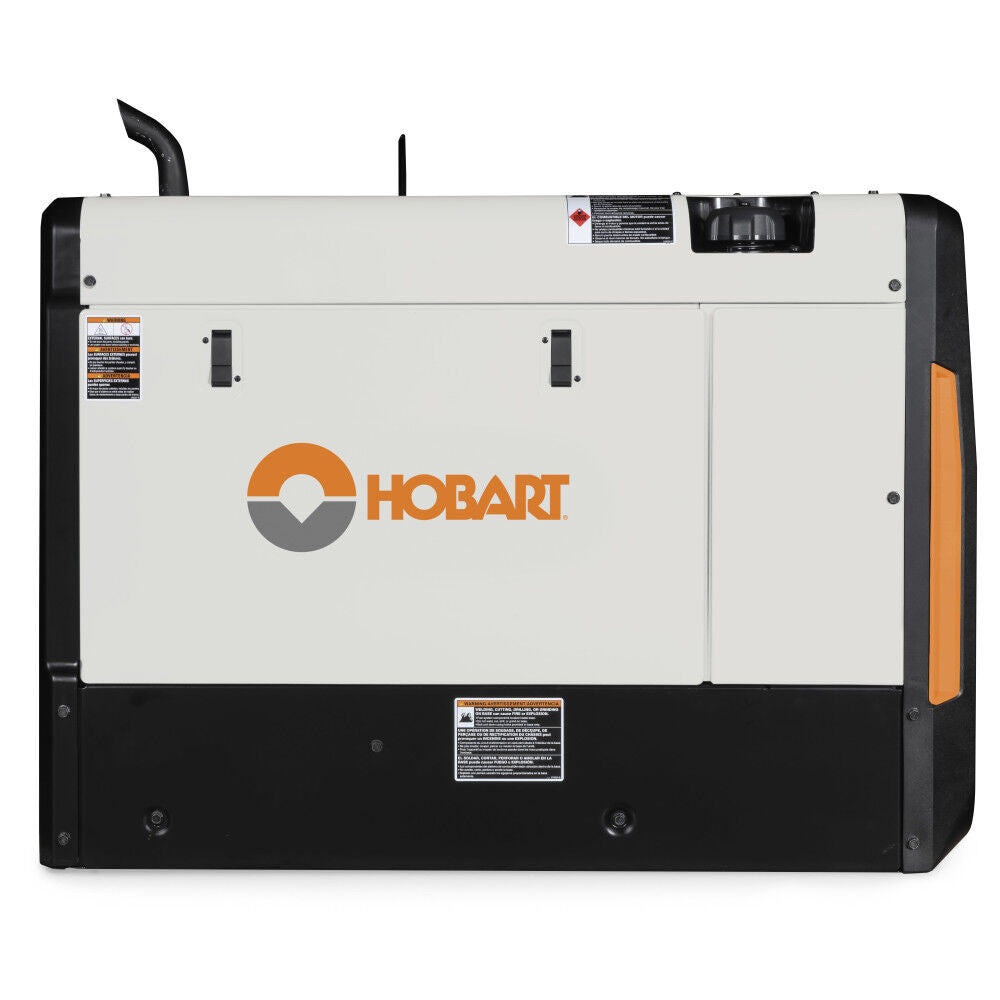

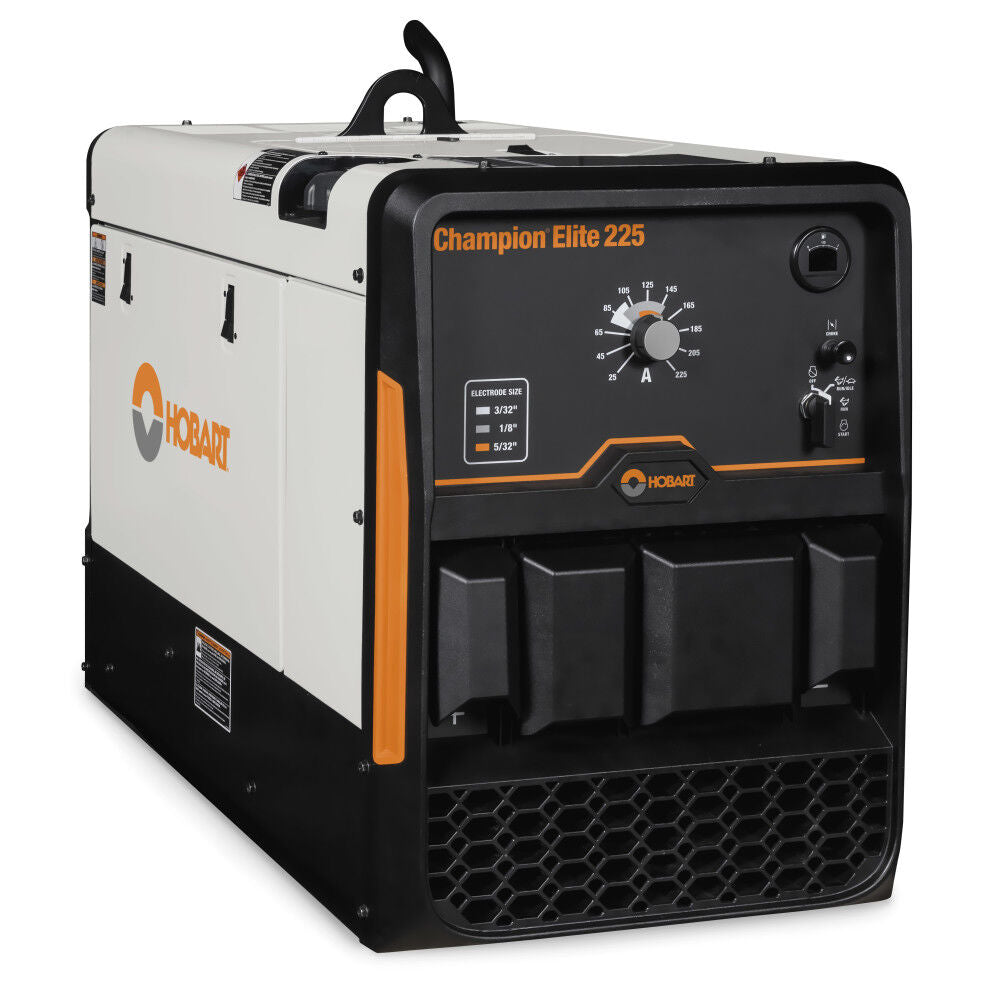

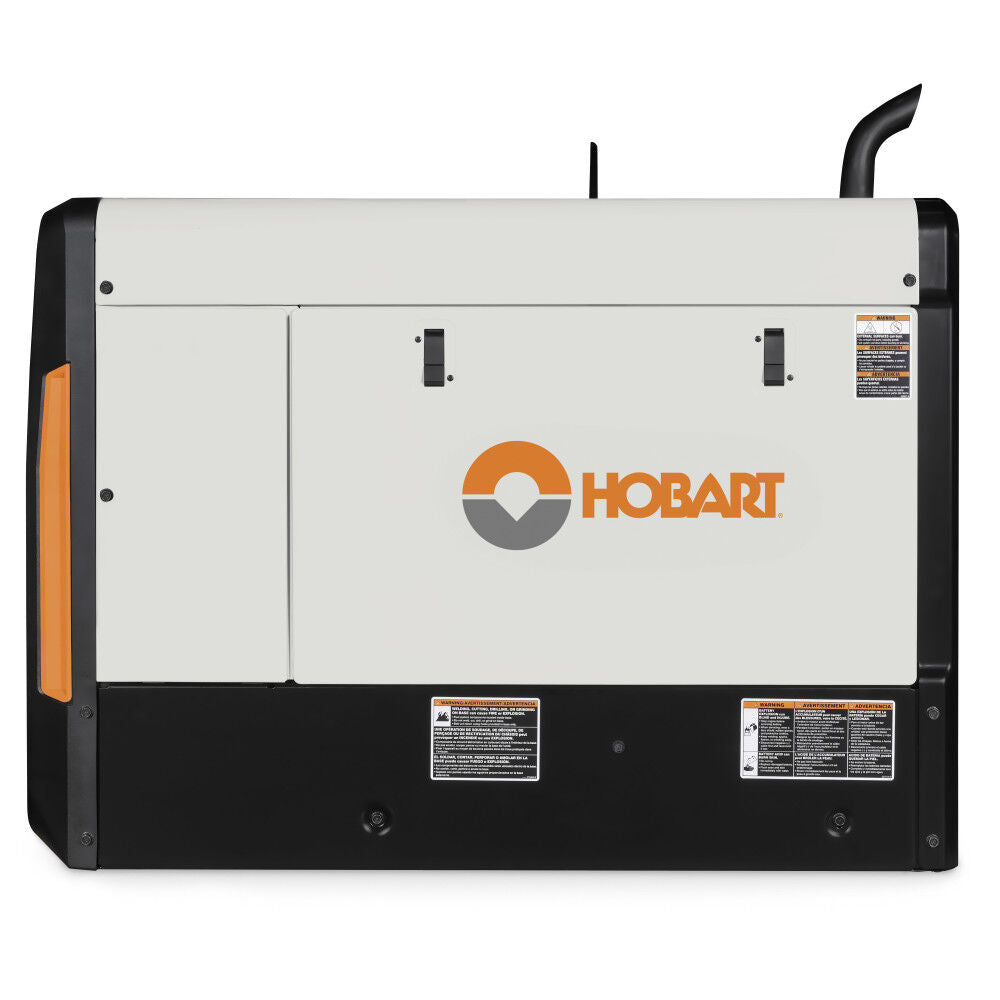

Champion Elite 225 Stick Welder Engine-Driven 500580
Champion Elite 225 Stick Welder Engine-Driven 500580 is backordered and will ship as soon as it is back in stock.

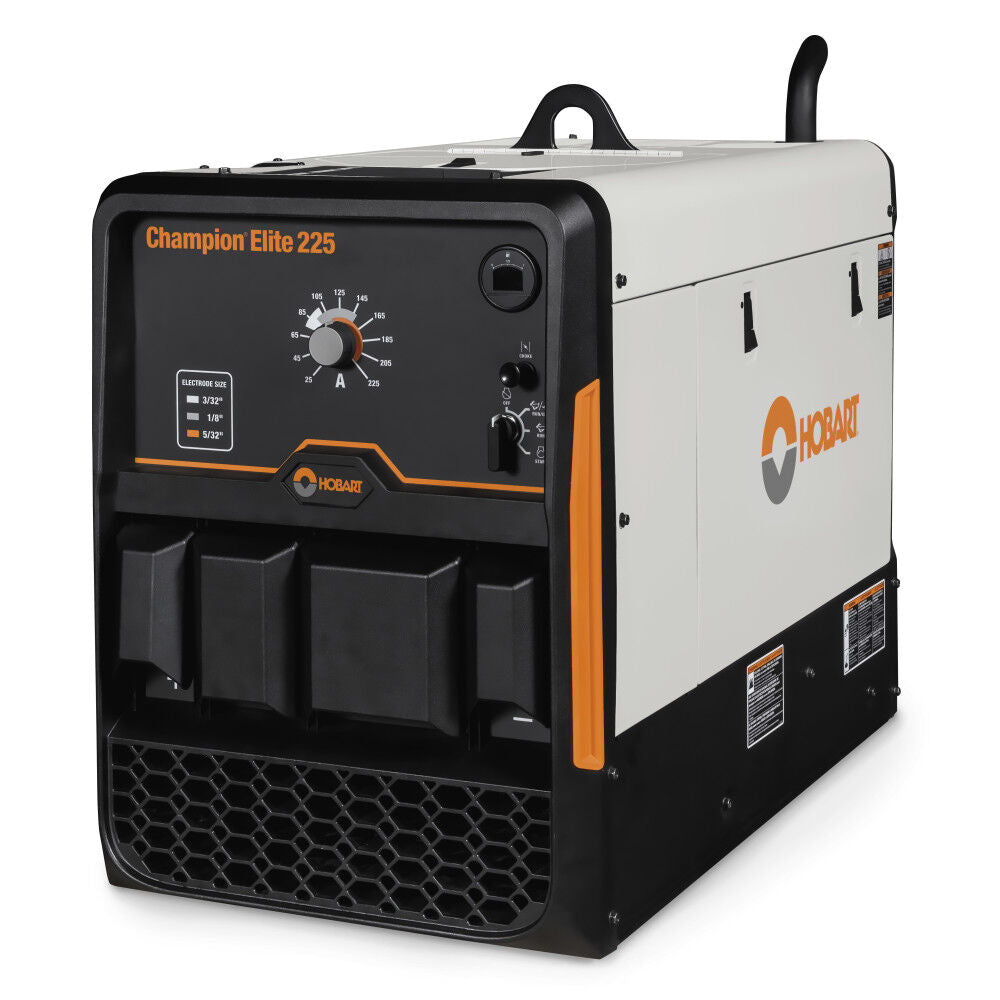

Hobart Champion Elite 225 Stick Welder Engine-Driven
The Champion Elite 225 combines the welding capability of a 225-amp DC stick welder with maximum auxiliary power to keep the jobsite running.
Superior DC stick welding delivers smooth and consistent performance on a broad range of stick electrodes.
The Heavy Duty, Champion Elite 225 engine driven welder provides 10,000 peak watts of auxiliary power with 9,500 watts of continuous power - allowing for multiple tools to run at a time.
At 373 lbs., the light weight design helps with fuel efficiency when being transported on a truck and is easier to lift - with weight savings of over 20% versus our previous model.

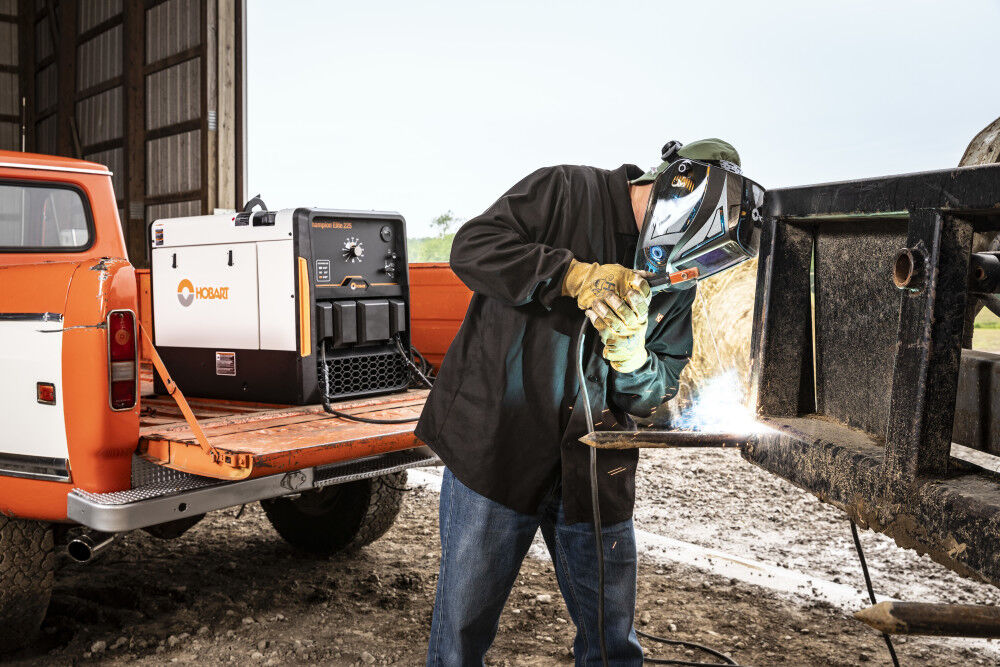

The Champion Elite 225 increases productivity with the ability to weld and use auxiliary power at the same time without arc interference, allowing welding and clean up work to be done simultaneously .
Features

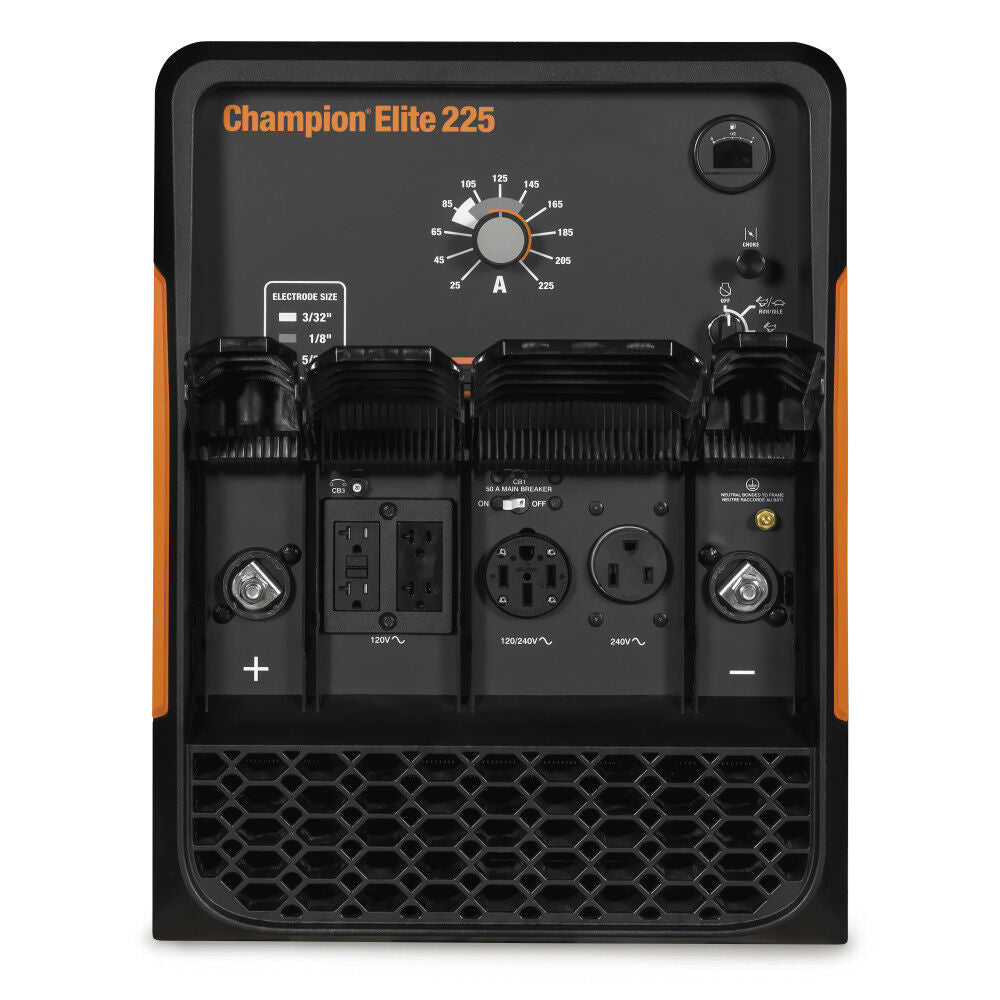

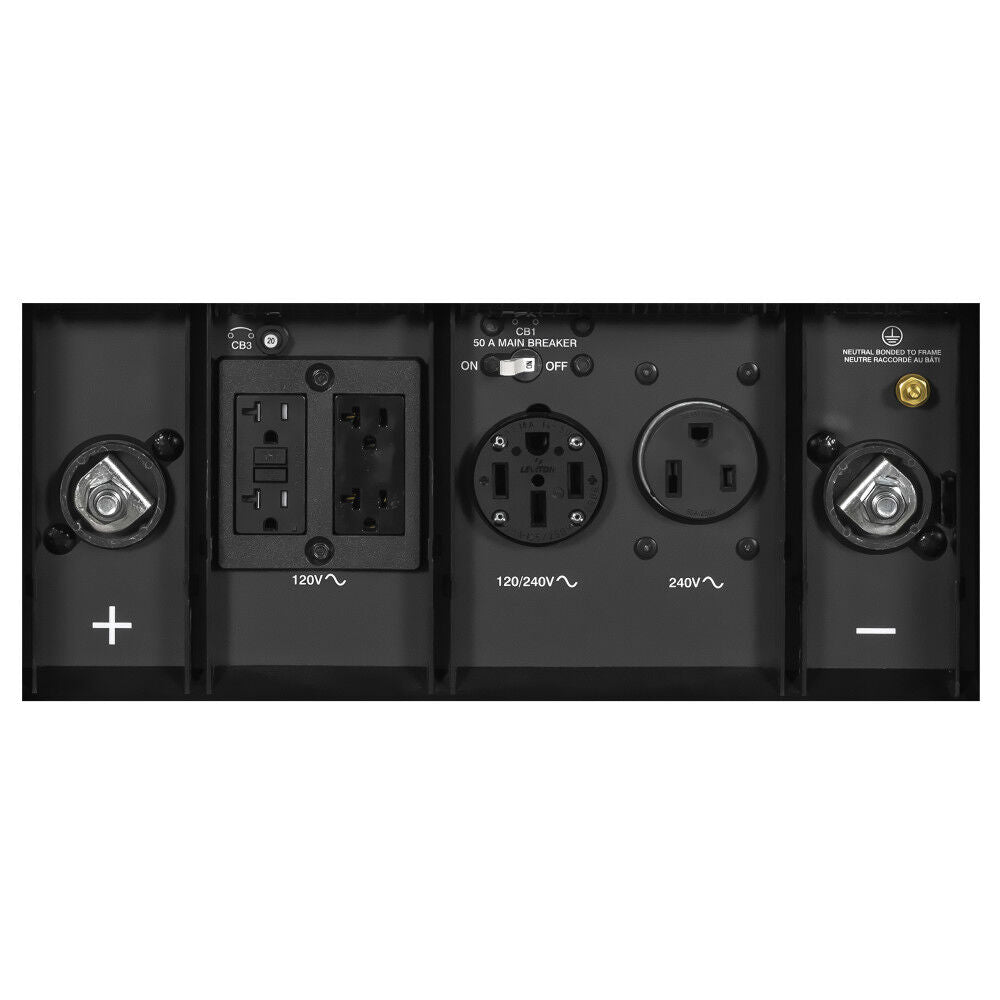

- 10,000-Watt peak and 9,500-Watt continuous AC auxiliary power
- Smooth and consistent arc provides superior weld performance
- Versatile, 225 amp DC welding output allows for use of a broad range of stick electrodes
- Lightweight design that takes up less payload and is easier to lift - 20% lighter than our previous model
- Convenient truck or trailer mounting

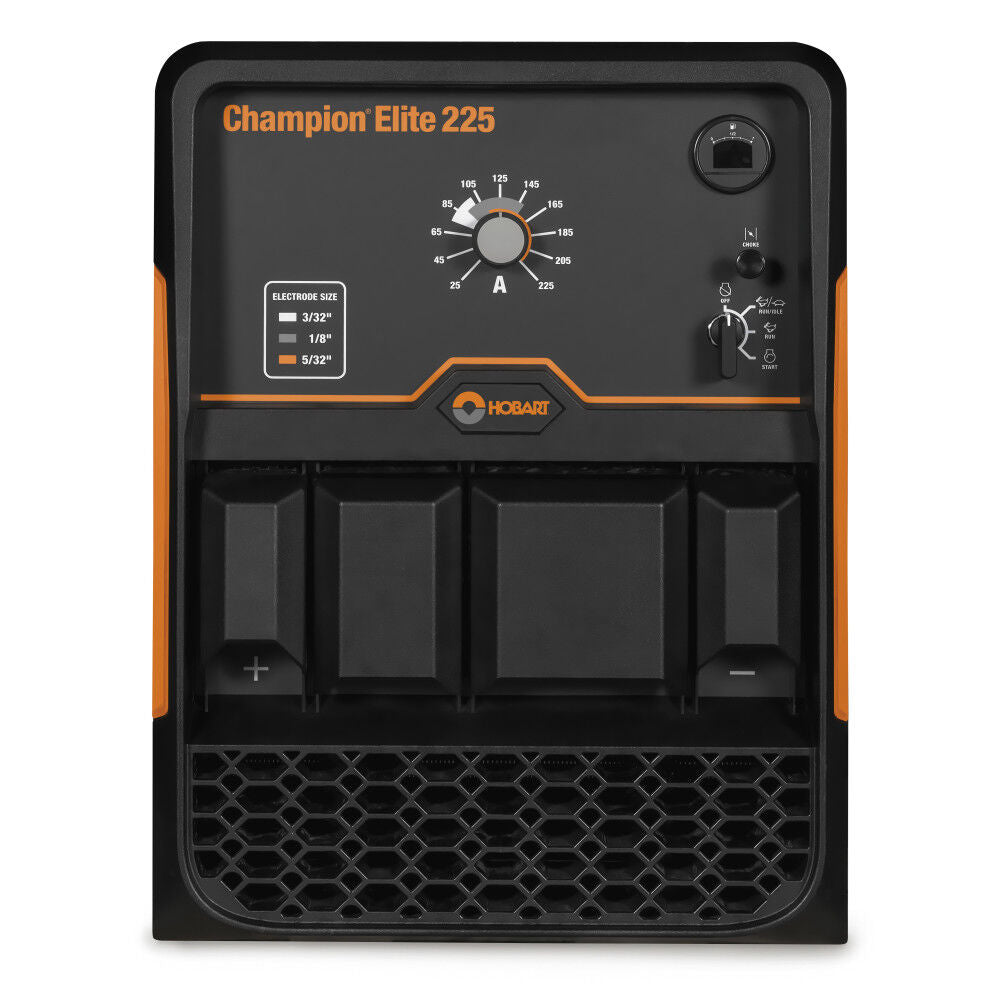

- Easy reference guide with a single knob control for precise and quick weld settings
- Rated output is 225 A @ 100% Duty Cycle
- Amperage range is 40 - 225A, Welds 1/2" Steel in a Single Pass

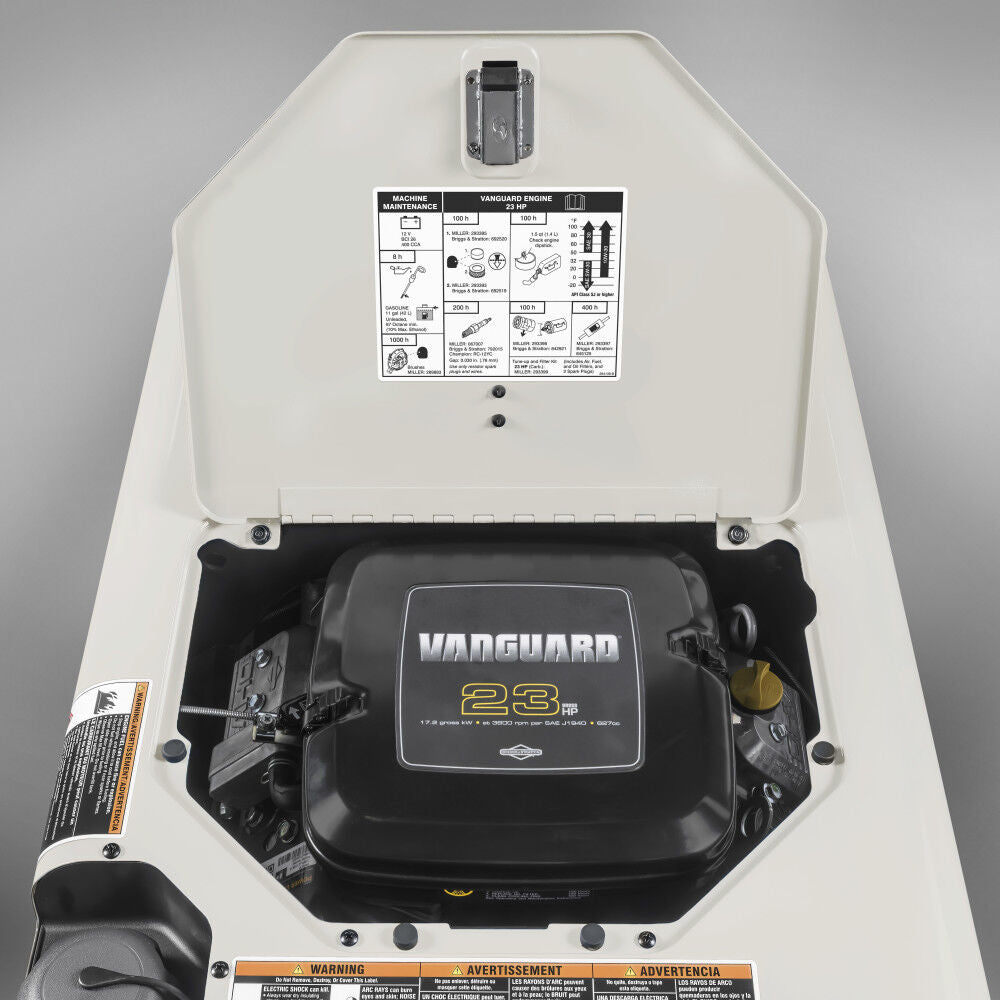

- Reliable VANGUARD® 23 HP Engine
- 5-3-1 Hobart Industrial warranty
Specifications
Brand Name - Hobart
Assembled Depth (in) - 37.1
Assembled Weight (lbs) - 373
Assembled Width (in) - 20.1
Assembly Required - No
Attachment Method - Fastening points
California Proposition 65 Warning Required - Yes
Charger Included - No
Country of Origin - United States
Height (in) - 32.0 Package
MFG Part # (OEM) - 500580
Number of Batteries Included - 1
Number of Batteries Required - 1
Overall Height (in) - 32.0" package. 26.5" unit
Overall Length (in) - 42.0 Package
Overall Width (in) - 24.0 Package
Package Contents - Welder, Owner's Manual and Exhaust Pipe w/ Clamp
Package Depth - 42
Package Height - 32
Package Weight - 425
Product Condition - New
Rotates - No
UPC - 715959703048
Voltage - Not Applicable
Warranty Type - Multiple Item Custom Warranty
Weight (lbs) - 373.0
Welder / Cutter Type - Stick Welder
