Lamello Cabineor 8 M6 Cabinet Connector Starter Set

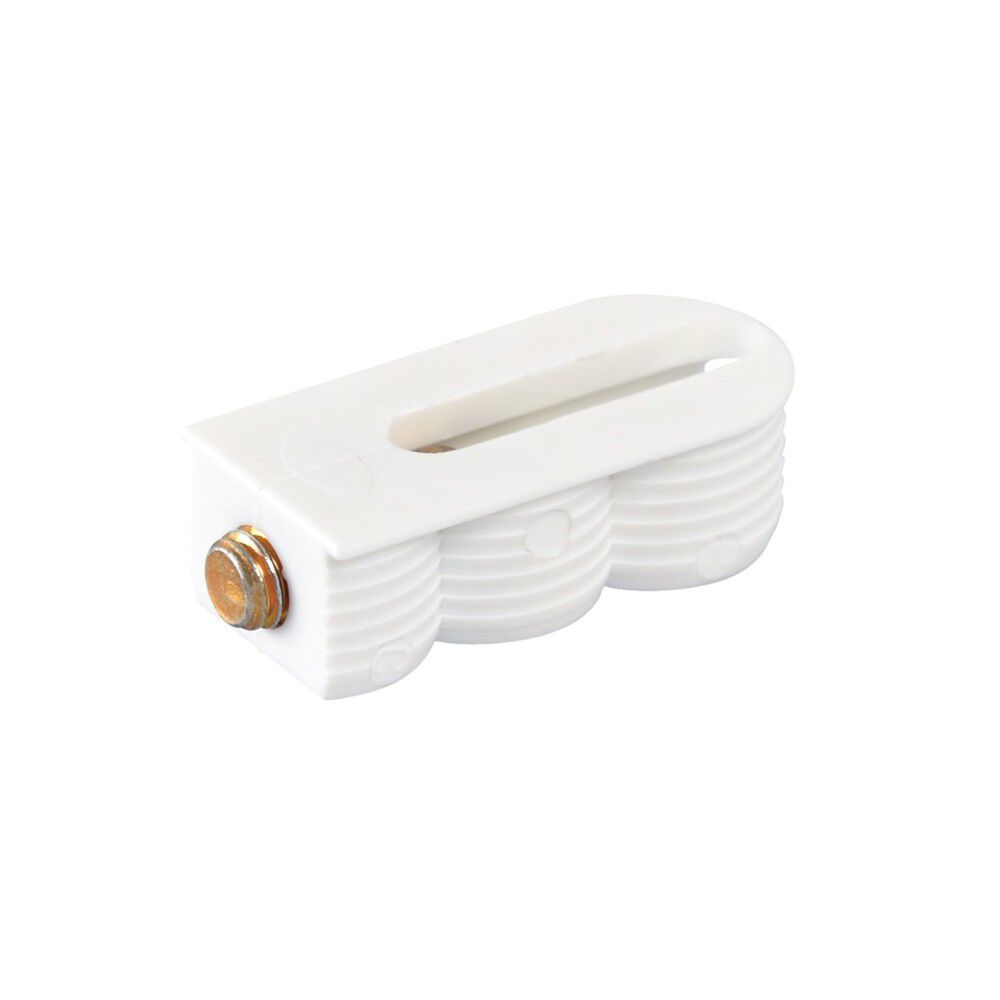

The Cabineo insert M6 is a threaded insert to drive in, which can be used in combination with the Cabineo 8 M6.
It is ideal for applications where the thread cannot be cut directly into the workpiece or to increase the strength in corner and dividing panel joints.

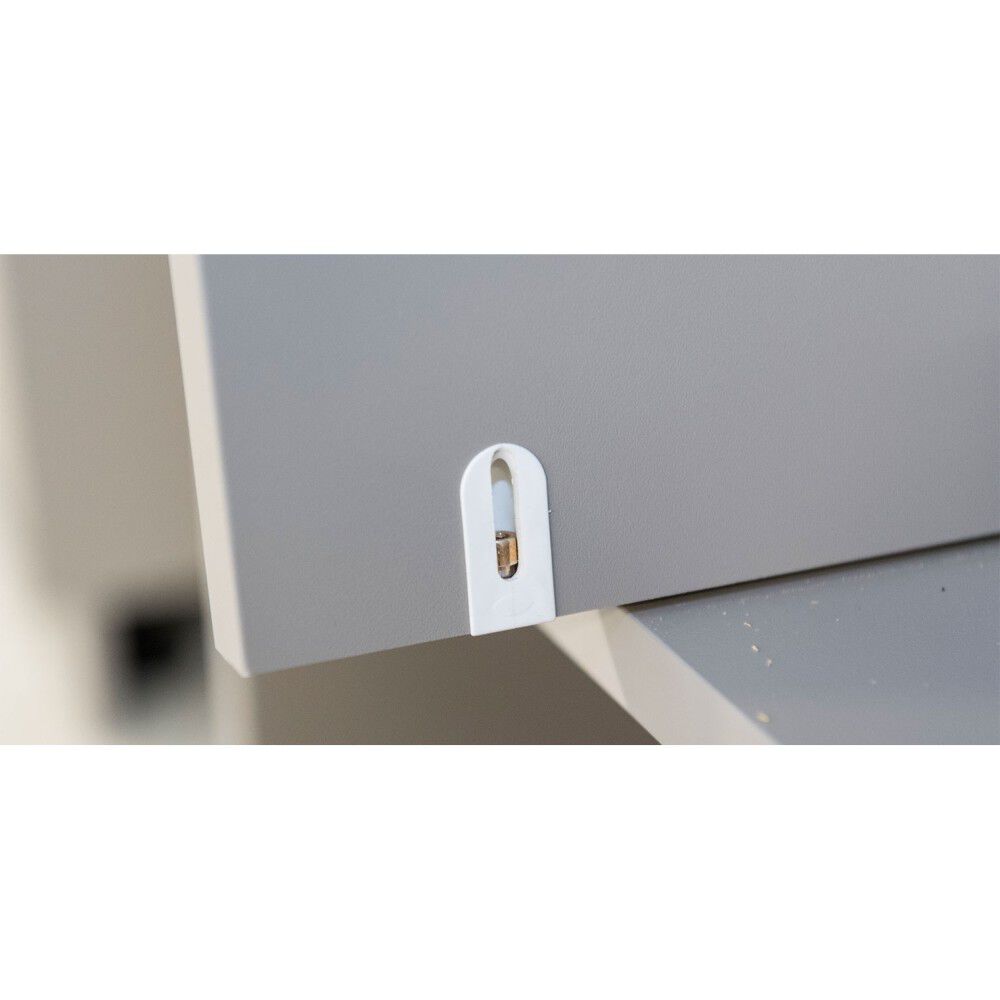

The Cabineo insert M6 is hammered into the through-hole of the middle panel so that the Cabineo can reach into the insert from both sides.
The same connector and insert can be used everywhere for corner and dividing panels.
California Proposition 65 Warning.Features
- Various materials: The Cabineo 8 M6 can be screwed directly into the material (HPL, aluminum, steel, etc.)
- Same connector everywhere: Same connector for all joining situations
- Wear-free connection: No wear and tear of the workpiece when it is assembled and disassembled multiple times

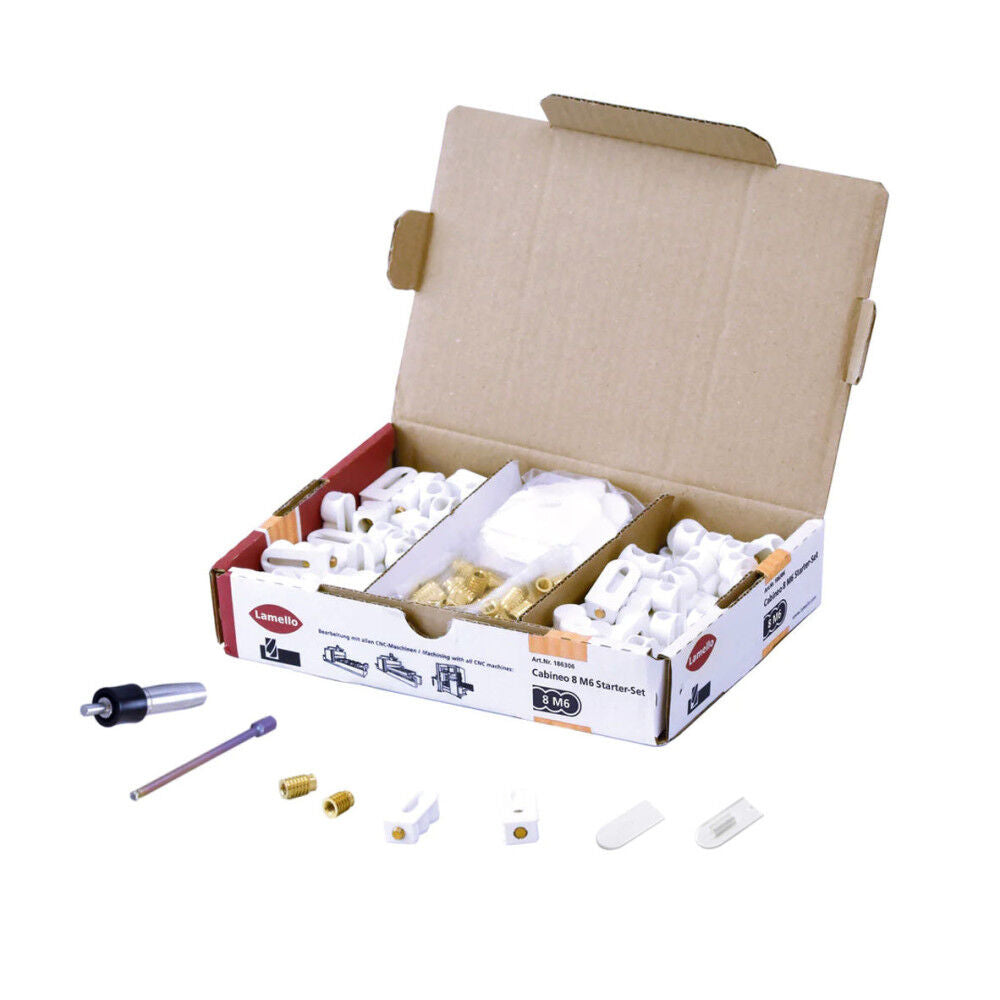

- Contains Cabineo 8 M6 (80 pieces), Insert nut and cover caps (40 pieces each), Cabineo insert nut tapping aid (1 piece), Cabineo hex bit 1/4 In. (1 piece)
- Cutter: 12 mm or smaller, Drill: 5 mm and 15 mm
- Installation tolerance: Longitudinal ± 0.1 mm
Specifications
Brand Name - Lamello
Assembled Weight (lbs) - 5
Country of Origin - Switzerland
MFG Part # (OEM) - 186306
Material - Fiberglass Reinforced Plastic Connector
Package Contents - (80 Pieces) Cabineo 8 M6, (40 Pieces Each) Insert Nut and Cover Caps, (1 Piece) Cabineo Insert Nut Tapping Aid, (1 Piece) Cabineo Hex Bit 1/4 In.
Package Depth - 12
Package Height - 12
Package Weight - 5
Product Condition - New
Size - 33.8 x 16.5 x 10.8 mm
UPC - 400863000252
Warranty Type - No Manufacturer's Warranty
