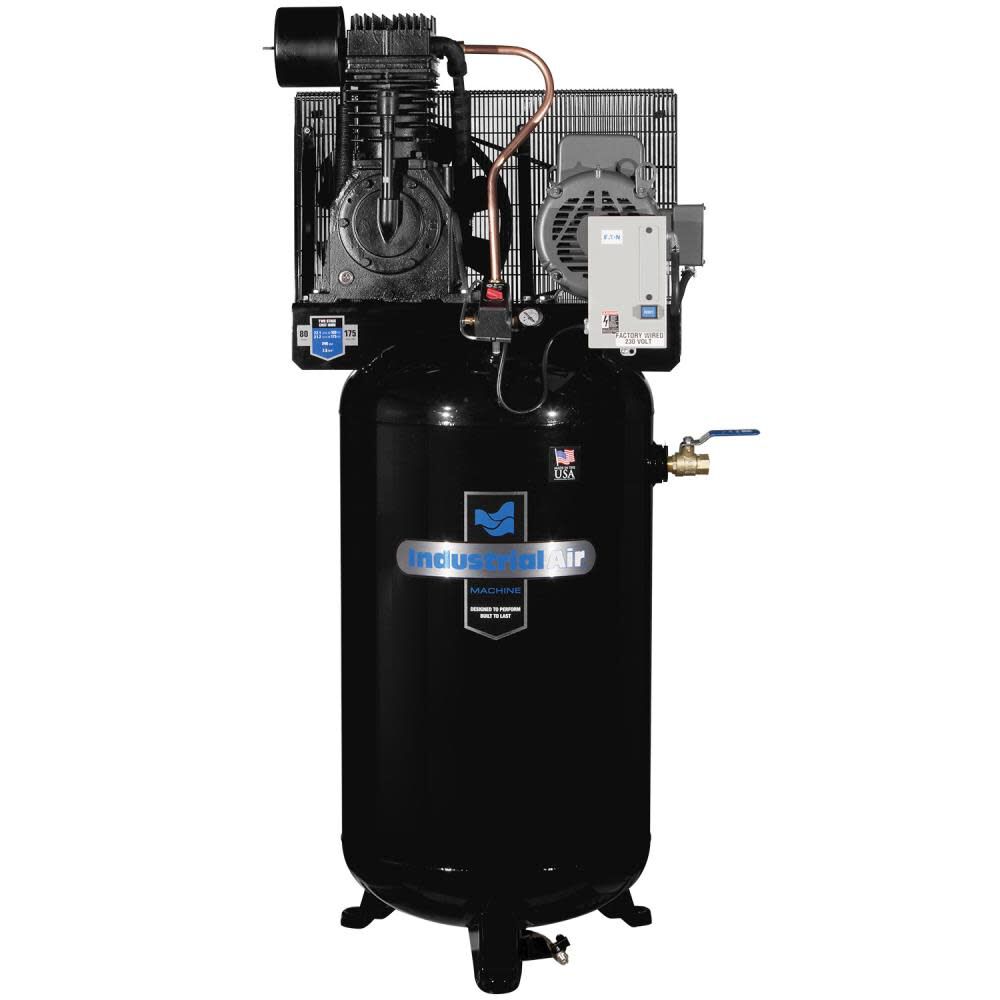

Compressor 7.5 HP Single Phase 230V 80 Gallon Two Stage IV7518075
Compressor 7.5 HP Single Phase 230V 80 Gallon Two Stage IV7518075 is backordered and will ship as soon as it is back in stock.
Industrial Air Compressor 7.5 HP Single Phase 230V 80 Gallon Two Stage
Industrial Air 80 gal.
Compressor provides great performance.
The 7.5 HP electric motor features a pre-wired and mounted magnetic starter to help save time and money and the 2-stage compressor pump provides enough power to operate more than 1 device at a time.
The pump features hardened disc valves, oversize taper roller bearings, a fully balanced cast iron flywheel and splash-type lubrication and the metal belt guard helps cool the pump.
Features
- 22.1 CFM at 100 PSI and 21.2 CFM at 175 psi
- Baldor industrial class electric motor equipped with pre-wired and mounted magnetic starter-saves time and money
- Uniquely designed metal belt guard improves compressor pump cooling by as much as 60 degrees F over other belt guard designs
- Large capacity, 80 Gal. ASME certified tank
- Industrial performance delivers maximum CFM @ 175 PSI
- Industrial Air 7.5 HP Single Phase 230V 80 Gallon Two Stage with Baldor motor with mag starter
Specifications
Brand Name - Industrial Air
Amperage (A) - 29
Assembled Weight (lbs) - 623
California Proposition 65 Warning Required - Yes
Color - Black
Compressor Design - Vertical
Country of Origin - United States
CSA Certified - Yes
ETL Listed - Yes
Height (in) - 76
Horsepower (hp) - 7.5
MFG Part # (OEM) - IV7518075
Maximum Pressure Rating (psi) - 175
Operating Position - Vertical
Package Contents - Compressor Single Phase 230V 80 Gallon
Package Depth - 32.25
Package Height - 80
Package Weight - 715
Package Weight (lbs) - 715
Phase - 1
Product Condition - New
Tank Capacity (gal) - 80
Tank Configuration - Single
Tank Material - Steel
Tank Pressure Gauge - Yes
UL Listed - Yes
UPC - 846212008379
Voltage - 240
Warranty Type - 2 Years Limited
Weight (lbs) - 623
Wheeled - Yes
