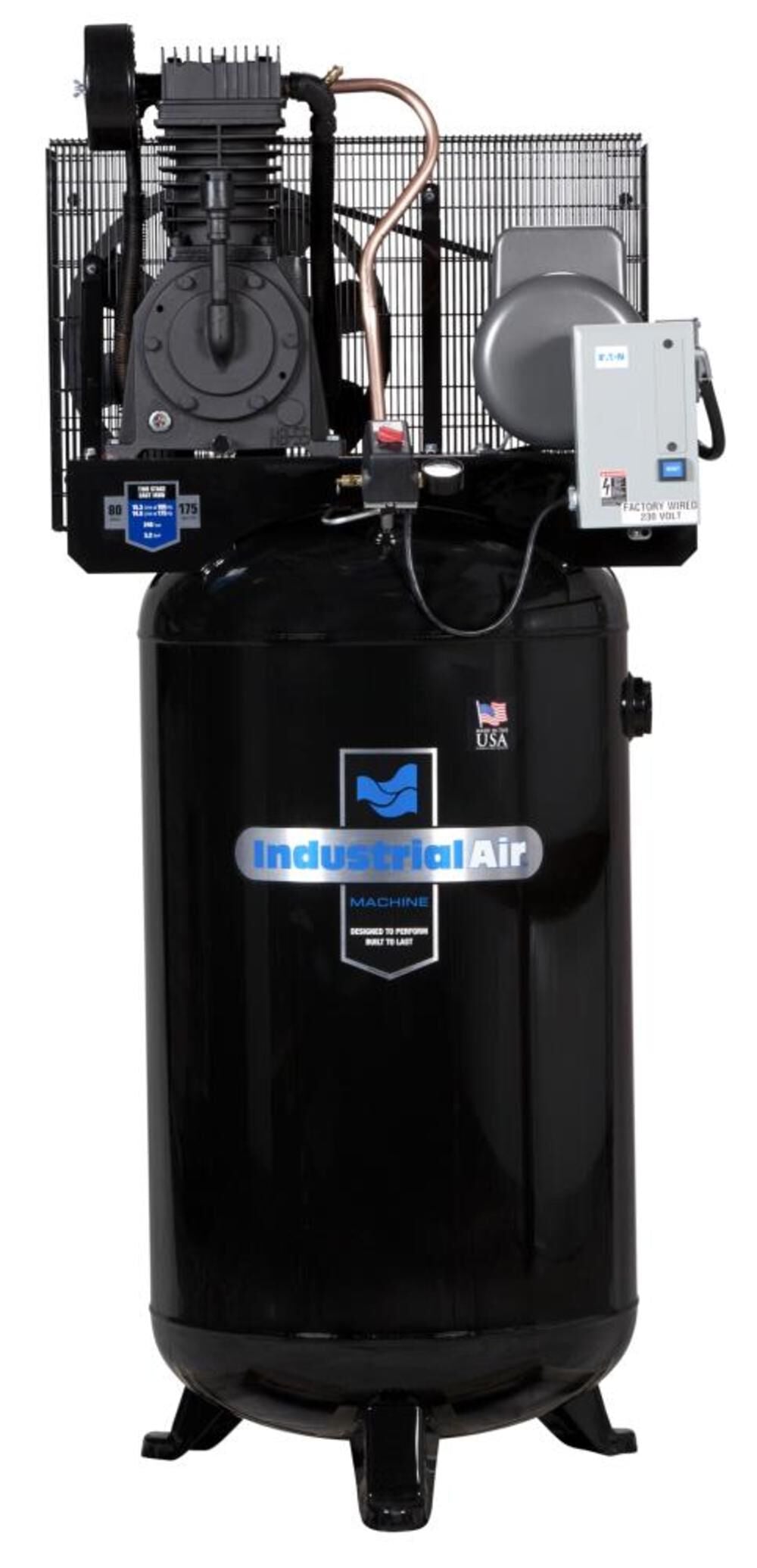

Compressor 5 HP 80 Gallon 2 Stage Cast Iron IV5018055
Compressor 5 HP 80 Gallon 2 Stage Cast Iron IV5018055 is backordered and will ship as soon as it is back in stock.
Industrial Air Compressor 5 HP 80 Gallon 2 Stage Cast Iron
Industrial Air 80 Gallon compressor has a large enough capacity to operate multiple air tools at the same time.
It generates up to 14.6 CFM at 175 PSI for superb performance.
The uniquely designed metal belt guard improves pump cooling by up to 60 degrees, and the compressor features a 240 Volt, 5.2 HP motor that is equipped with a pre-wired magnetic starter.
Features
- 5.2 HP industrial-class motor with pre-wired and mounted magnetic starter to save time
- 175 Max PSI can operate multiple devices at once
- Delivers 15.3 CFM at 100 PSI and 14.6 CFM at 175 PSI
- Cast-iron, large-capacity, 80 Gallon ASME tank
- 2-stage, cast-iron compressor pump
- Uniquely designed metal belt guard improves pump cooling by as much as 60 degrees Fahrenheit over standard belt guards
- Made in USA of domestic and global components
Specifications
Brand Name - Industrial Air
Air Compressor Pump Design - Oil Lubricated
Amperage (A) - 24.0
Assembled Weight (lbs) - 613.0
California Proposition 65 Warning Required - Yes
Color - Black
Compressor Design - Vertical
Country of Origin - United States
CSA Certified - Yes
ETL Listed - Yes
Full Roll Cage - No
Handle Included - No
Height (in) - 76.0
Horsepower (hp) - 5.0
Lock-on Switch - No
MFG Part # (OEM) - IV5018055
Maximum Pressure Rating (psi) - 175.0
Operating Position - Vertical
Package Contents - air compressor
Package Depth - 38.0
Package Height - 76.0
Package Weight - 570.0
Package Weight (lbs) - 570
Phase - 1
Product Condition - New
Side Handle - No
Switch Type - pressure
Tank Capacity (gal) - 80.0
Tank Configuration - Single
Tank Material - steel
Tank Pressure Gauge - Yes
UL Listed - Yes
UPC - 846212008102
Voltage - 240
Warranty Type - 2 Years Limited
Weight (lbs) - 613.0
Wheeled - No
