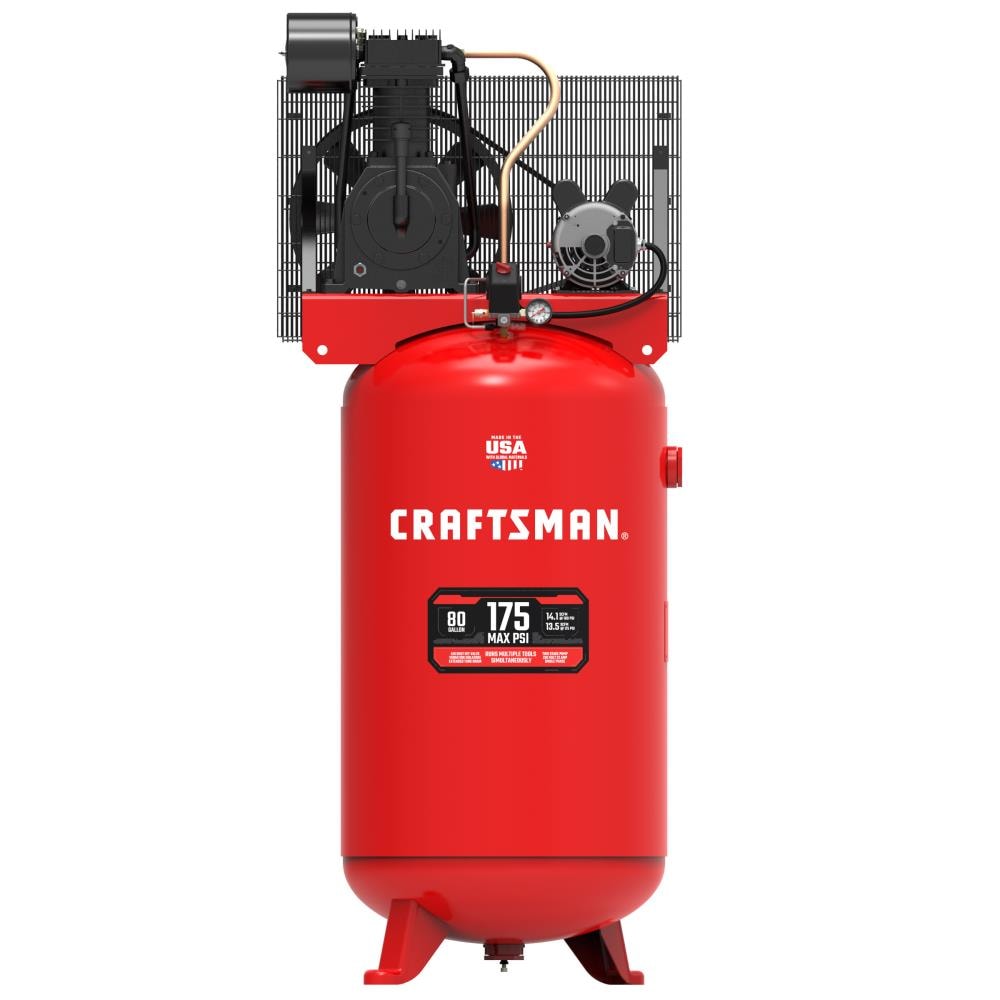

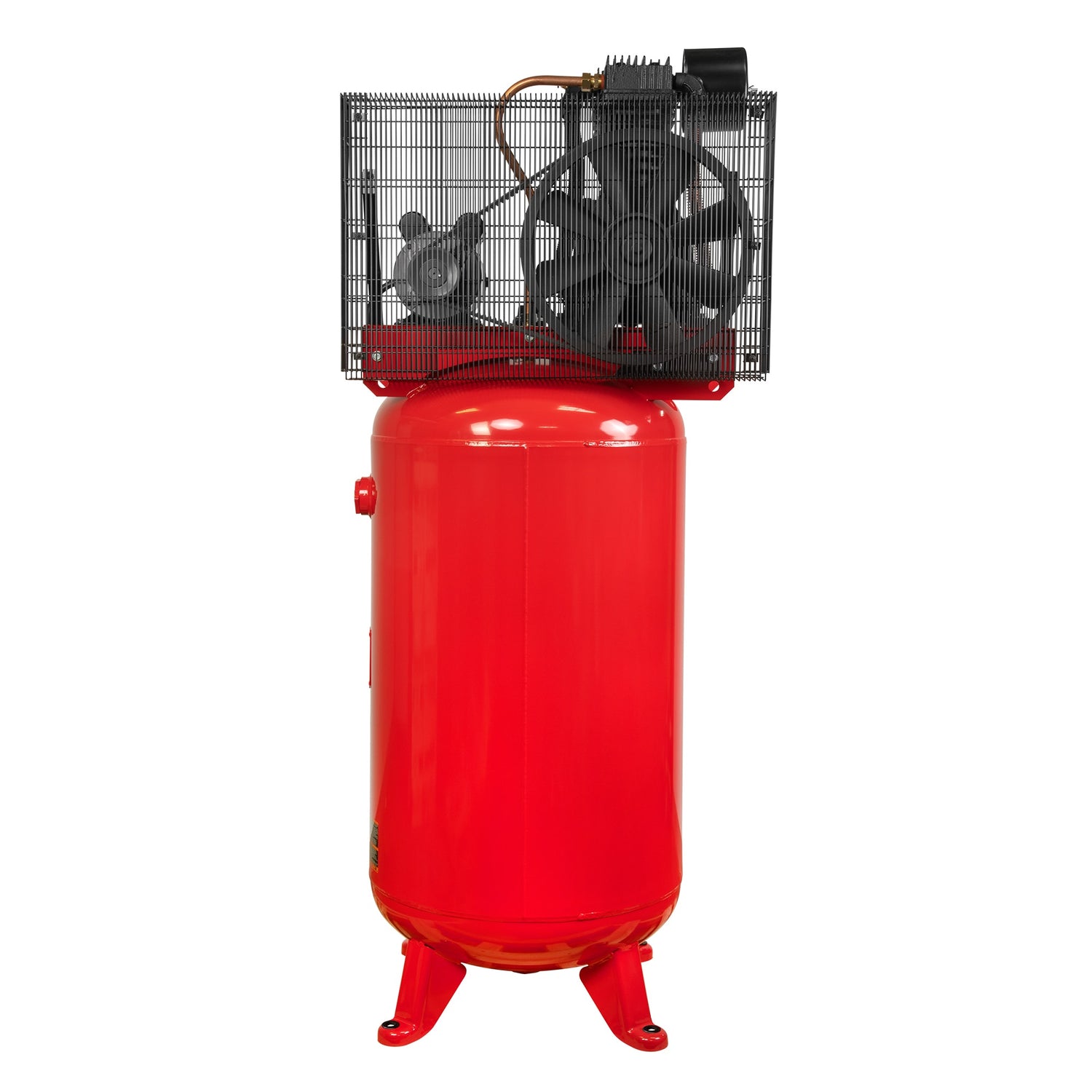

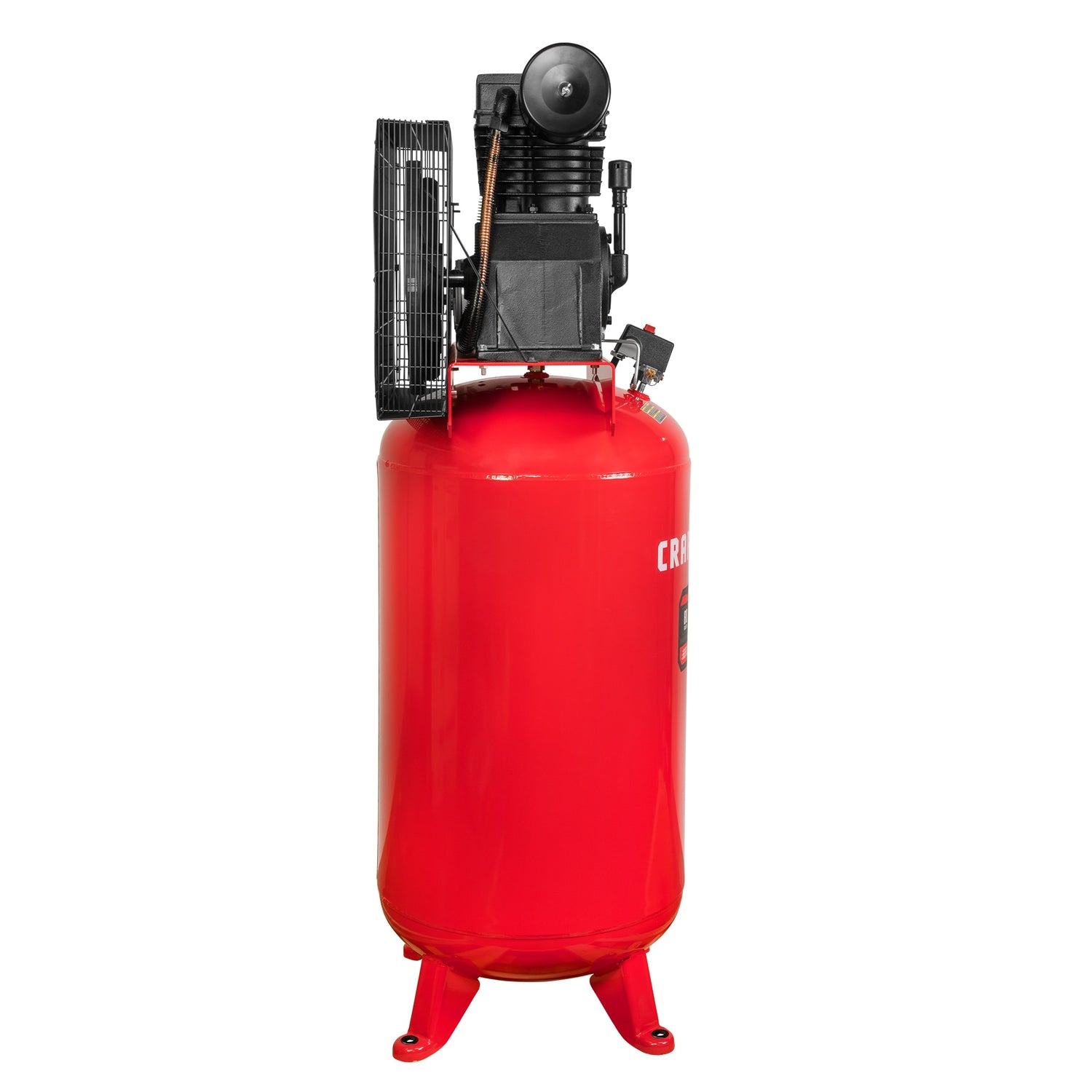

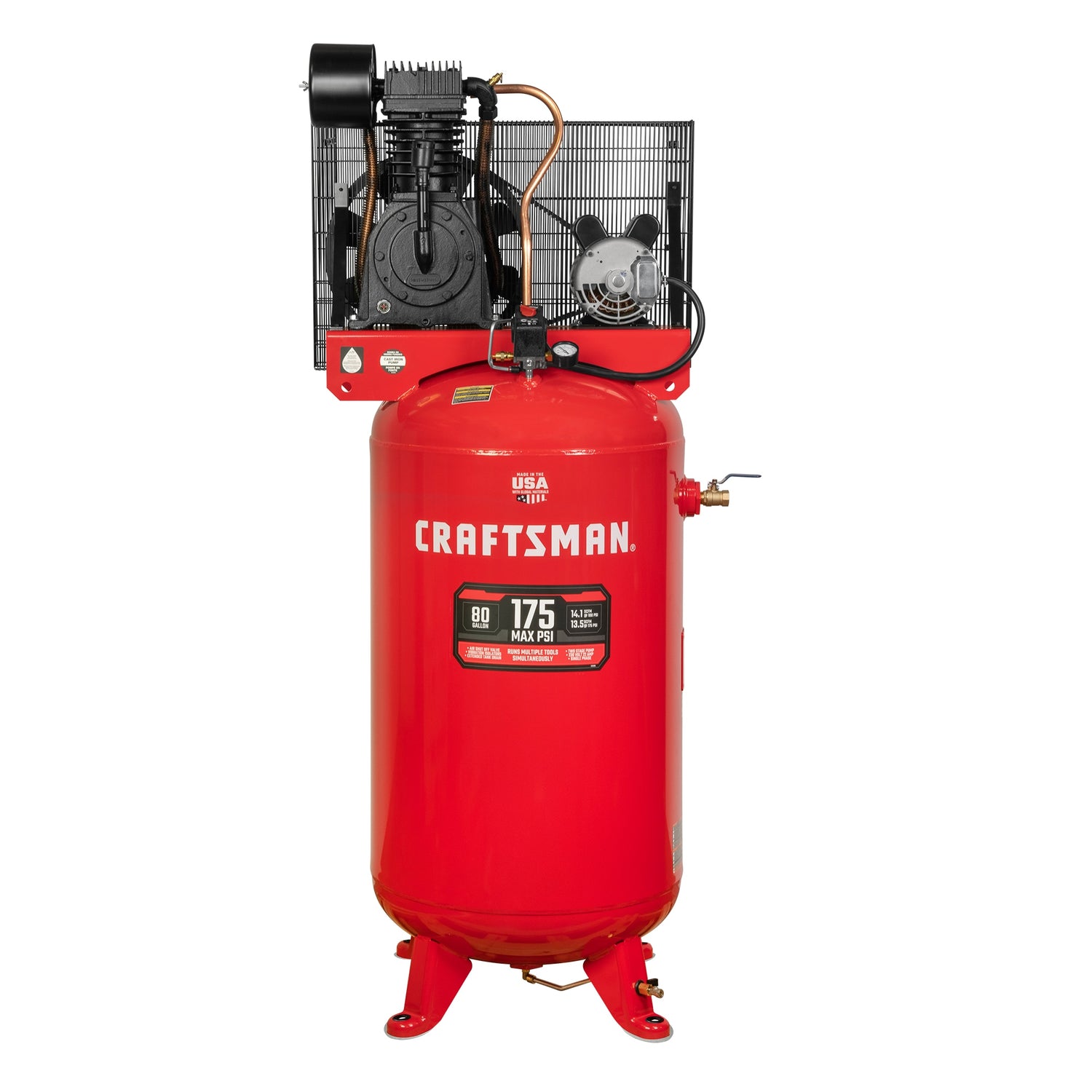

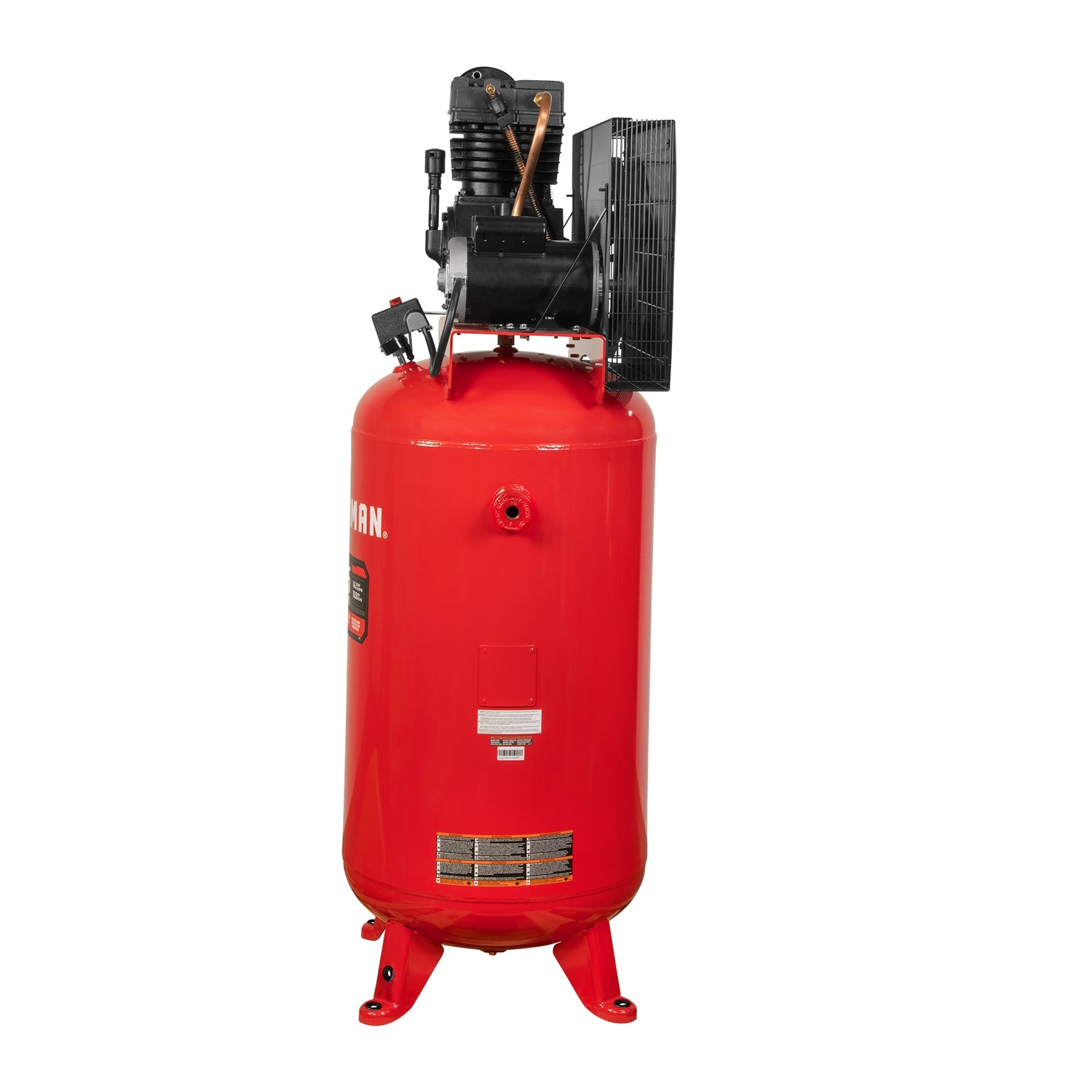

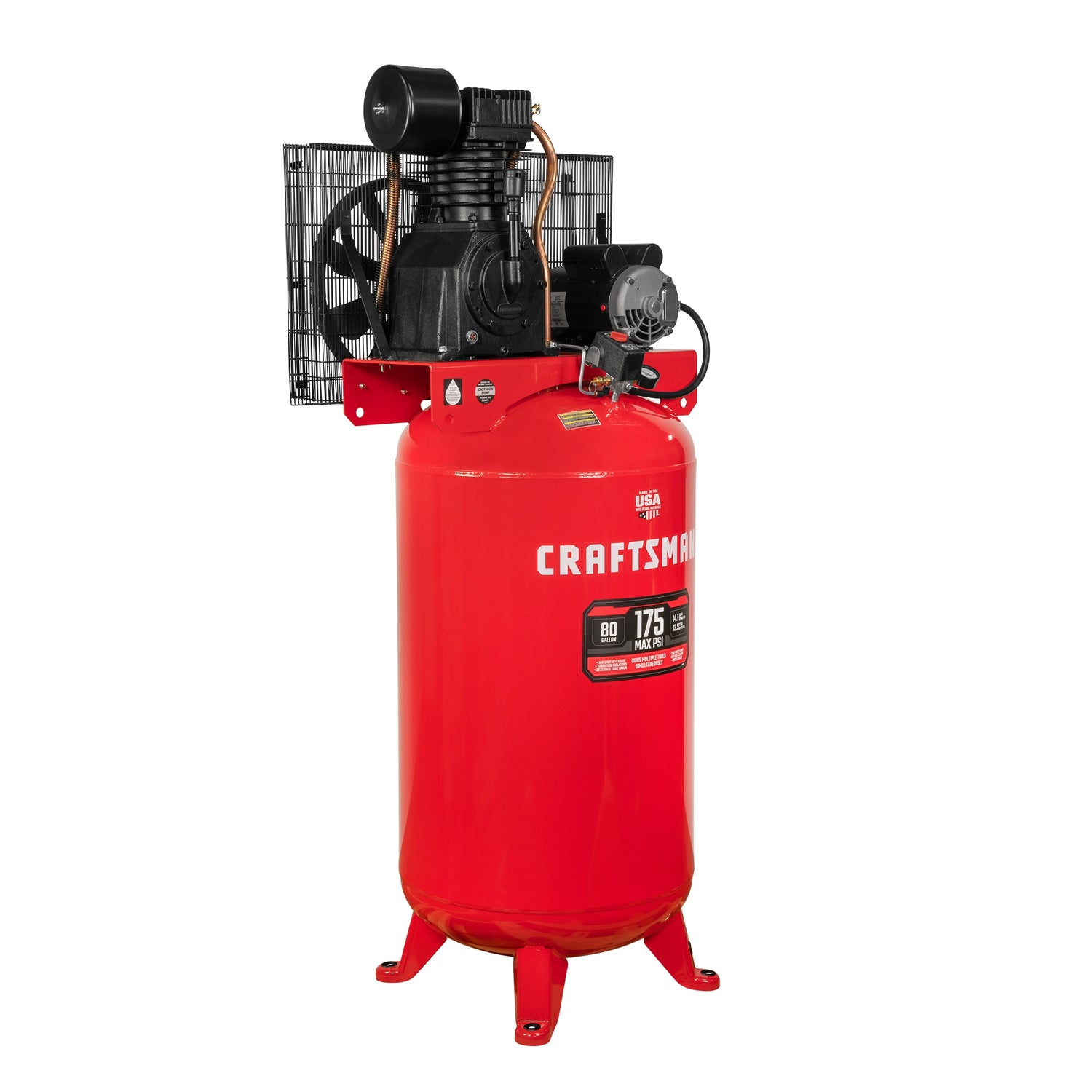

80-Gallon Two Stage Electric 175 PSI Vertical Air Compressor with Accessories CMXECXM803

2 stage air compressor uses a powerful 5 HP induction motor to deliver a steady 13.5 SCFM at 175 PSI.

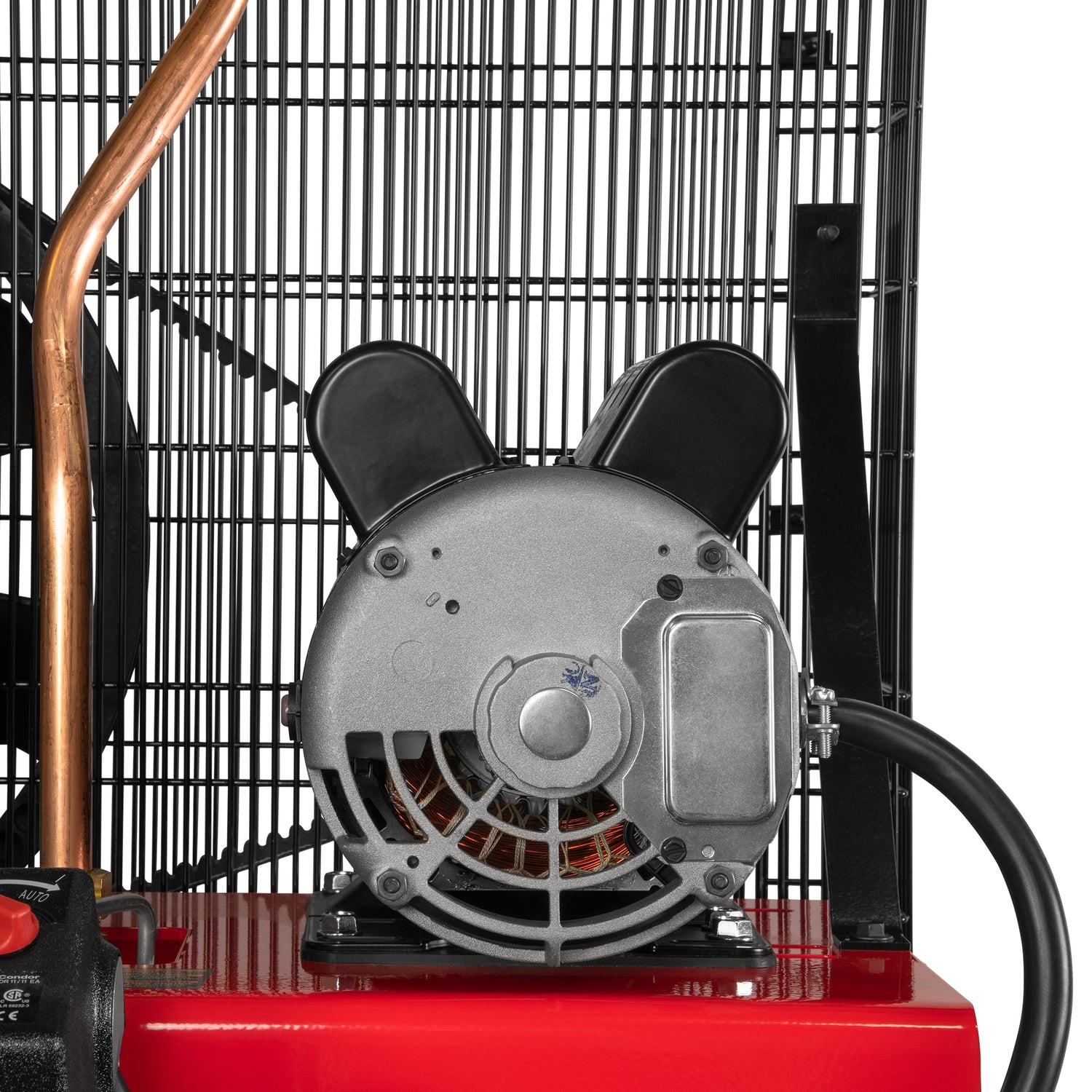

This Craftsman air compressor motor, designed with thermal overload protection, requires no magnetic starter.

With a capacity for serious work, this machine has the endurance to keep pneumatic tools big and small running.

This machine is ready for any job.

Install this powerhouse into your work area, wire it up and get to work.

This unit features a 208-230v electric motor.

It should be connected to a power supply that is 230 Volt, 60 Hz, AC only.

Please consult your local codes and a certified electrician before wiring this compressor for power.

(This unit requires a 30 amp double pole breaker for proper installation.) This compressor does not include a power cord.

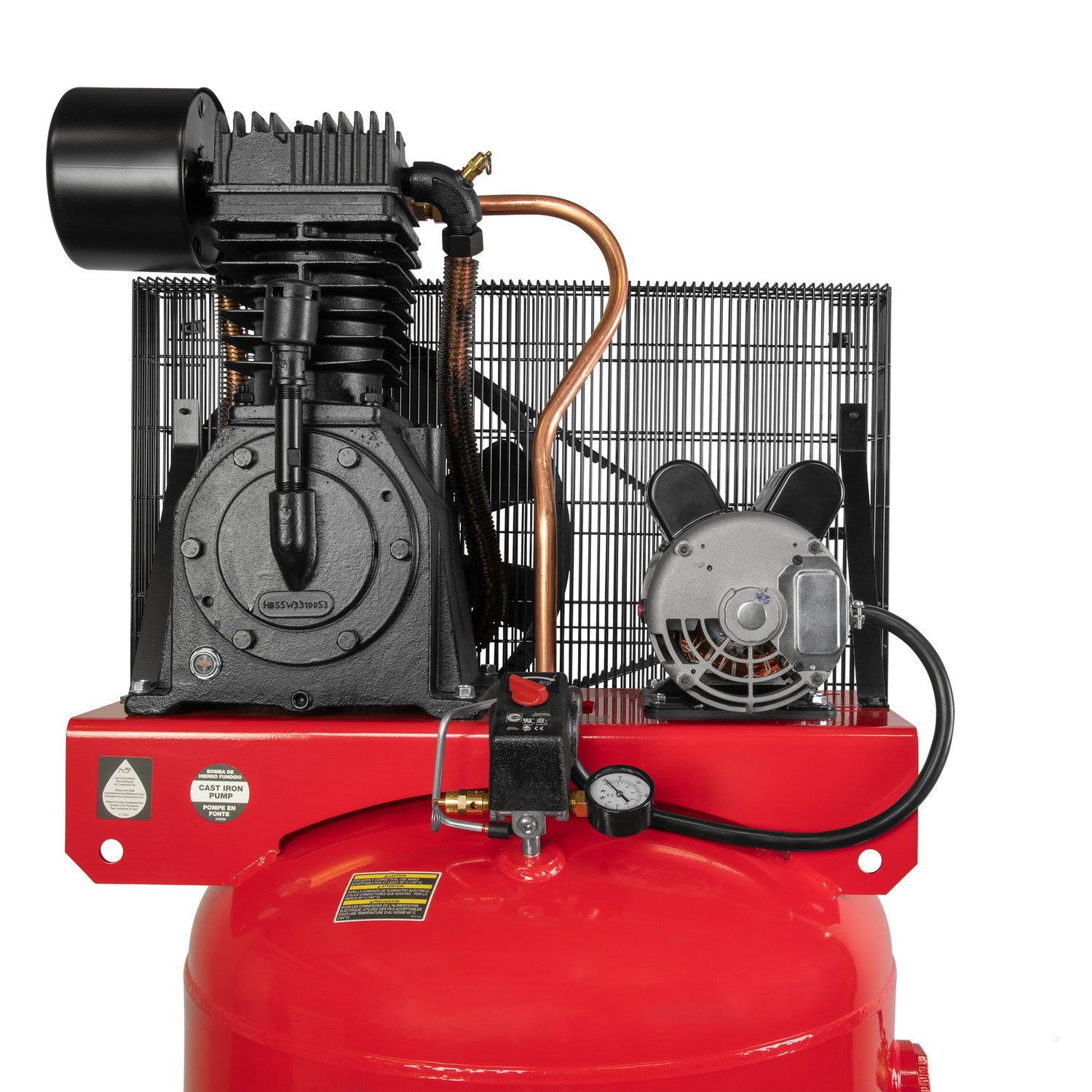

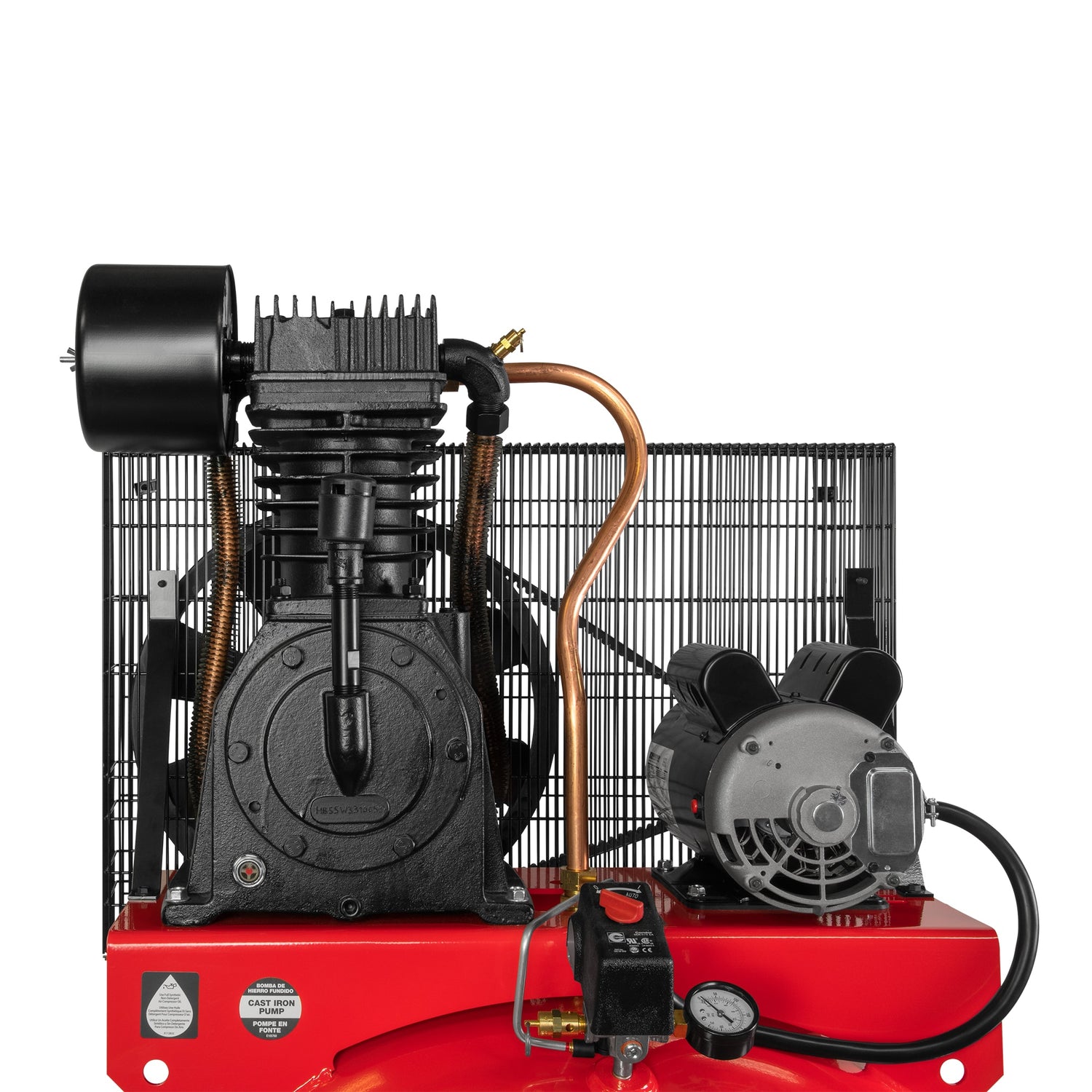

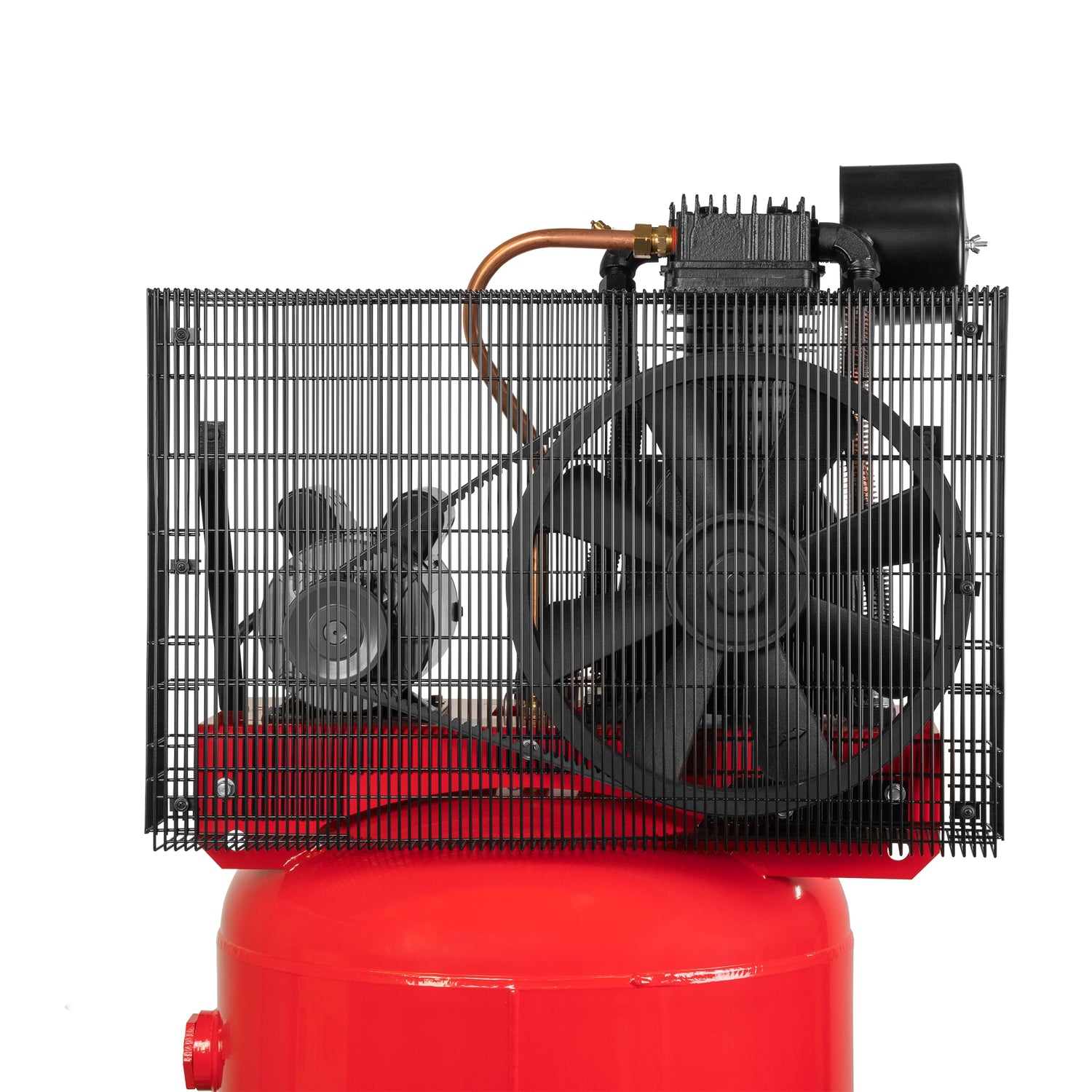

Two stage, cast iron, industrial duty pump

Oversized industrial-grade bearings for extended pump life

Full synthetic compressor oil provides 25% increased wear protection over synthetic blend oils

Large industrial grade metal air intake filter/silencer with automotive style replaceable element

Spread volt motor designed to operate at 208 and 230 volt applications

Runs multiple air tools simultaneously; including continuously running tools such as grinders, sanders and sandblasters

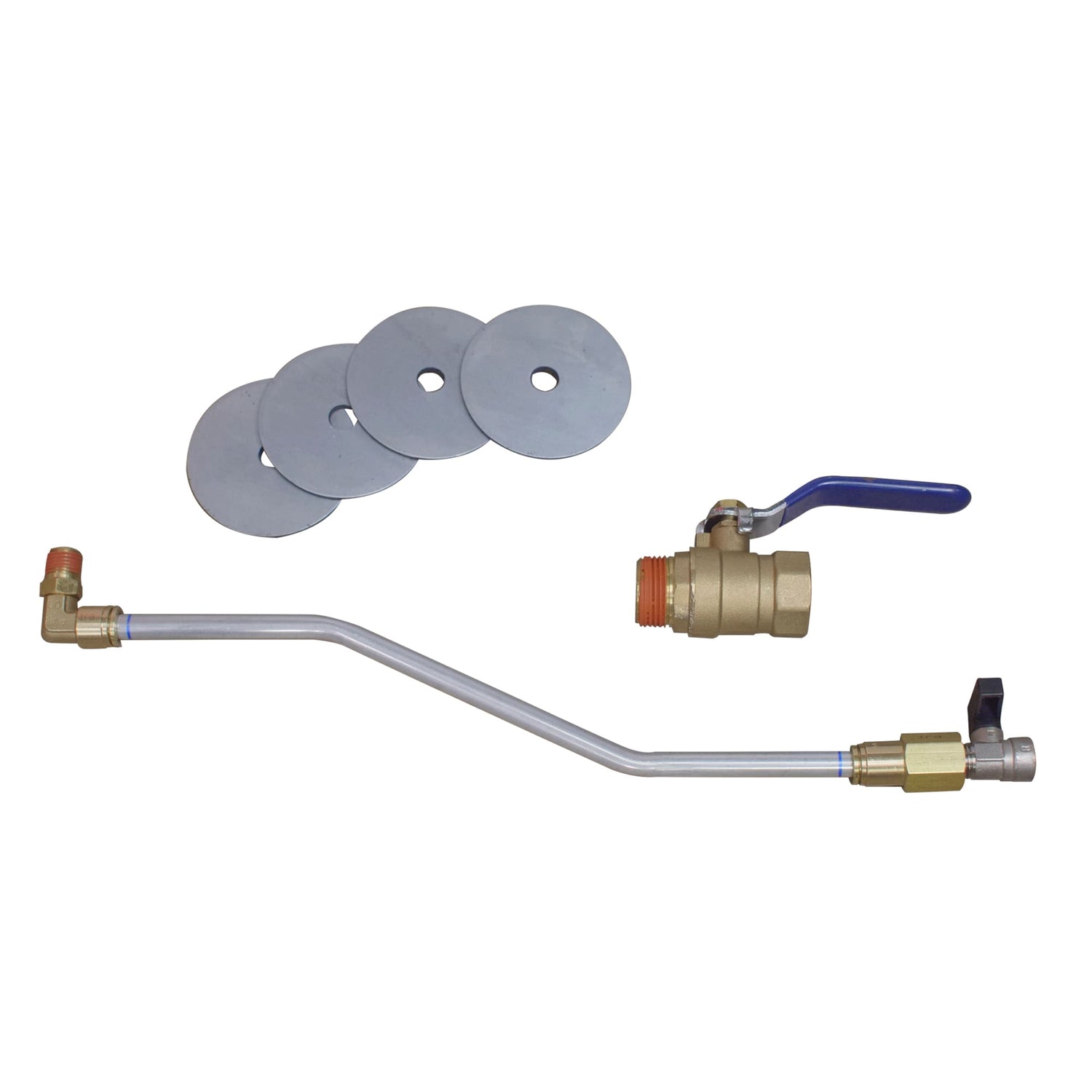

Includes the following accessories: vibration isolators, extended tank drain, and 3/4 inch air line shut off valve

Made in the USA with global materials

Specifications

Sub-Brand: N/A

Type: Electric

Dimensions

Fitting Size: 3/4-in

Tank Capacity (Gallons): 80

Weight (lbs.): 503

Features

Accessories Included: Yes

Air Delivery SCFM @ 100PSI (CFM): 14.1

Air Delivery SCFM @ 175PSI (CFM): 13.5

Air Delivery SCFM @ 90PSI (CFM): 0

Amperage: 22

Cordless: No

Decibel Rating (Decibels): 80

Engine Brand: N/A

Engine Displacement (Cu. Centimeters): 0

For Use with Air Brushing: Yes

For Use with Bolting: Yes

For Use with Brad Nailing/Stapling: Yes

For Use with Cutting: Yes

For Use with Drilling: Yes

For Use with Finish Nailing: Yes

For Use with Framing Nailing: Yes

For Use with Grinding: Yes

For Use with HVLP Painting: Yes

For Use with Roof Nailing: Yes

For Use with Sanding: Yes

For Use with Spraying: Yes

For Use with Surface Prep: Yes

Maximum Pressure: 175 PSI

Motor Type: Induction

Noise Rating: Standard (71 decibels or above)

Number of Tools Included: 0

Phase: Single-phase

Portable: No

Pump Type: Oil-lubricated

Rechargeable: No

Running Horsepower: 5.0

Stage: Two stage

Start Type: Electric start

Tank Style: Vertical

Voltage (Volts): 240

Warranty

Warranty: 2-year limited

Certifications

CA Residents: Prop 65 Warning(s): Yes

CARB Compliant: Yes

Safety Listing: CSA safety listing

Miscellaneous

UNSPSC: 40151600
