DEWALT 80 Gallon Stationary Electric Air Compressor
DEWALT DXCMV5048055 5 HP 80 Gallon two-stage - cast iron - Industrial Air compressor is a heavy-duty stationary air compressor.
It utilizes its ability to deliver air at 175-PSI (Pressure per square inches) to effectively power more than one air tool or device simultaneously.
The expertly engineered 5.0-horse-power, 230 V electric motor is fitted with a TOPS thermal overload protection system that protects the motor from voltage fluctuations.

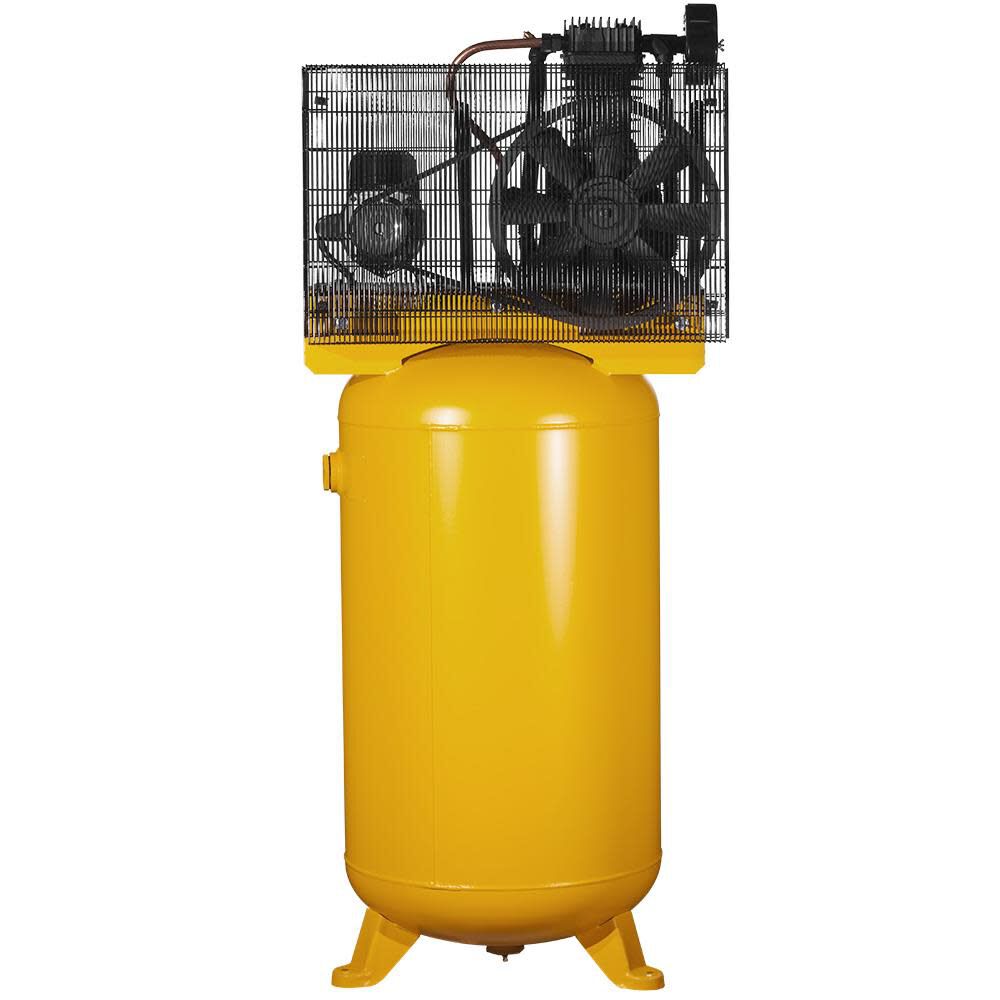

Featuring a rugged cast-iron two-stage pump that is built for durability by utilizing hardened-steel disc valves, oversized taper roller bearings, splash lubrication and a expertly balanced cast iron flywheel.

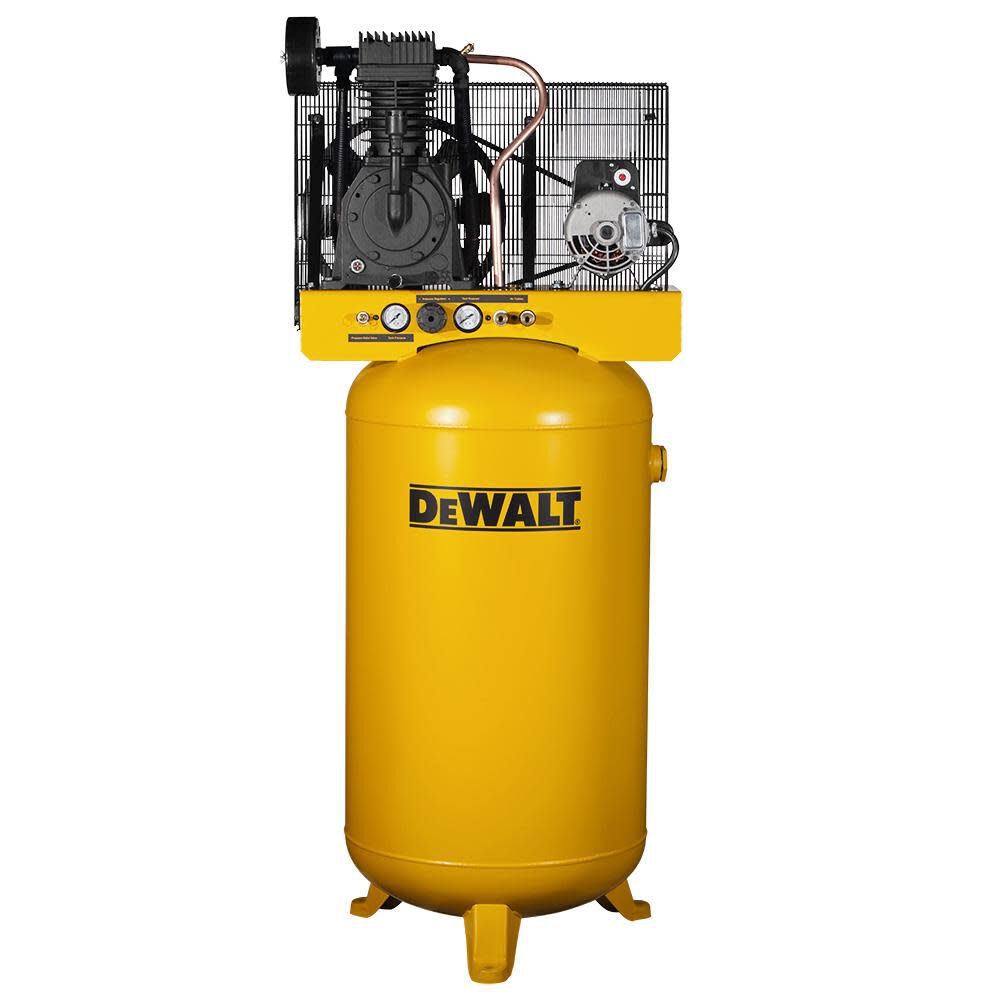

It has been specifically designed with a conveniently integrated control panel that includes tank and working pressure gauges, airflow regulator, two quick-connect air outlets and a pressure relief valve.

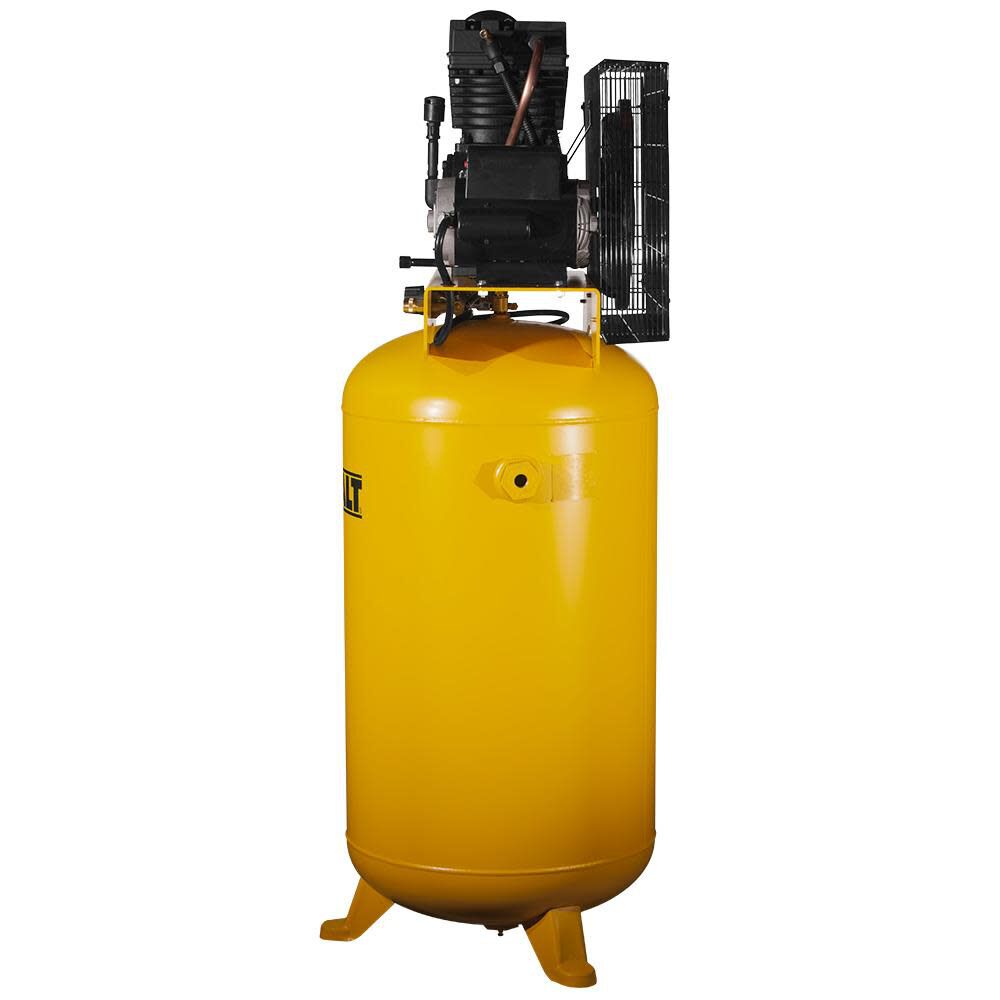

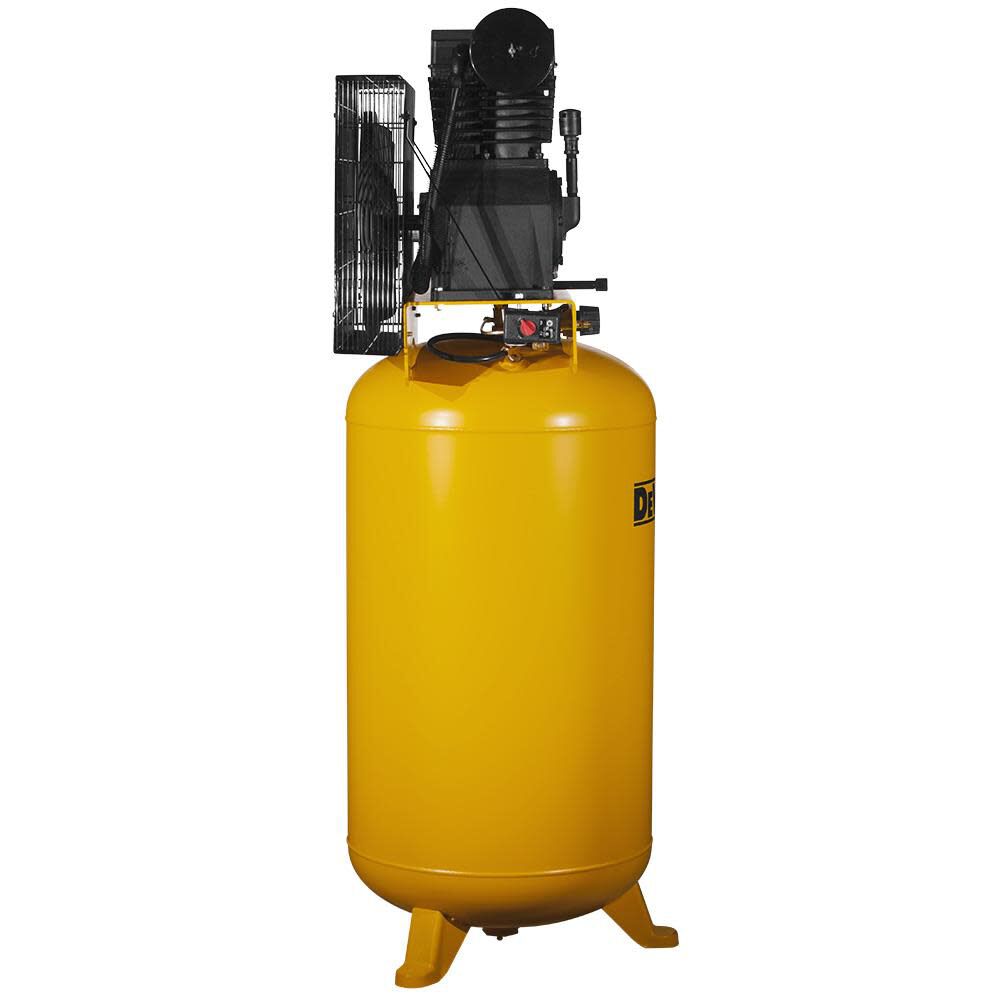

The 80 Gallon ASME (American society of mechanical engineers) air receiver holds more air for longer run times on multiple air tools.
California Proposition 65 Warning. View Warning LabelFeatures
- The DEWALT 2 stage air compressor is built with a 5-HP TOPS motor to provide long life and quiet operation
- The integrated control panel has a tank and pressure gauge and 2 quick-connects for convenient control
- This compressor delivers plenty of air to run multiple tools at the same time to get the job done faster
- The thermal overload protection system motor protects the motor from voltage fluctuations
- This air compressor comes from the factory with synthetic blended oil already installed
- Built to perform with a patented pump design that provides longer life by running cooler
Specifications
Brand Name - DEWALT
Air Compressor Pump Design - Oil Lubricated
Amperage (A) - 24.0
Assembled Weight (lbs) - 475
California Proposition 65 Warning Required - Yes
Color - Yellow
Compressor Design - Vertical
Country of Origin - United States
CSA Certified - Yes
ETL Listed - No
Height (in) - 80
Horsepower (hp) - 5.0
MFG Part # (OEM) - DXCMV5048055
Maximum Pressure Rating (psi) - 175
Operating Position - Vertical
Package Contents - 80 Gallon Stationary Electric Air Compressor
Package Depth - 35
Package Height - 80
Package Weight - 475
Package Weight (lbs) - 475
Phase - 1
Product Condition - New
Tank Capacity (gal) - 80
Tank Configuration - Single
Tank Material - Steel
Tank Pressure Gauge - Yes
UL Listed - No
UPC - 846212008638
Voltage - 230
Warranty Type - 2 Years Limited
Weight (lbs) - 475
Wheeled - No
