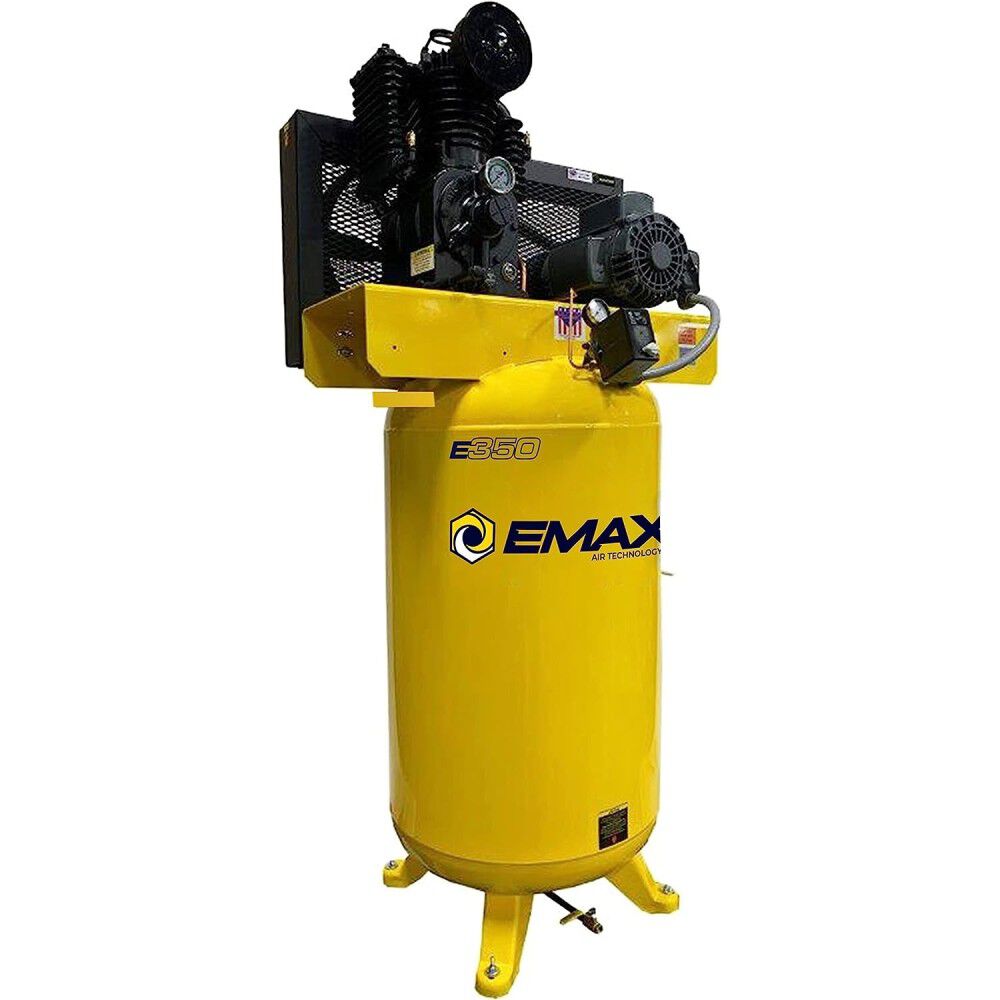

EMAX 80 Gallon 175 Psi 5HP Vertical Air Compressor
Our industrial series offers all the same quality and durability as our Plus series without all the extra cost of added features.
We offer this series so that anyone can afford to have an EMAX compressor.
This industrial 5HP 2 stage inline 1 phase vertical 80 gallon piston air compressor is designed for up to 70000 hours industrial use with proper maintenance.
This unit features our low rpm pressure lube pumps and delivers 19 Cfm at 100 Psi.
Our unit is super cool & super quiet.
California Proposition 65 Warning.Features
- All steel connecting rods with replaceable rod bearing inserts, this allows our rods to be rebuilt! 99% of our competitors now use "throw-away" aluminum connecting rods in their pumps that have no re-build capability
- Removable 100% cast iron cylinders, these solid cast iron cylinders are more stable under heavy workloads and do not warp from heat
- All cast iron cylinder heads, cast iron heads are more durable and dependable for trouble free operation
- Disc valve design" intake and exhaust valves, disc valves have been around for over 100 years and have been proven to perform
- Top quality compression and oil rings, our rings ensure performance with low oil carry over (1-5 PPM)
- Precision ground pistons machined to tight tolerances ensures low oil carry over
- Premium "non-absorbent" gaskets prevent oil seepage from pump
- All cast iron flywheel with built-in fan, the extra weight of our cast iron flywheel during run cycle gives the pump more "throw" on the compression stroke which will result in fewer loads on the electric motor
- Built-in head unloaders, these unloaders are built into the intake valve assembly on the compressor head and perform a valuable function
- Meets CSA, ASME, ETL standards
Specifications
Brand Name - EMAX
Air Volume (CFM) - 19
Amperage (A) - 24
Assembled Weight (lbs) - 576
Average Air Consumption (CFM) - 19
Compressor Design - Vertical
Country of Origin - China
Horsepower (hp) - 5
MFG Part # (OEM) - EI05V080I1
Material - Solid Cast Iron Pump
Maximum Air Pressure (psi) - 175
Maximum Pressure Rating (psi) - 175
Maximum RPM - 1750
Maximum Speed (rpm) - 1750
Package Contents - Air Compressor
Package Depth - 31
Package Height - 75
Package Weight - 576
Phase - Single Phase
Product Condition - New
RPM - 1750
Size - 31 In. Length x 33 In. Width x 75 In. Height x 3/4 In. Tank Outlet Size
Tank Capacity (gal) - 80
UPC - 815002012032
Voltage - 230 Volts
Warranty Type - 1 Year
