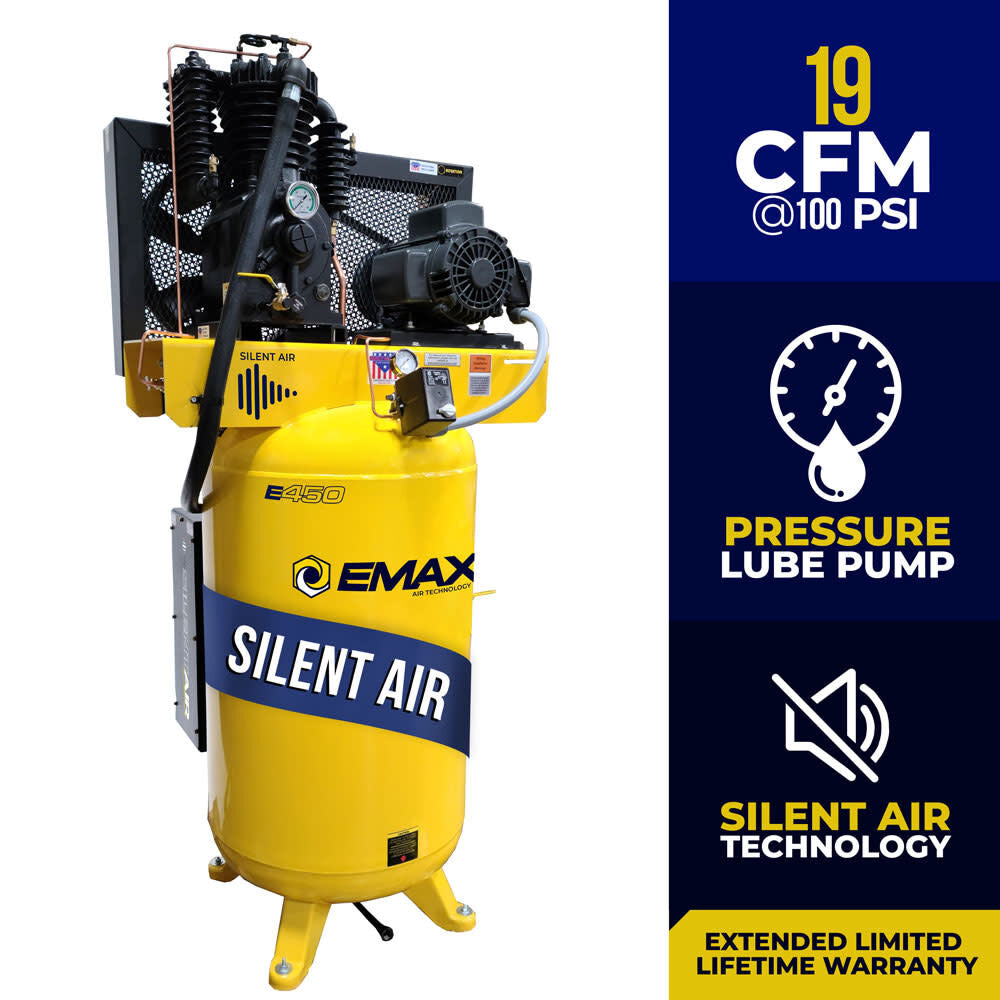

EMAX 80 Gallon 175 Psi 230/460V 3-Phase 5HP Vertical Air Compressor
Engineered and manufactured in the U.S.A.
The whisper series compressors reduce stationary compressor DBA ratings by as much as 25%! A noise suppression device was first conceived by EMAX engineers after feedback from competitor compressor users revealed a large number of complaints regarding the extreme noise level of their compressors in a work environment.
The Whisper dissipates compressor intake noise by channeling the intake air through a series of baffle plates and pre-filter media within the silencer cabinet.
As a result, the piston intake noise is trapped and dissipated within the silencer structure.
As a result, the piston intake noise is trapped and dissipated within the silencer structure.
It also acts as a secondary filtration for cleaner air.
Stationary air compressor noise levels typically require owners to incur the added expense of a building or structure to house the compressor in an attempt to reduce noise in the work environment.
The Whisper can be installed and operated in all Garage, Farm Shop, and Industrial applications which eliminate the need for traditionally expensive and often inadequate separate buildings or structures to house the air compressor.
The Whisper silent air systems are already installed on the back of the tank with brackets that are fabricated for easy removal and low profile.
At the core of our Emax compressors is our pump.
These pumps are SUPER quiet in operation and built to last! We start with a solid cast iron crankcase.
Unlike some competitor's aluminium body crankcases - our solid cast iron crankcase will ensure stable crankshaft alignment and will handle more work load under heavy load conditions.
California Proposition 65 Warning.Features
- All steel connecting rods with replaceable rod bearing inserts
- This allows our rods to be rebuilt! 99% of our competitors now use "throw-away" aluminium connecting rods in their pumps that have no re-build capability
- Re-usable oil filter
- Oil pressure gauge
- Eligible for lifetime pump warranty
- Removable 100% cast iron cylinders
- These solid cast iron cylinders are more stable under heavy workloads and do not warp from heat
- Most of our competitors are using aluminium cylinders with a pressed-in sleeve that warp under extreme heat
- All cast iron cylinder heads
- Cast iron heads are more durable and dependable for trouble free operation
Specifications
Brand Name - EMAX
Air Volume (CFM) - 19
Assembled Weight (lbs) - 620
Average Air Consumption (CFM) - 19
Compressor Design - Vertical
Country of Origin - United States
CSA Certified - Yes
ETL Listed - Yes
Fuel Type - Gas
Horsepower (hp) - 5
MFG Part # (OEM) - ESP05V080I3
Material - Solid Cast Iron Pump
Maximum Air Pressure (psi) - 175
Maximum Amperage (A) - 24
Maximum Pressure Rating (psi) - 175
Maximum RPM - 1750
Maximum Speed (rpm) - 1750
Operating Position - Vertical
Package Contents - Air Compressor
Package Depth - 42
Package Height - 75
Package Weight - 620
Package Weight (lbs) - 620
Phase - Three Phase
Pressure Rating (psi) - 175
Product Condition - New
RPM - 1750
Size - 3/4 In. Tank Outlet Size
Tank Capacity (gal) - 80
Tank Configuration - Single
UPC - 815002013596
Voltage - 230 Volts
Warranty Type - 1 Year
Wheeled - No
