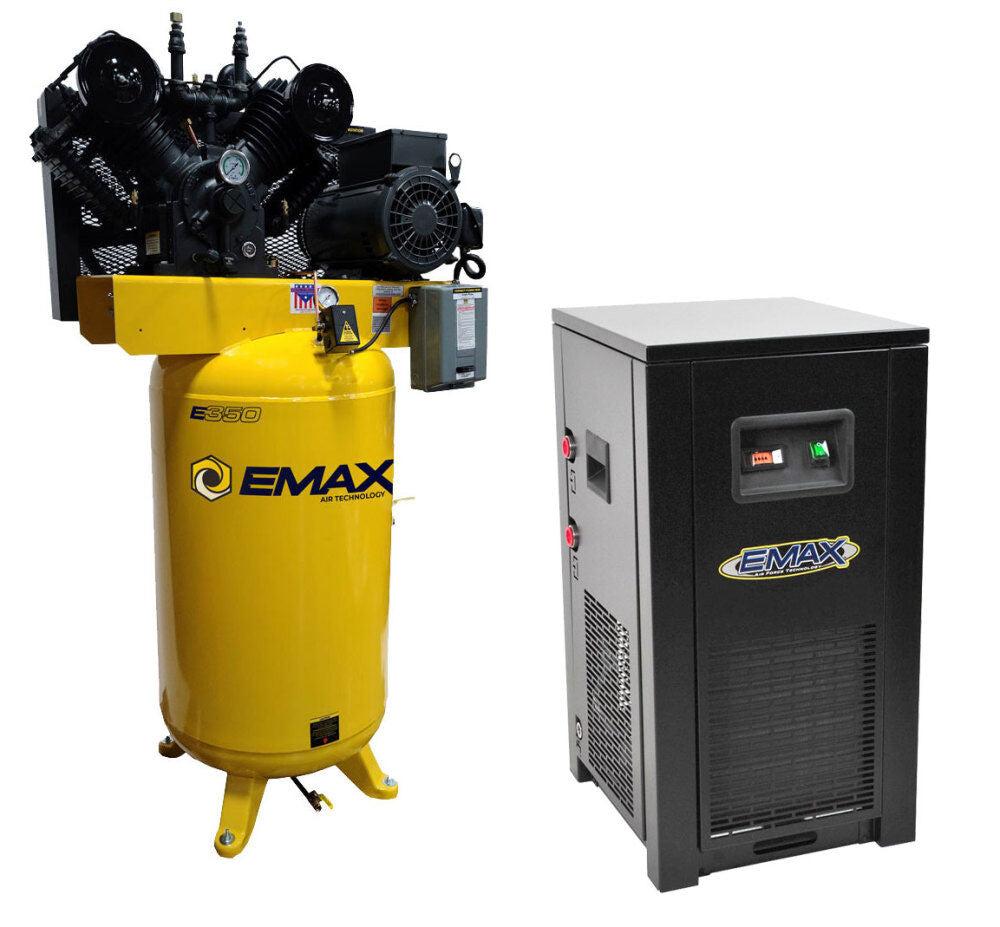

80 Gallon 175 Psi 10HP Vertical Air Compressor with 115V Air Dryer & Silencer Bundle EI10V080V1PK

EMAX 80 Gallon 175 Psi 10HP Vertical Air Compressor with 115V Air Dryer & Silencer Bundle

Our industrial series offers all the same quality and durability as our plus series without all the extra cost of added features.

We offer this series so that anyone can afford to have an EMAX compressor.

EMAX industrial 10 P 2 stage V4, 1 Phase vertical 80 gallon.

Piston air compressor is designed for up to 70000 hours of commercial or industrial use with proper maintenance.

This unit delivers 38 SCfm at 100 Psi, top Psi of 175.

Our unit features industrial ODP electric motors, condor pressure switch, manual ball valve tank drain, powder coated ASME tank 200 Psi rating, all paired with all cast iron 70000 hour.

Rated patented pressure lubricated reciprocating pump.

Our Emax air dryer is the only energy efficient dryer systems with aluminum refrigerated air inner cooler.

The air is filtered of all solid particles 0.01 micron and larger.

Clean, dry compressed air leaving the dryer minimizes maintenance and repair and also reduces internal dryer contamination.

We designed them with Non-corrosive inner and after cooler.

Our dryers feature stainless steel heat exchanger for maximum dryer life and less maintenance.

Emax Air dryers are UL-CSA approved scroll compressor & electric system for high efficiency and durability.

They feature adjustable hot bypass for complete dryer function in low and high Cfm flow preventing dryer freeze up.

Affordable solution to piston compressor noise.

Tested to lower dBA on stationary compressors by as much as 25%.

Patent pending system sounds 50% quieter to the human ear.

Installs in minutes.

Eliminates expensive compressor isolation areas.

Provides peace & quiet in the work environment at low cost.

Installs in any garage, farm, shop or industrial application.

Features

• EI10V080V1: All steel connecting rods with replaceable rod bearing inserts, this allows our rods to be rebuilt! 99% of our competitors now use "throw-away" aluminum connecting rods in their pumps that have no re-build capability
• EI10V080V1: Removable 100% cast iron cylinders, these solid cast iron cylinders are more stable under heavy workloads and do not warp from heat
• EI10V080V1: All cast iron cylinder heads, cast iron heads are more durable and dependable for trouble free operation
• EI10V080V1: Disc valve design" intake and exhaust valves, disc valves have been around for over 100 years and have been proven to perform
• EDRCF1150058: Purifies compressed air by chilling to condense moisture
• EDRCF1150058: Condensate is drained carrying oil & dirt partials away from the air
• EDRCF1150058: Auto drain system - eliminates the need for daily maintenance
• SILENCER001KIT: Filters the intake air & helps improve the longevity of your pump
• EDRCF1150058: Refrigerant pressure - gauge clearly monitors performance of dew point temp (models under 400 Cfm)
• EI10V080V1: Meets CSA, ASME, ETL standards

Specifications

Brand Name - EMAX

Air Volume (CFM) - 38

Amperage (A) - 40

Assembled Weight (lbs) - 866

Average Air Consumption (CFM) - 38

Compressor Design - Vertical

Country of Origin - China

Horsepower (hp) - 10

MFG Part # (OEM) - EI10V080V1PK

Material - Solid Cast Iron Pump

Maximum Air Pressure (psi) - 175

Maximum Pressure Rating (psi) - 175

Maximum RPM - 1750

Maximum Speed (rpm) - 1750

Package Contents - (1) EDRCF1150058 115V 1 Phase 58 Cfm Industrial Refrigerated Compressed Air Dryer, (1) EI10V080V1 80 Gallon 175 Psi 10HP Vertical Air Compressor

Package Depth - 96

Package Height - 96

Package Weight - 875

Phase - Single Phase

Product Condition - New

RPM - 1750

Size - 28 In. Length x 42 In. Width x 72 In. Height x 3/4 In. Tank Outlet Size

Tank Capacity (gal) - 80

UPC - 405010002226

Voltage - 230 Volts

Warranty Type - 1 Year
