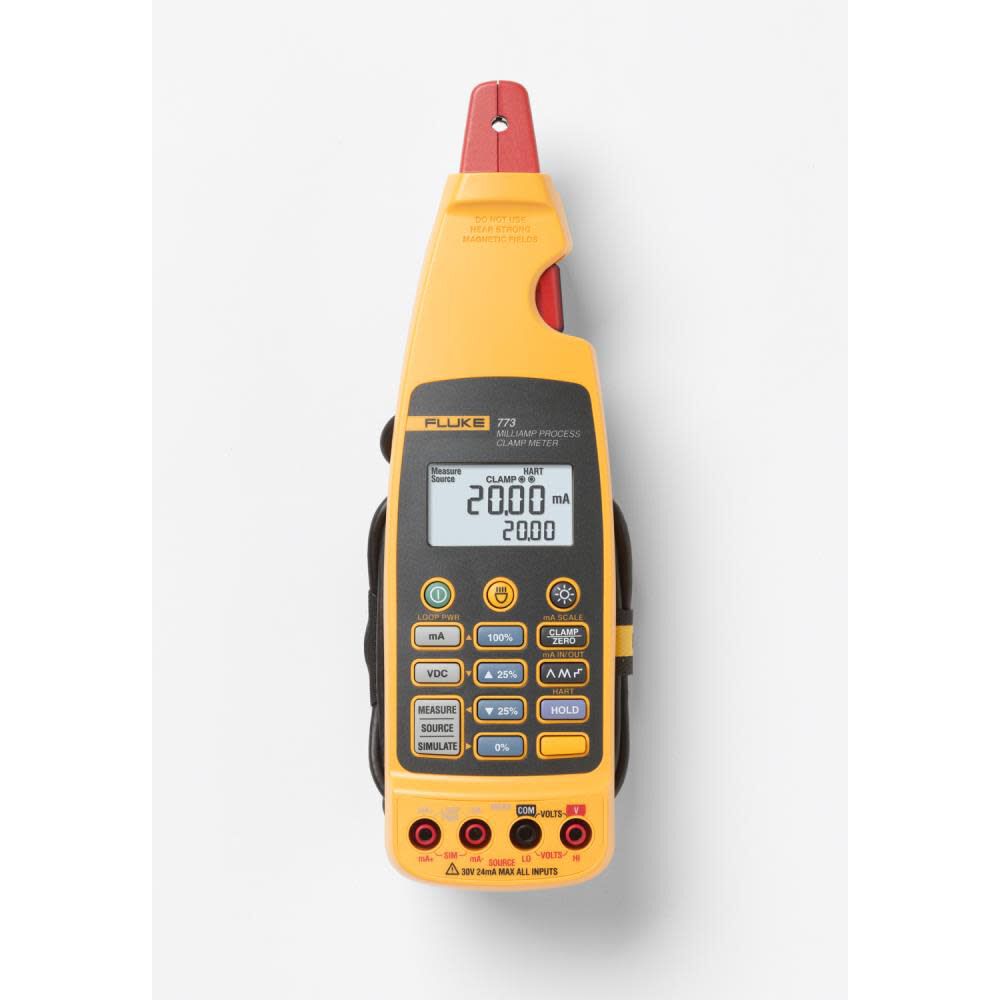

Fluke 773 Advanced Milliamp Process Clamp Meter
Milliamp process clamp meters can measure mA signals without breaking the loop.
The Fluke 773 mA Clamp Meter is Flukes premier mA Clamp Meter, providing you with the best in troubleshooting and process calibration power.
Need more hours in your day? Save time by NOT breaking the loop on 4-20 mA signal measurements.
Are you spending time: Taking mA measurements by removing a wire and breaking the loop; Calling the control room to isolate a loop; Testing analog input/output on a console; Troubleshooting devices with mA inputs and outputs; Repairing intermittent or erratic 4-20 mA loops; Going back to the shop to get extra tools.
If you need more time in your busy day take a good look at the Fluke 773 mA Clamp Meters.
Its designed to save you time, and money, by eliminating time wasting activities.
Now you can troubleshoot and repair 4-20 mA loops without breaking the loop or bringing down the system.
California Proposition 65 Warning.Features
- The Fluke 773 mA Clamp Meter expands upon the capabilities of the 771 and 772 mA Clamp Meters but with the following additional features:
- DC voltage measurement to verify 24 V power supplies or voltage I/O signals
- Source DC voltage to test input devices that accept a 1-5 V or 0 to 10 V signals
- Scaled mA output provides a continuous mA signal that corresponds to the 4 to 20 mA signal measured by the mA clamp
- Enables milliamp signal logging to a separate logging device without breaking the loop
- Output mA signal enables a logging DMM or other device to record the 4- to 20 mA signal without breaking the loop
- mA in/out: simultaneously measure the mA signal with the clamp and source a mA signal
- Apply a mA input signal to a device and measure its 4-20 mA output on devices such as valves or mA isolators
- Voltage output linear ramp or 25% step output
Specifications
Brand Name - Fluke
Assembled Weight (lbs) - 2.45
Battery Type - 1.5V-AA
California Proposition 65 Warning Required - Yes
Color - Red
Country of Origin - China
DC Voltage Accuracy - 0.2% + 2 counts
Display Style - Digital
MFG Part # (OEM) - FLUKE-773
Package Contents - EMI/RFI- Meets EN61326-1; Note- For current measurement w/ JAW, add 1mA to specification for EMC field strengths of 1V/m up to 3V/m.,Case
Package Depth - 0
Package Height - 0
Package Weight - 2.65
Package Weight (lbs) - 2.65
Product Condition - New
Temperature Range - -10 to 50 ºC
UPC - 095969475822
Warranty Type - 3 Years Limited
