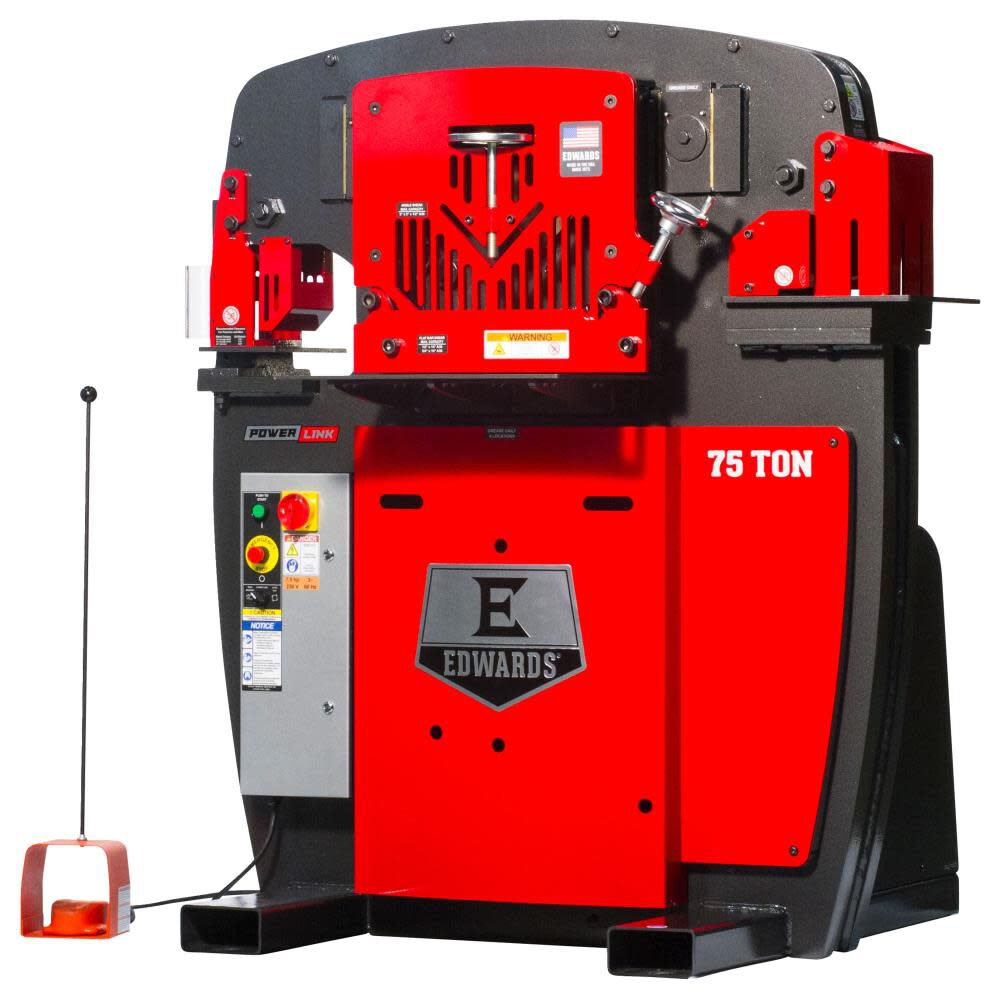

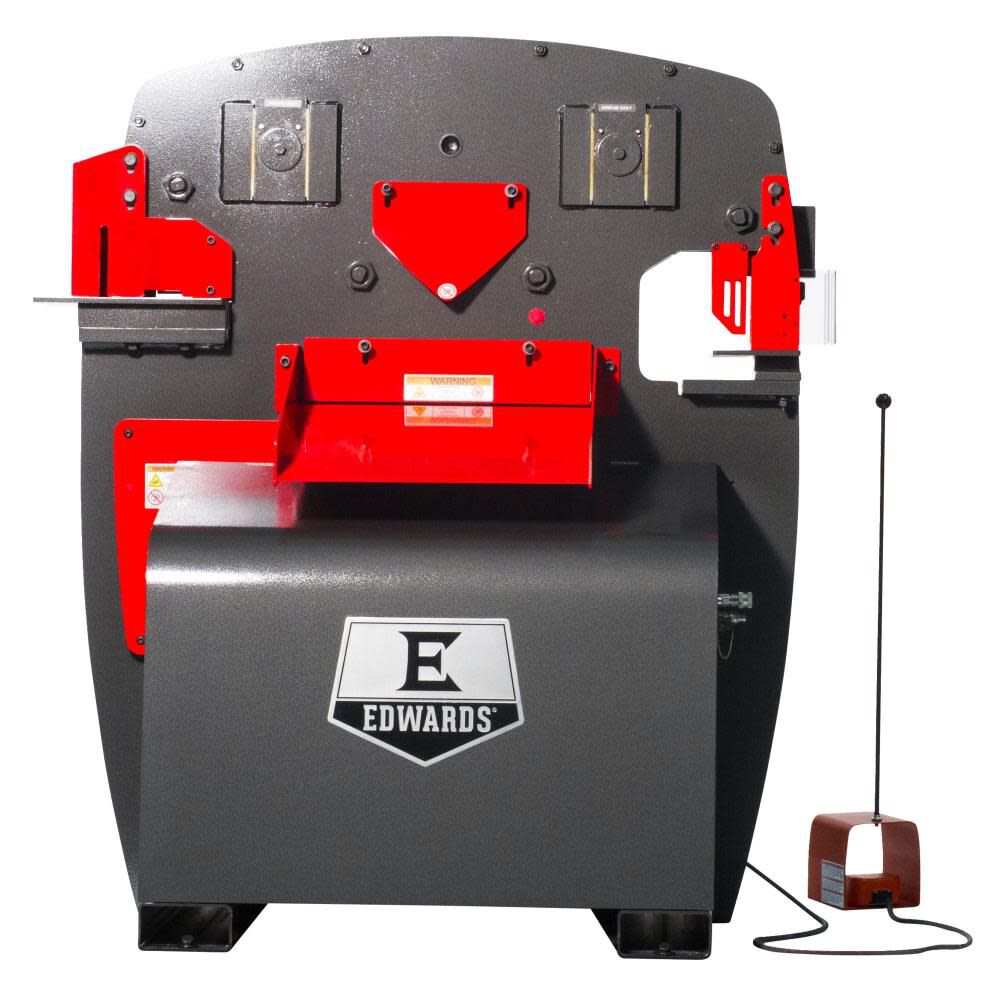

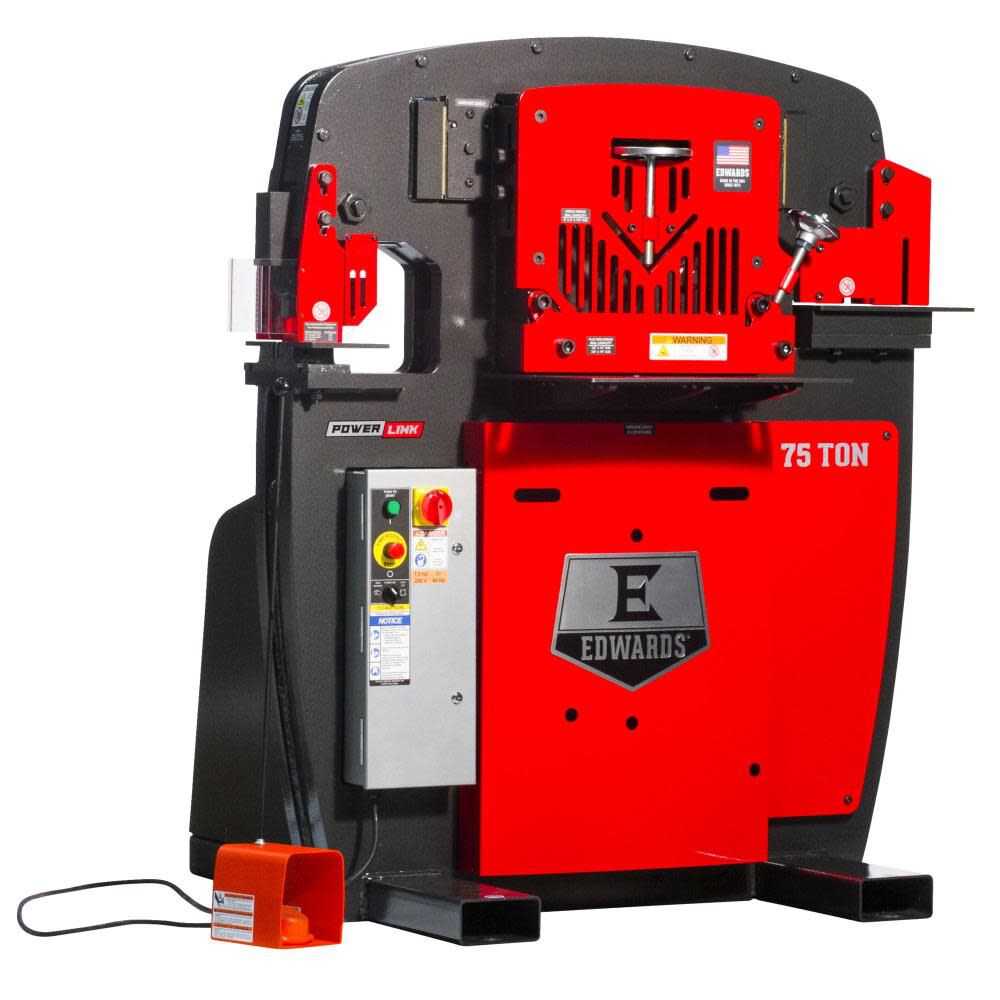

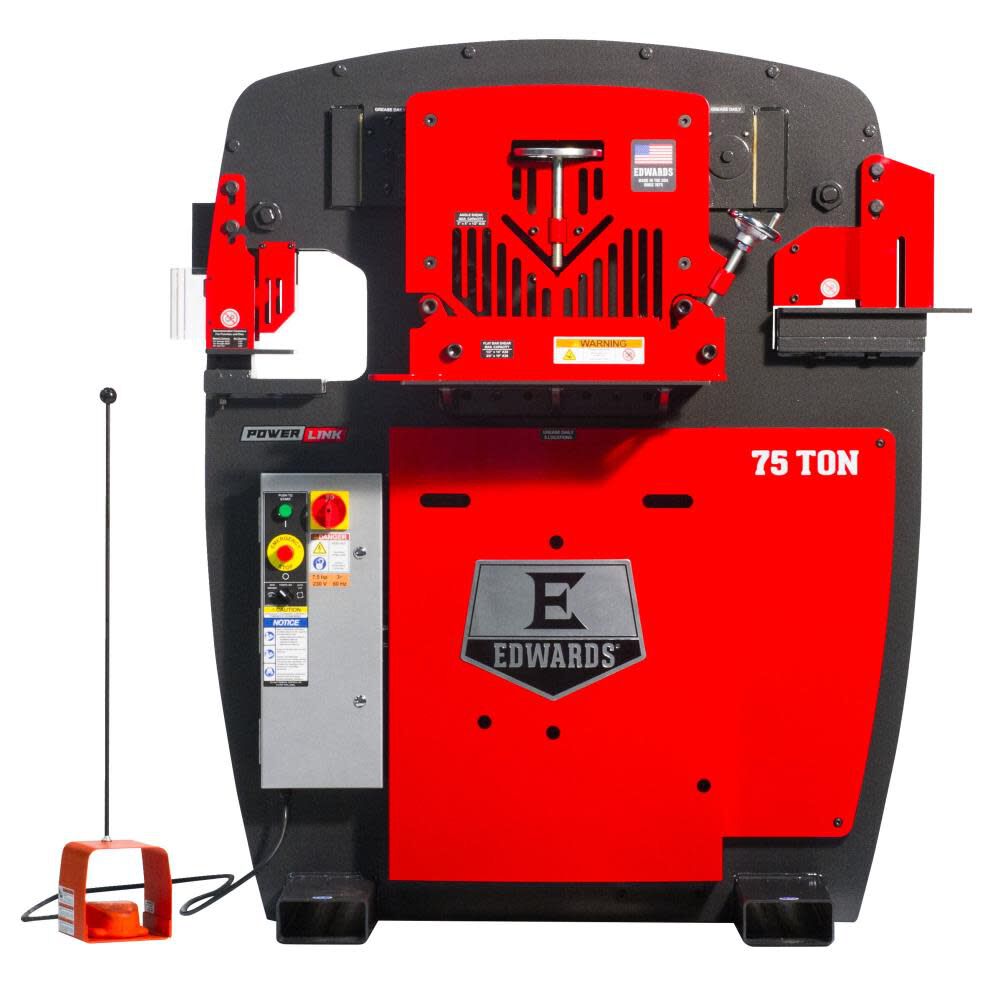

Edwards 75 Ton Ironworker 3 Phase 230v with PowerLink System
The Edwards 75 ton jaws ironworker offers you greater capacity to accomplish larger tasks.
Its standard features include a punch assembly with pedestal die table, a 14 In.
Wide flat bar shear, angle shear and coper notcher.
The punch assembly is easily converted to an open station designed to accept optional tooling accessories, allowing flexibility to customize your ironworker according to your needs.

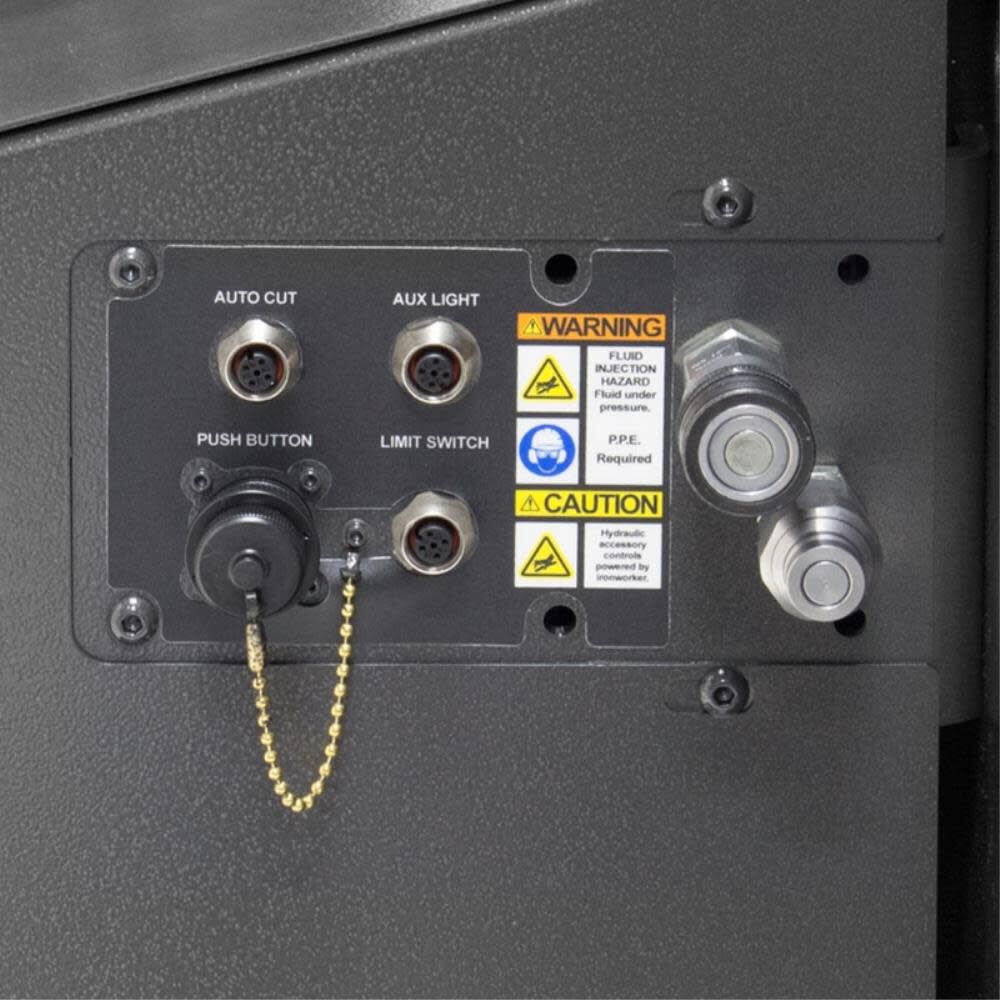

The factory installed PowerLink system allows your ironworker to act as a power source to our expanding line of innovative PowerLink hydraulic tools, such as the 10 ton tube/pipe bender, 20 ton shop press and 40 ton shop press.
Features
- The shop standard
- Four workstations: standard (4) - punch, flat bar shear, angle shear & coper notcher
- 9 additional attachments available to convert the punch workstation to your specific needs
- ANSI B11.5 - 1988(02) compliant guarding
- ETL/UL approved controls
- Integrated e-stop, lock-out/tag-out
- Optimized workstation heights for improved efficiency
- Electric foot pedals with integrated jog control
- Adjustable electric stoke control
Specifications
Brand Name - Edwards
Amperage (A) - 22.0
ANSI Safety Listing - Yes
Assembled Weight (lbs) - 4018.0
California Proposition 65 Warning Required - Yes
Capacity - 150000 Lbs
Color - Gray
Country of Origin - United States
ETL Listed - Yes
Horsepower (hp) - 7.5
MFG Part # (OEM) - IW75-3P230-AC600
Maximum Diameter (in) - 1.0625 in
Maximum Flow Rate (gpm) - 10.5
Maximum RPM - 1765
Overall Height (in) - 66.0
Overall Length (in) - 46.0
Overall Width (in) - 69.0
Package Contents - Notcher
Package Depth - 46
Package Height - 66
Package Weight - 4100
Package Weight (lbs) - 4100
Pressure Rating (psi) - 3500
Product Condition - New
Tank Capacity (gal) - 17
UL Listed - Yes
UPC - 731325556742
Voltage - 230
Warranty Type - 1 Year
Weight (lbs) - 4018.0
