75 Ton Ironworker 1 Phase 230 Volts IW75-1P230
75 Ton Ironworker 1 Phase 230 Volts IW75-1P230 is backordered and will ship as soon as it is back in stock.

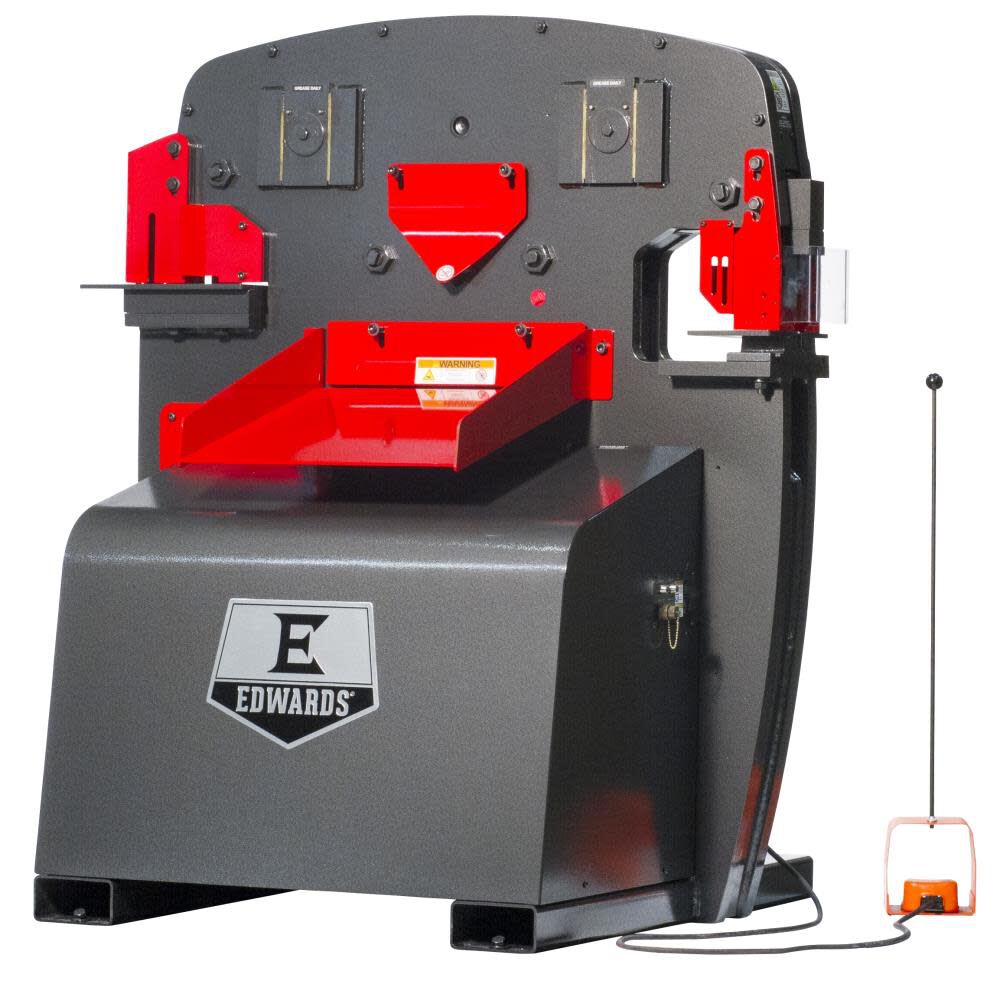

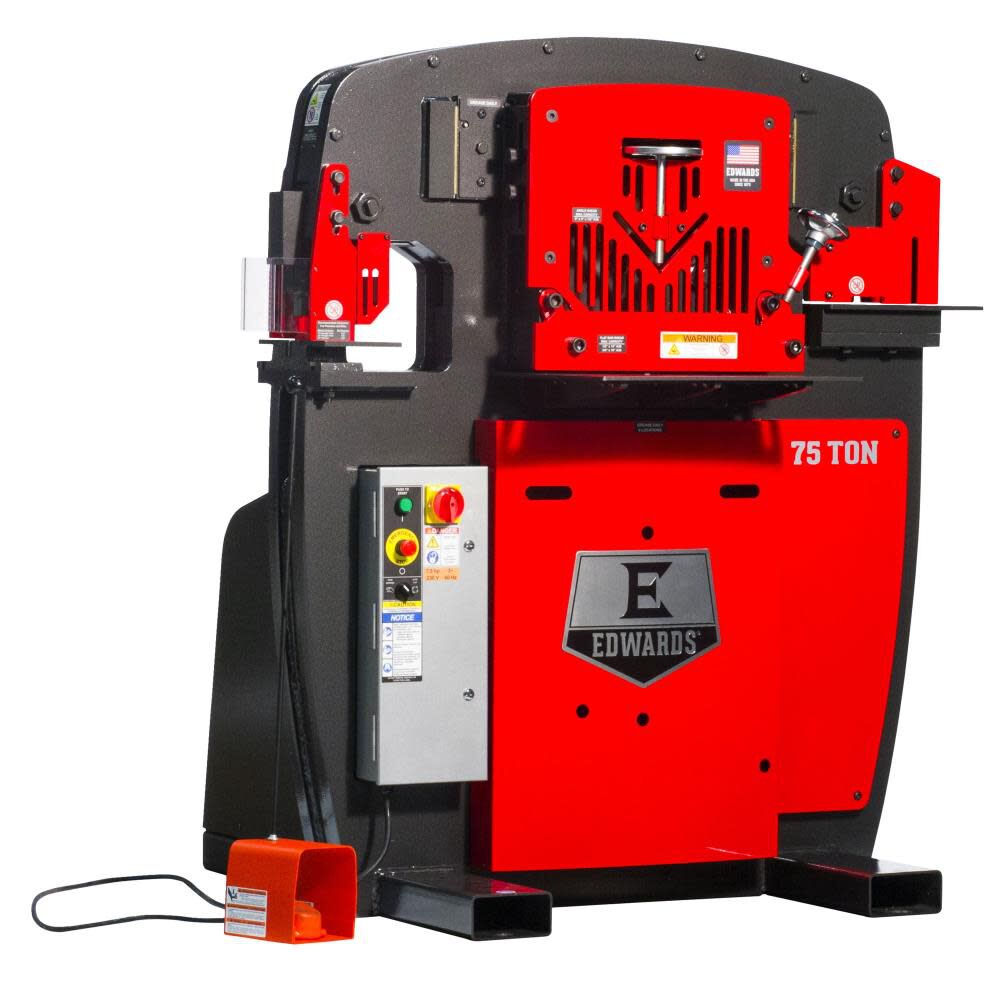

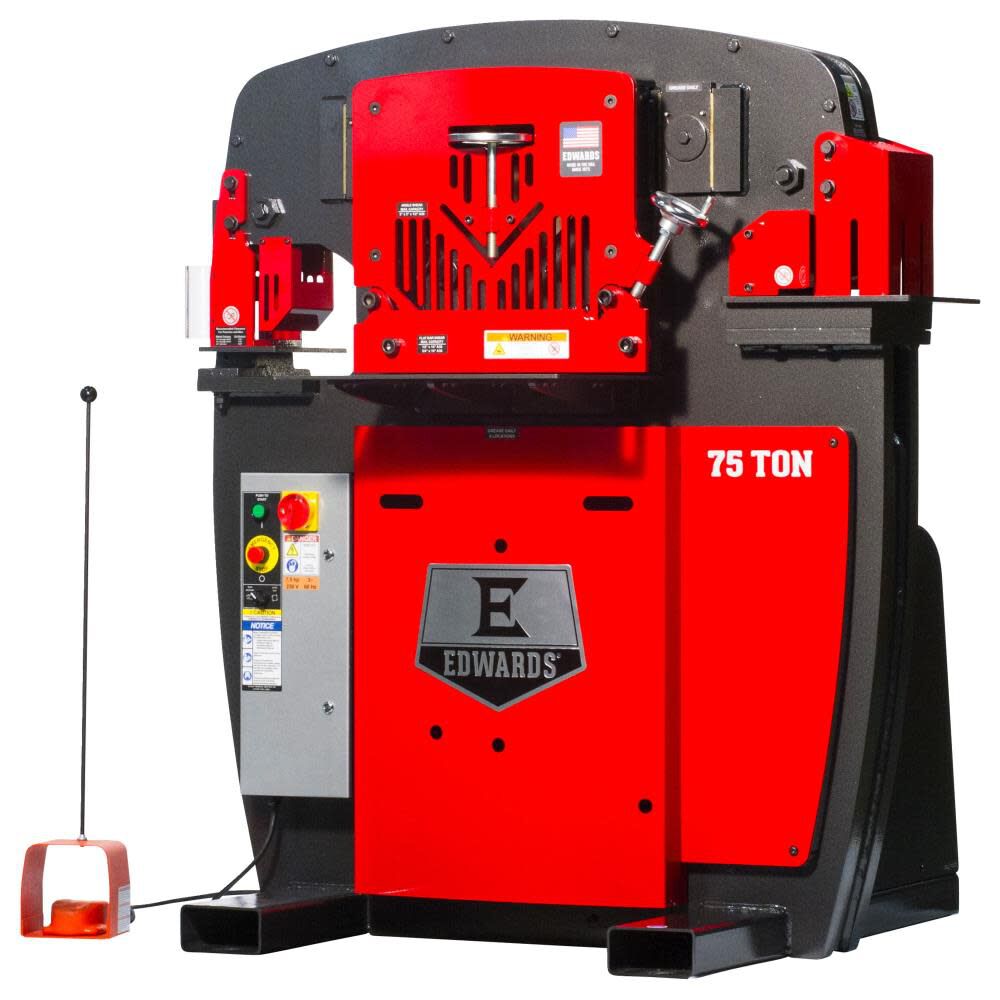

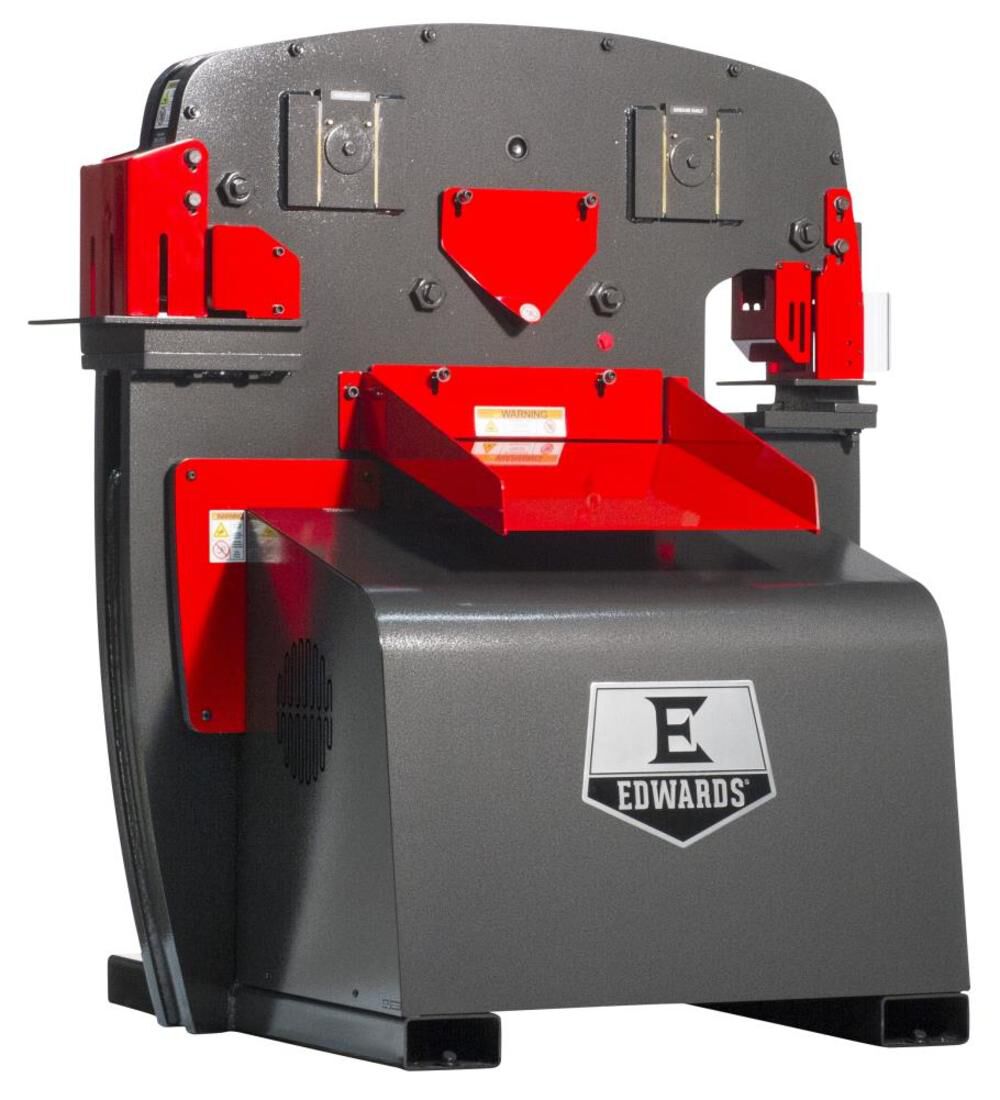

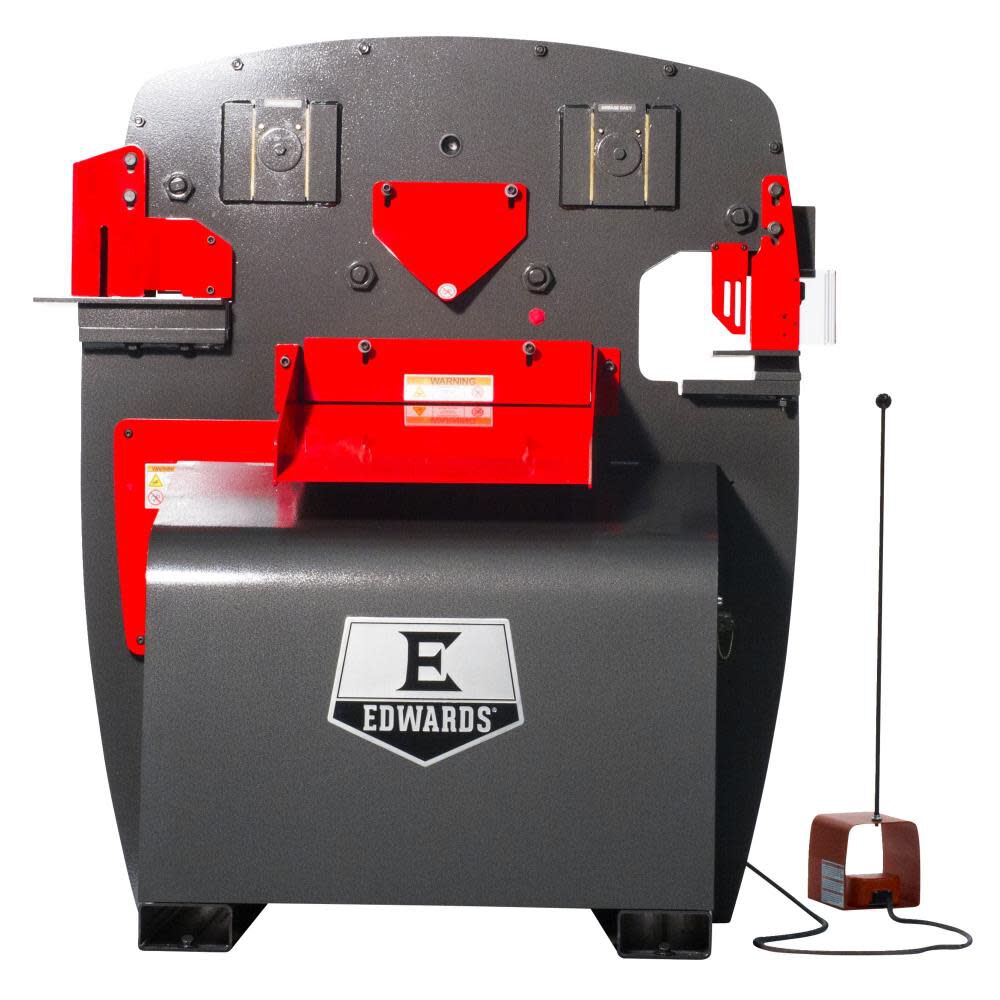

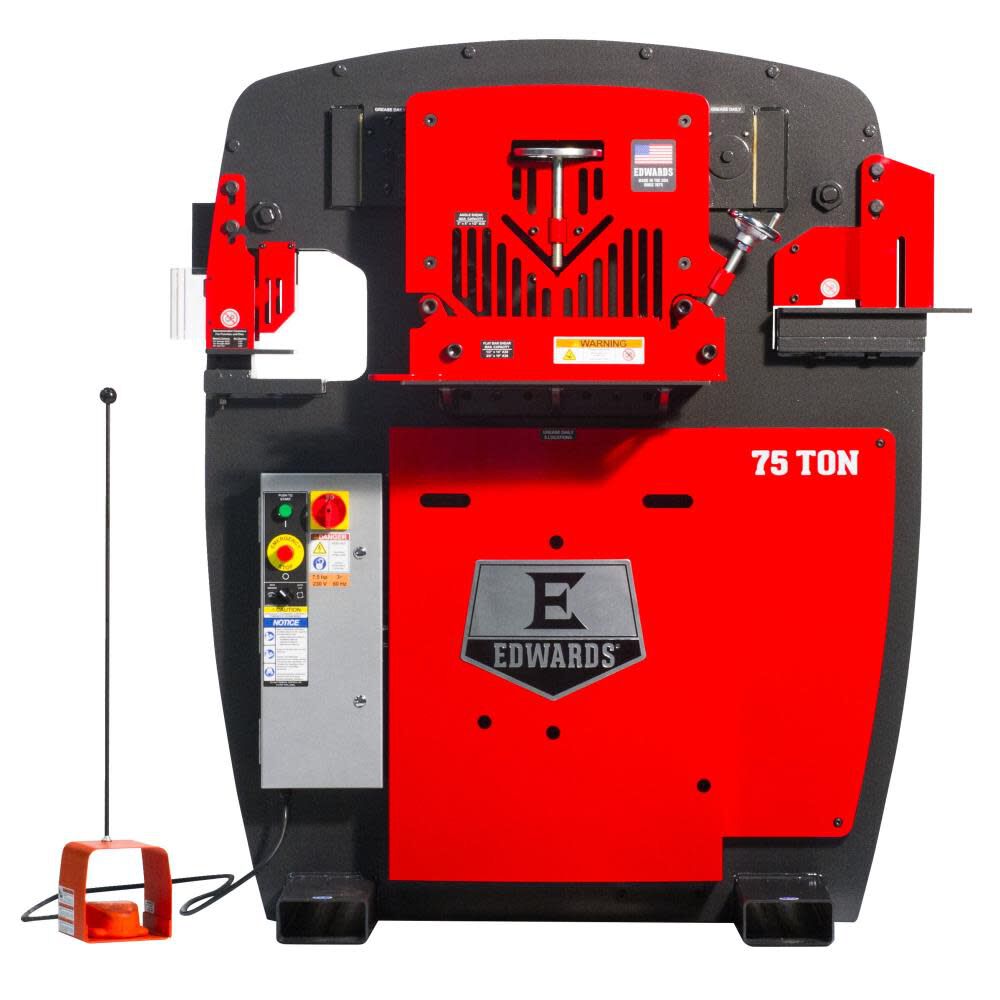

Edwards 75 Ton Ironworker 1 Phase 230 Volts
The shop standard four available workstations punch assembly designed for optional tooling dedicated coper notcher station electric stroke control ANSI B11.5-1988R(02) compliant
Features
- The shop standard
- Four available workstations
- Punch assembly designed for optional tooling
- Dedicated coper Notcher station
- Electric stroke control
- ANSI B11.5-1988R(02) compliant
- Jet/UL approved controls
- The Edwards 75 ton jaws ironworker offers you greater capacity to accomplish larger tasks. its standard features include a punch assembly with pedestal die table, a 14 In. wide flat bar shear, angle shear and coper Notcher.
- The optional hydraulic accessory pack allows your ironworker to act as a power source to our expanding line of innovative hydraulic accessory tools, such as the 10 ton tube/pipe bender, 20 ton shop press and 40 ton shop press.
Specifications
Brand Name - Edwards
Amperage (A) - 22.0
ANSI Safety Listing - Yes
Assembled Weight (lbs) - 4100.0
California Proposition 65 Warning Required - Yes
Capacity - 150000 Lbs
Color - Gray
Country of Origin - United States
CSA Certified - No
ETL Listed - Yes
Horsepower (hp) - 7.5
MFG Part # (OEM) - IW75-1P230
Maximum Diameter (in) - 1.0625 in
Maximum Flow Rate (gpm) - 10.5
Maximum RPM - 1765
Overall Height (in) - 66.0
Overall Length (in) - 49.0
Overall Width (in) - 69.0
Package Contents - Notcher
Package Depth - 46
Package Height - 66
Package Weight - 4100.0
Package Weight (lbs) - 4100
Phase - Single Phase
Pressure Rating (psi) - 3500
Product Condition - New
Tank Capacity (gal) - 17
UL Listed - Yes
UPC - 731325556698
Voltage - 230
Warranty Type - 1 Year
Weight (lbs) - 4100.0
