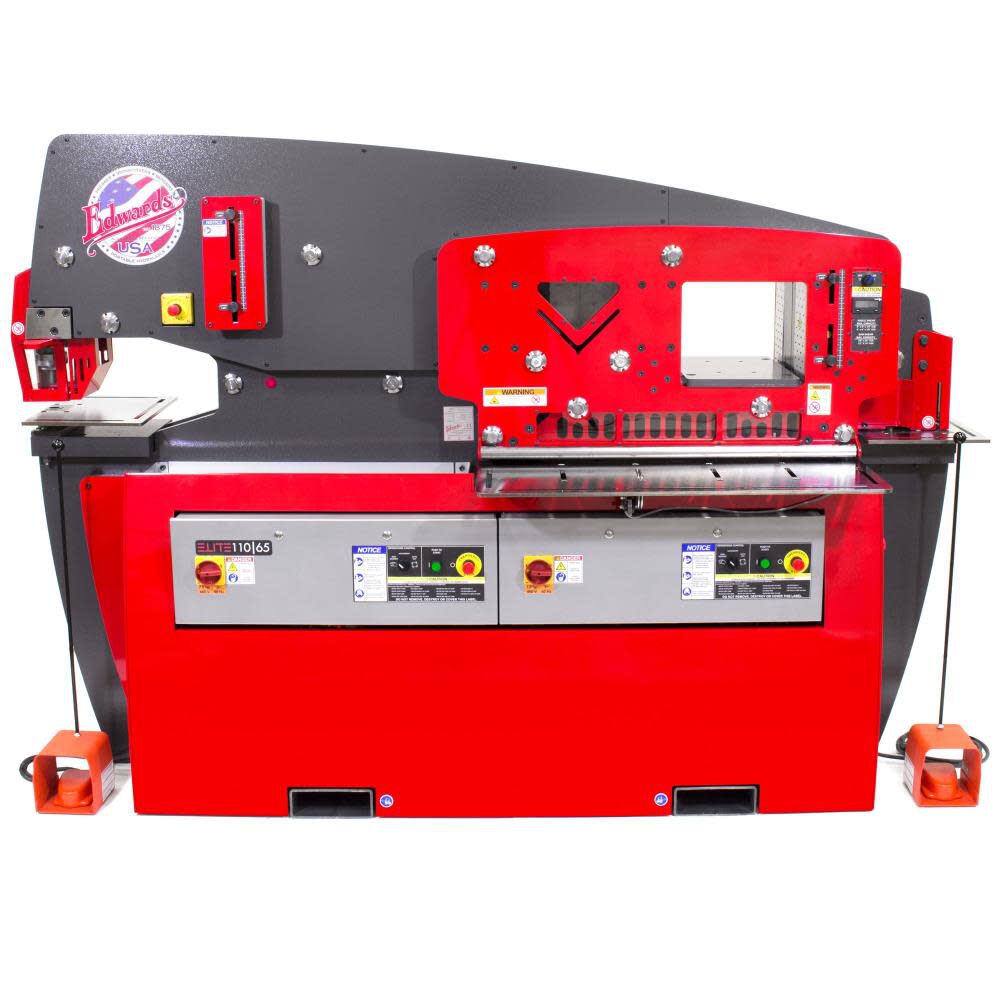

65/110 Ton Elite Dual Operator Ironworker ELT11065-3P460
65/110 Ton Elite Dual Operator Ironworker ELT11065-3P460 is backordered and will ship as soon as it is back in stock.
Edwards 65/110 Ton Elite Dual Operator Ironworker
True dual operation five workstations two independent power plants super-size punch throat depth of 17-3/4 In.
Universal open tooling cavity ANSI B11.5-1988R(02) compliant Jet/UL approved controls elite integrated features: hydraulic hold-down e-stop / lockdowns-tearout electric stroke control hydraulic accessory pack central lubrication system swing-away stripper assembly roller encoder measuring system quick change punch assembly premium gauging tables LED lighting designed for simultaneous use by two people, the Edwards elite 110|65 ironworker is the most powerful of the new elite line.
It features a standard punch assembly, 24 In.
Wide flat bar shear, angle shear, a dedicated coper notcher and a universal open tooling station for optional tooling accessories.
The integrated hydraulic accessory pack enables your elite 110|65 to act as a power source for our expanding line of innovative hydraulic accessory tools.
California Proposition 65 Warning.Features
- True dual operation
- Five workstations
- Two independent power plants
- Super-size punch throat depth of 17-3/4 In.
- Universal open tooling cavity
- ANSI B11.5-1988R(02) compliant
- Jet/UL approved controls
- Elite integrated features:
- Hydraulic hold-down
- E-stop / lockdowns-tearout
Specifications
Brand Name - Edwards
Amperage (A) - 11.0
ANSI Safety Listing - Yes
Assembled Weight (lbs) - 8580.0
California Proposition 65 Warning Required - Yes
Capacity - 220000 Lbs
Color - Gray
Country of Origin - United States
ETL Listed - Yes
Horsepower (hp) - 7.5
MFG Part # (OEM) - ELT11065-3P460
Maximum Diameter (in) - 1.75 in
Maximum Flow Rate (gpm) - 10.5
Maximum RPM - 1765
Overall Height (in) - 72.0
Overall Length (in) - 48.0
Overall Width (in) - 96.0
Package Contents - Notcher
Package Depth - 48
Package Height - 72
Package Weight - 8580
Package Weight (lbs) - 8580
Pressure Rating (psi) - 3000
Product Condition - New
Tank Capacity (gal) - 17
UL Listed - Yes
UPC - 731325562972
Voltage - 208
Warranty Type - 1 Year
Weight (lbs) - 8580.0
