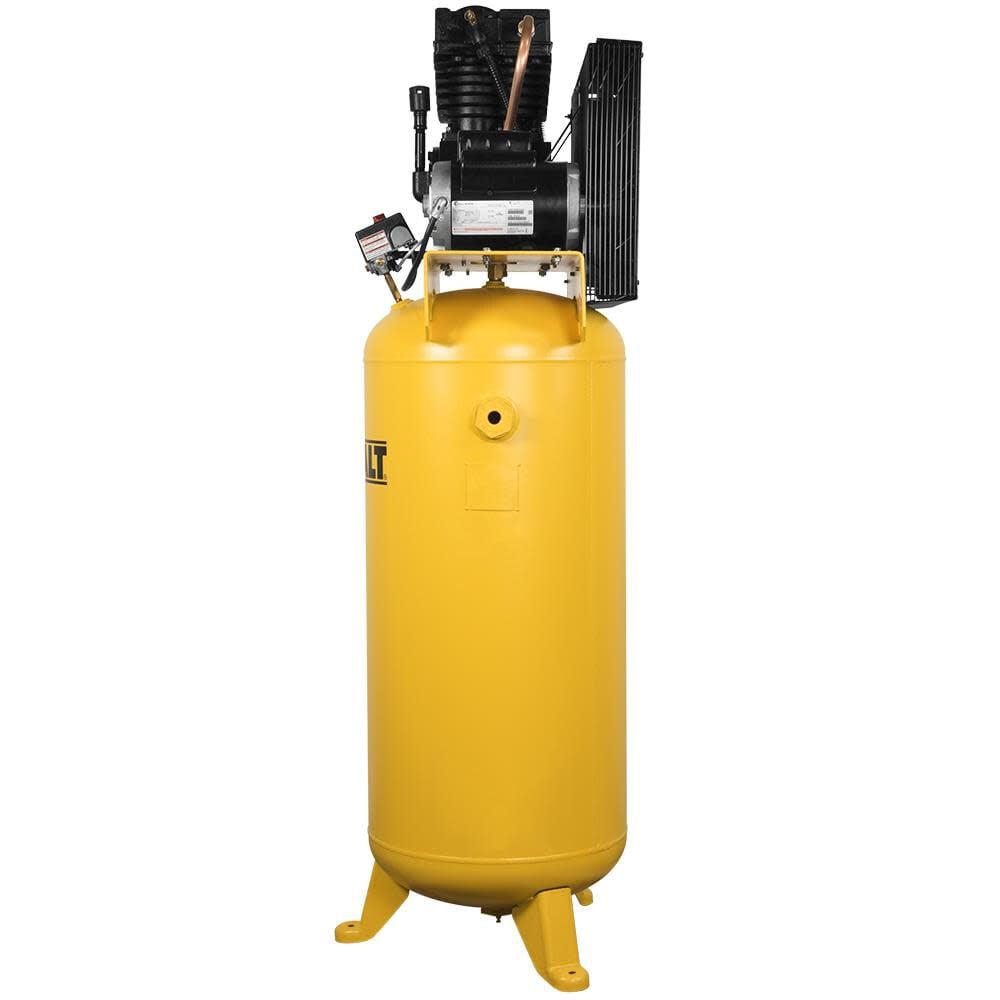

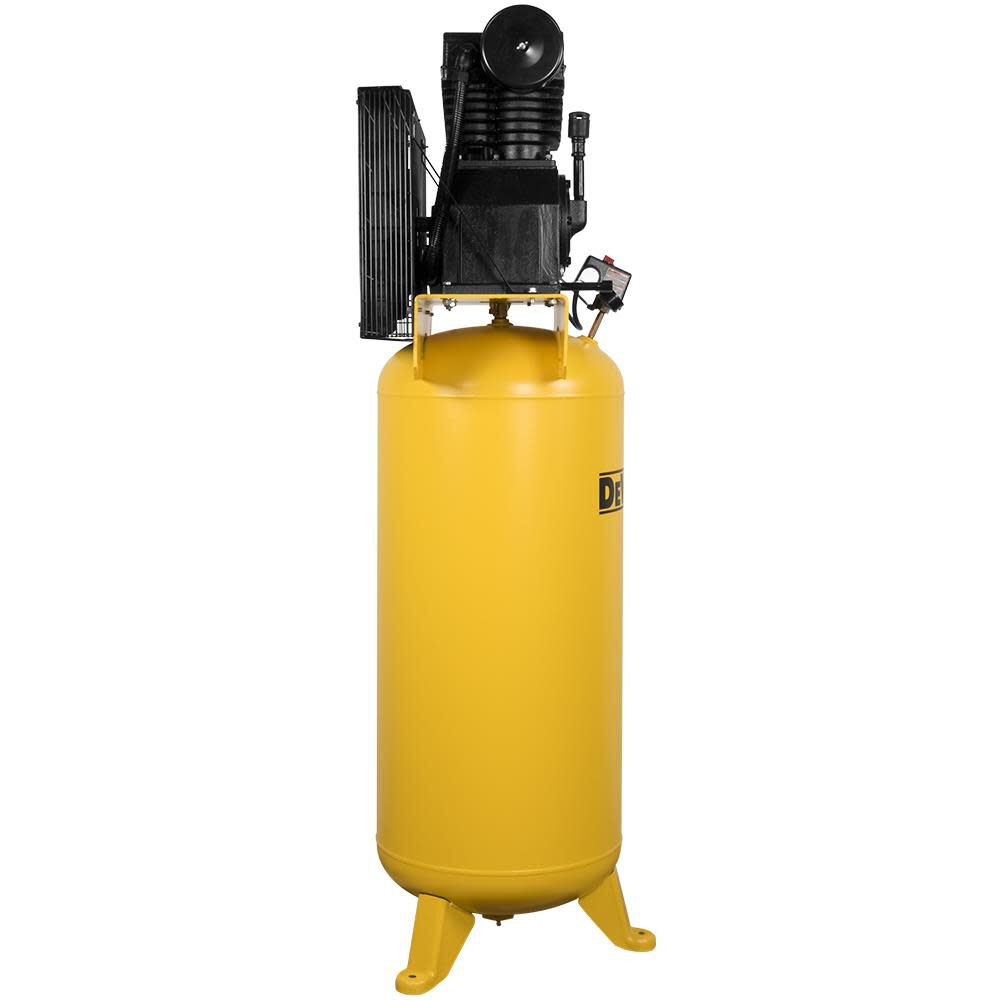

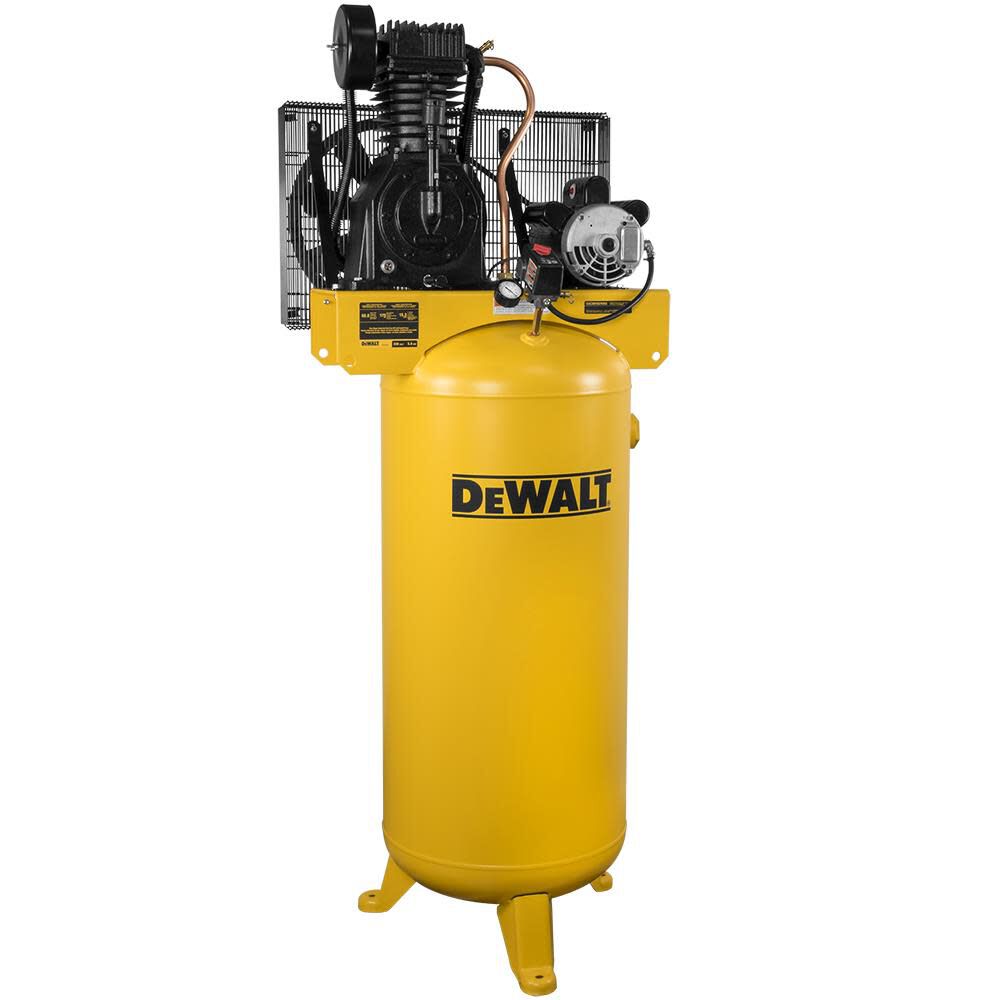

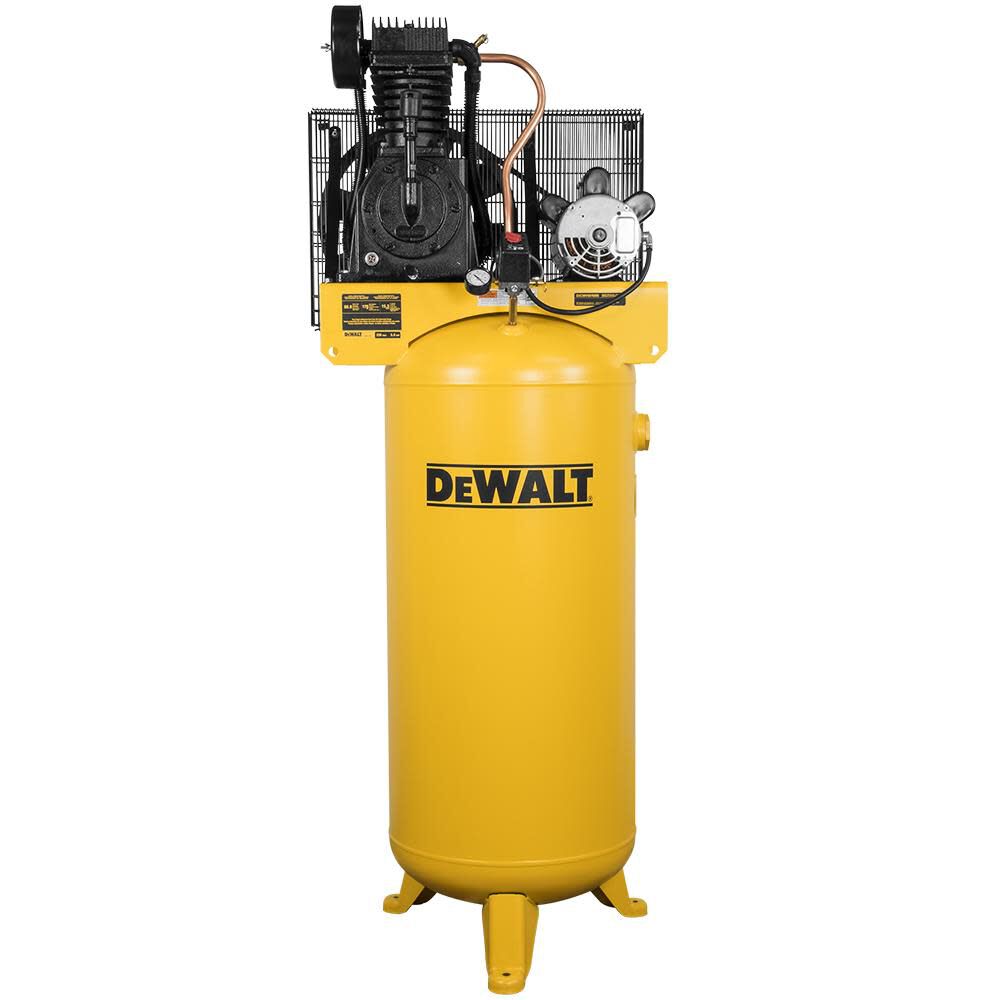

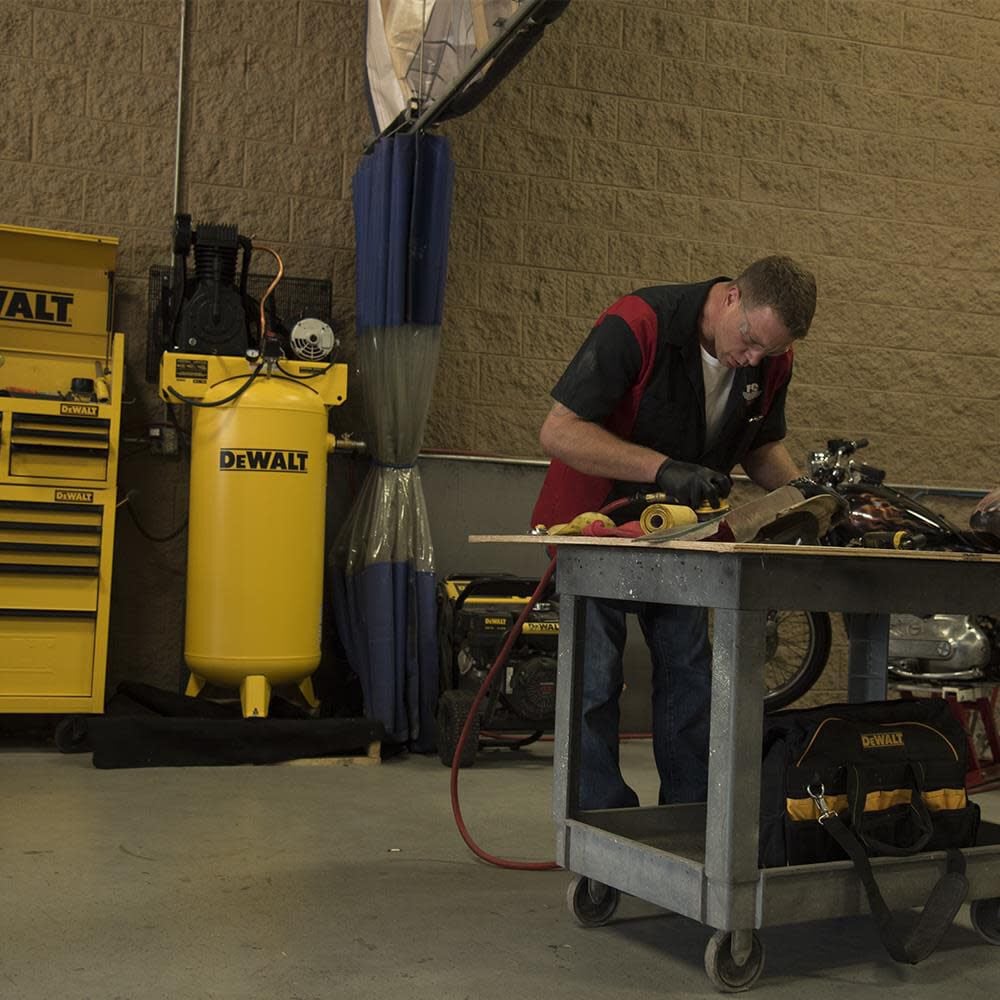

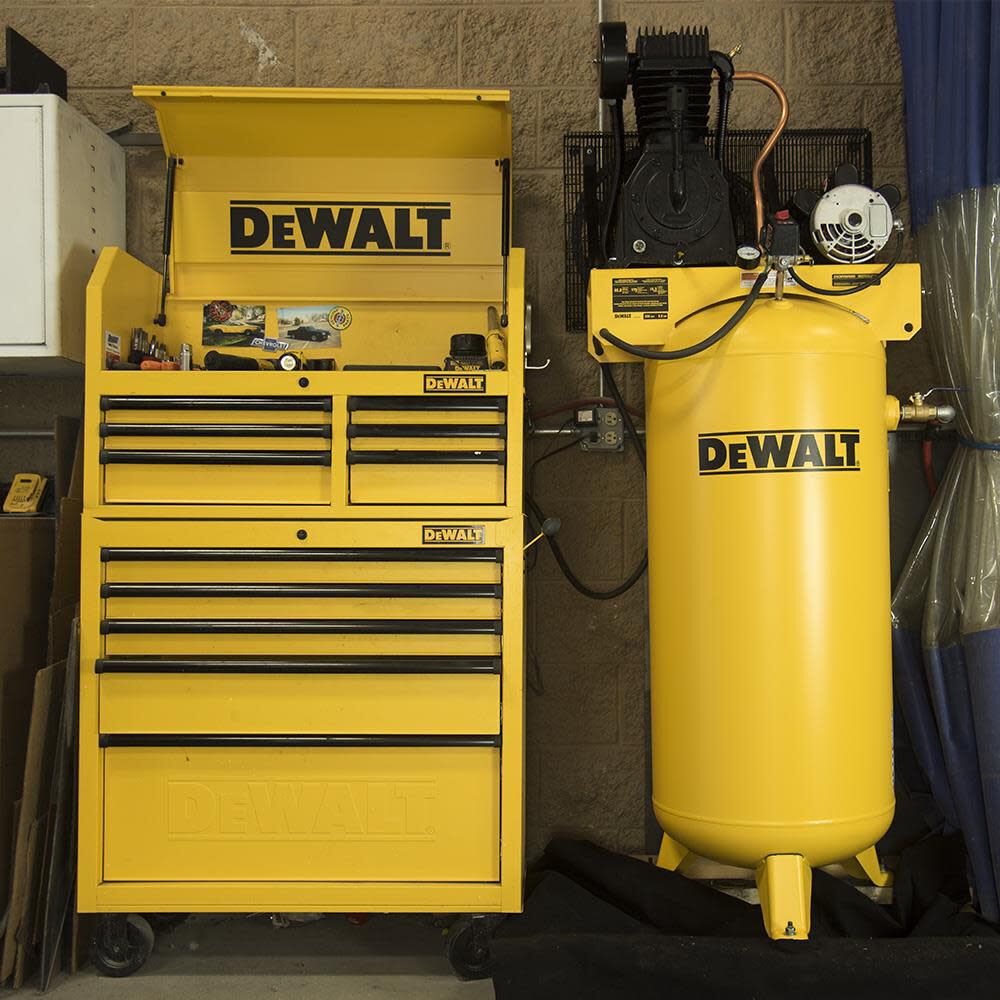

60-Gallon Two Stage Electric 175 PSI Vertical Air Compressor DXCMV5076055

Dewalt DXCMV5076055 5 HP 60 Gallon two stage oil-lube Industrial Air compressor is designed for the heavy-duty professional user.

Featuring a heavy-duty 5 HP TOPS motor, (thermal overload protection system) protecting the motor from voltage fluctuations.

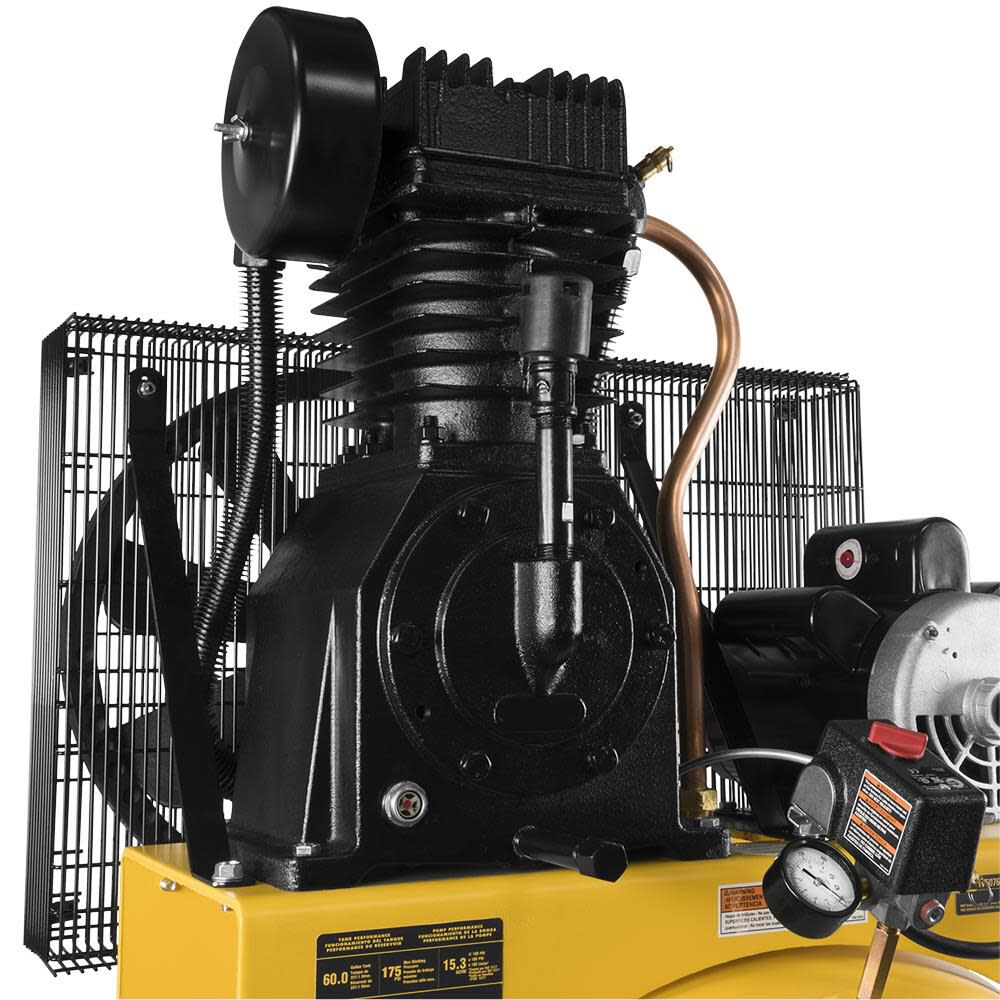

Along with the cast iron patented pump and piston design that provide a cooler running machine while maintaining consistent compression efficiency, it has 175 maximum PSI to operate a wide range of tools while maintaining longer run times.

It also features patented deep-grove directional and asymmetrical cooling fins and patented cast-iron flywheel design with large extended fins for improved cooling and low-pump RPM.

Dewalt compressors are jobsite tough, and built for the professional.

Powerful 2 stage pump provides 175PSI and maximum CFM in a 60 gallon air compressor-enough air to easily run multiple tools at one time

The patented pump design ensures a cooler running pump for longer life

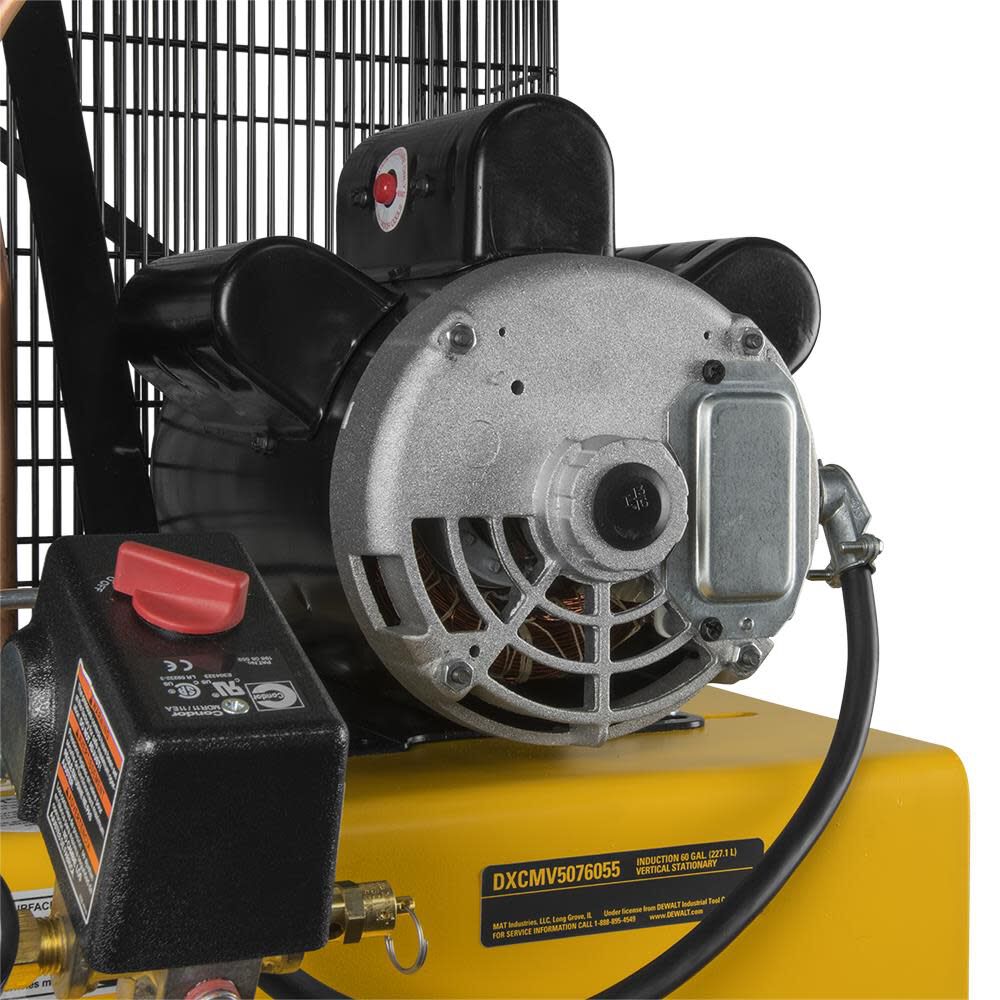

The 5 HP thermal overload protection (TOPS) motor provides long life and quiet operation

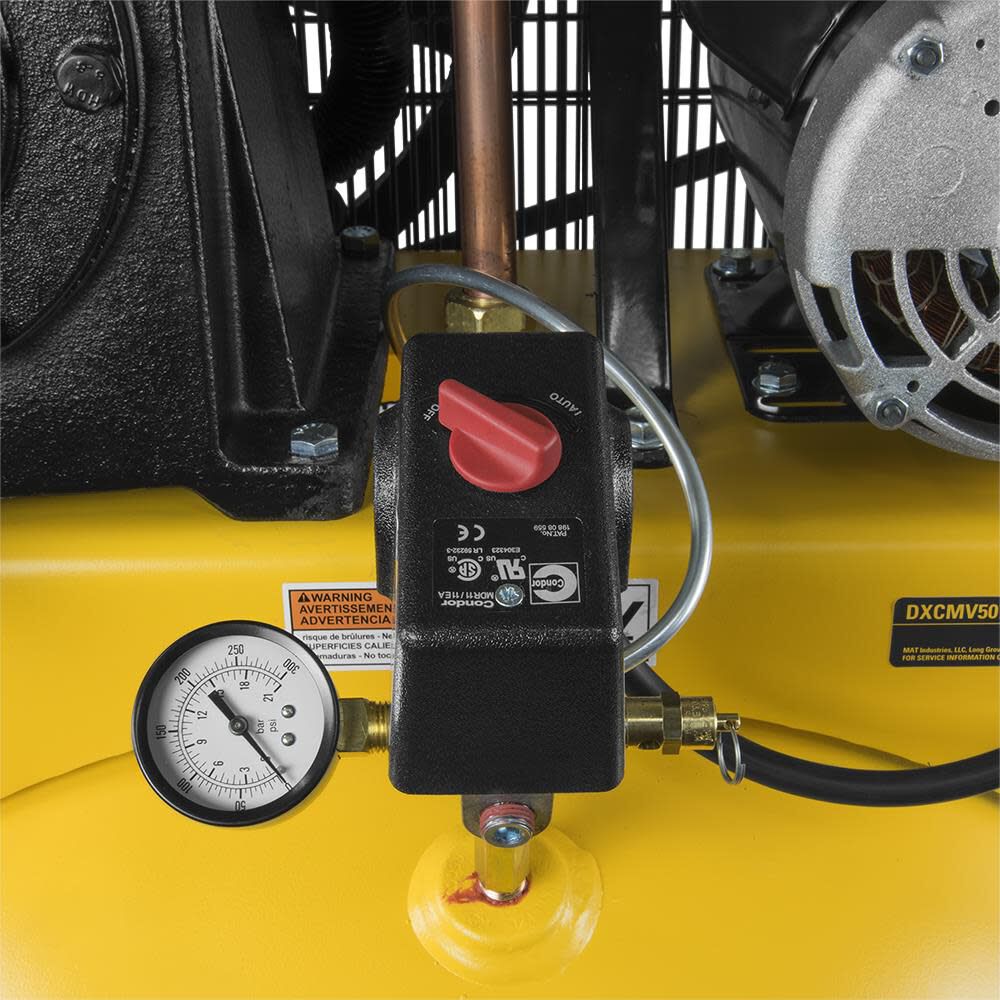

Equipped with tank pressure gauge and on/off switch

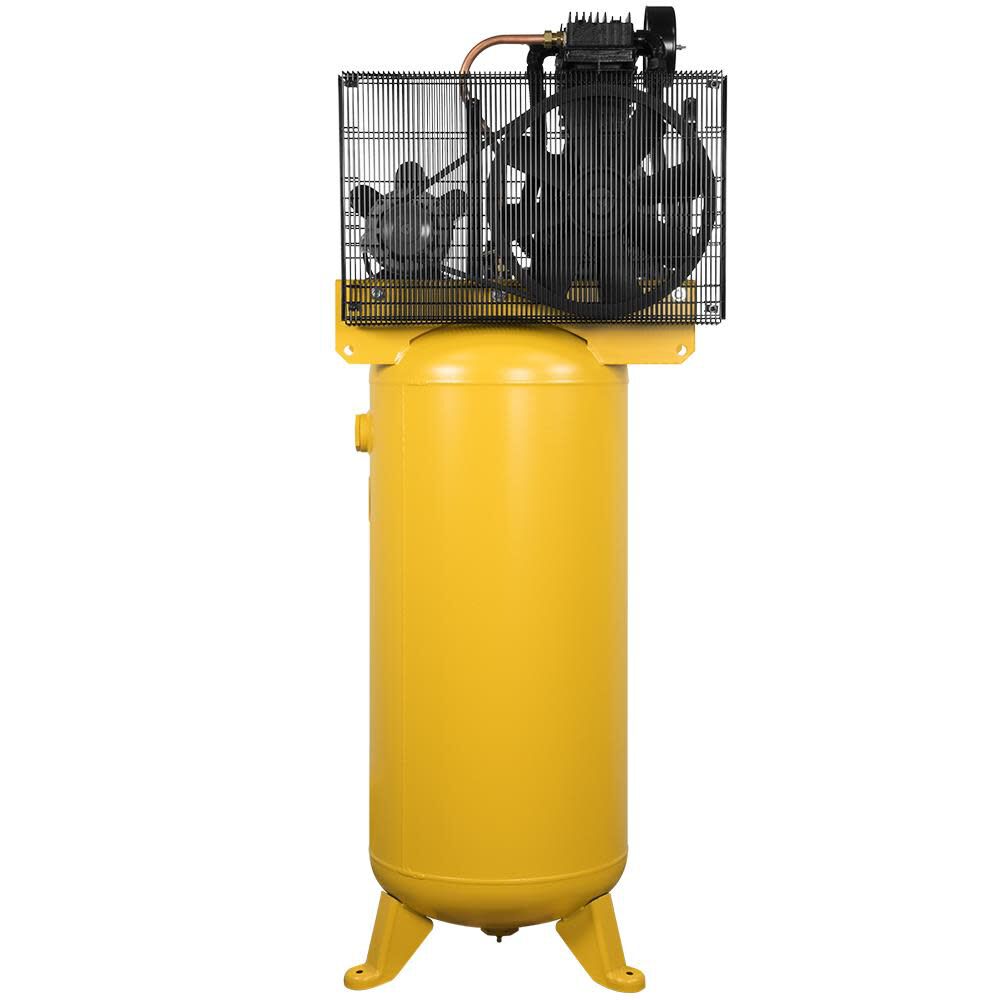

Wire form belt guard improves compressor cooling

Shipped with synthetic blend air compressor oil for optimum performance and long life

Four tie down holes in platform for ease in transporting

Specifications

Sub-Brand: N/A

Type: Electric

Dimensions

Fitting Size: 1/4-in

Tank Capacity (Gallons): 60

Weight (lbs.): 424

Features

Accessories Included: No

Air Delivery SCFM @ 100PSI (CFM): 15.3

Air Delivery SCFM @ 175PSI (CFM): 13.5

Air Delivery SCFM @ 90PSI (CFM): 0

Amperage: 22

Cordless: No

Decibel Rating (Decibels): 84

Engine Brand: N/A

Engine Displacement (Cu. Centimeters): 0

For Use with Air Brushing: Yes

For Use with Bolting: Yes

For Use with Brad Nailing/Stapling: Yes

For Use with Cutting: Yes

For Use with Drilling: Yes

For Use with Finish Nailing: Yes

For Use with Framing Nailing: Yes

For Use with Grinding: Yes

For Use with HVLP Painting: Yes

For Use with Roof Nailing: Yes

For Use with Sanding: Yes

For Use with Spraying: Yes

For Use with Surface Prep: Yes

Maximum Pressure: 175 PSI

Motor Type: Induction

Noise Rating: Standard (71 decibels or above)

Number of Tools Included: 0

Phase: Single-phase

Portable: No

Pump Type: Oil-lubricated

Rechargeable: No

Running Horsepower: 5

Stage: Two stage

Start Type: Electric start

Tank Style: Vertical

Voltage: 230

Warranty

Warranty: 2-year limited

Certifications

CA Residents: Prop 65 Warning(s): Yes

CARB Compliant: Yes

Safety Listing: CSA safety listing

Miscellaneous

UNSPSC: 40151600
