55 Ton Ironworker 3 Phase 230v with PowerLink System IW55-3P230-AC500
55 Ton Ironworker 3 Phase 230v with PowerLink System IW55-3P230-AC500 is backordered and will ship as soon as it is back in stock.

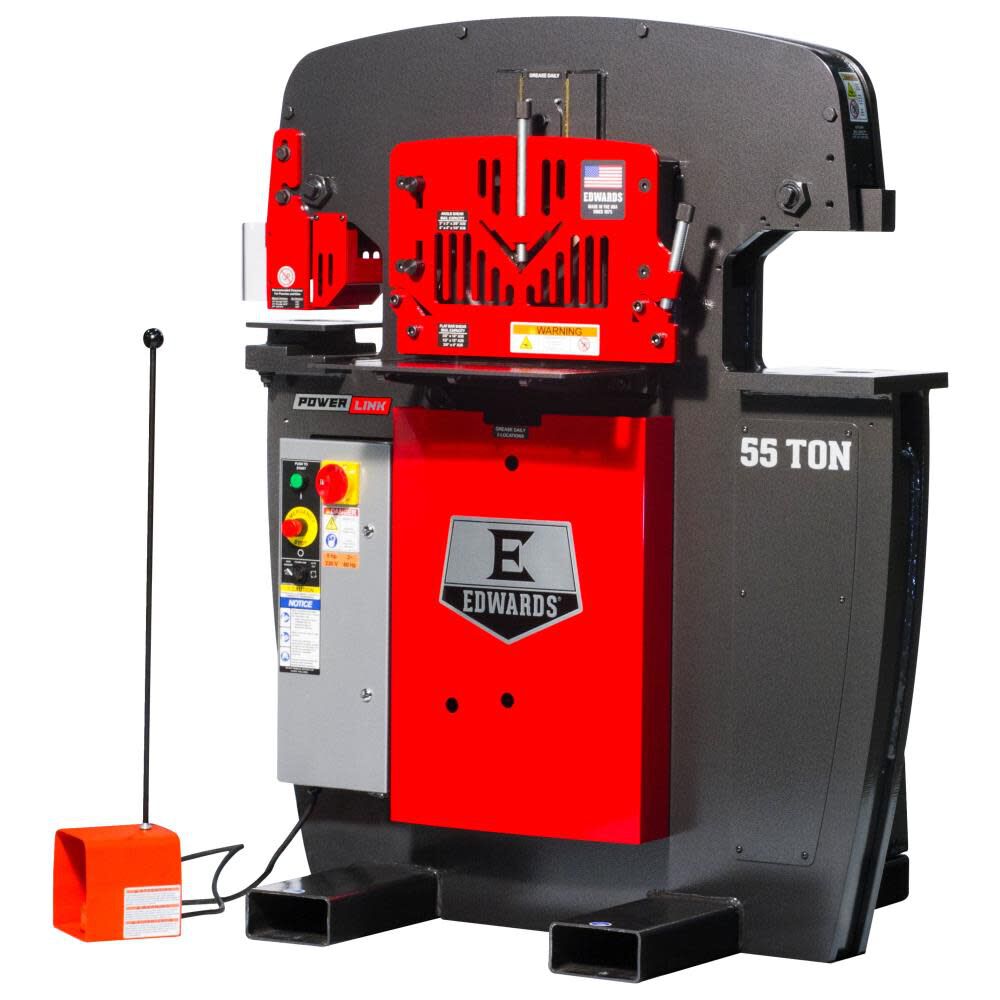

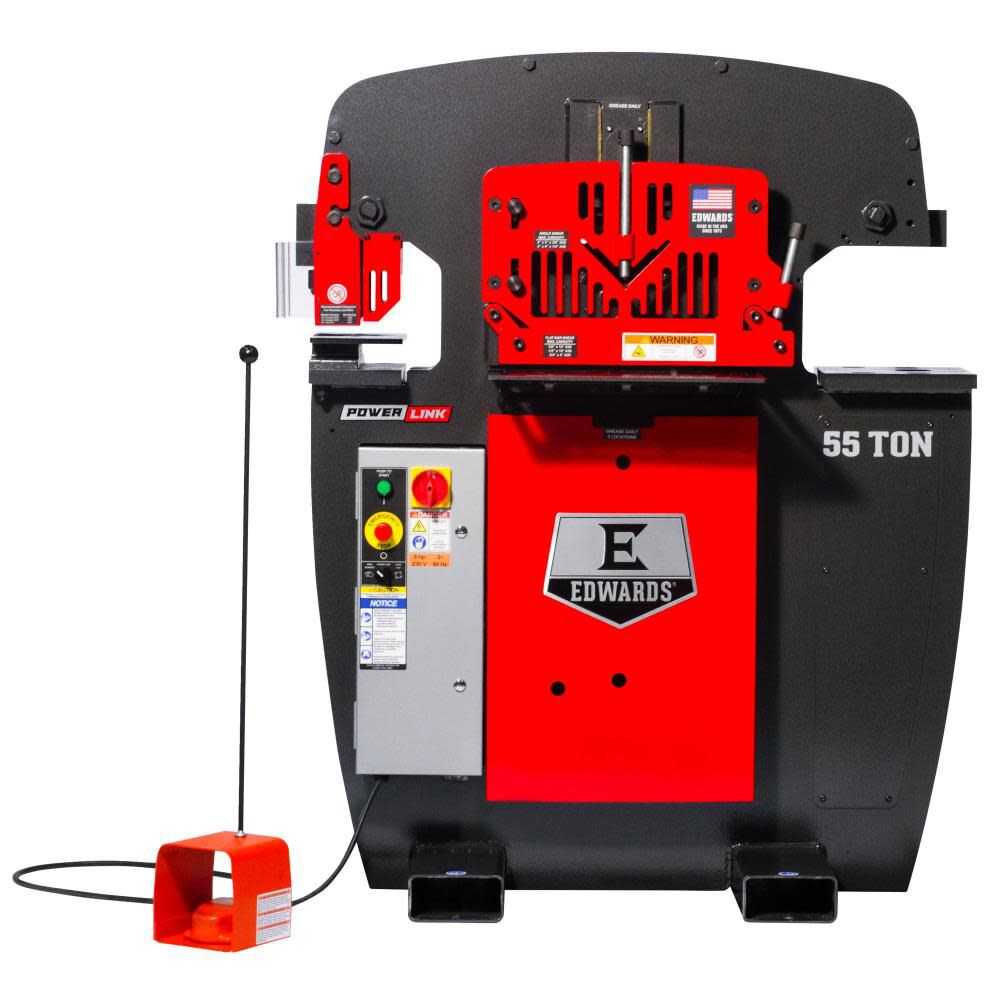

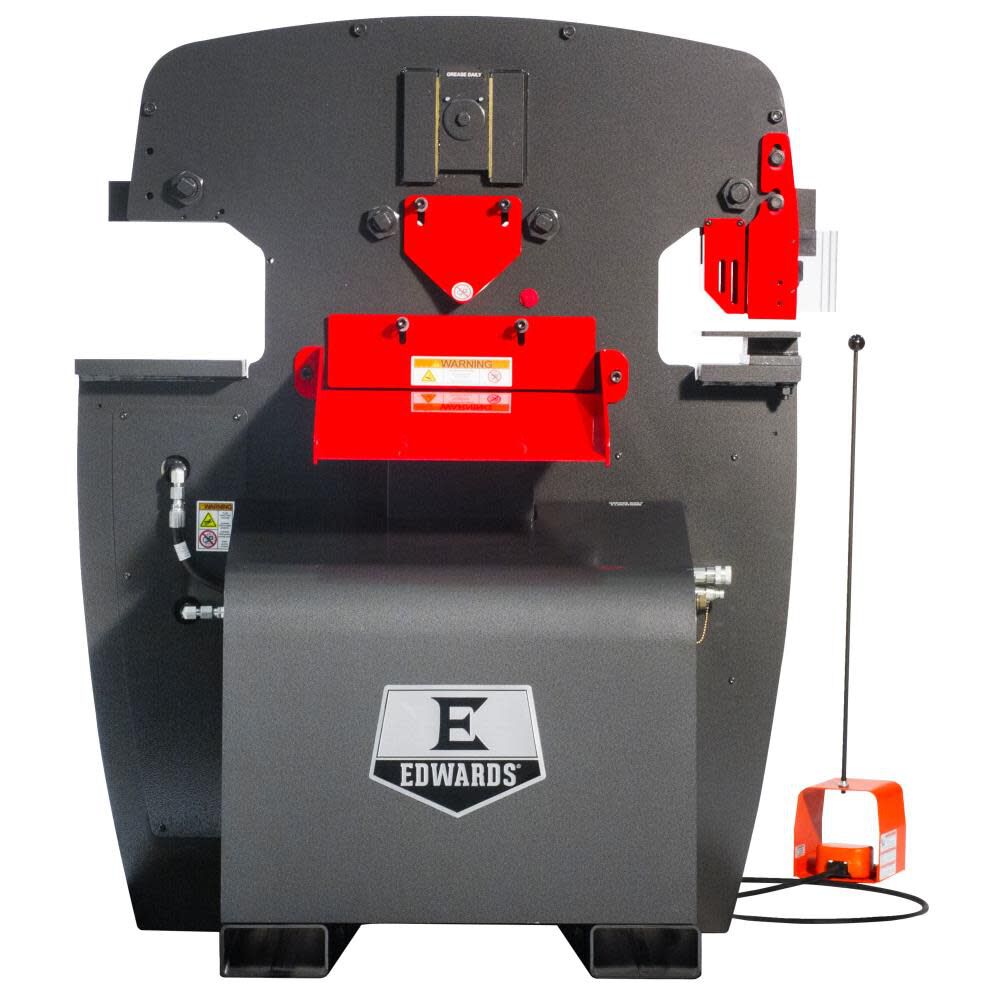

Edwards 55 Ton Ironworker 3 Phase 230v with PowerLink System
The Edwards 55 ton jaws ironworker is well suited to fit the needs of any FAB shop, large or small.
Standard features include a punch assembly with pedestal die table, flat bar shear, angle shear and a universal open tooling station designed to accept optional tooling accessories.

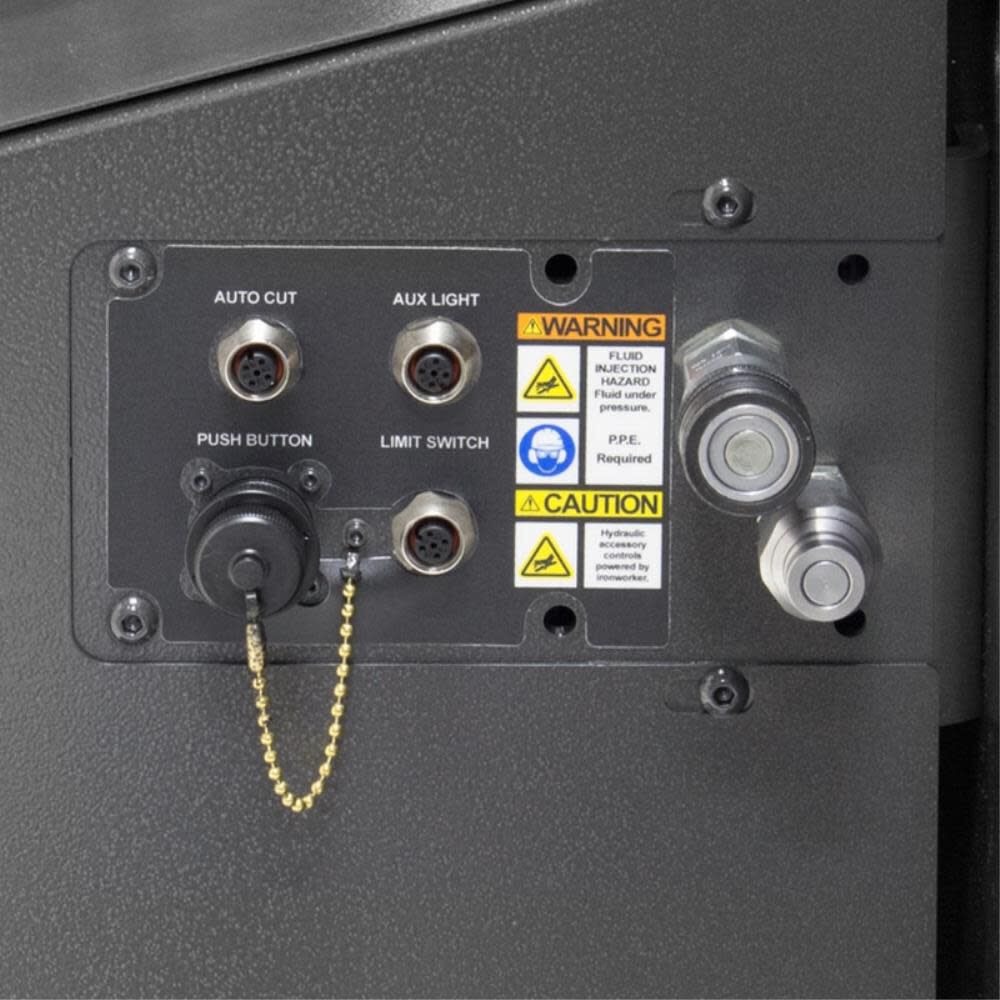

The factory installed PowerLink system allows your ironworker to act as a power source to our expanding line of innovative PowerLink hydraulic tools, such as the 10 ton tube/pipe bender, 20 ton shop press and 40 ton shop press.
Features
- Our best seller
- Four workstations: standard (4) - punch, flat bar shear, angle shear & coper notcher
- 9 additional attachments available to convert the punch workstation to your specific needs
- ANSI B11.5 - 1988(02) compliant guarding
- ETL/UL approved controls
- Integrated e-stop, lock-out/tag-out
- Optimized workstation heights for improved efficiency
- Electric foot pedals with integrated jog control
- Adjustable electric stoke control
Specifications
Brand Name - Edwards
Amperage (A) - 14.0
ANSI Safety Listing - Yes
Assembled Weight (lbs) - 2430.0
California Proposition 65 Warning Required - Yes
Capacity - 110000 Lbs
Color - Gray
Country of Origin - United States
ETL Listed - Yes
Horsepower (hp) - 5.0
MFG Part # (OEM) - IW55-3P230-AC500
Maximum Diameter (in) - 1.0625 in
Maximum Flow Rate (gpm) - 3.5
Maximum RPM - 1725
Overall Height (in) - 62.0
Overall Length (in) - 45.0
Overall Width (in) - 51.0
Package Contents - 55 Ton Ironworker 3 Phase 230v with PowerLink System
Package Depth - 45
Package Height - 62
Package Weight - 2480
Package Weight (lbs) - 2480
Pressure Rating (psi) - 2500
Product Condition - New
Tank Capacity (gal) - 7
UL Listed - Yes
UPC - 731325556353
Voltage - 230
Warranty Type - 1 Year
Weight (lbs) - 2430.0
