Edwards 55 Ton Ironworker 3 Phase 230 Volt PowerLink 10in Brake
This 55 ton ironworker includes a factory installed 10" brake and 2 LED lights and provides more than enough power for the larger projects and offers the ability to customize one of its 4 workstations with 11 interchangeable attachments.
There are 17 accessories that improve operator accuracy and productivity.
Great for general use from medium size shops to full factory maintenance departments.

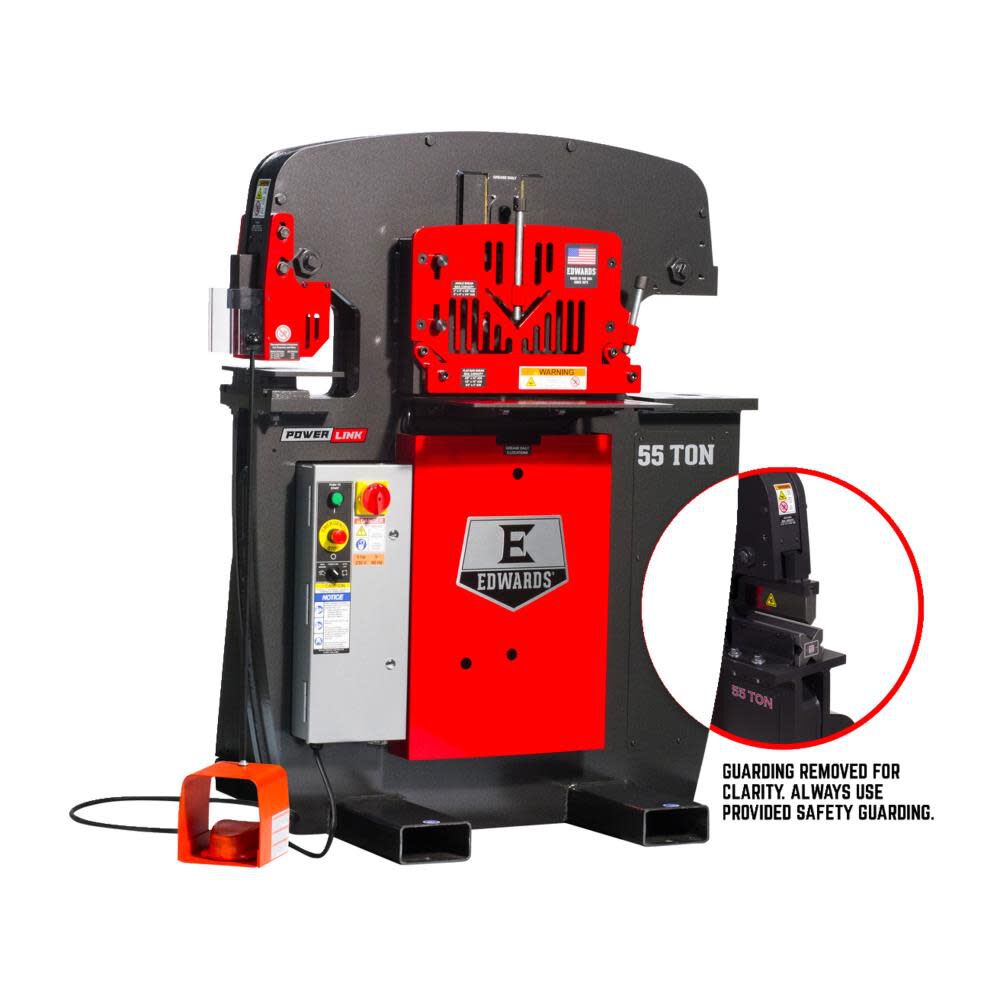

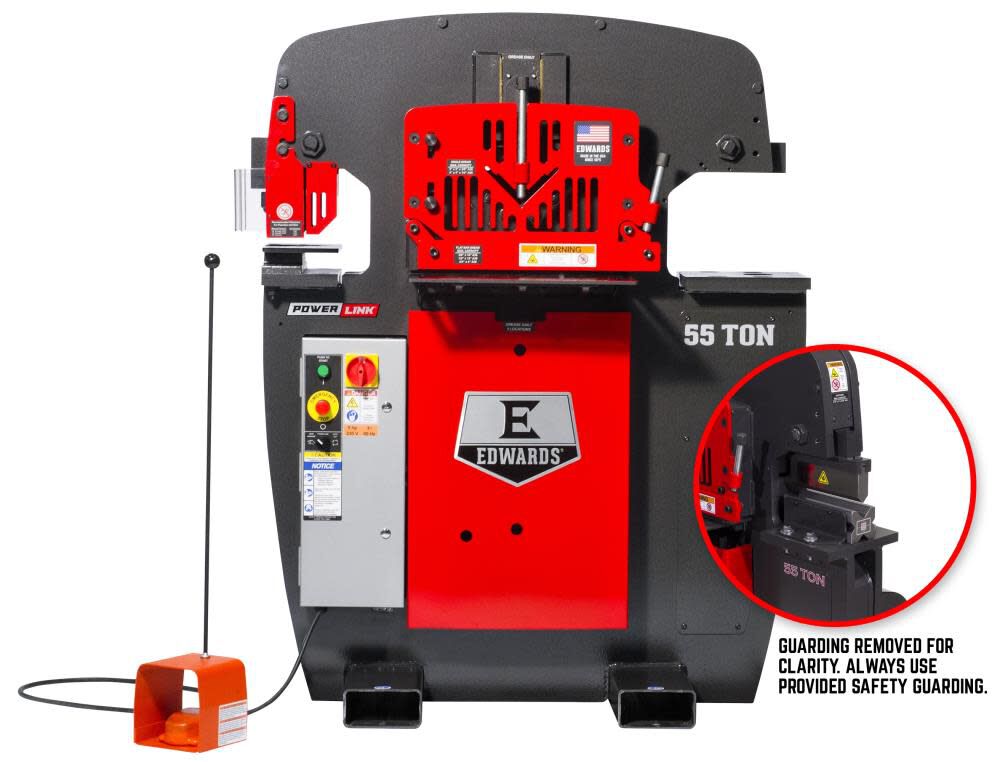

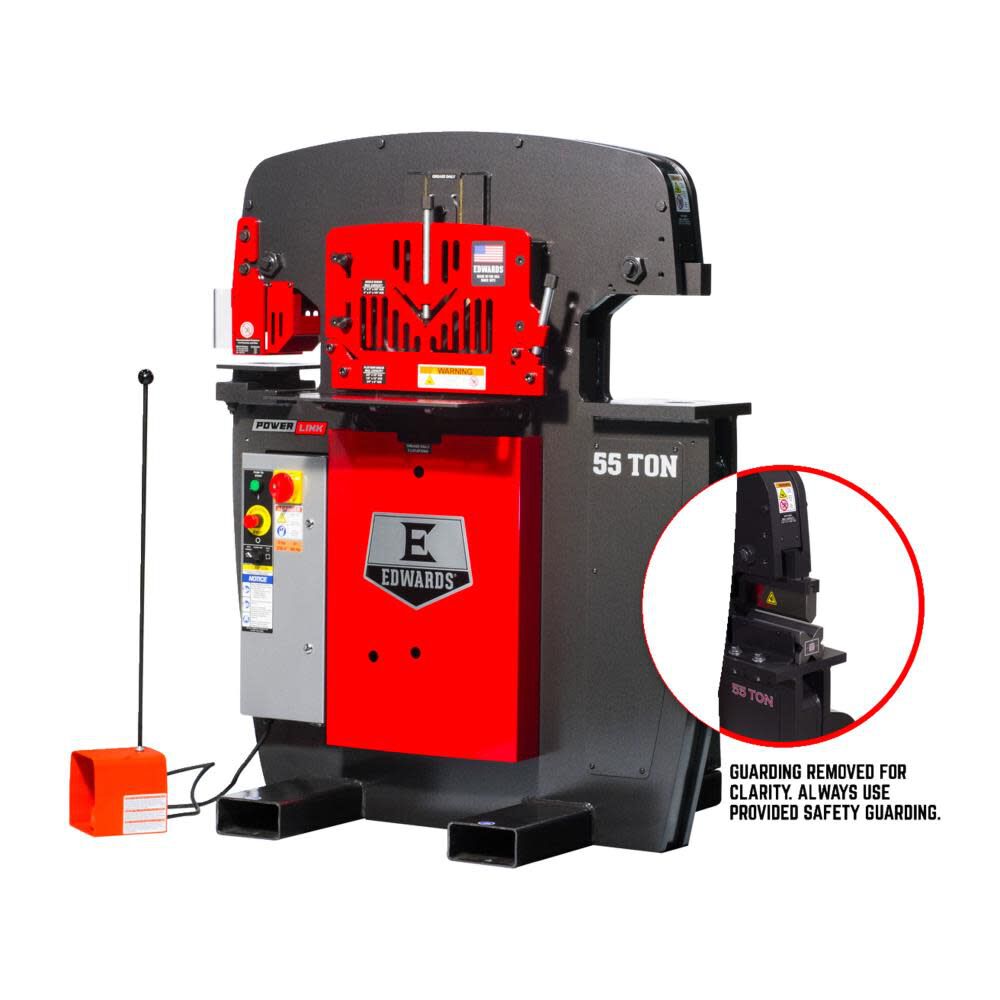

The PowerLink system increases your capabilities by turning your ironworker into a power source for our line of hydraulic tools. (Guarding removed in featured image for clarity.
Always used provided safety guarding.)
Features
- Four workstations: standard (3) - punch, flat bar shear & angle shear; open (1) - factory installed 10 in. brake
- 11 Interchangeable attachments available to tailor the ironworker to your needs
- 17 Optional accessories available to increase precision and efficiency
- PowerLink‚Ñ¢ system increases your capabilities turning your ironworker into a power source for our ever expanding line of hydraulic tools
- Compact machine that allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend and cope all in one machine
- Optimized workstation heights for improved efficiency
- Electric foot pedal with integrated jog control
- Adjustable electric stoke control
- Bright LED lights increase visibility
- ANSI B11.5-1988(02) compliant guarding
Specifications
Brand Name - Edwards
Amperage (A) - 14
ANSI Safety Listing - Yes
Assembled Weight (lbs) - 2430
California Proposition 65 Warning Required - Yes
Capacity - 110000 Lbs
Color - Black
Country of Origin - United States
CSA Certified - No
ETL Listed - Yes
Horsepower (hp) - 5
MFG Part # (OEM) - 55233522
Maximum Diameter (in) - 1.0625 in
Maximum Flow Rate (gpm) - 3.5
Maximum RPM - 1725
Overall Height (in) - 55.25
Overall Length (in) - 36.125
Overall Width (in) - 44.825
Package Contents - 55 Ton Ironworker 3 Phase 230 Volt PowerLink 10" Brake
Package Depth - 45
Package Height - 62
Package Weight - 2480
Package Weight (lbs) - 2480
Phase - Three Phase
Pressure Rating (psi) - 2500
Product Condition - New
Tank Capacity (gal) - 7
UL Listed - Yes
UPC - 731325763119
Voltage - 230
Warranty Type - 1 Year
Weight (lbs) - 2430
