55 Ton Ironworker 1 Phase 230 Volts IW55-1P230
coming soon
Pay over 36 months | toolfleet
Gear up now, pay as you grow
55 Ton Ironworker 1 Phase 230 Volts IW55-1P230 is backordered and will ship as soon as it is back in stock.
Protect Your Tools With Toolguard
Protect Your Tools With Toolguard
Every hour your tool is lost or inoperable results in lost opportunities and income. That’s why we highly recommend to all tradespeople and businesses that use tools and equipment to have a reliable solution in place. Find out how Toolguard can help.
Description
Description

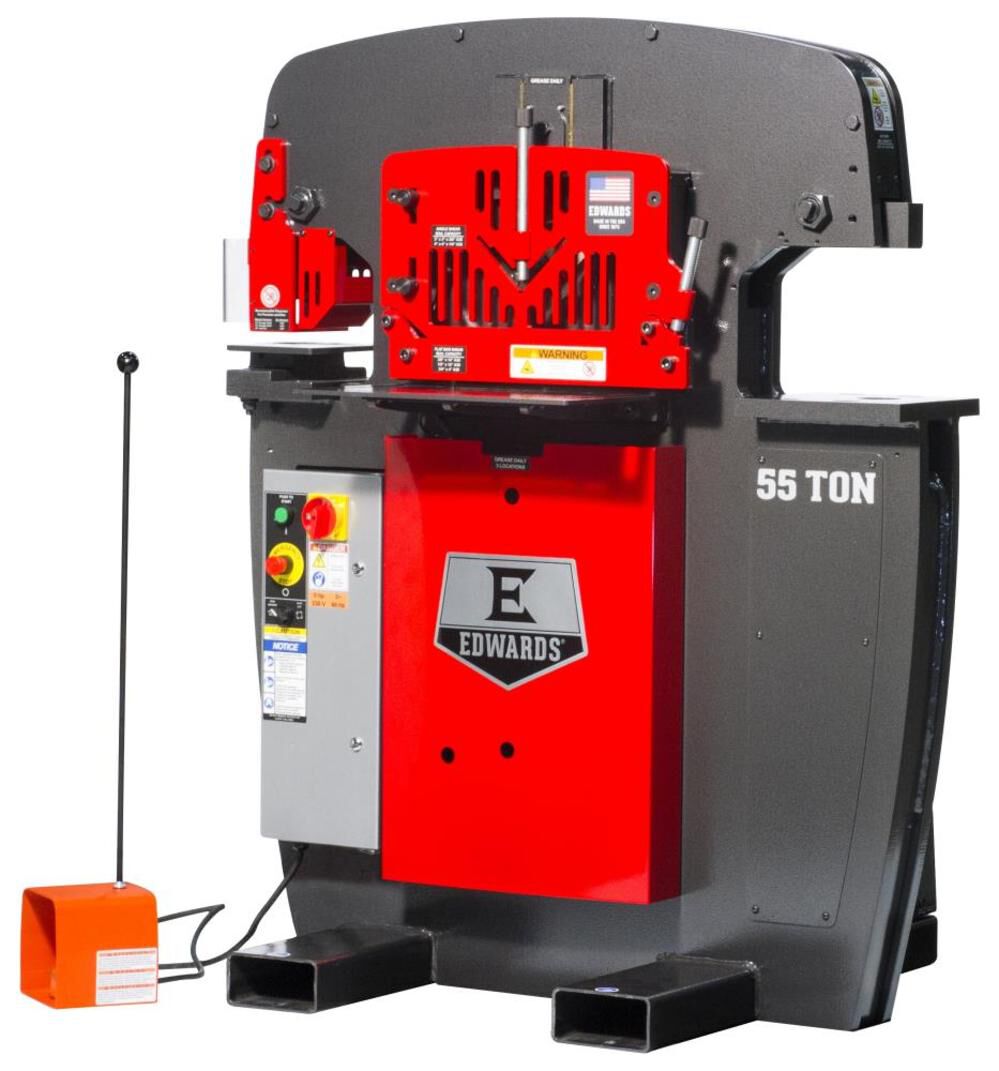

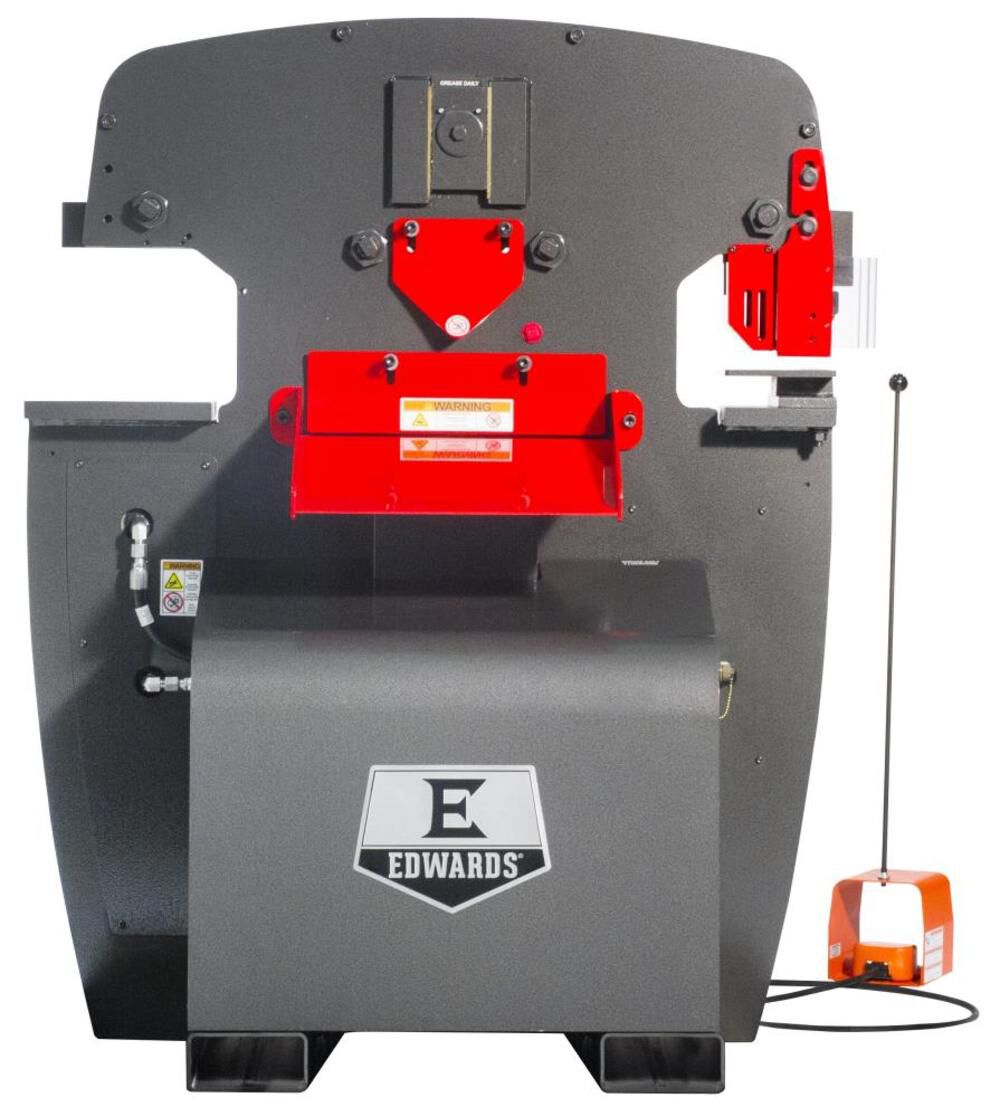

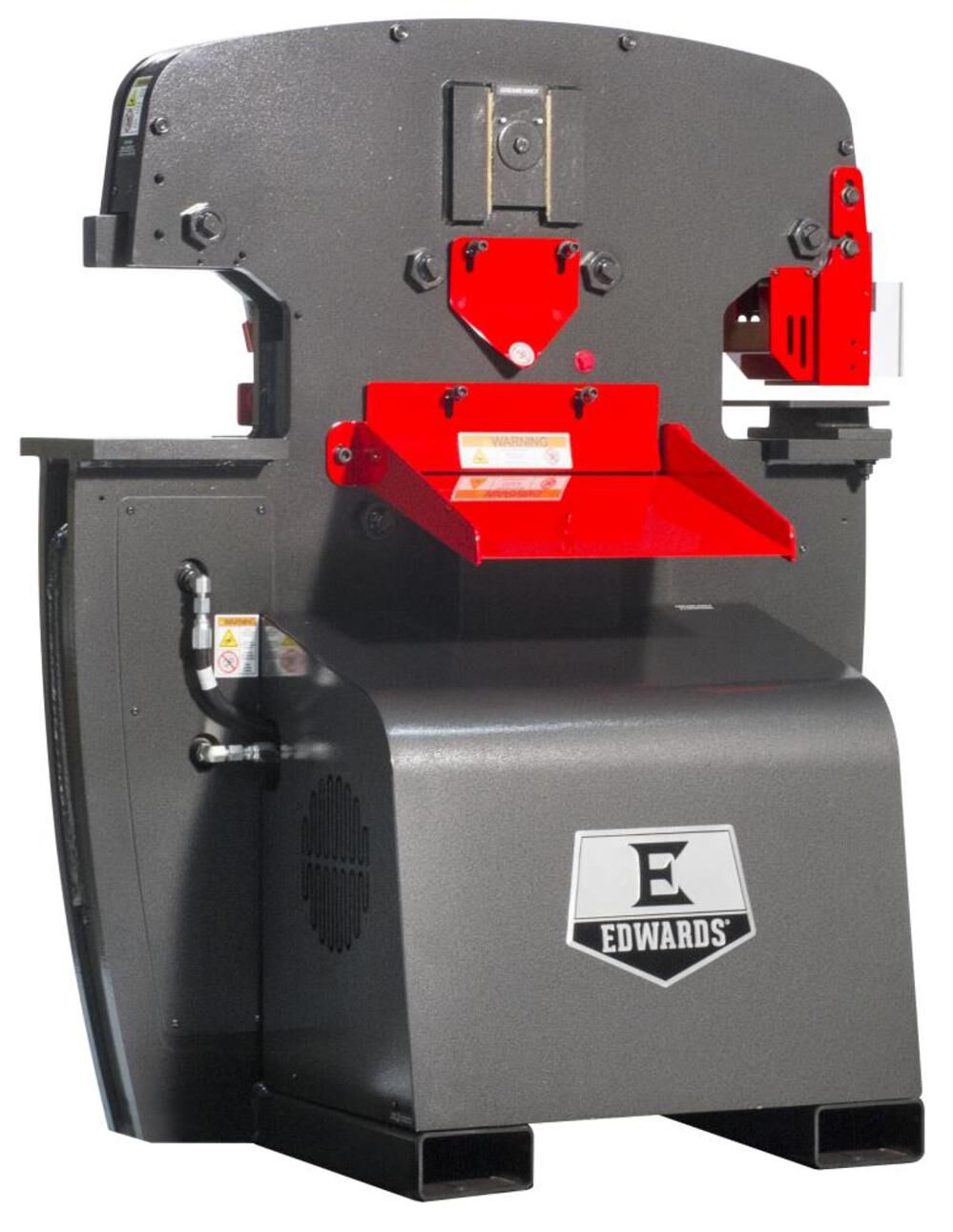

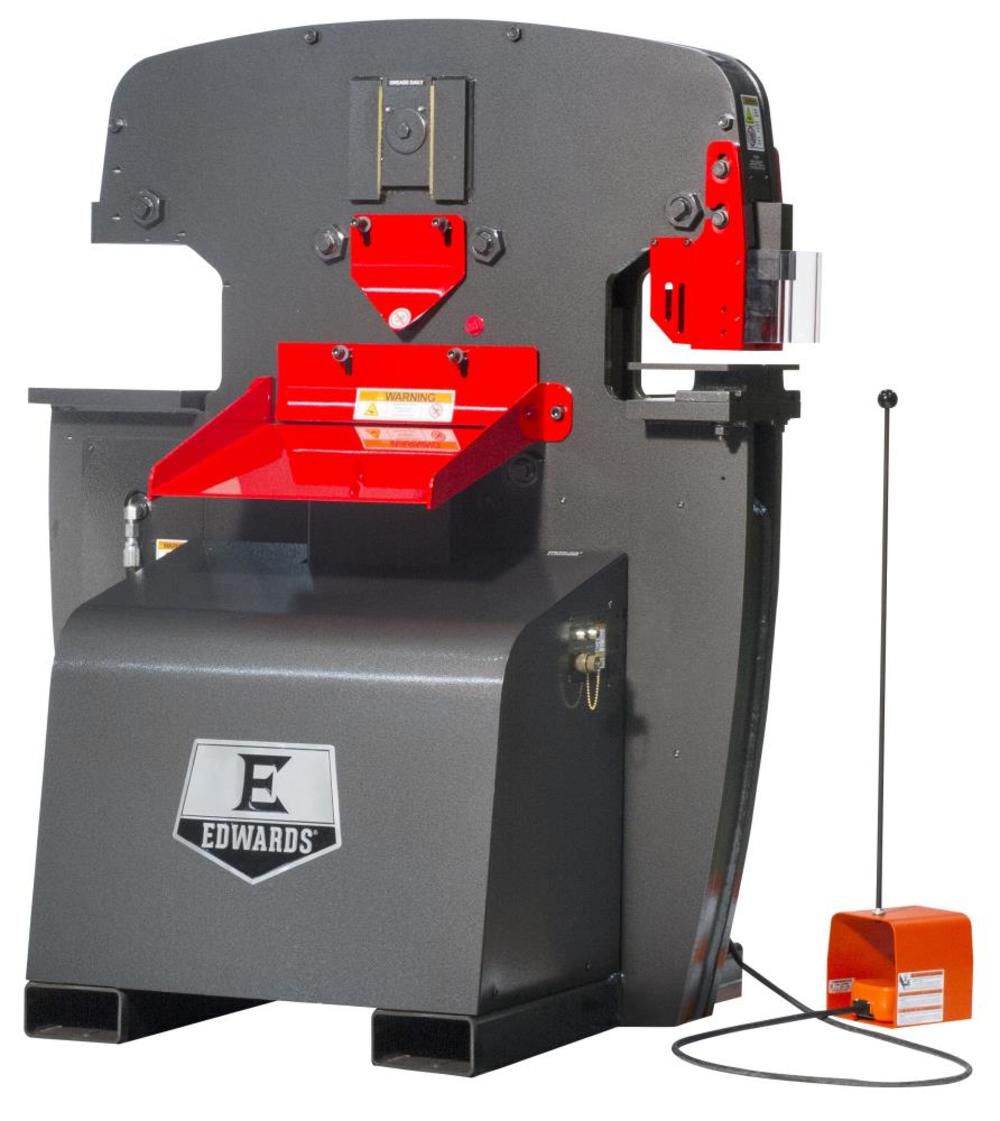

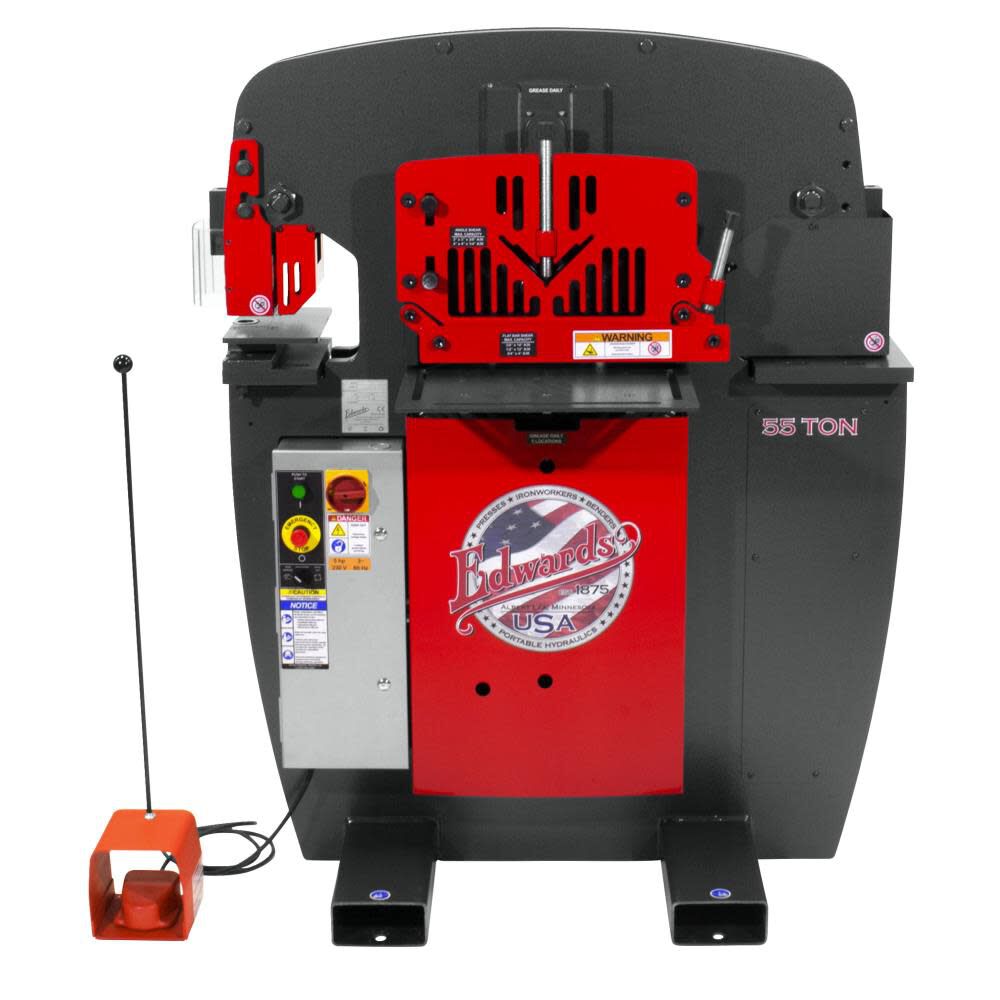

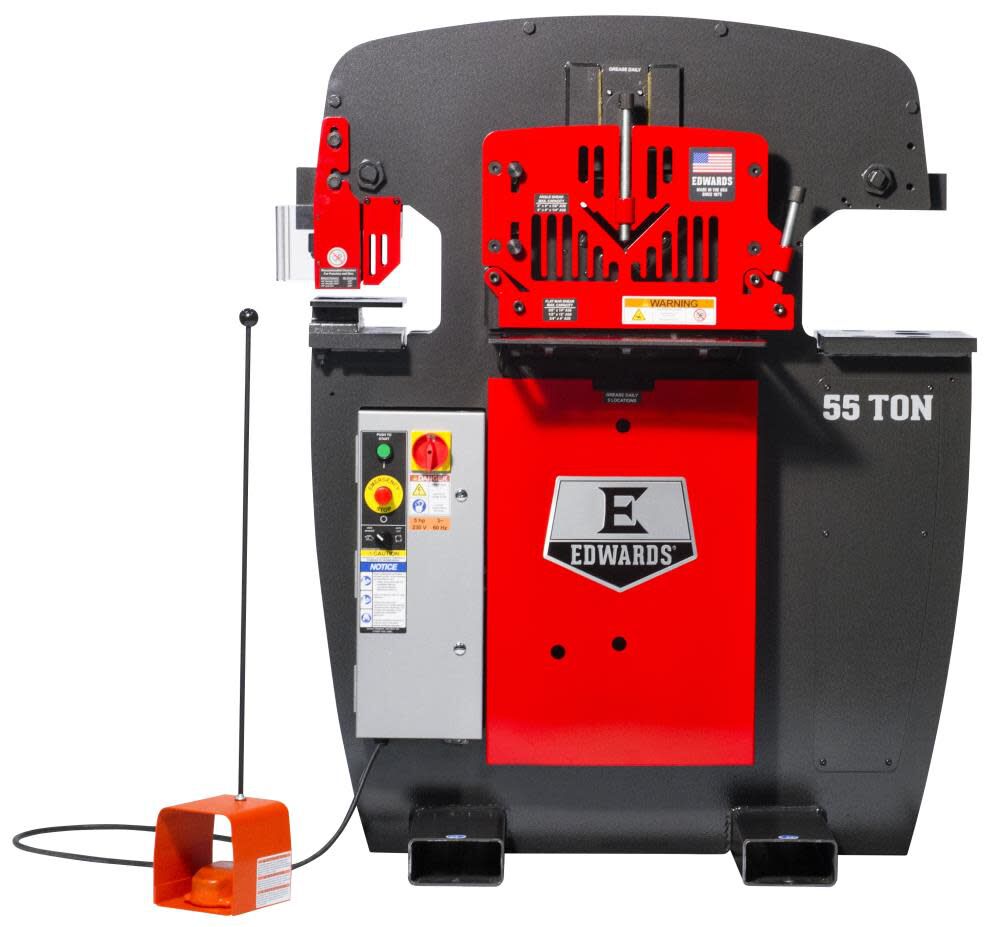

Edwards 55 Ton Ironworker 1 Phase 230 Volts
Our best seller four available workstations universal open tooling station electric stroke control ANSI B11.5-1988R(02) compliant Jet/UL approved controls the Edwards 55 ton jaws ironworker is well suited to fit the needs of any FAB shop, large or small.
Standard features include a punch assembly with pedestal die table, flat bar shear, angle shear and a universal open tooling station designed to accept optional tooling accessories.
The optional hydraulic accessory pack allows your ironworker to act as a power source to our expanding line of innovative hydraulic accessory tools, such as the 10 ton tube/pipe bender, 20 ton shop press and 40 ton shop press.
California Proposition 65 Warning. View Warning LabelFeatures
- Our best seller
- Four available workstations
- Universal open tooling station
- Electric stroke control
- E.S.C.
- ANSI B11.5-1988R(02) compliant
- Jet/UL approved controls
- The Edwards 55 ton jaws ironworker is well suited to fit the needs of any FAB shop, large or small. standard features include a punch assembly with pedestal die table, flat bar shear, angle shear and a universal open tooling station designed to accept optional tooling accessories.
- The optional hydraulic accessory pack allows your ironworker to act as a power source to our expanding line of innovative hydraulic accessory tools, such as the 10 ton tube/pipe bender, 20 ton shop press and 40 ton shop press.
Specifications
Brand Name - Edwards
Amperage (A) - 14.0
ANSI Safety Listing - Yes
Assembled Weight (lbs) - 2480.0
California Proposition 65 Warning Required - Yes
Capacity - 110000 Lbs
Color - Gray
Country of Origin - United States
CSA Certified - No
ETL Listed - Yes
Horsepower (hp) - 5.0
MFG Part # (OEM) - IW55-1P230
Maximum Diameter (in) - 1.0625 in
Maximum Flow Rate (gpm) - 3.5
Maximum RPM - 1725
Overall Height (in) - 62.0
Overall Length (in) - 45.0
Overall Width (in) - 51.0
Package Contents - 55 Ton Ironworker 1 Phase 230 Volts
Package Depth - 12
Package Height - 36.5
Package Weight - 2480.0
Package Weight (lbs) - 2480
Phase - Single Phase
Pressure Rating (psi) - 2500
Product Condition - New
Tank Capacity (gal) - 7
UL Listed - Yes
UPC - 731325556308
Voltage - 230
Warranty Type - 1 Year
Weight (lbs) - 2480.0
