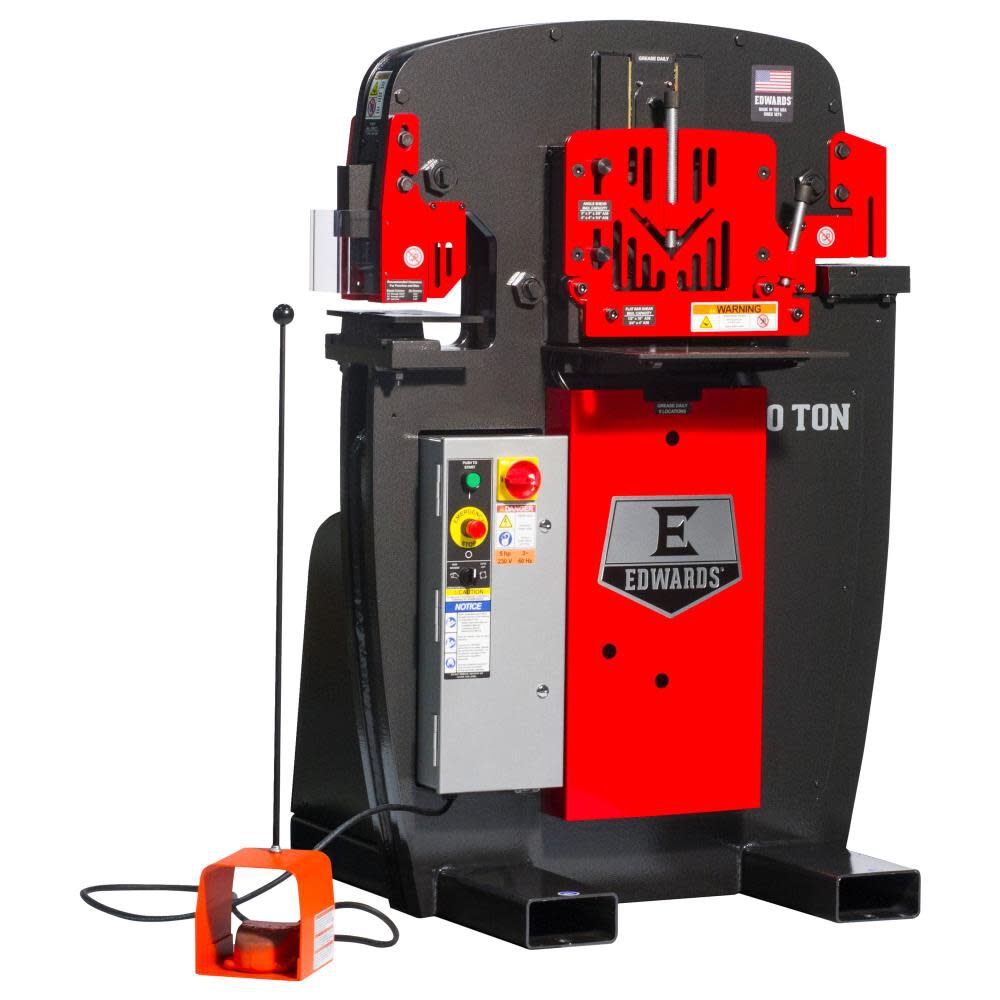

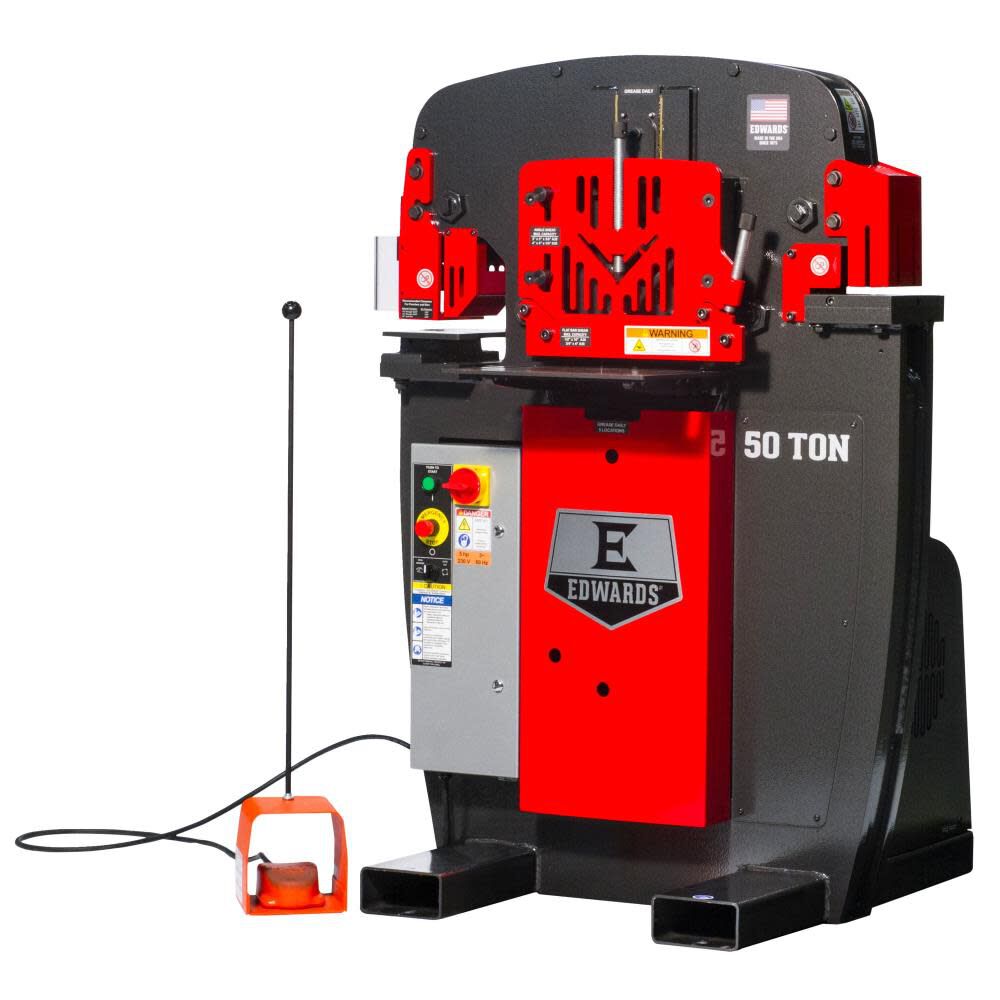

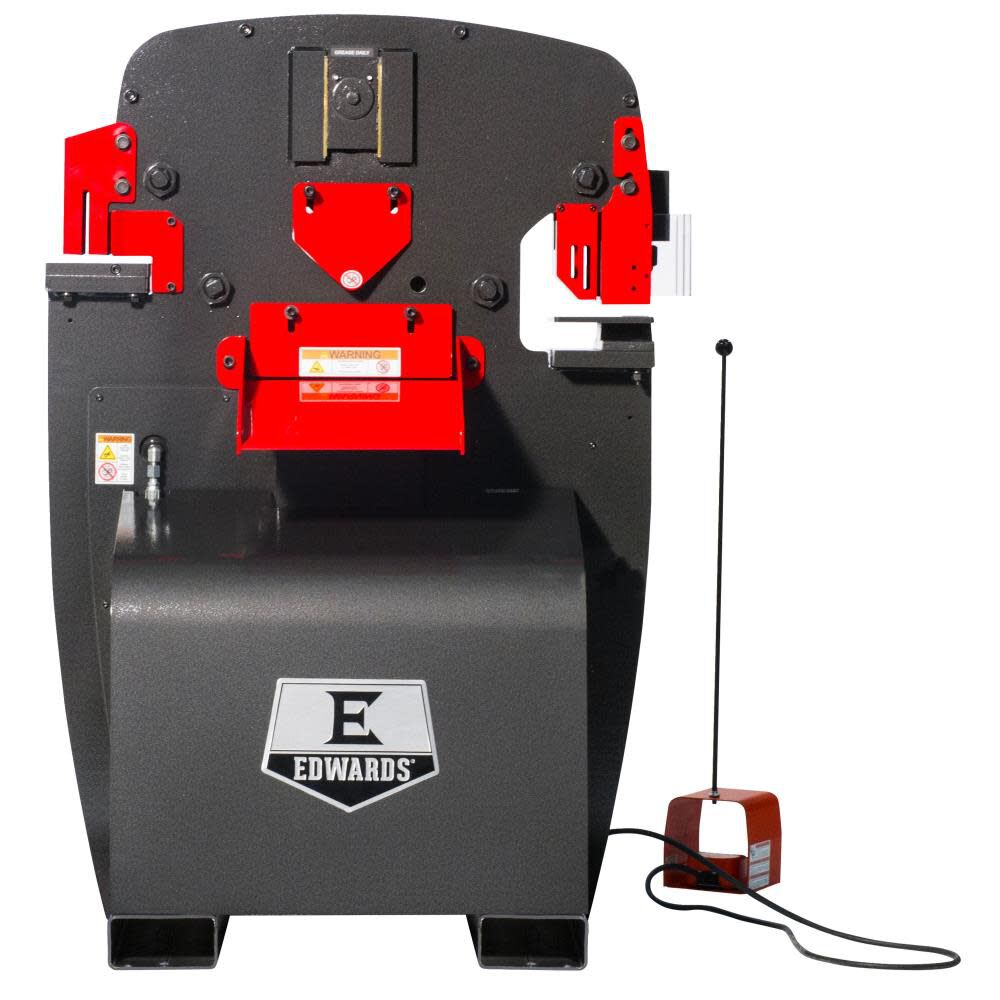

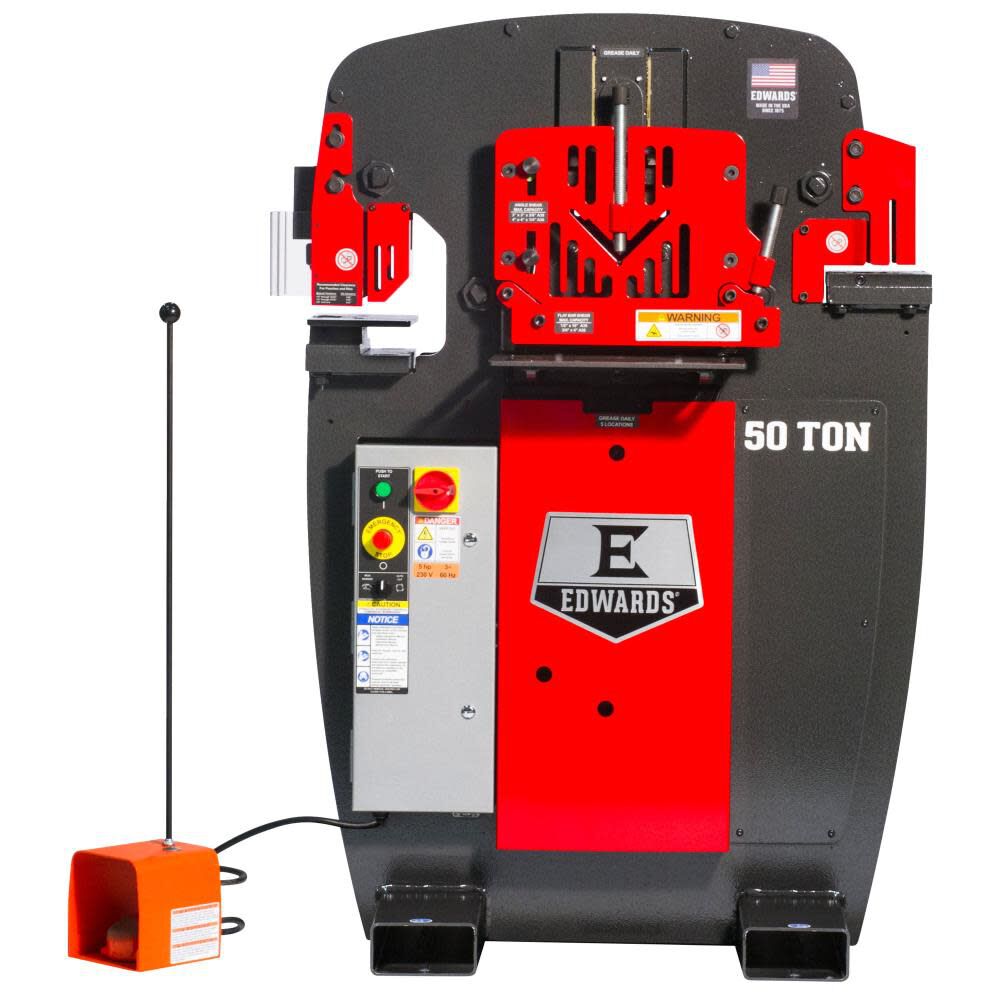

Edwards 50 Ton Ironworker 3 Phase 460 Volts
Compact and versatile four available workstations punch assembly designed for optional tooling dedicated coper notcher station electric stroke control ANSI B11.5-1988R(02) compliant
Features
- Compact and versatile
- Four available workstations
- Punch assembly designed for optional tooling
- Dedicated coper Notcher station
- Electric stroke control
- ANSI B11.5-1988R(02) compliant
- Jet/UL approved controls
- The Edwards 50 ton jaws ironworker is the ideal ironworker for the small shop that needs a powerful, versatile tool for all kinds of tasks. standard features include a punch assembly with pedestal die table, flat bar shear, angle shear and a dedicated coper Notcher station.
- The optional hydraulic accessory pack allows your ironworker to act as a power source to our expanding line of innovative hydraulic accessory tools, such as the 10 ton tube/pipe bender, 20 ton shop press and 40 ton shop press.
Specifications
Brand Name - Edwards
Amperage (A) - 7.0
ANSI Safety Listing - Yes
Assembled Weight (lbs) - 2020.0
California Proposition 65 Warning Required - Yes
Capacity - 100000 Lbs
Color - Gray
Country of Origin - United States
ETL Listed - Yes
Horsepower (hp) - 5.0
MFG Part # (OEM) - IW50-3P460
Maximum Diameter (in) - 1.0 in
Maximum Flow Rate (gpm) - 3.5
Maximum RPM - 1725
Overall Height (in) - 62.0
Overall Length (in) - 45.0
Overall Width (in) - 51.0
Package Contents - Notcher
Package Depth - 0
Package Height - 0
Package Weight - 2020.0
Package Weight (lbs) - 2020
Pressure Rating (psi) - 2500
Product Condition - New
Tank Capacity (gal) - 7
UL Listed - Yes
UPC - 731325556254
Voltage - 460
Warranty Type - 1 Year
Weight (lbs) - 2020.0
