Description
Description

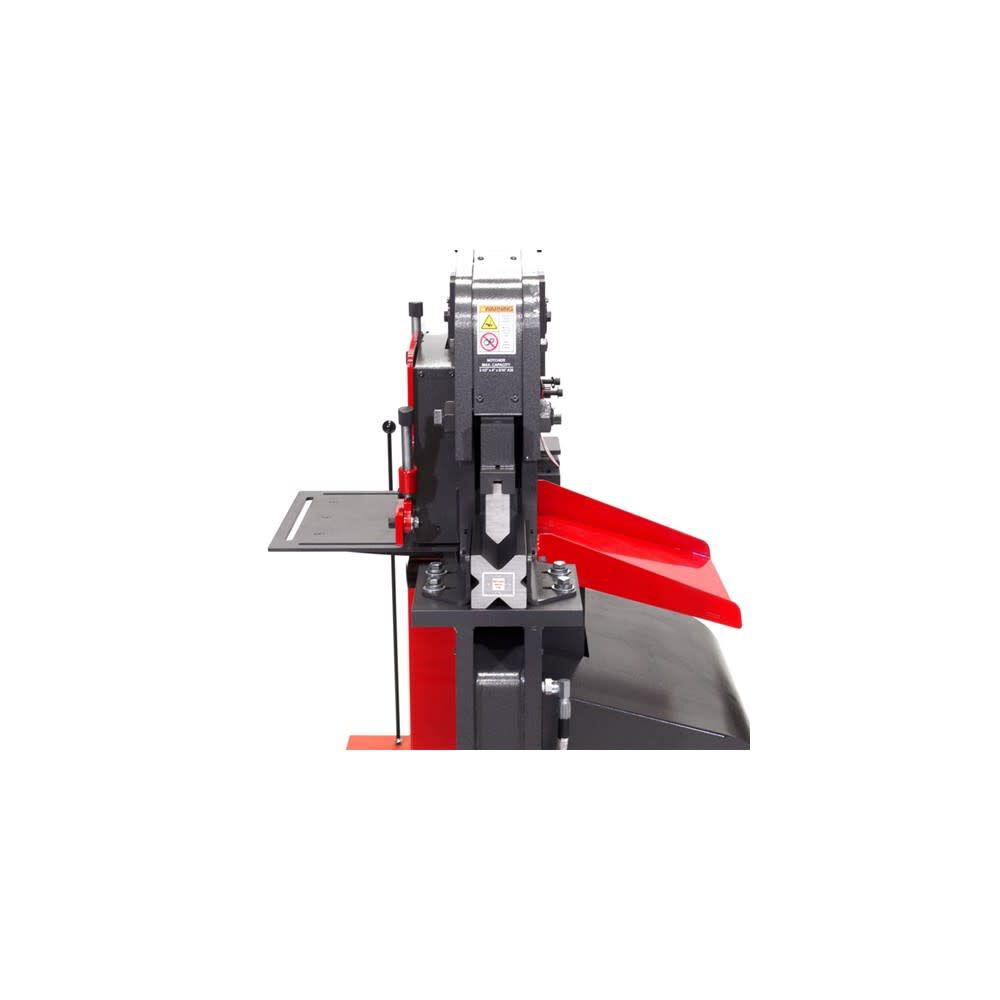

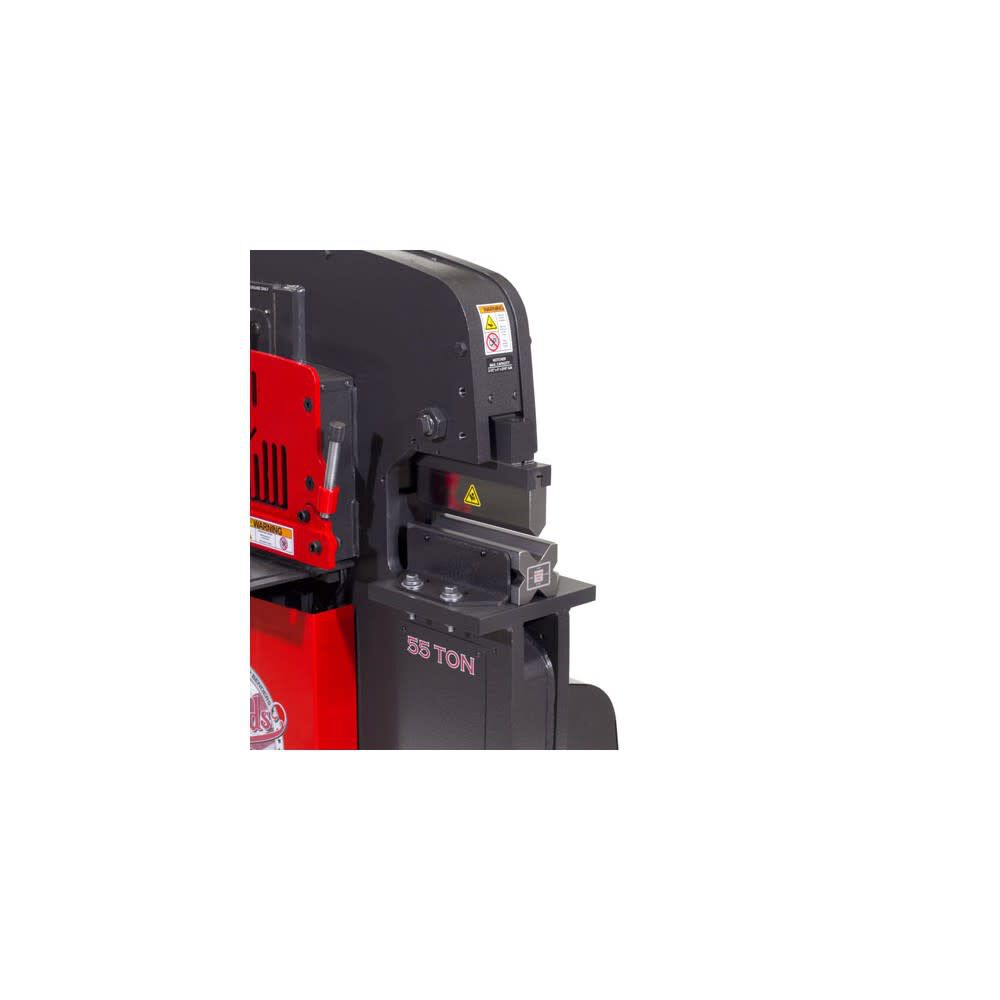

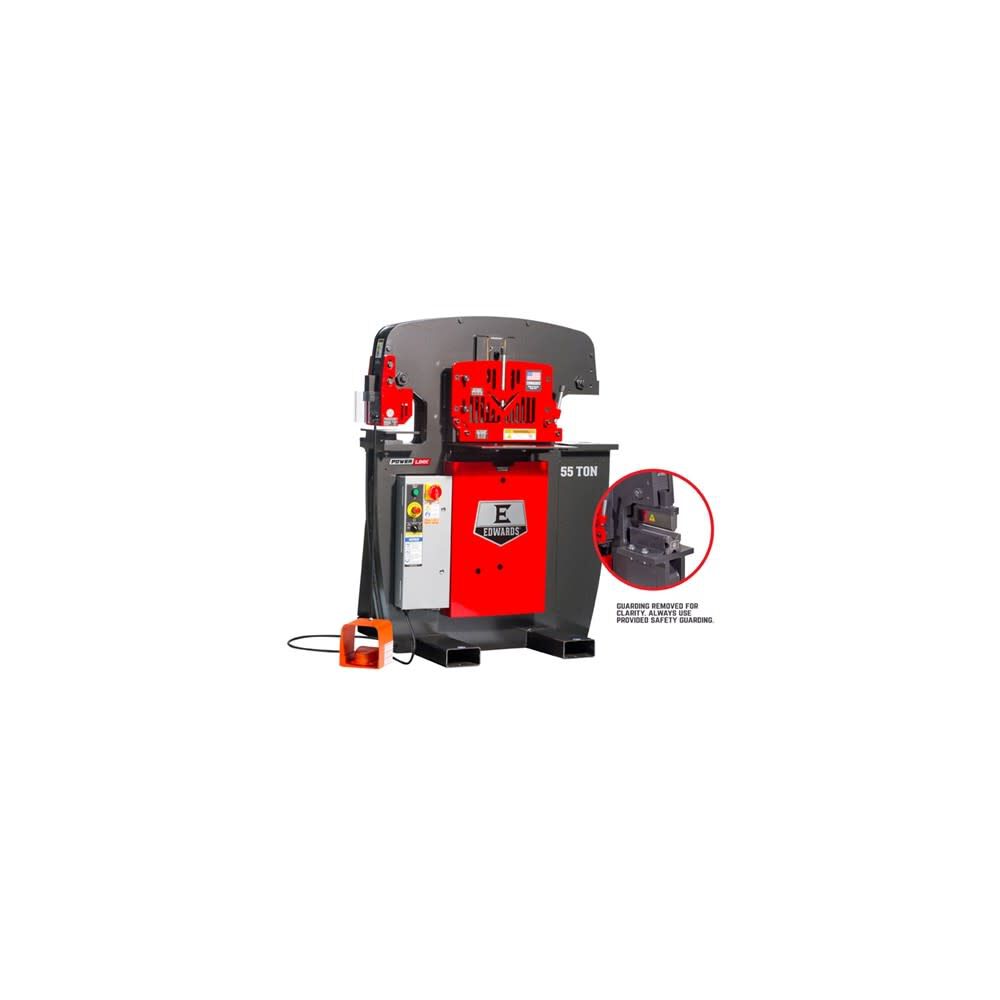

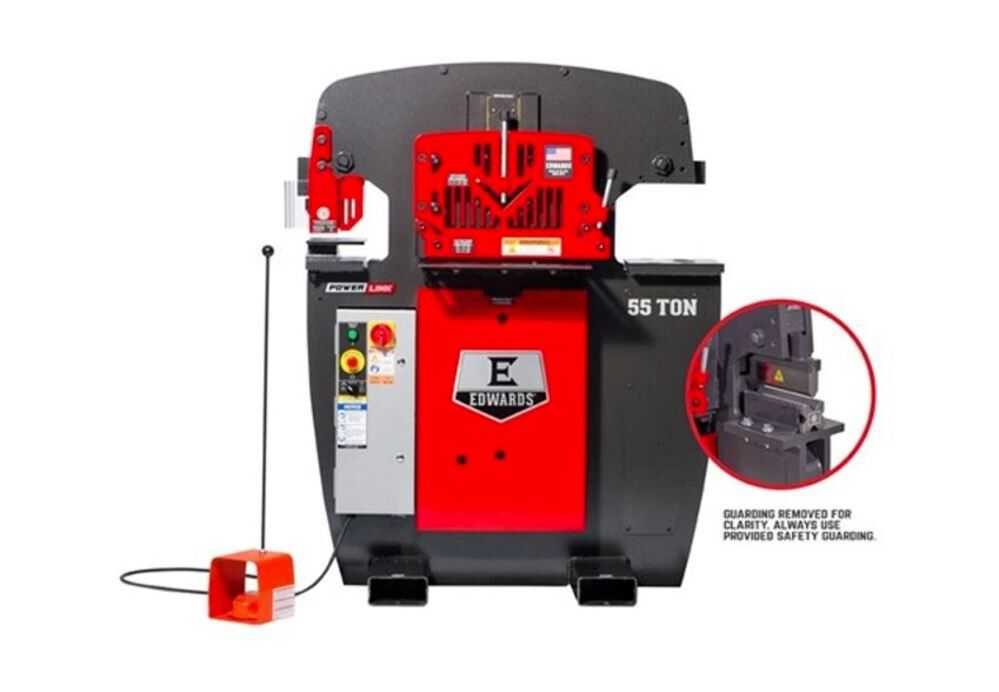

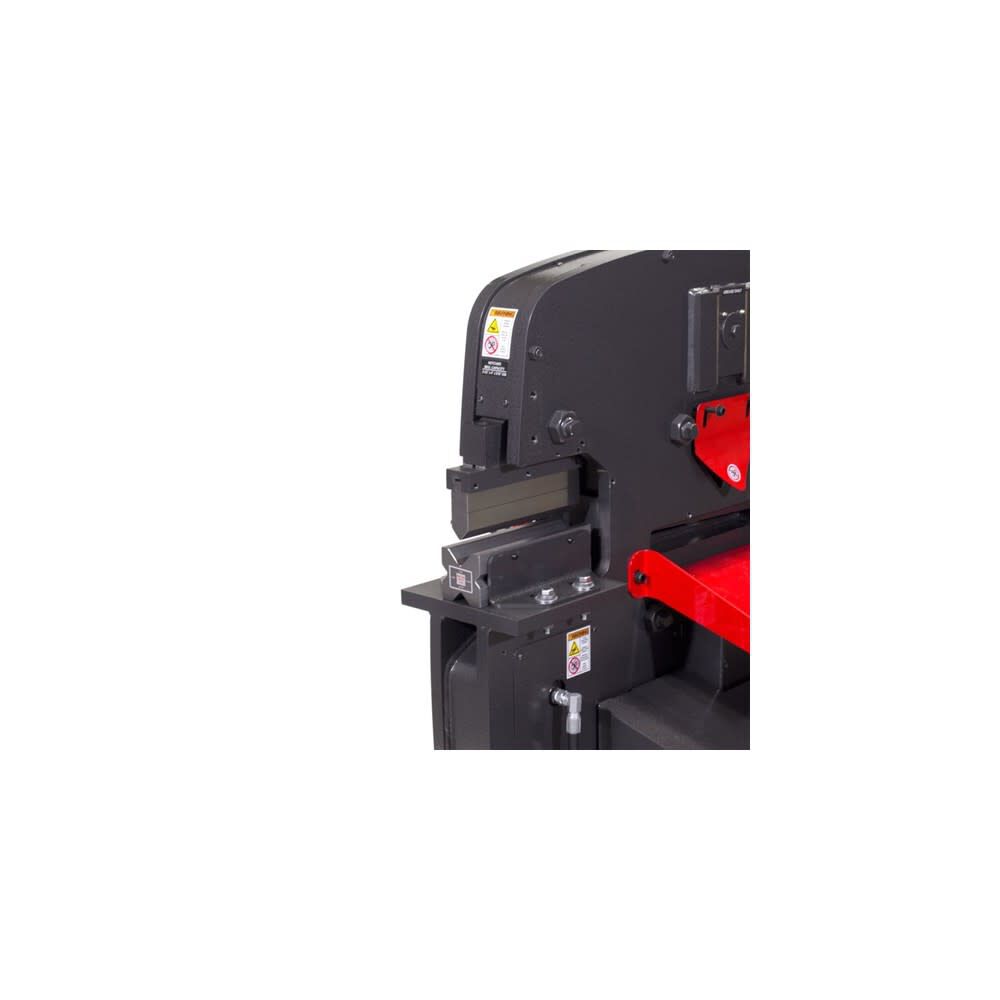

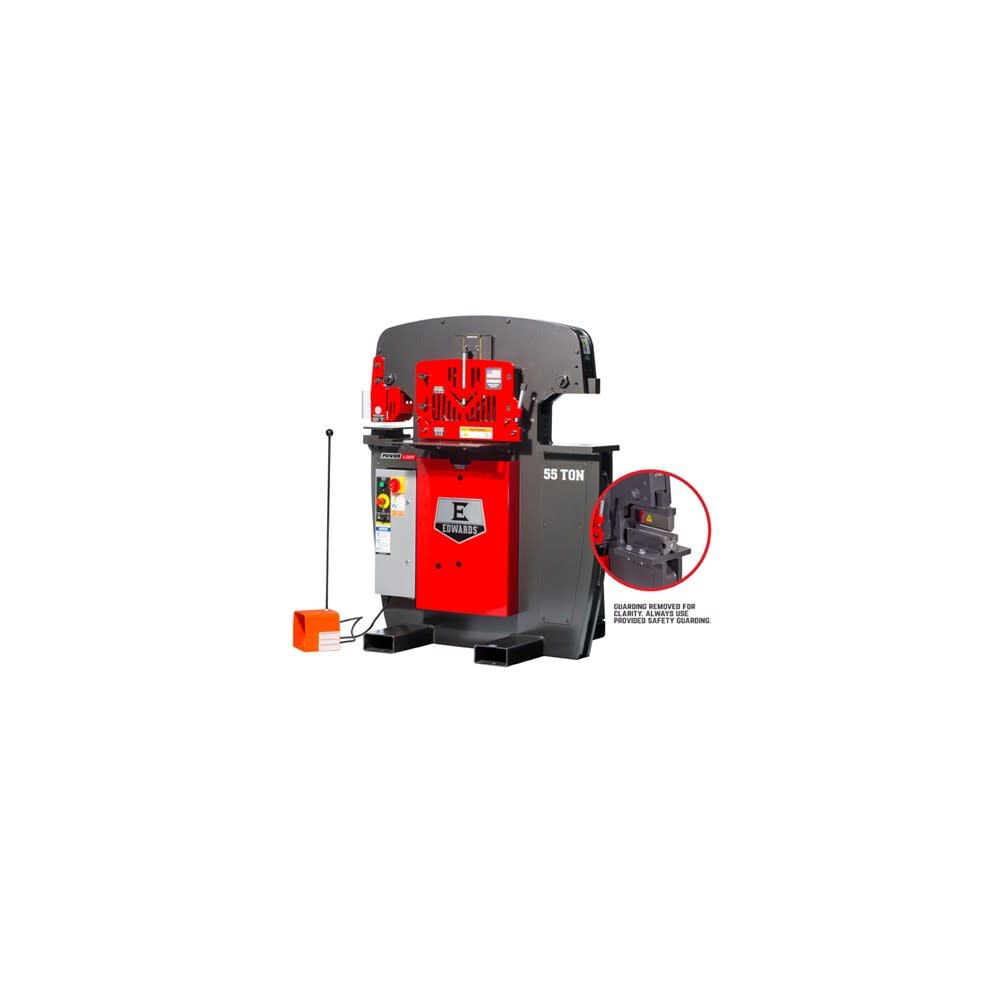

Edwards 230V 1 Phase 55 Ton Ironworker with 10in Brake
The Edwards 55 Ton Ironworker is well suited to fit the needs of any fab shop, large or small.
Standard features include a punch assembly with pedestal die table, flat bar shear, angle shear and a universal open tooling station designed to accept optional tooling accessories.
This 55 Ton Ironworker package includes a factory-installed 10 In.
Brake with 4-way die allowing 1/16 In., 1/8 In., 3/16 In.
And 1/4 In.
Material to be formed to a 90 Deg angle.
California Proposition 65 Warning.Features
- Four Workstations: Standard (3) - Punch, Flat bar shear & angle shear, Open (1) - Factory installed 10 In. brake
- Includes a factory-installed 10 In. brake with 4-way die allowing 1/16 In., 1/8 In., 3/16 In. and 1/4 In. material to be formed to a 90 Deg angle
- 12 interchangeable attachments available
- 17 optional accessories available
- ANSI B11.5-1988(02) compliant guarding
- ETL certified controls
- Integrated lock-out/tag-out system with E-Stop for added safety
- Edwards 230V 1 Phase 55 Ton Ironworker with 10 In. Brake
Specifications
Brand Name - Edwards
Amperage (A) - 23
ANSI Safety Listing - Yes
Assembled Weight (lbs) - 2480
Country of Origin - United States
ETL Listed - Yes
Horsepower (hp) - 5
MFG Part # (OEM) - 55231022
Maximum Diameter (in) - 1.0625 in
Maximum Pressure Rating (psi) - 2500
Maximum RPM - 1725
Package Contents - 230V 1 Phase 55 Ton Ironworker with 10 In. Brake,Ironworker with 10 In. Brake,Notcher
Package Depth - 36.125
Package Height - 55.25
Package Weight - 2480
Phase - 1
Product Condition - New
Stroke Length (in) - 1.25
UL Listed - Yes
UPC - 731325763089
Voltage - 208
Warranty Type - 1 Year
Weight Capacity (lbs) - 2480
