Description
Description

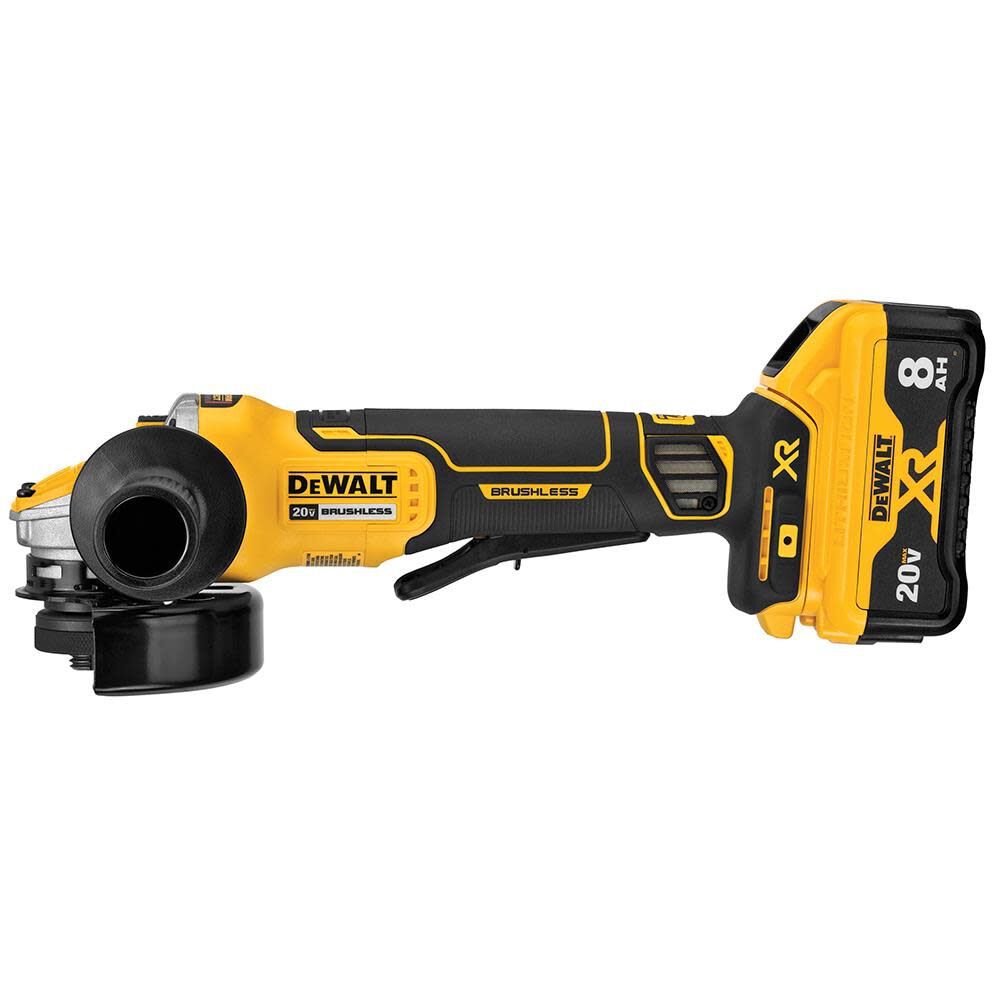

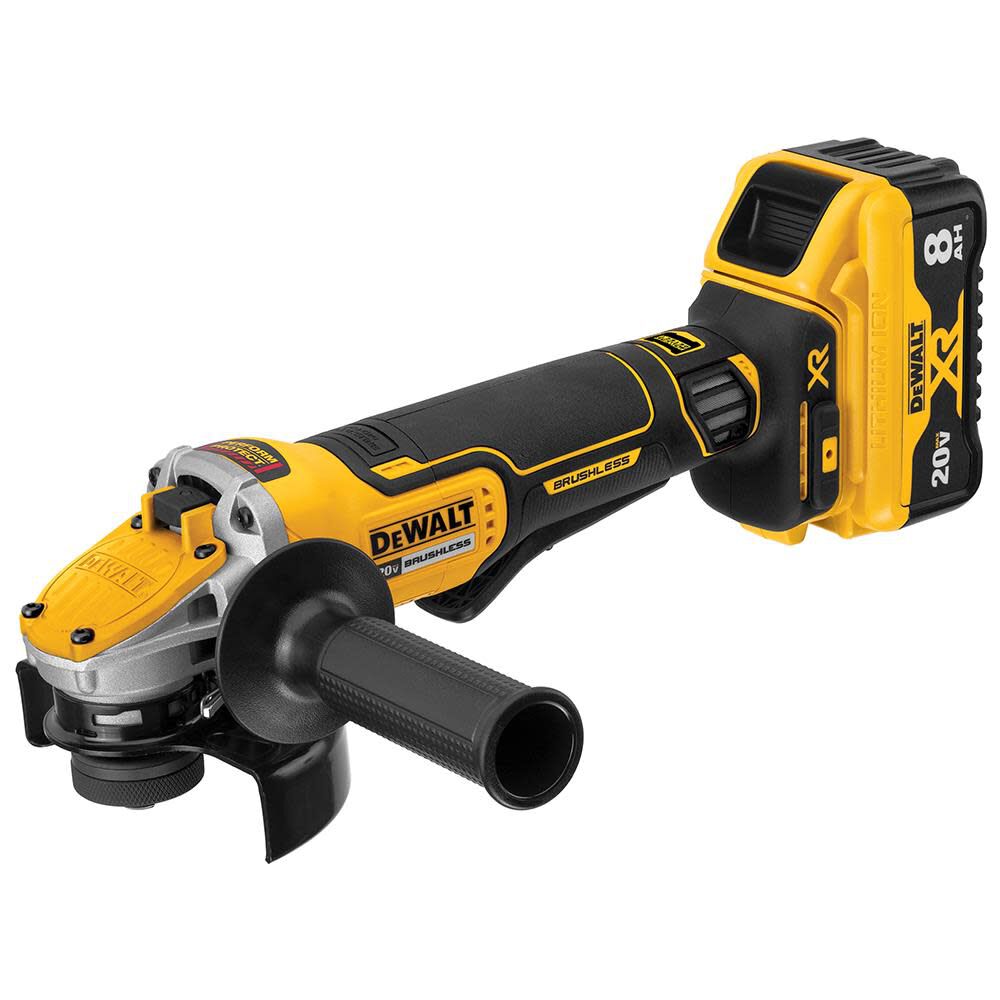

This 20V MAX XR Cordless Small Angle Grinder features POWER DETECT technology to maximize performance with high-capacity XR batteries.
The brushless motor delivers 1350-max watts out and up to 9,000-rpm.

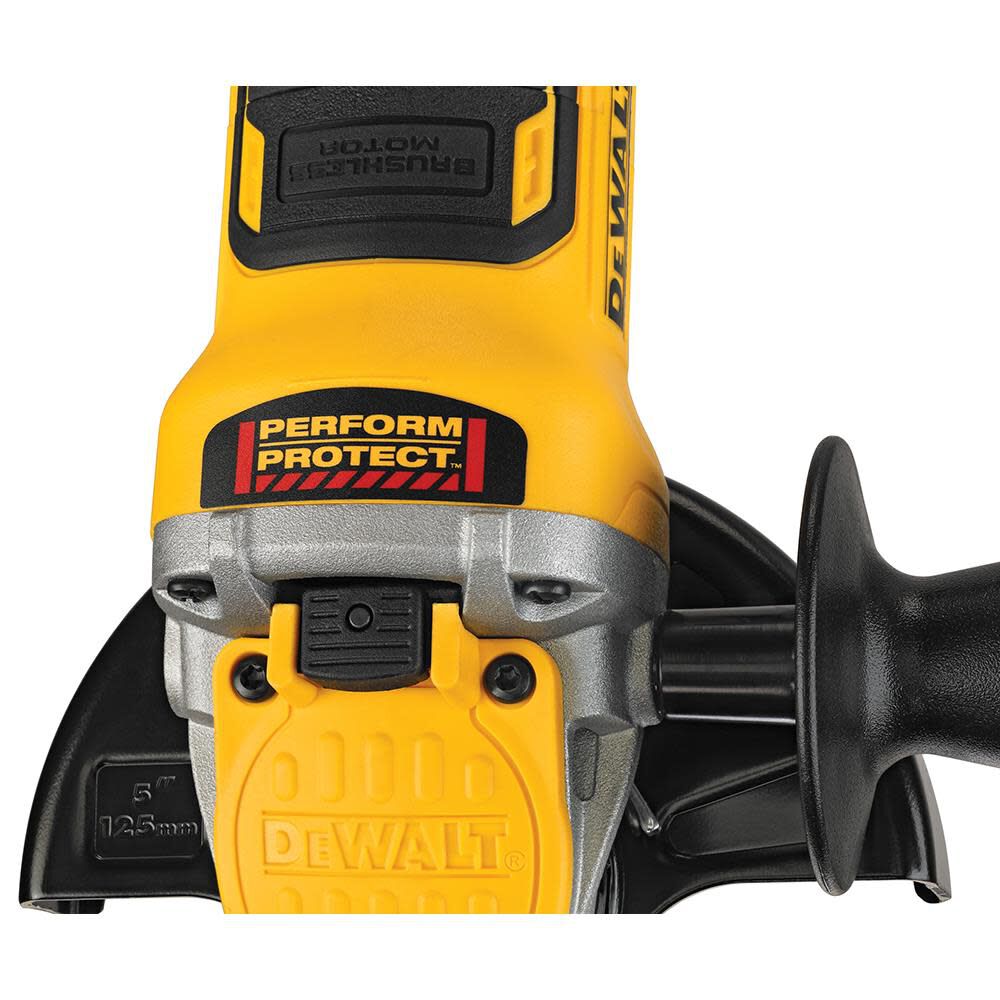

This cordless grinder is part of our PERFORM and PROTECT product line.
It provides Kickback Brake and the Anti-Rotation E-CLUTCH system to help increase user protection.

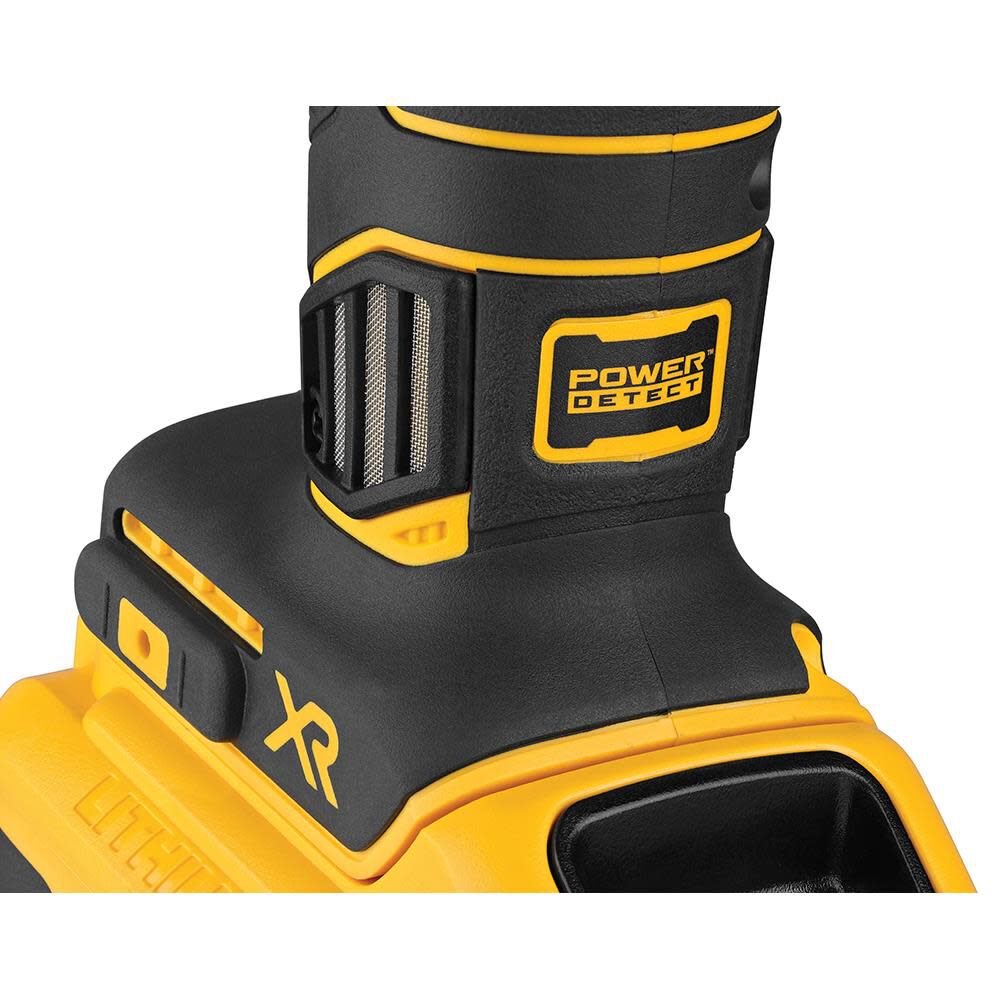

POWER DETECT tools maximize performance with high-capacity XR batteries
Up to 40% more power
Kickback Brake engages with maximum force to quickly stop the wheel and shut off the grinder when a pinch, stall, or bind-up occurs to reduce the risk of damage or injury
The Anti-Rotation E-CLUTCH® system detects motion of the tool and shuts it down in bind-up situations, helping minimize sudden torque reaction compared to standard clutches
E-Switch Protection™ requires the trigger switch to be cycled (turned off and then on) to restart tool in the event of a power outage or other unexpected shutdowns
Up to 40% more power: Compared to DCG413 with a DCB205 20V MAX XR® Battery
Maximum initial battery voltage (measured without a workload) is 20 volts.
Nominal voltage is 18
Specifications
Battery Voltage: 20-volt max
Color/Finish Family: Yellow
Sub-Brand: XR POWER DETECT
Type: Angle grinder
Dimensions
Arbor Diameter: 5/8-in
Cord Length (Feet): 0
Length (Inches): 12.2
Weight (lbs.): 3.87
Wheel Diameter (Inches): 5
Width (Inches): 9.84
Features
Accessories Included: Yes
Adjustable Handle: Yes
Amperage (Amps): 0
Base Material: Plastic
Battery Type: Lithium ion (Li-ion)
Brushless: Yes
Case Type: Bag
Charge Time (Hours): 0.75
Charger Included: Yes
Cordless: Yes
Electronic Speed Control: Yes
Gearing Type: Metal gears
Grinding Wheel Included: No
Handle Type: 2-position side handle
Housing Material: Plastic
Hybrid Capable: No
Maximum RPM (RPM): 9000
Motor Bearings: Metal
Number of Batteries Included for Tool: 1
Overload Protection: Yes

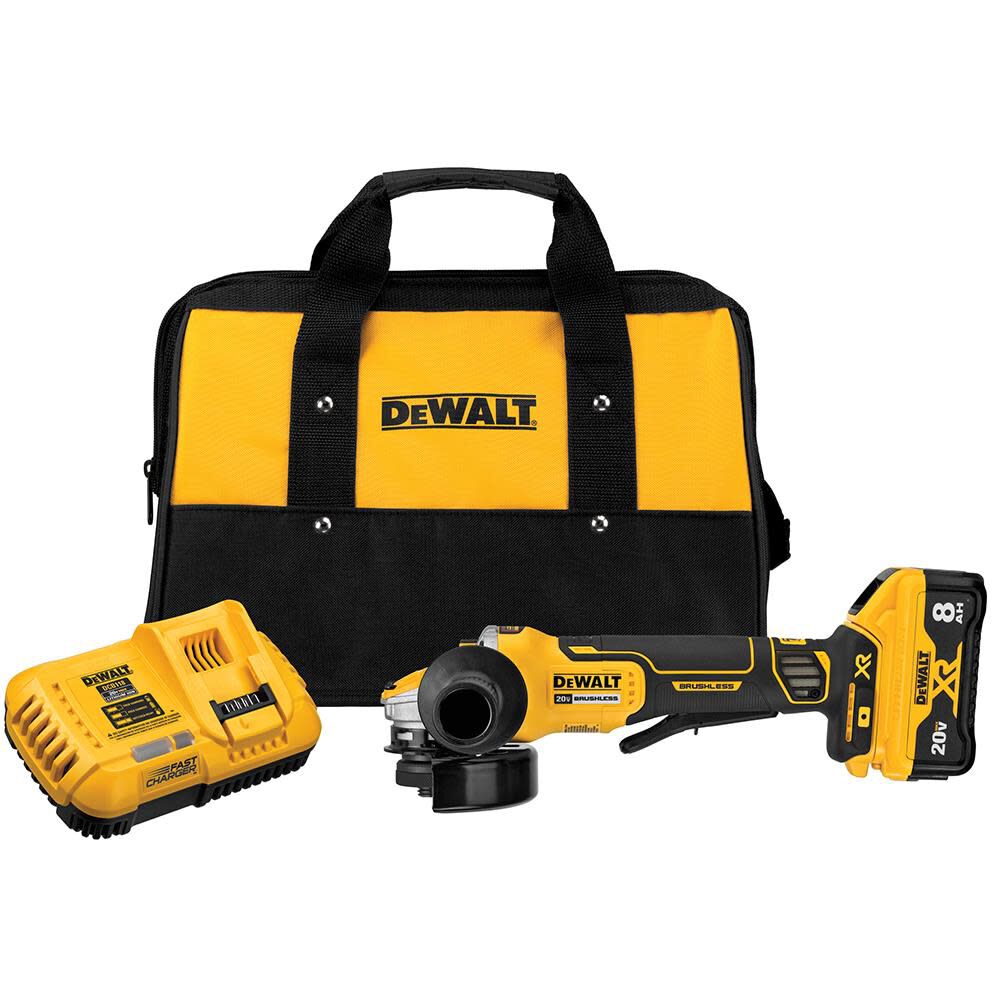

Package Contents: (1) DCG514 20V MAX XR Brushless 4-1/2 - 5 in Grinder With POWER DETECT, (1) DCB208 20V MAX Li-ion 8.0Ah Battery, (1) Charger, (1) 5-in Type 27 Guard, (1) Side Handle, (1) Wrench, (1) Inner and Outer Flange, (1) Kit Bag
Replaceable Brushes: No
Side Handle: Yes
Spindle Lock: Yes
Switch Type: Paddle
Variable Speed: No
Compatibility
App Compatibility: No
Bluetooth Compatibility: No
Wi-Fi Compatibility: No
Works with Android: No
Works with iOS: No
Warranty
Warranty: 3-year limited
Certifications
CA Residents: Prop 65 Warning(s): Yes
Safety Listing: UL safety listing
Miscellaneous
UNSPSC: 27112700
