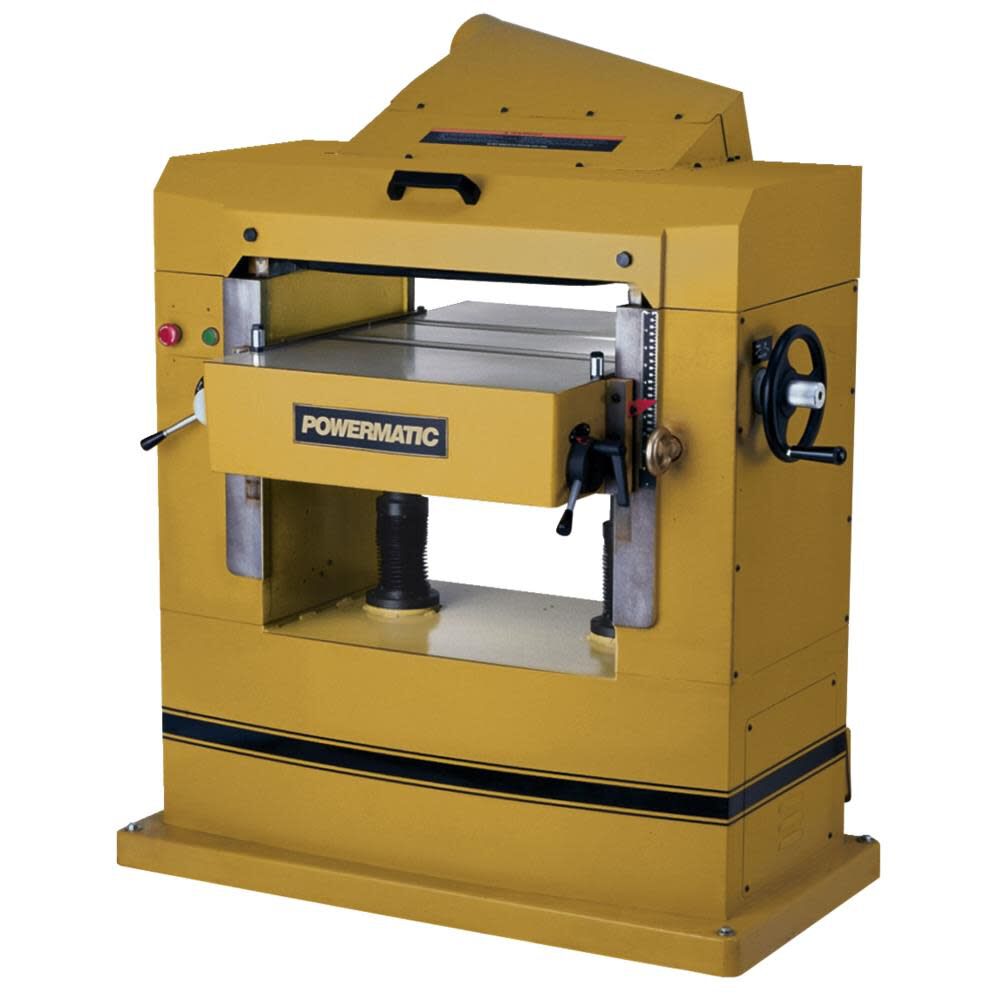

Powermatic 201HH 7.5HP 1Ph230V 22In Planer
This 1,300 Lb.
Heavy duty cast iron planer offers rock solid rigidity and accurate planing for years to come.
The hinged top allows easy access to the rollers and knives, and has a 5 In.
Dust port for easy attachment to any dust collection system.
The cutter head is a helical design with 150 four sided knife inserts these produce a superior finish and much quieter operation compared to conventional cutter heads, and the inserts are installed without further adjustments.
The anti-kickback fingers and pressure bar are located in close proximity to the cutter head for an exceptional finish.
Infeed and outfeed rollers are fitted with roller bearings for long life.
The sectional Infeed roller and chip breaker are specially designed to allow multiple boards to be planed at the same time.
The adjustable bed rollers facilitate both rough and finish planing.
The solid steel outfeed roller is machined with small serrations to insure a smooth finish yet provide positive feeding.
The two-speed gearbox with machined detents is quickly changed up front when switching from rough to finish work.
The massive, ribbed cast iron table is ground finished and rises smoothly via the hand wheel.
With a hefty 7-1/2 HP motor, the 201HH planer is perfect for the small to medium shop with continuous planing requirements.
California Proposition 65 Warning. View Warning LabelFeatures
- Helical cutter head with knife inserts provides smoother, quieter cutting and finer finish than conventional systems
- Cast iron 1300 lb. construction for solid performance without vibration
- 2 feed speeds - 20/30 pm - accommodates rough and fine finish work
- Segmented Infeed roller with sectional chip breaker allows multiple board planing
- Roller bearing-mounted feed rollers for long life
- Adjustable bed rollers allow smooth feeding of rough or finished workpieces
- Oversized cast iron table travels on 2 large lead screws for heavy duty support
- Dust chute with 5 port for dust collection
- Standard equipment
- Dust collection port
Specifications
Brand Name - Powermatic
Amperage (A) - 50.0
Assembled Weight (lbs) - 1350.0
Bench or Stationary - Stationary
Blade Count - 125
Blade Type - Four Sided Knife Inserts
California Proposition 65 Warning Required - Yes
Color - Gold
Country of Origin - Taiwan
CSA Certified - No
ETL Listed - No
Height (in) - 59.0
Horsepower (hp) - 7.5
MFG Part # (OEM) - 1791267
Maximum Cutting Depth (in) - 0.187
Maximum RPM - 4800.0
Maximum Width Cutting Capacity (in) - 22 in
Overall Weight (lbs) - 1350.0
Package Contents - 201HH 7.5HP 1Ph230V 22In Planer
Package Depth - 42.0
Package Height - 59.0
Package Weight - 1430.0
Package Weight (lbs) - 1430
Product Condition - New
UL Listed - No
UPC - 662755955853
Voltage - 230 Volts
Warranty Type - 5 Years
