1/4-in; 3/8-in; 1/2-in and 8mm 15-Amp 2.3-HP Variable Speed Combo Fixed/Plunge Corded Router with Hard Case MRC23EVSK

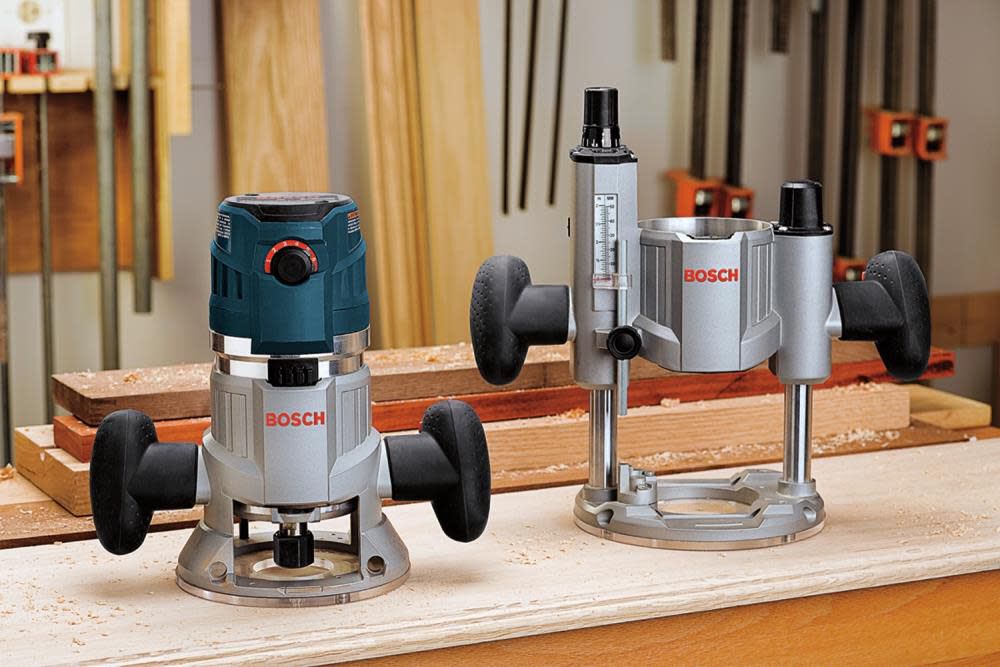

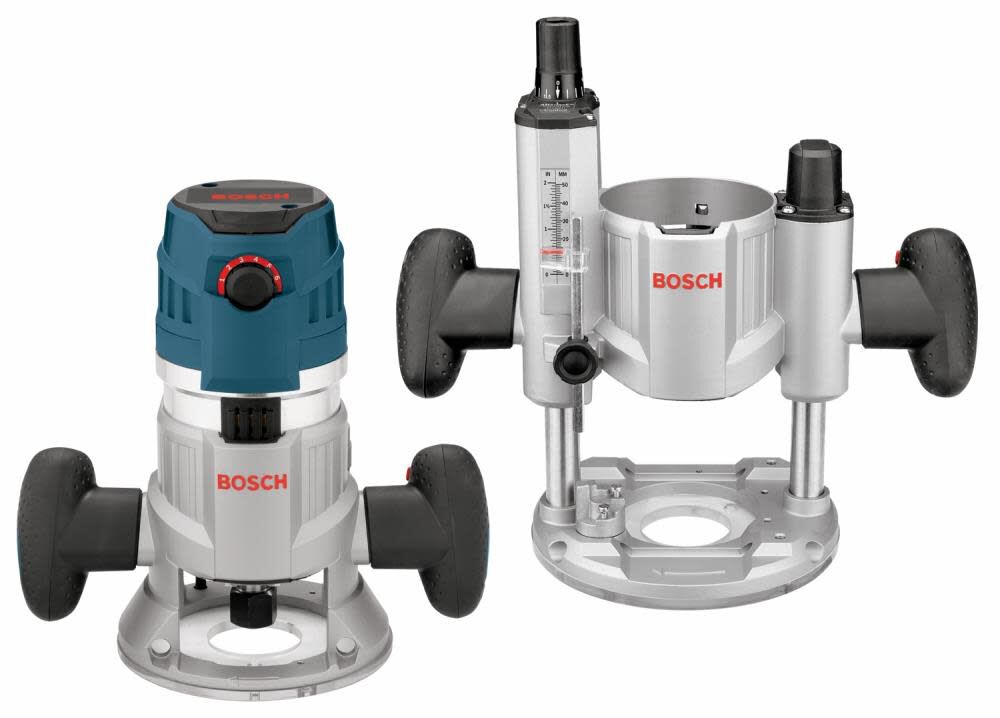

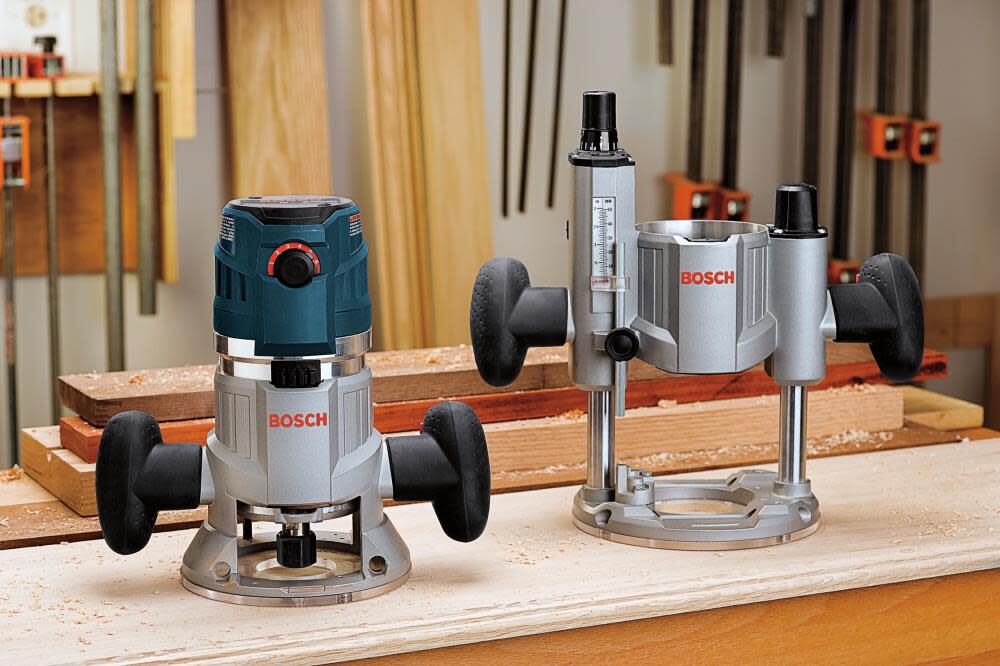

The Bosch MRC23EVSK 2.3 HP Electronic Modular Router System is an advanced set-up that provides a fixed base and a plunge base for the MR23EVS router.

This system allows for outstanding operator control, with the trigger-control system that has a power switch in both the plunge-base's and the fixed-base's handle.

The plunge base's Afterlock microfine bit-depth adjustment at any plunge setting allows for precision, with an adjustable turret stop makes it easy to set any cumulative depth.

With a smooth plunge action and a spring-lock plunge lever, this router gets accurate results.

The fixed base has microfine bit-depth adjustment, with a continuous depth range of 1-5/8 in., allowing for accurate and fast changes, while its precision-centering design allows the bit to be centered with the sub-base or optional template guides.

The router has a 15 Amp motor and adjustable speed settings.

The variable-speed dial allows the operator to match the speed to the material.

Constant Response circuitry delivers a constant speed throughout the cut.

Users can glide along the intended cutline using dovetail fixtures, templates, jigs and other guidance devices.

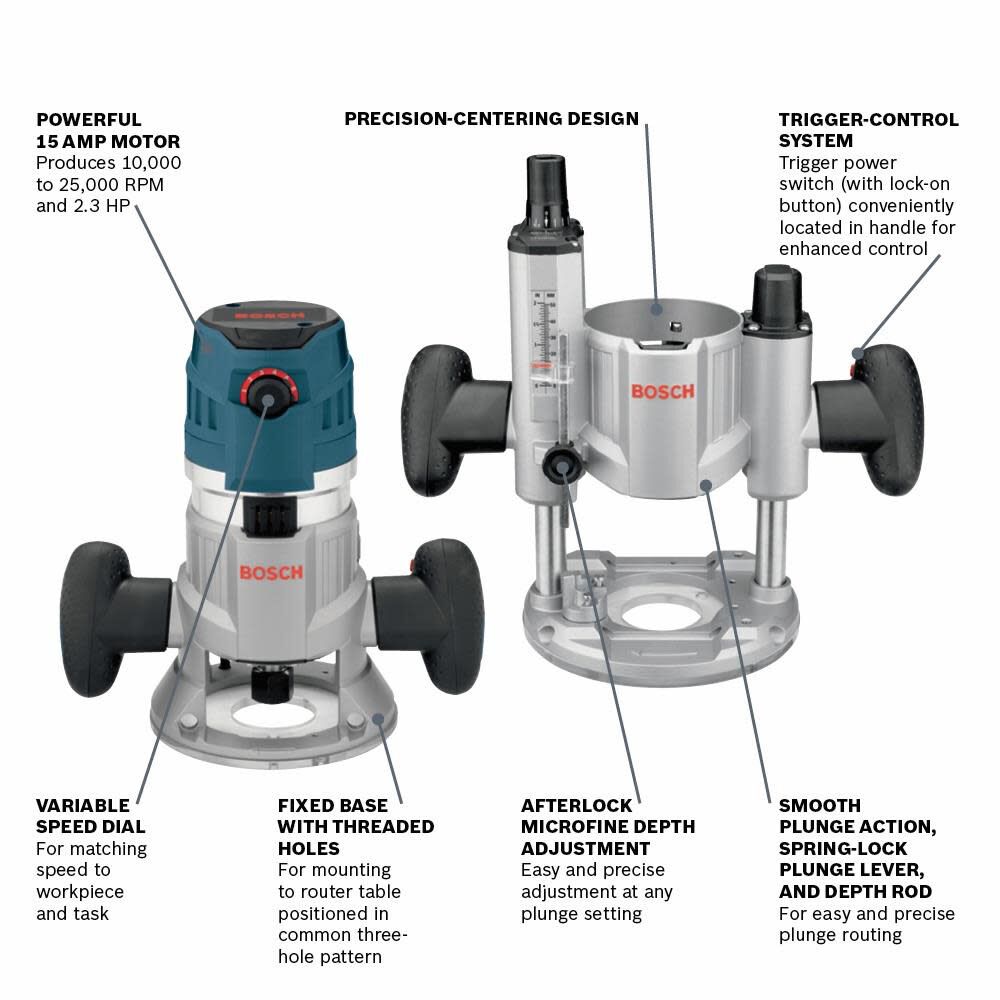

Trigger-control system – trigger power switch located in handle for enhanced control

Powerful 15 Amp motor – produces 10,000 to 25,000 RPM and 2.3 hp

Precision-centering design – makes it easy to keep bit on cut line

Afterlock plunge-base depth adjustment – easy, precise adjustments at any plunge setting

Versatile fixed-base depth adjustment – features 1-5/8 In continuous microfine adjustment range

Above-table depth adjustment when fixed base is installed in router table

Constant Response circuitry – maintains constant speed under load

Soft-start function – reduces start-up torque

Always-on LED lighting – for enhanced visibility in bit area

Specifications

Battery Voltage: N/A

Series Name: N/A

Sub-Brand: N/A

Type: Combo Fixed/Plunge

Dimensions

Above Table Height Adjustment: Yes

Base Diameter (Inches): 6.0000

Collet Size: 1/4-in; 3/8-in; 1/2-in and 8mm

Cord Length (Inches): 120.0000

Depth Adjustment: Yes

Depth Capacity (Inches): 3.0000

Weight (lbs.): 12.6000

Features

Accessories Included: Yes

Amperage: 15

Battery Included: No (bare tool)

Battery Type: N/A

Brushless: No

Case Type: Hard case

Charger Included: No

Cordless: No

Dust Collection: No

Electronic Speed Control: Yes

Fence Included: No

Handle Type: Side handles

Horsepower: 2.3

Maximum RPM: 25000

Number of Batteries Included: 0

Soft Start: Yes

Spindle Lock: No

Table Included: No

Variable Speed: Yes

Warranty

Warranty: 1-year limited

Certifications

CA Residents: Prop 65 Warning(s): No

Safety Listing: UL safety listing

Miscellaneous

UNSPSC: 27112700
