Description
Description

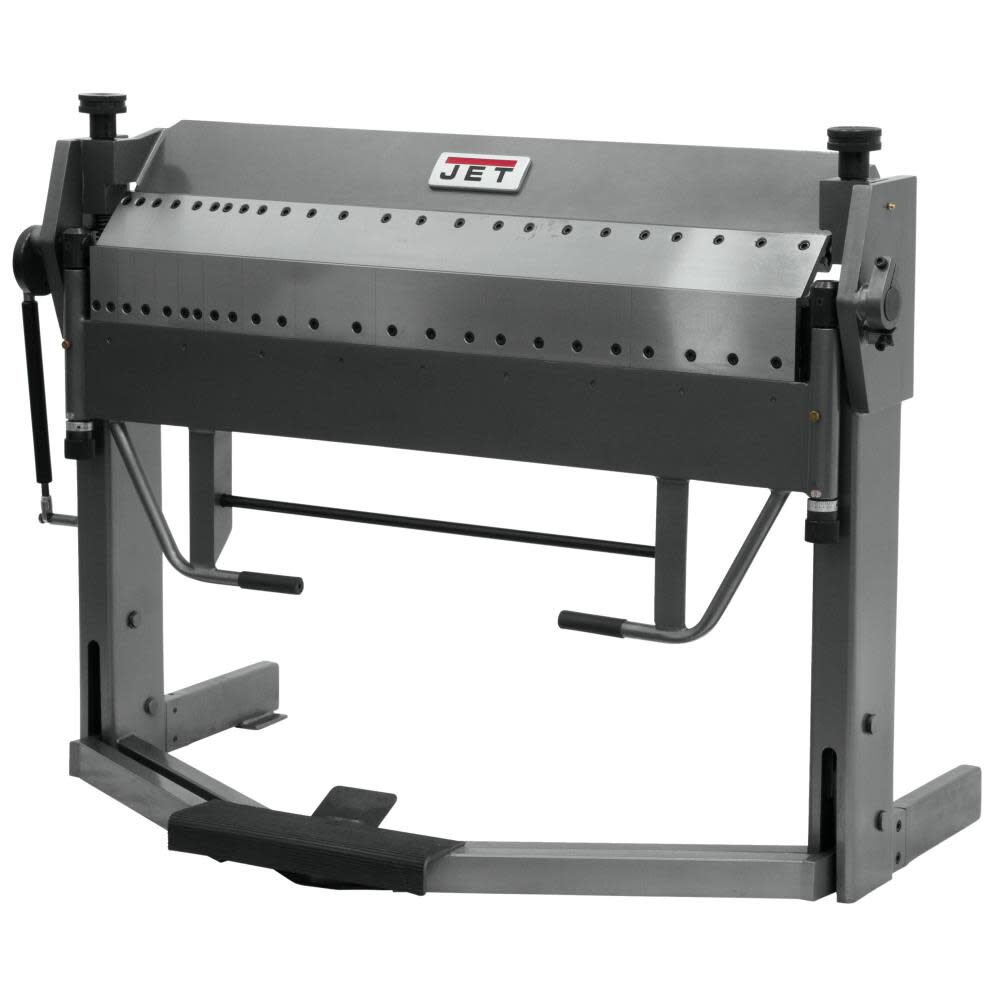

JET 16 Gauge 50 In.
Dual Sided Box and Pan with Foot Brake
Achieve bending precision and versatility along with rugged durability.
The dual-sided box and pan brake adapts to a wide range of applications.

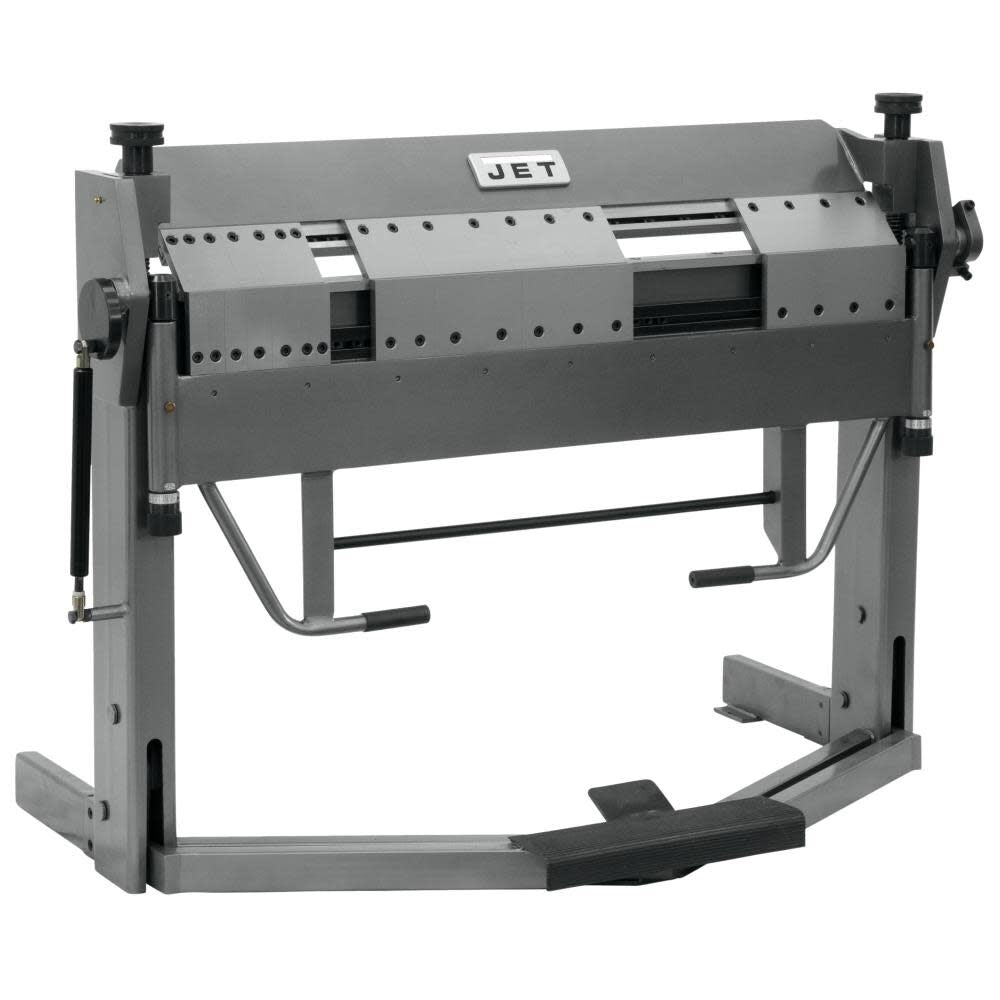

Easily add and remove upper and lower fingers for multiple bends.
The jet-exclusive graduated scale on each side improves accuracy when setting lower beam parallelism.
California Proposition 65 Warning. View Warning LabelFeatures
- All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and durability
- Hardened and ground fingers
- Rubber stops on rear of lower arm to prevent contact with support frame

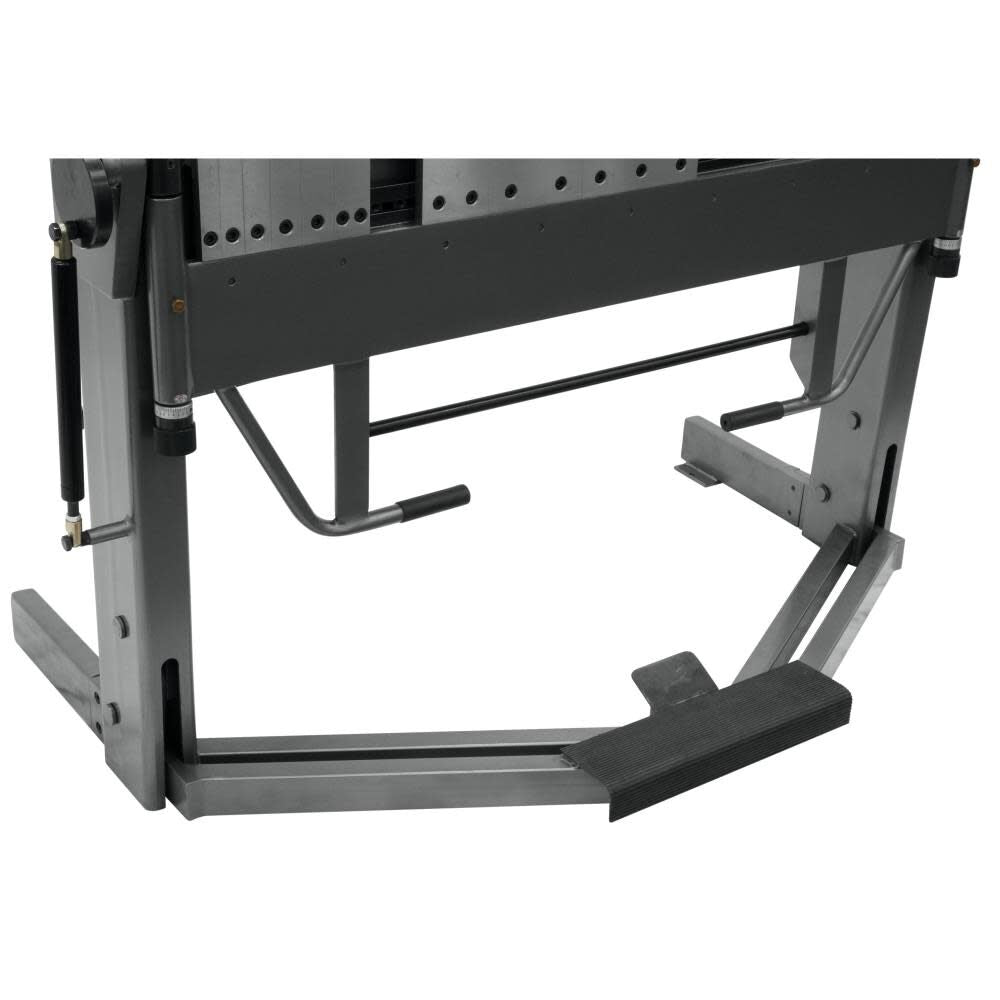

- Non-skid foot pedal
- Set lower beam parallelism more accurately with graduated scale on each side
- Removable upper fingers and on the apron for greater versatility in making custom bends
- Repeat bends are easy with a quick turn of the stop collar on the stop rod
- Hydraulic spring to assist in raising the apron reduces strain on the operator
- Large easy to use foot clamp allows the operator hands free clamping
Specifications
Brand Name - JET
Assembled Weight (lbs) - 772
Bend Radius (in) - 0.031
California Proposition 65 Warning Required - Yes
Capacity - 16 Ga
Color - Gray
Country of Origin - China
MFG Part # (OEM) - 752130
Material - Frame- welded steel plate/tubing; Clamping fingers- ground steel; Clamping block- precision ground steel
Overall Height (in) - 45
Overall Length (in) - 63
Overall Width (in) - 38
Package Contents - 12 Fingers
Package Depth - 67.38
Package Height - 51.5
Package Weight - 849
Package Weight (lbs) - 849
Product Condition - New
UPC - 731325513394
Warranty Type - 2 Years Limited
Weight (lbs) - 772
