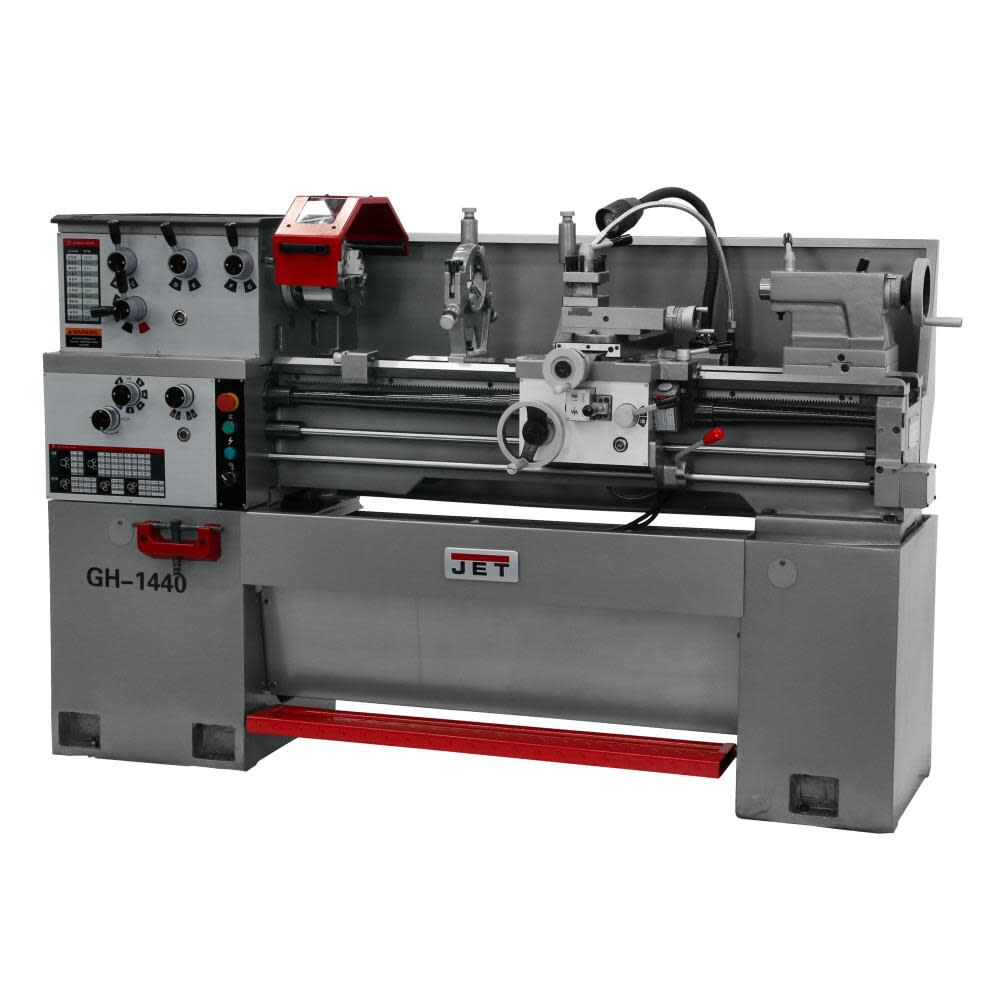

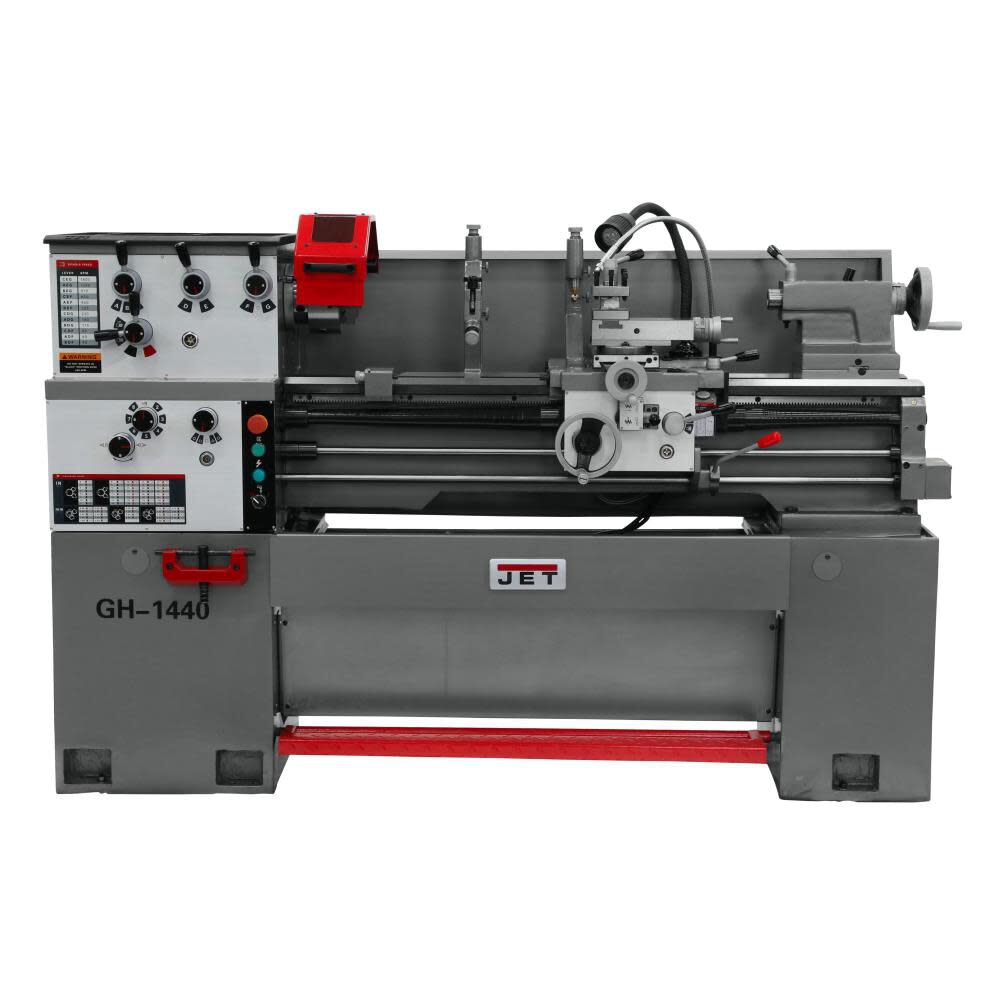

JET 14x40 Gear Head Lathe with Newall DP700 DRO and Taper Attachment
The new Jet GH-1440-1 and GH-1440-3 geared head engine lathes weigh over one ton and come equipped with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for the ultimate working durability.
The enclosed gearbox design, standard coolant system, and lead screw cover provide a smooth and quiet operation while maintaining peak performance.
The GH-1440-1 and GH-1440-3 also includes a patented electronic chuck key docking station that prevents startup without the chuck key when safely docked.
California Proposition 65 Warning. View Warning LabelFeatures
- V-way bed design is induction hardened and ground
- Splined, not keyed, shafts are utilized
- D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
- Independent lead screw and feed rod
- Adjustable gibs are incorporated in the carriage and slide ways
- Safety on/off switch
- Emergency stop within easy reach of the operator
- Electronic chuck key docking station
- Chuck guard
- Foot brake
Specifications
Brand Name - JET
Assembled Weight (lbs) - 2336.0
California Proposition 65 Warning Required - Yes
Center To Center (in) - 40.0
Color - Gray
Country of Origin - China
Digital / Analog - Digital
ETL Listed - No
Height (in) - 46.0
Horsepower (hp) - 3.0
MFG Part # (OEM) - 323384
Maximum Speed (rpm) - 1720.0
Net Tool Weight (lbs) - 2336.0
Package Contents - 14x40 Gear Head Lathe with Newall DP700 DRO and Taper Attachment
Package Depth - 0
Package Height - 0
Package Weight - 2336.0
Package Weight (lbs) - 2336
Product Condition - New
Swing Over Bed - 14.0
UL Listed - Yes
UPC - 731325733679
Variable Speed - No
Voltage - 230 Volts
Warranty Type - 2 Years Limited
